Waterway 711-4050 1.5 in heater o-ring gasketWaterway 1.5 in Heater O-Ring Gasket, 711-4050 In stock$499
Waterway 711-4050 1.5 in heater o-ring gasket
Shop all Waterway

Waterway 1.5 in Heater O-Ring Gasket, 711-4050

Ask a questionMPN 711-4050
$499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Waterway part Factory heater gasket 711-4050.
  • 1.5 in heater connection Sized for the 1.5 in heater fitting Waterway lists it against.
  • Flat gasket with o-ring extension Combines a flat sealing face with a molded o-ring lip rather than being a plain flat washer.
  • Measured dimensions given Outside diameter 2-5/16 in, inside diameter 1-7/16 in, flat section 3/32 in thick.
  • Stops union weeping A drip at the heater union is nearly always the gasket rather than the nut.
  • Fit it dry and seated Push the gasket fully into its seat before you run the union nut up, so it cannot pinch or roll.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway 1.5 in Heater O-Ring Gasket, 711-4050, SKU WWP-851-8102. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway 1.5 in Heater O-Ring Gasket, 711-4050
Waterway

1.5 in Heater O-Ring Gasket, 711-4050

$499
Waterway Lock Ring, Pro Clean Plus, 550-0701B
Waterway

Lock Ring, Pro Clean Plus, 550-0701B

$9099
Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407
Waterway

Tank Body, Crystal Water, Gray, with Label, 550-4407

$45699
Waterway Crystal Water Tank O-Ring, 805-0000
Waterway

Crystal Water Tank O-Ring, 805-0000

$3299
Waterway Filter Collar Valve Wrench, 505-1970
Waterway

Filter Collar Valve Wrench, 505-1970

$1999
Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621
Waterway

Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621

$25499
Waterway Diverter Spider Gasket, 711-1910B
Waterway

Diverter Spider Gasket, 711-1910B

$2599
Subtotal

Similar products

Other products people compare with this one.

Waterway 805-0145 o-ring for 2 inch tail piece Waterway 2" Tail Piece O-Ring, 805-0145$399 Waterway 805-0136 air relief o-ring for Clearwater II cartridge filters Waterway Clearwater II Air Relief O-Ring, 805-0136$399 Waterway 805-0232 o-ring for the 2.5 inch tail piece union Waterway O-Ring 2.5" Tail Piece, 805-0232$499 Waterway 805-0224 Buna-N o-ring, 1-3/4 in. inside diameter Waterway 1.5" O-Ring, 805-0224$499 Hayward DEX2400Z5 outlet elbow o-ring, 2-3/16 in. inside diameter Hayward Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5$399 Jandy R0442500 outlet tube o-ring for DEL48 and DEL60 DE filters Jandy Outlet Tube O-Ring, R0442500$399 Hayward SP1022C 1-1/2 in. white threaded drain plug with o-ring Hayward 1-1/2" Plug with O-Ring, SP1022C$599 Pentair 191474Z drain plug o-ring for Clean and Clear Plus filters Pentair Genuine OEM Drain Plug O-Ring for Clean and Clear Plus, 191474Z$599 Pentair 274494 valve adapter o-ring, 2-3/8 in. inside diameter, 3/16 in. cross section Pentair O-Ring, Valve Adapter 2-3/8" ID, 3/16" Cross Section, 274494$599 Hayward SX200Z4 valve O-ring, 2-1/4 in. inside diameter Hayward O-Ring, Valve 2-1/4", SX200Z4$399
Hayward DEX360M bulkhead o-ring for SwimClear cartridge filters Hayward Bulkhead O-Ring for SwimClear Cartridge Filters, DEX360M$399 Pentair 192115 genuine OEM drain plug o-ring, 1/16 by 1/2 inch Pentair Genuine OEM O-Ring for Drain Plug, 192115$399 Pentair 071426Z rubber union o-ring Pentair Genuine OEM Replacement Union O-Ring, 071426Z$599 Pentair 273513 rubber air bleeder screw o-ring for pool filters Pentair O-Ring for Air Bleeder, 273513$399 Hayward O-Ring for Perflex DE Filter | ECX9611246 Hayward O-Ring for Perflex DE Filter | ECX9611246$342 Pentair 274495 white O-ring, 3/16 inch by 2 5/8 inch Pentair Genuine OEM O-Ring 3/16" x 2 5/8", White, 274495$599 Hayward CX900H Star Clear Plus locking knob o-ring Hayward StarClear Plus Knob O-Ring, CX900H$399 Hayward CX250Z7 locking knob o-ring for Star Clear cartridge filter dome lids Hayward Star Clear Locking Knob O-Ring, CX250Z7$399 SuperPro O-231-9 o-ring, 5-1/8 inch inside diameter SuperPro O-Ring O-231-9$399 SuperPro O-39-9 universal o-ring, 1/2 inch inside diameter SuperPro Universal O-Ring 1/2" ID, O-39-9$699

Product details

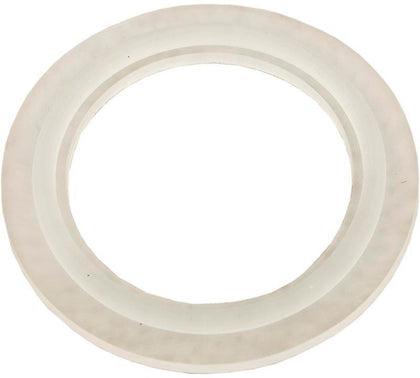

The Waterway 711-4050 is the 1.5 in heater o-ring gasket. It is the genuine Waterway replacement, a single piece that combines a flat sealing face with a molded o-ring extension.

The dimensions Waterway gives

The gasket measures 2-5/16 in across the outside and 1-7/16 in across the inside, with a flat section 3/32 in thick and a total thickness of 3/16 in once the o-ring extension is counted. The source lists the extension separately as about 3/32 in thick with a 2-5/8 in outside diameter and a 2-3/8 in inside diameter. Those extension figures are larger than the gasket figures quoted above them, so measure the old gasket before you order if the fit is critical.

Fitting

A weeping heater union is almost always the gasket, not the nut, and tightening harder on a hardened or split gasket only makes it worse. Seat the new gasket fully into its recess so it cannot roll or pinch, then run the union nut up hand tight and check for a drip under pressure.

Specifications
Brand Waterway
Manufacturer part number 711-4050
UPC 806105124616
Type Heater o-ring gasket
Size 1.5 in
Outside diameter 2-5/16 in
Inside diameter 1-7/16 in
Thickness, flat section 3/32 in
Total thickness including o-ring extension 3/16 in
O-ring extension thickness About 3/32 in
O-ring extension outside diameter 2-5/8 in
O-ring extension inside diameter 2-3/8 in
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$2999 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1599 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699

Questions and answers

What people ask about this product, answered by our pool techs.

What size connection is this for?
Waterway lists it as the 1.5 in heater o-ring gasket, part 711-4050.
What are the dimensions?
The gasket is 2-5/16 in outside diameter by 1-7/16 in inside diameter, with a 3/32 in thick flat section and 3/16 in total thickness including the o-ring extension. The source gives the extension separately as about 3/32 in thick, 2-5/8 in outside diameter and 2-3/8 in inside diameter.
My union drips even when the nut is tight. Will this fix it?
Usually. On a union the gasket does the sealing, not the nut, so more torque on a hardened or split gasket just deforms it further. Replacing the gasket is the correct repair.
Is it a flat gasket or an o-ring?
Both in one piece. It has a flat sealing face with a molded o-ring extension, which is why the source quotes two different thicknesses for it.
Ask your own question
