Polaris P20 1/8 inch male pipe thread plastic plug for the PB4-60 booster pumpPolaris Genuine OEM 1/8" NPTM Plastic Plug$1199

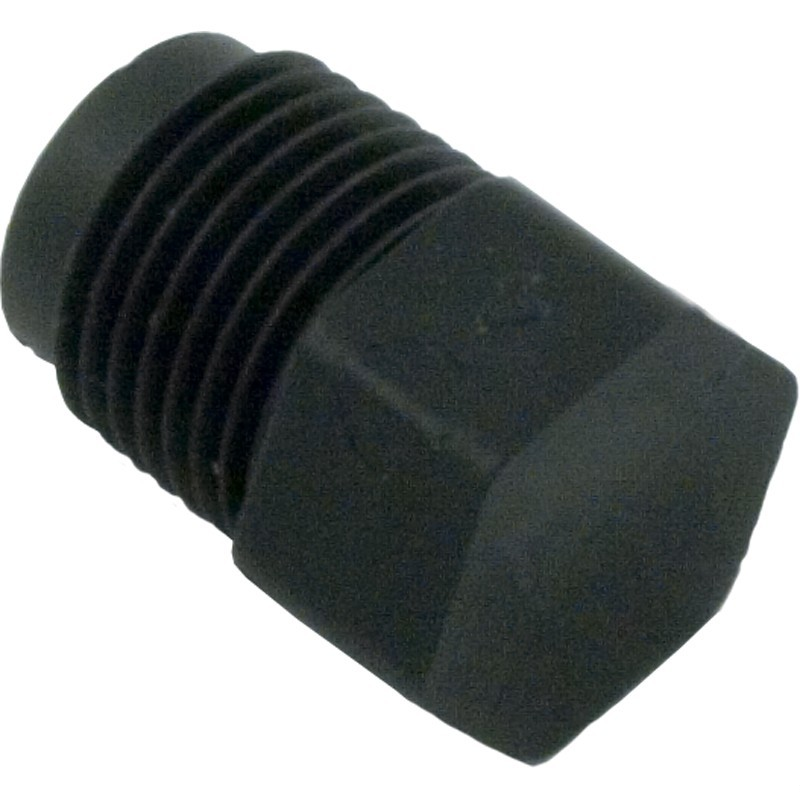

Polaris P20 1/8 inch male pipe thread plastic plug for the PB4-60 booster pump
Shop all Polaris

Polaris Genuine OEM 1/8" NPTM Plastic Plug

Ask a questionMPN P20
$1199
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Polaris Factory OEM part P20, molded in plastic.
  • 1/8 inch male pipe thread Screws into a 1/8 inch NPT female port.
  • PB4-60 booster pump Shown in the Polaris PB4-60 booster pump parts diagram.
  • Plastic body Will not seize into a plastic housing the way a metal plug can.
  • Closes an unused port Keeps a port sealed where no gauge or fitting is installed.
  • Use thread sealant PTFE tape or a plastic rated sealant on the thread, hand tight and no more.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Polaris Genuine OEM 1/8" NPTM Plastic Plug, SKU POL-201-3290. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Polaris Genuine OEM 1/8" NPTM Plastic Plug
Polaris

Genuine OEM 1/8" NPTM Plastic Plug

$1199
Polaris Front Housing Volute Cover with O-Ring, R0536300
Polaris

Front Housing Volute Cover with O-Ring, R0536300

$6699
Jandy Mechanical Shaft Seal, 13/16" ID, R0445500
Jandy

Mechanical Shaft Seal, 13/16" ID, R0445500

$3399
Polaris Genuine Replacement PB4-60 Booster Pump Impeller, R0536400
Polaris

Genuine Replacement PB4-60 Booster Pump Impeller, R0536400

$3499
Polaris Genuine OEM Booster Pump Impeller, Old Style PB4-60
Polaris

Genuine OEM Booster Pump Impeller, Old Style PB4-60

$4199
Polaris Quick Connect Install Kit for Booster Pumps, New Style, R0617100
Polaris

Quick Connect Install Kit for Booster Pumps, New Style, R0617100

$6299
Polaris Booster Pump Volute Assembly (PB4-60Q)
Polaris

Booster Pump Volute Assembly (PB4-60Q)

$7499
Subtotal

Similar products

Other products people compare with this one.

Polaris R0537000 drain plug with o-ring for the PB4-60 booster pump Polaris Drain Plug with O-Ring for PB4-60, R0537000$1599 Polaris G16 3/4 in. NHTM x NPTM adapter fitting Polaris PB4-60 Booster Pump Adapter, 3/4 in. NHTM x NPTM, G16$899 Polaris G133 genuine OEM hose barb and clamp for the PB4-60 booster pump Polaris Genuine OEM Hose Barb and Clamp, G133$1799 Polaris P40 genuine OEM shaft o-ring for the PB4-60 booster pump Polaris Genuine OEM O-Ring for Shaft, PB4-60 Booster Pump$399 Polaris R0747800 shaft seal for PB4SQ booster pump Polaris Genuine OEM Shaft Seal for PB4SQ Booster Pump, R0747800$3499 Polaris P19 six foot flexible reinforced pump hose for PB4-60 booster pump Polaris Genuine OEM 6' Pump Hose for PB4-60/PB4-60Q Booster Pump$4299 Polaris P55 OEM motor shaft seal for the PB4-60 booster pump Polaris Booster Pump OEM Shaft Seal$3399 Polaris R0734300 PB4SQ o-ring set with drain plug kit Polaris PB4SQ O-Ring Set with Drain Plug Kit, R0734300$5499 Polaris P95 bracket o-ring for the PB4-60 booster pump Polaris PB4-60 Booster Pump Bracket O-Ring, P95$1799 Polaris O-299-9 bracket O-ring for the PB4-60 booster pump, also listed as P-95 Polaris Bracket O-Ring for PB4-60 Booster Pump, O-299-9$399
Polaris R0536600 new style backplate o-ring for PB4-60 booster pump Polaris PB4-60 Backplate O-Ring, New Style, R0536600$2499 Polaris P133 Softube quick connect adapter fitting, four pack Polaris Softube Quick Connect, 4 Pack, P133$3299 Polaris R0536700 backplate for the new style PB4-60 booster pump Polaris Booster Pump Backplate, PB4-60 New Style, R0536700$7999 Polaris R0722800 PB4SQ booster pump impeller and diffuser kit Polaris R0722800 PB4SQ Boost Pump Impeller and Diffuser Kit$10199 Polaris R0723100 PB4SQ booster pump housing body Polaris PB4SQ Booster Pump Housing Body, R0723100$12099

Product details

The Polaris P20 is a plastic plug with a 1/8 inch male pipe thread, shown in the parts diagram for the PB4-60 booster pump. It is the genuine Polaris OEM part.

What it does

Pump housings are molded with more ports than any single installation uses, so that the same casting can serve a gauge here, a drain there, or nothing at all. A plug closes the ports that are not in use. This one is the small 1/8 inch size, and it is molded in plastic to match the housing it threads into.

Fitting it

Wrap the thread with PTFE tape or use a thread sealant suited to plastic, then run it in hand tight and give it only a small nudge beyond that. Pipe threads are tapered and seal by wedging, so extra force does not buy a better seal. It drives the plug deeper into the port and is a common way of cracking a housing that was perfectly sound before the repair.

Specifications
Brand Polaris
Manufacturer part number P20
UPC 738919002197
Type Plastic pipe plug
Thread 1/8" male pipe thread
Material Plastic
Part type Pool pump part
Shown in parts diagram for Polaris PB4-60 Booster Pump Parts
Shipping weight 0.02 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Polaris

Two women sitting at the edge of a pool with their feet in the water. Goodbye pool chores, hello swim time. Polaris

Polaris cleaners

Polaris 280 Pressure Side Automatic Pool Cleaner Polaris 3900 Sport Automatic Pool Cleaner Polaris 9550 4WD Sport Robotic Pool Cleaner with Remote, F9550 Polaris 3/4 HP Booster Pump, Complete, PB4-60
Shop Polaris cleaners

Genuine Polaris parts

Polaris Genuine OEM Tail Sweep Hose Scrubber, 9-100-3105 Polaris Genuine OEM 180/280 Factory Tune-up Kit Polaris Genuine OEM Back-up Valve, Complete, White (180, 280, 380, 3900) Polaris Genuine OEM 3900 All-Purpose Dual-Chamber Zippered SuperBag, 39-310
Shop Polaris parts
Robotic cleaners: a Polaris Freedom cordless robotic cleaner on a pool deckPressure cleaners: a Polaris 280 pressure side cleaner
Polaris makes pressure side, suction and robotic pool cleaners, booster pumps and genuine replacement parts.Shop all Polaris

Customer reviews

More from Polaris

Polaris Unibridge 5820 main drain cover bridge in white Polaris Unibridge Main Drain Cover, White, 5820$10699 Polaris 9-100-3105 tail sweep hose scrubber Polaris Genuine OEM Tail Sweep Hose Scrubber, 9-100-3105$799 Polaris 48-070 complete 31 ft feed hose assembly with backup valve and in-line filter Polaris Genuine OEM Complete 31-Foot Feed Hose with Backup Valve and In-Line Filter, 48-070$28999 Polaris 39-310 all purpose dual chamber zippered SuperBag for the 3900 Sport Polaris Genuine OEM 3900 All-Purpose Dual-Chamber Zippered SuperBag, 39-310$6199 Polaris R0536300 front housing volute with o-ring for new style PB4-60 booster pumps Polaris Front Housing Volute Cover with O-Ring, R0536300$6699 Polaris 280 pressure side automatic pool cleaner, complete Polaris 280 Pressure Side Automatic Pool Cleaner$59900 Web Price Polaris A49 factory tune up kit for 180 and 280 pressure side pool cleaners Polaris Genuine OEM 180/280 Factory Tune-up Kit$34099 Polaris 3900 Sport F6 pressure side automatic pool cleaner Polaris 3900 Sport Automatic Pool Cleaner$99599 Polaris C10 MaxTrax tire for 180, 280, 360 and 380 pressure cleaners Polaris Genuine OEM Tire, MaxTrax (180/280/380/360)$2199 Polaris G52 complete back-up valve, white, for 180, 280, 380 and 3900 Sport cleaners Polaris Genuine OEM Back-up Valve, Complete, White (180, 280, 380, 3900)$11299
Polaris C11 genuine black tire for 180, 280, 360 and 380 pool cleaners Polaris Genuine OEM Tire, Black$2299 Polaris 9-100-3100 Polaris 360 feed hose complete, corrugated hose with swivels and floats Polaris 360 Feed Hose Complete, Genuine OEM, 9-100-3100$24699 Polaris R0912100 K13 all purpose zipper debris bag with tail scrubber for the Polaris 280 cleaner Polaris All Purpose Zipper Bag K13 with Tail Scrubber for 280 Pool Cleaner, R0912100$3699 Polaris R0765500 replacement brush for the 7000 above ground pool cleaner Polaris Brush for 7000 Above Ground Cleaner, R0765500$5799 Polaris 9-100-1005 complete internal frame for 360 and 380 pressure side cleaners Polaris Genuine OEM Frame Complete (360/380), 9-100-1005$11099 Polaris 9-100-3102 genuine 6 ft cuffless feed hose for the Polaris 360 pool cleaner Polaris 360 Pool Cleaner Feed Hose, Genuine OEM 6 Ft Replacement Hose 9-100-3102, No Cuffs$3499 Polaris R0765400 7240 Sport replacement brush Polaris Genuine OEM 7240 Sport Brush, R0765400$5699 Polaris R0897800 fine filter canister for Epic and EVO robotic cleaners Polaris Epic 8520 Fine Filter Canister, R0897800$7799 Polaris 9-100-9010 factory tune-up kit for the 380 and 360 pressure cleaners Polaris Genuine OEM 380/360 Factory Tune-Up Kit, 9-100-9010$22099 Polaris D20 genuine hose swivel for 180, 280, 380, 3900 and 480 Pro cleaners Polaris Genuine OEM Hose Swivel for 380/280/180 Pool Cleaners$2599

Questions and answers

What people ask about this product, answered by our pool techs.

Where does this plug go?
It appears in the Polaris PB4-60 booster pump parts diagram, closing off a 1/8 inch female pipe thread port.
Is NPTM the same as MPT?
Yes. Both describe the male side of a national pipe thread. This plug has a 1/8 inch male pipe thread.
Why plastic rather than brass?
A plastic plug threaded into a plastic housing expands and contracts with it and does not corrode into place. Metal plugs in plastic ports are notoriously hard to get out years later.
How tight should it go?
Sealant on the thread, then hand tight plus a small nudge. Pipe threads are tapered, so extra torque does not improve the seal, it just wedges the plug harder and can crack the port.
