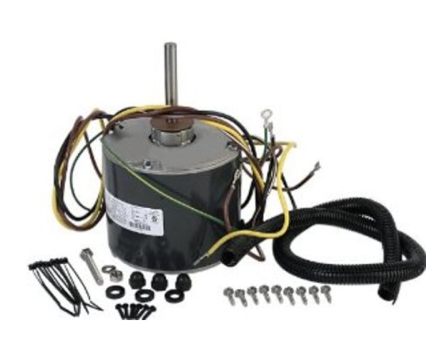

Jandy R3000701 fan motor, 1/2 HP 230 VAC, for Zodiac titanium heat pumpsJandy Fan Motor, 1/2 HP, 230 VAC, R3000701 In stock$55399
Jandy R3000701 fan motor, 1/2 HP 230 VAC, for Zodiac titanium heat pumps
Shop all Jandy

Jandy Fan Motor, 1/2 HP, 230 VAC, R3000701

Ask a questionMPN R3000701
$55399
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jandy part Factory motor R3000701 for Zodiac titanium heat pumps.
  • 1/2 HP at 230 VAC Rated half horsepower on a 230 volt supply.
  • Zodiac catalog listing Listed for AE-Ti models AE2000, AE2500 and AE3000 built 2004 to 2009, and AE1500 built 2006 to 2009.
  • Broader listings elsewhere Some vendors also show it for 2000, 2500 and 3000 EE-Ti and AE-Ti, AE 500, Air Energy 2 and Air Energy Magnum 550 SETI units.
  • Confirm by serial number Because those two lists disagree, contact Zodiac with your heat pump serial number before ordering.
  • The airflow the unit needs A heat pump only makes heat while the fan pulls air across the coil, so a failed fan motor stops heating entirely.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Fan Motor, 1/2 HP, 230 VAC, R3000701, SKU AEH-151-1005. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Fan Motor, 1/2 HP, 230 VAC, R3000701
Jandy

Fan Motor, 1/2 HP, 230 VAC, R3000701

$55399
Jandy Igniter Kit for JXi Heater Models 200/260/400, R0457502
Jandy

Igniter Kit for JXi Heater Models 200/260/400, R0457502

$6299
Jandy Access Door Kit for JXi Heaters, R0589600
Jandy

Access Door Kit for JXi Heaters, R0589600

$4399
Jandy JXi User Interface Kit for Model 200/260/400, R0591900
Jandy

JXi User Interface Kit for Model 200/260/400, R0591900

$24699
Jandy Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001
Jandy

Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001

$6399
Jandy 3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100
Jandy

3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100

$16999
Jandy Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500
Jandy

Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500

$9899
Subtotal

Similar products

Other products people compare with this one.

Pentair 474323Z fan motor with acorn nut kit for UltraTemp 140 heat pumps Pentair Fan Motor with Acorn Nut Kit for UltraTemp 140, 140C, 140 HC Heat Pump, 474323Z$36699 Pentair 473785 fan motor with acorn nut kit for UltraTemp heat pumps Pentair 473785 Fan Motor with Acorn Nut Kit for UltraTemp Heat Pump$32799 Hayward HPX11023564 HeatPro 1/3 HP fan motor Hayward HeatPro 1/3 HP Fan Motor, HPX11023564$35299 AquaCal AutoPilot STK0270 HP9 to HP11 conversion kit AquaCal AutoPilot HP9 to HP11 Conversion Kit, STK0270$52999 Pentair 473778 contactor for UltraTemp pool heat pumps Pentair Contactor for UltraTemp Heat Pump, 473778$35499 AquaCal AutoPilot HP7 to HP11 Conversion Kit, STK0269$58299 AquaCal STK0253 HP7 to HP10 dial display conversion kit AquaCal HP7 to HP10 Dial Display Conversion Kit, STK0253$55499 Jandy R3001100 fan motor capacitor, 7.5/370 MFD, for EE2000, EE2500 and EE3000 heat pumps Jandy Fan Motor Capacitor, 7.5/370 MFD EE2000, 2500, 3000, R3001100$12899 Raypak H000040 heat pump fan motor guard Raypak Heat Pump Fan Motor Guard H000040$24999 Pentair 473783Z fan blade for UltraTemp pool and spa heat pump, 60 Hz Pentair Fan Blade for UltraTemp Pool/Spa Heat Pump, 60 Hz, 473783Z$17599
Pentair 473786 24 inch fan guard for UltraTemp pool and spa heat pumps Pentair 24 Inch Fan Guard for UltraTemp Heat Pump, 473786$16399 Raypak H000127 capacitor, 80+5 MFD 370 VAC, for 5350, 6350 and 6200 heat pump pool heaters Raypak Capacitor for 5350/6350/6200 Heat Pump Pool Heater, 3 Phase, 80+5 MFD, 370 VAC, H000127$7399 Raypak H000051 capacitor, 80 MFD 440 VAC, for heat pump pool heaters Raypak H000051 Capacitor for 8350/9350/9353/8320ti Heat Pump Pool Heater, 3 Phase, 80 MFD, 440 VAC$5499 Raypak H000299 DPST fan relay for 2350, 3350 and 4350 heat pump pool heaters Raypak H000299 DPST Fan Relay for 2350/3350/4350 Heat Pump Pool Heater$2799 Hayward SMX11023511 HeatPro heating and cooling control board Hayward HeatPro Heating/Cooling Control Board, SMX11023511$26499 Raypak 100-10000816 water bypass for the Crosswind V pool heat pump Raypak 100-10000816 Water Bypass for Crosswind V Heat Pump$25899 Raypak H000173 8 ton TX valve for heat pump pool heaters Raypak 8 Ton TX Valve for Heat Pump Pool Heaters, H000173$24499 Pentair 473787Z thermostatic expansion valve for UltraTemp 120, 120C and 90I heat pumps Pentair Thermostatic Expansion Valve for UltraTemp Models 120, 120C, 90I Heat Pumps, 473787Z$24399 Pentair 474327Z thermostatic expansion valve for UltraTemp 140, 140C and 140HC heat pumps Pentair Thermostatic Expansion Valve for UltraTemp 140/140C/140HC Heat Pumps, 474327Z$22399 Pentair 473693 control board bezel with label for UltraTemp heat pump Pentair Control Board Bezel with Label for UltraTemp Heat Pump, 473693$17799

Product details

The Jandy R3000701 is the genuine replacement fan motor for Zodiac titanium pool heat pumps, rated 1/2 HP at 230 VAC.

Compatibility, read this first

The two sources for this motor do not agree. The Zodiac catalog lists R3000701 only for AE-Ti models AE2000, AE2500 and AE3000 manufactured from 2004 to 2009, and AE1500 manufactured from 2006 to 2009. Some vendors list it more broadly, for 2000, 2500 and 3000 EE-Ti and AE-Ti units, AE 500, Air Energy 2 and Air Energy Magnum 550 SETI heat pumps. Contact Zodiac with the serial number on your heat pump to confirm compatibility before you order.

What the fan motor does

A heat pump pulls heat out of the air, and it can only do that while the fan draws air across the evaporator coil. When the motor seizes, runs slow, or trips out on its own thermal protection, the unit runs but stops making heat. Bearing noise and a fan that will not spin freely by hand are the usual signs.

Installation

This is 230 volt work inside a heat pump cabinet. Isolate the unit at the breaker and have a qualified technician handle the wiring and the fan blade balance if you are not equipped for it.

Specifications
Brand Jandy
Manufacturer part number R3000701
UPC 052337028219
Type Fan motor
Horsepower 1/2 HP
Voltage 230 VAC
Application Titanium heat pump fan motor
Fits per Zodiac catalog AE-Ti AE2000, AE2500 and AE3000 built 2004 to 2009, and AE1500 built 2006 to 2009
Also listed by some vendors for Model 2000, 2500 and 3000 EE-Ti, AE-Ti, AE 500, Air Energy 2 and Air Energy Magnum 550 SETI heat pumps
Shipping weight 15.82 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$76899 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2499 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$84099 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24999 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33199 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

Which heat pumps does this motor fit?
The Zodiac catalog lists R3000701 for AE-Ti models AE2000, AE2500 and AE3000 manufactured from 2004 to 2009, and AE1500 manufactured from 2006 to 2009.
I have seen it listed for EE-Ti models as well. Which is right?
Both listings exist. Some vendors show this motor for 2000, 2500 and 3000 EE-Ti and AE-Ti units, AE 500, Air Energy 2 and Air Energy Magnum 550 SETI, which goes beyond the Zodiac catalog. Contact Zodiac with the serial number on your heat pump to confirm before ordering.
What are the electrical ratings?
1/2 HP at 230 VAC.
What happens when the fan motor fails?
The heat pump loses the airflow it needs across the evaporator coil, so it stops producing heat even though the compressor and water side are fine.
Ask your own question
