Pentair 473787Z thermostatic expansion valve for UltraTemp 120, 120C and 90I heat pumpsPentair Thermostatic Expansion Valve for UltraTemp Models 120, 120C, 90I Heat Pumps, 473787Z In stock$23299

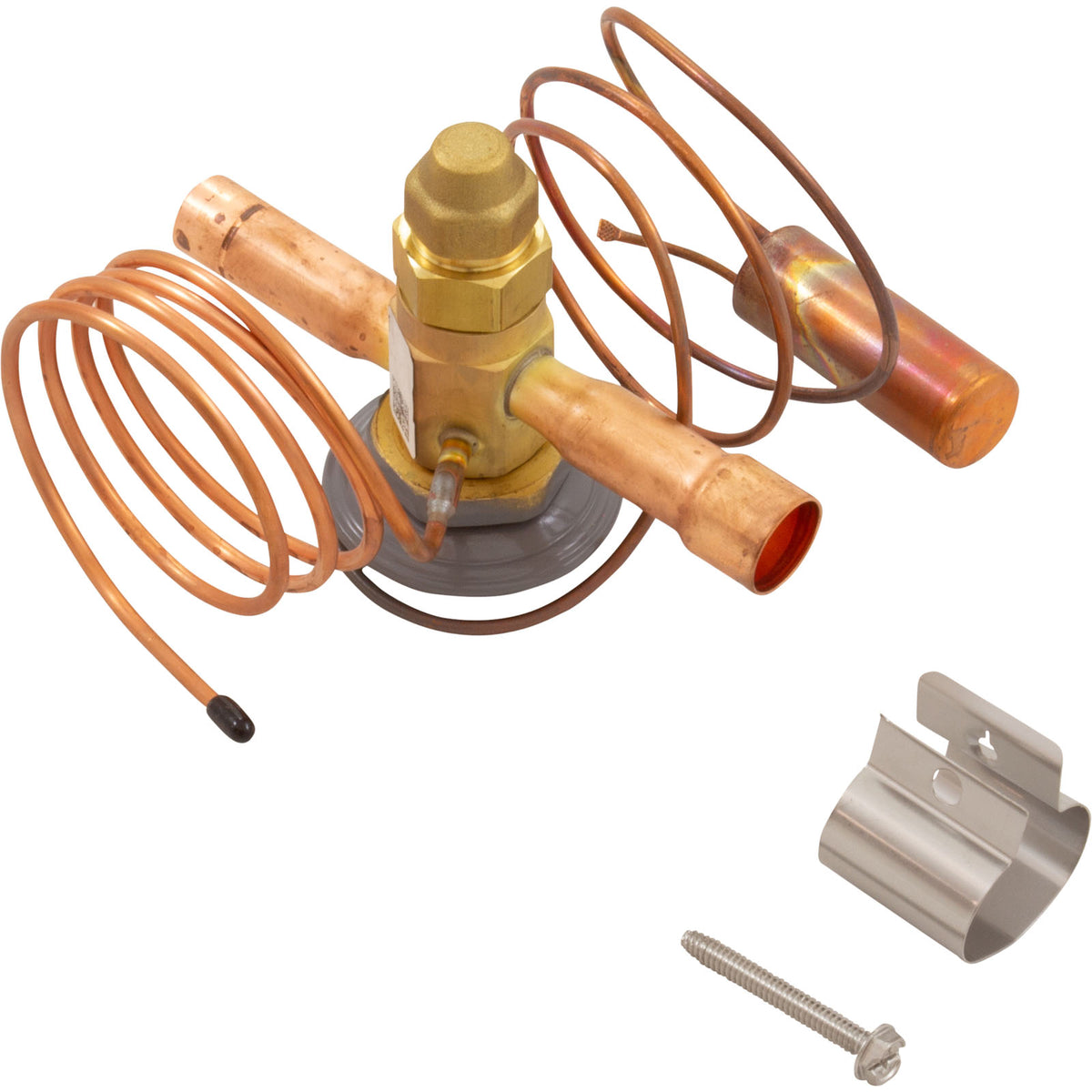

Pentair 473787Z thermostatic expansion valve for UltraTemp 120, 120C and 90I heat pumps
Shop all Pentair

Pentair Thermostatic Expansion Valve for UltraTemp Models 120, 120C, 90I Heat Pumps, 473787Z

Ask a questionMPN 473787Z
$23299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair Factory part 473787Z for the UltraTemp heat pump line.
  • Three models only Built for the UltraTemp 120, 120C and 90I, not for the whole UltraTemp range.
  • 8 ton capacity Sized to the refrigerant circuit used in those three models.
  • Rated 97 psig The valve carries a 97 psig rating.
  • Meters the refrigerant The expansion valve controls how much refrigerant enters the evaporator, which sets how well the unit pulls heat out of the air.
  • The 140 takes a different valve UltraTemp 140, 140C and 140HC units use a separate Pentair expansion valve.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Thermostatic Expansion Valve for UltraTemp Models 120, 120C, 90I Heat Pumps, 473787Z, SKU PUR-151-4330. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Thermostatic Expansion Valve for UltraTemp Models 120, 120C, 90I Heat Pumps, 473787Z
Pentair

Thermostatic Expansion Valve for UltraTemp Models 120, 120C, 90I Heat Pumps, 473787Z

$23299
Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Pentair

Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z

$53899
Pentair MasterTemp 125 Manifold Kit, 474972
Pentair

MasterTemp 125 Manifold Kit, 474972

$28399
Pentair Tube Sheet Coil Assembly Kit for 250NA 250LP MasterTemp Heater, 474059
Pentair

Tube Sheet Coil Assembly Kit for 250NA 250LP MasterTemp Heater, 474059

$93499
Pentair Combustion Chamber Assembly for Max-E-Therm Heaters, 474957
Pentair

Combustion Chamber Assembly for Max-E-Therm Heaters, 474957

$37399
Pentair UltraTemp Capacitor Replacement with Bracket, 440V, 473731Z
Pentair

UltraTemp Capacitor Replacement with Bracket, 440V, 473731Z

$9299
Pentair Flame Holder Kit for MasterTemp Model 125 Heater Burner System, 474994
Pentair

Flame Holder Kit for MasterTemp Model 125 Heater Burner System, 474994

$15199
Subtotal

Similar products

Other products people compare with this one.

Pentair 474327Z thermostatic expansion valve for UltraTemp 140, 140C and 140HC heat pumps Pentair Thermostatic Expansion Valve for UltraTemp 140/140C/140HC Heat Pumps, 474327Z$22999 Pentair 473777 control board bezel for UltraTemp pool and spa heat pump Pentair Control Board Bezel for UltraTemp Pool and Spa Heat Pump, 473777$16199 Pentair 473783Z fan blade for UltraTemp pool and spa heat pump, 60 Hz Pentair Fan Blade for UltraTemp Pool/Spa Heat Pump, 60 Hz, 473783Z$18299 Pentair 473786 24 inch fan guard for UltraTemp pool and spa heat pumps Pentair 24 Inch Fan Guard for UltraTemp Heat Pump, 473786$16099 Pentair 473693 control board bezel with label for UltraTemp heat pump Pentair Control Board Bezel with Label for UltraTemp Heat Pump, 473693$17799 Pentair 473785 fan motor with acorn nut kit for UltraTemp heat pumps Pentair 473785 Fan Motor with Acorn Nut Kit for UltraTemp Heat Pump$32399 Raypak H000173 8 ton TX valve for heat pump pool heaters Raypak 8 Ton TX Valve for Heat Pump Pool Heaters, H000173$24499 Raypak 100-10000816 water bypass for the Crosswind V pool heat pump Raypak 100-10000816 Water Bypass for Crosswind V Heat Pump$25899 Hayward HPX95005-310188 HP50A heat pump LCD controller Hayward HP50A Heat Pump LCD Controller, HPX95005-310188$11999 Raypak H000040 heat pump fan motor guard Raypak Heat Pump Fan Motor Guard H000040$13099
Hayward SMX11023511 HeatPro heating and cooling control board Hayward HeatPro Heating/Cooling Control Board, SMX11023511$29199 Jandy R3001100 fan motor capacitor, 7.5/370 MFD, for EE2000, EE2500 and EE3000 heat pumps Jandy Fan Motor Capacitor, 7.5/370 MFD EE2000, 2500, 3000, R3001100$12899 Pentair 473778 contactor for UltraTemp pool heat pumps Pentair Contactor for UltraTemp Heat Pump, 473778$35799 Pentair 474323Z fan motor with acorn nut kit for UltraTemp 140 heat pumps Pentair Fan Motor with Acorn Nut Kit for UltraTemp 140, 140C, 140 HC Heat Pump, 474323Z$36699 Pentair 461030Z water union and tie down kit for the UltraTemp heat pump Pentair Water Union and Tie Down Kit for UltraTemp Heat Pump, 461030Z$7699 Pentair 473665 probe thermistor defrost sensor for pool and spa heat pumps Pentair 473665 Probe Thermistor Defrost Sensor for Pool and Spa Heat Pumps$4999 Pentair 475193Z titanium heat exchanger for UltraTemp pool heat pumps Pentair Titanium Heat Exchanger for UltraTemp Heat Pump, 475193Z$1,25199 Pentair 473656 low pressure switch for ThermalFlo Titanium heat pump Pentair Low Pressure Switch for ThermalFlo Titanium Heat Pump, 473656$11499 Hayward HPX1985 contactor for HeatPro heat pumps Hayward HPX1985 Contactor for HeatPro Heat Pumps$9199 Raypak H000074 heat exchanger repair part for RHP heat pumps Raypak Heat Exchanger Repair for R22 RHP 5310, 6310, and 8320TI Heat Pumps, H000074$7499

Product details

The Pentair 473787Z is the thermostatic expansion valve for the UltraTemp 120, 120C and 90I pool heat pumps. It is the genuine Pentair part, rated at 97 psig and 8 ton.

What the valve does

A heat pump makes heat by moving refrigerant through a cycle, and the expansion valve is what meters that refrigerant into the evaporator coil. Get too little through and the unit cannot absorb heat from the air; get too much and it floods. When the valve stops metering correctly the symptom is usually a heat pump that runs and runs but never brings the pool up.

Match the model

This valve is specific to the UltraTemp 120, 120C and 90I. The larger UltraTemp 140, 140C and 140HC take a different Pentair expansion valve, so check the model plate on your unit before ordering.

Specifications
Brand Pentair
Manufacturer part number 473787Z
UPC 788379831387
Type Thermostatic expansion valve
Fits Pentair UltraTemp 120, 120C, 90I heat pumps
Pressure rating 97 psig
Capacity 8 Ton
Shipping weight 0.9 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which UltraTemp models does this valve fit?
The UltraTemp 120, the 120C and the 90I.
Will it work on an UltraTemp 140?
No. The 140, 140C and 140HC use a different Pentair expansion valve, sold under its own part number.
What is the rating on this valve?
97 psig, 8 ton.
What does the expansion valve actually do?
It meters refrigerant into the evaporator coil. If it sticks or fails, the heat pump loses its ability to absorb heat from the air and heating output drops off even though the unit still runs.
