Jandy R3001100 fan motor capacitor, 7.5/370 MFD, for EE2000, EE2500 and EE3000 heat pumpsJandy Fan Motor Capacitor, 7.5/370 MFD EE2000, 2500, 3000, R3001100 In stock$12899
Jandy R3001100 fan motor capacitor, 7.5/370 MFD, for EE2000, EE2500 and EE3000 heat pumps
Shop all Jandy

Jandy Fan Motor Capacitor, 7.5/370 MFD EE2000, 2500, 3000, R3001100

Ask a questionMPN R3001100
$12899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Rated 7.5/370 MFD The capacitance and voltage rating the fan motor expects, matched to the factory part.
  • Fits three models Listed for the EE2000, EE2500 and EE3000 heat pumps.
  • Genuine Jandy R3001100 The factory part number rather than a hardware store substitute.
  • The hum and no spin fault A failed run capacitor is the classic reason a fan motor buzzes but never turns.
  • Fan side, not compressor This is the capacitor for the fan motor, which is a separate part from the compressor capacitor.
  • Common wear item Capacitors dry out and drift with heat and age, and they are meant to be replaced.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy Fan Motor Capacitor, 7.5/370 MFD EE2000, 2500, 3000, R3001100, SKU ZOD-R3001100. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy Fan Motor Capacitor, 7.5/370 MFD EE2000, 2500, 3000, R3001100
Jandy

Fan Motor Capacitor, 7.5/370 MFD EE2000, 2500, 3000, R3001100

$12899
Jandy Igniter Kit for JXi Heater Models 200/260/400, R0457502
Jandy

Igniter Kit for JXi Heater Models 200/260/400, R0457502

$6299
Jandy Access Door Kit for JXi Heaters, R0589600
Jandy

Access Door Kit for JXi Heaters, R0589600

$4399
Jandy JXi User Interface Kit for Model 200/260/400, R0591900
Jandy

JXi User Interface Kit for Model 200/260/400, R0591900

$24699
Jandy Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001
Jandy

Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001

$5899
Jandy 3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100
Jandy

3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100

$16999
Jandy Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500
Jandy

Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500

$9699
Subtotal

Similar products

Other products people compare with this one.

Raypak H000127 capacitor, 80+5 MFD 370 VAC, for 5350, 6350 and 6200 heat pump pool heaters Raypak Capacitor for 5350/6350/6200 Heat Pump Pool Heater, 3 Phase, 80+5 MFD, 370 VAC, H000127$7399 Raypak H000051 capacitor, 80 MFD 440 VAC, for heat pump pool heaters Raypak H000051 Capacitor for 8350/9350/9353/8320ti Heat Pump Pool Heater, 3 Phase, 80 MFD, 440 VAC$7399 Raypak H000040 heat pump fan motor guard Raypak Heat Pump Fan Motor Guard H000040$13099 Pentair 473731Z UltraTemp capacitor with mounting bracket, 440V Pentair UltraTemp Capacitor Replacement with Bracket, 440V, 473731Z$9299 Pentair 473783Z fan blade for UltraTemp pool and spa heat pump, 60 Hz Pentair Fan Blade for UltraTemp Pool/Spa Heat Pump, 60 Hz, 473783Z$18299 Pentair 473786 24 inch fan guard for UltraTemp pool and spa heat pumps Pentair 24 Inch Fan Guard for UltraTemp Heat Pump, 473786$16099 Raypak H000326 switch decal membrane for 5450, 6450 and 8450 heat pumps Raypak 5450/6450/8450 Heat Pump Switch Decal Membrane, H000326$8299 Pentair 473777 control board bezel for UltraTemp pool and spa heat pump Pentair Control Board Bezel for UltraTemp Pool and Spa Heat Pump, 473777$16199 Hayward HPX11024258 HeatPro heat pump replacement HP switch Hayward HeatPro Heat Pump Replacement HP Switch, HPX11024258$7999 Pentair 473693 control board bezel with label for UltraTemp heat pump Pentair Control Board Bezel with Label for UltraTemp Heat Pump, 473693$17799
Hayward HPX95005-310188 HP50A heat pump LCD controller Hayward HP50A Heat Pump LCD Controller, HPX95005-310188$11999 Pentair 461030Z water union and tie down kit for the UltraTemp heat pump Pentair Water Union and Tie Down Kit for UltraTemp Heat Pump, 461030Z$7699 Raypak H000317 PVC union connector kit with built-in drain for heat pump pool heaters Raypak Genuine OEM Heat Pump Union Connector Kit, H000317$6499 Hayward HPX1985 contactor for HeatPro heat pumps Hayward HPX1985 Contactor for HeatPro Heat Pumps$9199 Hayward CHXPRS1931 pressure switch, CZ model Hayward Pressure Switch, CZ Model, CHXPRS1931$7699 Pentair 473656 low pressure switch for ThermalFlo Titanium heat pump Pentair Low Pressure Switch for ThermalFlo Titanium Heat Pump, 473656$11499 Raypak brand image shown for the H000011 liquid line drier Raypak H000011 Liquid Line Drier for 5200/6200/8200/6300 Heat Pump Pool Heater$9499 Raypak H000074 heat exchanger repair part for RHP heat pumps Raypak Heat Exchanger Repair for R22 RHP 5310, 6310, and 8320TI Heat Pumps, H000074$7499 Jandy R3000701 fan motor, 1/2 HP 230 VAC, for Zodiac titanium heat pumps Jandy Fan Motor, 1/2 HP, 230 VAC, R3000701$55399 Pentair 473785 fan motor with acorn nut kit for UltraTemp heat pumps Pentair 473785 Fan Motor with Acorn Nut Kit for UltraTemp Heat Pump$32399

Product details

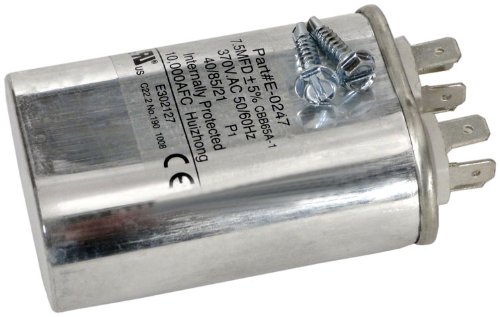

Jandy R3001100 is the fan motor capacitor for the EE2000, EE2500 and EE3000 heat pumps, rated 7.5/370 MFD.

What a run capacitor does

The fan motor in a heat pump needs a phase shifted current to develop starting torque and to run efficiently. The capacitor supplies it. When the capacitor dries out or drifts away from its rated value, the motor no longer has what it needs, and the usual result is a fan that buzzes, gets hot and never comes up to speed.

Diagnosing before replacing

Turn the fan by hand with the power off. If it spins freely and the motor still only hums when energized, the capacitor is the prime suspect. If the fan is stiff or grinding, the bearings have gone and a new capacitor will not save it.

Safety

Capacitors hold a charge after the power is off. They must be discharged safely before anyone touches the terminals. If that is not familiar work, this is a job for a qualified technician.

Specifications
Brand Jandy
Manufacturer part number R3001100
UPC 052337028271
Type Fan motor capacitor
Rating 7.5/370 MFD
Fits EE2000, EE2500, EE3000 heat pumps
Shipping weight 0.4 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$67399 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2599 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$70099 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24899 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$32699 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

What is the rating?
7.5/370 MFD. That is 7.5 microfarads at a 370 volt rating.
Which heat pumps is it for?
It is listed for the EE2000, EE2500 and EE3000 models.
My fan hums but will not turn, is this it?
That is the textbook symptom of a failed run capacitor. Confirm the fan turns freely by hand first, so you are not replacing a capacitor because of a seized motor.
Is this the compressor capacitor?
No. This is the fan motor capacitor. The compressor uses its own.
