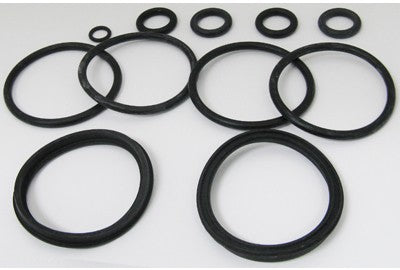

Hayward FDXLFOR1930 FD header o-ring kit for pool heatersHayward FD Header O-Ring Kit, FDXLFOR1930 In stock$4099
Hayward FDXLFOR1930 FD header o-ring kit for pool heaters
Shop all Hayward

Hayward FD Header O-Ring Kit, FDXLFOR1930

Ask a questionMPN FDXLFOR1930
$4099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward part Factory kit FDXLFOR1930 rather than generic o-rings cut to fit.
  • FD header fitment The header o-ring kit for Hayward FD model heaters.
  • Supplied as a kit The seals come together, so the whole header joint is renewed at once.
  • Fit it whenever the header comes off Old o-rings take a set and rarely seal a second time.
  • Stops header leaks A weeping header joint is the classic sign the seals are done.
  • Small part, big consequence Water leaking inside a heater cabinet finds the burner tray and the controls, so it is worth fixing properly.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward FD Header O-Ring Kit, FDXLFOR1930, SKU HAY-151-0024. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward FD Header O-Ring Kit, FDXLFOR1930
Hayward

FD Header O-Ring Kit, FDXLFOR1930

$4099
Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250
Hayward

Heat Exchanger Assembly for H250FD, FDXLHXA1250

$1,28999
Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003
Hayward

Natural Gas Valve Kit, FD Series, FDXLGSV0003

$41899
Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Hayward

H-Series Bezel & Keypad Assembly, FDXLBKP1930

$12199
Hayward HDF400 Thermistor, FDXLTER1931
Hayward

HDF400 Thermistor, FDXLTER1931

$5999
Hayward Flame Sensor, Low NOx/Universal, IDXLFLS1930
Hayward

Flame Sensor, Low NOx/Universal, IDXLFLS1930

$9399
Hayward Front Header Assembly, FDXLFHA1930
Hayward

Front Header Assembly, FDXLFHA1930

$32599
Subtotal

Similar products

Other products people compare with this one.

Hayward FDXLBPK1930 bypass cartridge kit for Universal H-Series Low NOx pool heaters Hayward H-Series Low NOx Bypass Cartridge Kit, FDXLBPK1930$5999 Hayward HAXTRK1930 pilot tube kit for H Series pool heaters Hayward H Series Pilot Tube Kit, HAXTRK1930$4399 Hayward Bezel Top Gasket Kit FD Models | FDXLGSK1932 Hayward Bezel Top Gasket Kit FD Models | FDXLGSK1932$3401 Hayward FDXLBVS1930 blower vacuum switch for Universal H-Series Low NOx heaters Hayward Blower Vacuum Switch, FDXLBVS1930$5099 Hayward FDXLEGL1930 exhaust gas temperature limit for H-Series pool heaters Hayward Exhaust Gas Temperature Limit for H-Series Heaters, FDXLEGL1930$3799 Hayward FDXLTER1930 thermistor for Universal H-Series FD pool heaters Hayward Thermistor, FD, FDXLTER1930$6099 Hayward HAXNUT1930 H-Series ED1 and ED2 union nut Hayward ED1/ED2 Union Nut, 2 Pack, HAXNUT1930$3599 Hayward FDXLWPS1930 H-Series pressure switch Hayward H-Series Pressure Switch, FDXLWPS1930$5299 Hayward CHXTSW1930 system on/off switch for CZ, HM2 and H-Series pool heaters Hayward H-Series System On/Off Switch CZ/HM2/H-Series, CHXTSW1930$3399 Hayward CHXTSW1931 3 way toggle system switch for H-Series pool heaters Hayward 3 Way Toggle System Switch, H-Series, CHXTSW1931$3599
Hayward HAXHLI1930 135F hi-limit switch for H-Series pool heaters Hayward 135F Hi-Limit, H-Series, HAXHLI1930$5999 Hayward IDXBLG1930 blower gasket for H-Series above ground pool heaters Hayward H-Series Above Ground Blower Gasket, IDXBLG1930$3499 Hayward FDXLHMB1930 header mounting base kit for Universal H-Series Low NOx heaters Hayward Header Mounting Base Kit, FDXLHMB1930$6799 Hayward FDXLHDW1930 header hardware kit for Universal H-Series Low NOx heaters Hayward Header Hardware Kit, FDXLHDW1930$6799 Hayward HAXFOR1930 flange o-ring set for H-Series ED1 and ED2 heaters Hayward O-Ring Set for H-Series ED2/ED1, HAXFOR1930$1799 Hayward FDXLBON1930 natural gas burner orifice kit for Universal H-Series FD heaters Hayward Natural Gas Burner Orifice Kit, FD, FDXLBON1930$6499 Hayward FDXLBOP1930 H-Series liquid propane burner orifice kit Hayward H-Series Liquid Propane Burner Orifice Kit, FDXLBOP1930$6499 Hayward FDXLVPS1930 H-Series Low NOx indoor vent pressure switch kit Hayward H-Series Low NOx Indoor Vent Pressure Switch Kit, FDXLVPS1930$7699 Hayward FDXLHLI1930 high limit kit for Universal H-Series Low NOx pool heaters Hayward High Limit Kit, FDXLHLI1930$8099 Hayward HAXBPK1932 new style bypass kit for H-Series heaters Hayward H-Series By-Pass Kit, New Style, HAXBPK1932$8799

Product details

The Hayward FDXLFOR1930 is the genuine header o-ring kit for FD model pool heaters. It supplies the seals for the header joint as a set.

When you need it

Any time the header comes off the heater, the o-rings that sealed it should be replaced rather than reused. Rubber that has spent a season compressed between hot metal faces takes a permanent set, and once it has, it will not seal reliably against a fresh clamping load. A header that still weeps after a repair is very often a reused o-ring.

Why it matters

Water escaping at the header does not stay outside the heater. It runs down inside the cabinet onto the burner tray and the control components, which turns a cheap seal into an expensive repair. Fitting the correct Hayward kit when the header is already open is the inexpensive path.

Specifications
Brand Hayward
Manufacturer part number FDXLFOR1930
UPC 610377073851
Part type Pool heater part
Type O-ring kit
Location Header
Fits Hayward FD model pool heaters
Shipping weight 0.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What is in this kit?
It is the header o-ring kit for Hayward FD model heaters, supplied as a set so the header joint can be resealed in one go.
Which heaters does it fit?
Hayward FD models. Check the model number on your heater plate before ordering.
Is it a genuine Hayward part?
Yes. It is the Hayward OEM kit, part number FDXLFOR1930.
Do I have to replace the o-rings when I open the header?
You should. O-rings take a permanent set once they have been compressed and heated for a season, and a reused one is the usual reason a repaired header still weeps.
