Hayward DEX2400H vertical grid DE filter element locatorHayward Vertical Grid DE Filter Element Locator, DEX2400H In stock$7199
Hayward DEX2400H vertical grid DE filter element locator
Shop all Hayward

Hayward Vertical Grid DE Filter Element Locator, DEX2400H

Ask a questionMPN DEX2400H
$7199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward The factory DEX2400H element locator.
  • Pro-Grid and Micro-Clear Listed for the Hayward vertical grid DE filter families.
  • Keeps the grids spaced The locator holds the grid set in position so the elements cannot lean together.
  • Grids that touch do not filter Where two grids press against each other the DE cake breaks down and dirt gets through.
  • Replace it when it cracks A broken locator lets the whole grid pack shift under flow.
  • Fit it during a grid service Easiest to change while the tank is open and the grids are out for cleaning.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Vertical Grid DE Filter Element Locator, DEX2400H, SKU HAY-051-1794. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Vertical Grid DE Filter Element Locator, DEX2400H
Hayward

Vertical Grid DE Filter Element Locator, DEX2400H

$7199
Hayward Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5
Hayward

Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5

$399
Hayward Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2
Hayward

Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2

$10299
Hayward OEM Bulkhead O-Ring, SX200Z3
Hayward

OEM Bulkhead O-Ring, SX200Z3

$799
Hayward 1-1/2" Plug with O-Ring, SP1022C
Hayward

1-1/2" Plug with O-Ring, SP1022C

$599
Hayward Top Collector Manifold with Flex Air Relief (OEM), DEX2400C
Hayward

Top Collector Manifold with Flex Air Relief (OEM), DEX2400C

$10299
Hayward Locking Knob (C751, C900, C1200 series), CX900G
Hayward

Locking Knob (C751, C900, C1200 series), CX900G

$6799
Subtotal

Similar products

Other products people compare with this one.

Hayward Filter Rod Pro-Grid Micro-Clear DE Filters 60 Sq Ft | DEX6000R Hayward Filter Rod Pro-Grid Micro-Clear DE Filters 60 Sq Ft | DEX6000R$10099 Hayward Filter Rod Pro-Grid Micro-Clear DE Filters 24 Sq Ft | DEX2400R Hayward Filter Rod Pro-Grid Micro-Clear DE Filters 24 Sq Ft | DEX2400R$7899 Hayward DEX4800R 28 inch retainer rod for DE filters Hayward Retainer Rod, 28 Inch, for 48 sq ft DE Filter, DEX4800R$9799 Hayward DEX3600R 22 inch retainer rod for 36 square foot DE filter Hayward 22 Inch Retainer Rod for 36 sq ft DE Filter, DEX3600R$8699 Hayward Outlet Elbow Assembly with O-Ring | DEX4820EA Hayward Outlet Elbow Assembly with O-Ring | DEX4820EA$10099 Hayward Outlet Elbow Assembly with O-Ring | DEX2420EA Hayward Outlet Elbow Assembly with O-Ring | DEX2420EA$10599 Hayward Filter Rod Pro-Grid Micro-Clear DE Filters 72 Sq Ft | DEX7200R Hayward Filter Rod Pro-Grid Micro-Clear DE Filters 72 Sq Ft | DEX7200R$14499 Hayward PRO GRID FILTER HEAD TAUPE W/CLAMP SYS | DEX6020BTC Hayward PRO GRID FILTER HEAD TAUPE W/CLAMP SYS | DEX6020BTC$77799 Hayward DEX3620EA outlet elbow with o-ring for the DE3620 Pro-Grid DE filter Hayward Outlet Elbow with O-Ring for DE3620 Filter, DEX3620EA$10799 Hayward DEX6020EA outlet elbow with o-ring for the DE6020 DE filter Hayward Outlet Elbow with O-Ring for DE6020 DE Filter, DEX6020EA$10799

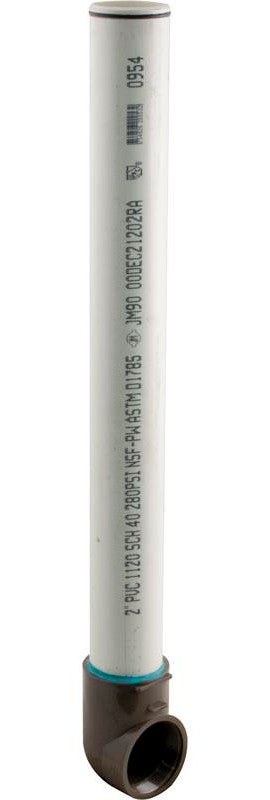

Hayward Outlet Elbow O-Ring Pro-Grid | DEX2400Z5 Hayward Outlet Elbow O-Ring Pro-Grid | DEX2400Z5$1399 Hayward DEX2400CR auto air relief assembly for Pro-Grid and Micro-Clear DE filters Hayward Auto Air Relief Assembly, DEX2400CR$3499 Hayward ECX1109 5/16 inch washer for DE filters Hayward Washer 5/16 in for DE Filters, ECX1109$1399 Hayward ECX176865 retainer nut for Micro-Clear DE filters Hayward Retainer Nut, ECX176865$799 Hayward DEX7220EA outlet elbow assembly with o-ring for the DE7220 filter Hayward Outlet Elbow Assembly with O-Ring for DE7220, DEX7220EA$14999

Product details

The Hayward DEX2400H is the element locator for vertical grid DE filters in the Pro-Grid and Micro-Clear ranges. It is the genuine Hayward part.

What it does

A vertical grid DE filter works as a pack of flat elements standing in a tank, each one coated with diatomaceous earth. The locator is what keeps that pack correctly spaced. Under flow the grids want to move, and if two of them lean together the powder cannot coat the faces where they touch. That contact patch then passes dirty water straight through while the rest of the filter does its job, which shows up as a pool that never quite clears.

Fitting

The locator only comes out when the tank is open and the grid set is lifted, so change it as part of a grid clean rather than on its own. While the grids are out it is worth looking over the fabric on each one for tears at the same time.

Specifications
Brand Hayward
Manufacturer part number DEX2400H
UPC 610377020961
Type Vertical grid DE filter element locator
Part type Pool filter part
Fits Hayward Pro-Grid DE filters, models DE2420, DE3620, DE4820, DE7220
Also listed for Hayward Micro-Clear DE filters, including the stainless steel version
Shipping weight 2.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What does the element locator do?
It holds the DE grids in their correct spacing inside the tank so the elements stay square and cannot lean into each other under flow.
Which filters does it fit?
Hayward Pro-Grid and Micro-Clear vertical grid DE filters. The source lists the Pro-Grid models DE2420, DE3620, DE4820 and DE7220, and the Micro-Clear range including the stainless steel version.
Why does grid spacing matter?
DE filtration depends on an even coat of powder over each grid face. Where grids touch, the cake cannot form and dirt passes straight through that contact patch.
When should I replace it?
Any time it is cracked, distorted or missing legs. Do it while the tank is open for a grid clean rather than as a separate job.
