Hayward DEX6020EA outlet elbow with o-ring for the DE6020 DE filterHayward Outlet Elbow with O-Ring for DE6020 DE Filter, DEX6020EA In stock$10799

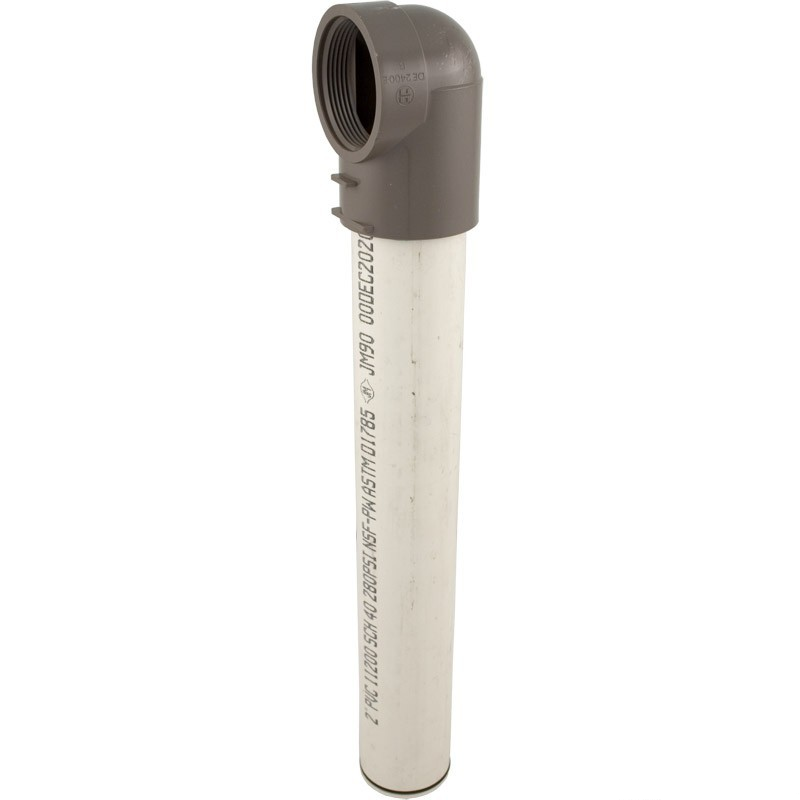

Hayward DEX6020EA outlet elbow with o-ring for the DE6020 DE filter
Shop all Hayward

Hayward Outlet Elbow with O-Ring for DE6020 DE Filter, DEX6020EA

Ask a questionMPN DEX6020EA
$10799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward part Factory part number DEX6020EA for the DE6020 filter.
  • O-ring included The sealing o-ring comes with the elbow, so you are not chasing a second part number.
  • Model specific Sized for the DE6020 tank, not a one size fits all elbow across the DE range.
  • Part of the Pro-Grid DE parts family The DE6020 sits in the same Hayward DE filter series as the DE2420, DE3620, DE4820 and DE7220.
  • Stops internal bypass A cracked elbow or a flat o-ring lets unfiltered water short circuit the grids and DE returns to the pool.
  • Fit it dry and clean Wipe the seat before seating the new o-ring so it beds evenly and does not roll.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Outlet Elbow with O-Ring for DE6020 DE Filter, DEX6020EA, SKU HAY-051-9792. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Outlet Elbow with O-Ring for DE6020 DE Filter, DEX6020EA
Hayward

Outlet Elbow with O-Ring for DE6020 DE Filter, DEX6020EA

$10799
Hayward Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5
Hayward

Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5

$399
Hayward Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2
Hayward

Metal Reinforced Seal for SwimClear and Pro-Grid Filters, DEX2422Z2

$10299
Hayward OEM Bulkhead O-Ring, SX200Z3
Hayward

OEM Bulkhead O-Ring, SX200Z3

$799
Hayward 1-1/2" Plug with O-Ring, SP1022C
Hayward

1-1/2" Plug with O-Ring, SP1022C

$599
Hayward Top Collector Manifold with Flex Air Relief (OEM), DEX2400C
Hayward

Top Collector Manifold with Flex Air Relief (OEM), DEX2400C

$10299
Hayward Locking Knob (C751, C900, C1200 series), CX900G
Hayward

Locking Knob (C751, C900, C1200 series), CX900G

$6799
Subtotal

Similar products

Other products people compare with this one.

Hayward DEX3620EA outlet elbow with o-ring for the DE3620 Pro-Grid DE filter Hayward Outlet Elbow with O-Ring for DE3620 Filter, DEX3620EA$10799 Hayward DEX7220EA outlet elbow assembly with o-ring for the DE7220 filter Hayward Outlet Elbow Assembly with O-Ring for DE7220, DEX7220EA$14999 Hayward Outlet Elbow Assembly with O-Ring | DEX4820EA Hayward Outlet Elbow Assembly with O-Ring | DEX4820EA$10099 Hayward Outlet Elbow Assembly with O-Ring | DEX2420EA Hayward Outlet Elbow Assembly with O-Ring | DEX2420EA$10599 Hayward DEX4800R 28 inch retainer rod for DE filters Hayward Retainer Rod, 28 Inch, for 48 sq ft DE Filter, DEX4800R$9799 Hayward DEX3600R 22 inch retainer rod for 36 square foot DE filter Hayward 22 Inch Retainer Rod for 36 sq ft DE Filter, DEX3600R$8699 Hayward DEX2400H vertical grid DE filter element locator Hayward Vertical Grid DE Filter Element Locator, DEX2400H$7199 Hayward Filter Rod Pro-Grid Micro-Clear DE Filters 60 Sq Ft | DEX6000R Hayward Filter Rod Pro-Grid Micro-Clear DE Filters 60 Sq Ft | DEX6000R$10099 Hayward Filter Rod Pro-Grid Micro-Clear DE Filters 72 Sq Ft | DEX7200R Hayward Filter Rod Pro-Grid Micro-Clear DE Filters 72 Sq Ft | DEX7200R$14499 Hayward Filter Rod Pro-Grid Micro-Clear DE Filters 24 Sq Ft | DEX2400R Hayward Filter Rod Pro-Grid Micro-Clear DE Filters 24 Sq Ft | DEX2400R$7899
Hayward Outlet Elbow O-Ring Pro-Grid | DEX2400Z5 Hayward Outlet Elbow O-Ring Pro-Grid | DEX2400Z5$1399 Hayward ECX1109 5/16 inch washer for DE filters Hayward Washer 5/16 in for DE Filters, ECX1109$1399 Hayward PRO GRID FILTER HEAD TAUPE W/CLAMP SYS | DEX6020BTC Hayward PRO GRID FILTER HEAD TAUPE W/CLAMP SYS | DEX6020BTC$77799 Hayward DEX2400CR auto air relief assembly for Pro-Grid and Micro-Clear DE filters Hayward Auto Air Relief Assembly, DEX2400CR$3499 Hayward ECX176865 retainer nut for Micro-Clear DE filters Hayward Retainer Nut, ECX176865$799

Product details

The Hayward DEX6020EA is the outlet elbow for the DE6020 DE pool filter, supplied with its o-ring. It is the genuine Hayward part.

What it does

Inside a DE filter, water is pulled through the coated grids and collected by an internal manifold. The outlet elbow is the fitting that carries that filtered water from the manifold out through the tank. It is a sealed junction, so the o-ring matters as much as the elbow itself.

When to replace it

If DE powder keeps returning to the pool and every grid checks out, the leak is often here. A hairline crack in the elbow or a hardened, flattened o-ring lets water bypass the grids entirely and carry powder straight back to the returns. Clean the seat before fitting the new o-ring so it beds evenly.

Specifications
Brand Hayward
Manufacturer part number DEX6020EA
UPC 610377619820
Type Pool filter part, outlet elbow
Included Elbow and o-ring
Fits Hayward DE6020 DE filter
Shipping weight 3.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Does the o-ring come with it?
Yes. Hayward supplies DEX6020EA as the outlet elbow together with its o-ring.
Will it fit my DE4820 or DE7220?
This elbow is listed for the DE6020. The DE6020 belongs to the same Hayward DE filter parts family as the DE2420, DE3620, DE4820 and DE7220, but check the part number for your own tank before ordering.
What goes wrong with the outlet elbow?
The elbow cracks or its o-ring hardens, and filtered and unfiltered water then mix inside the tank. The usual symptom is DE blowing back to the pool with no obvious tear in a grid.
Is this a genuine Hayward part?
Yes. DEX6020EA is the Hayward OEM part.
