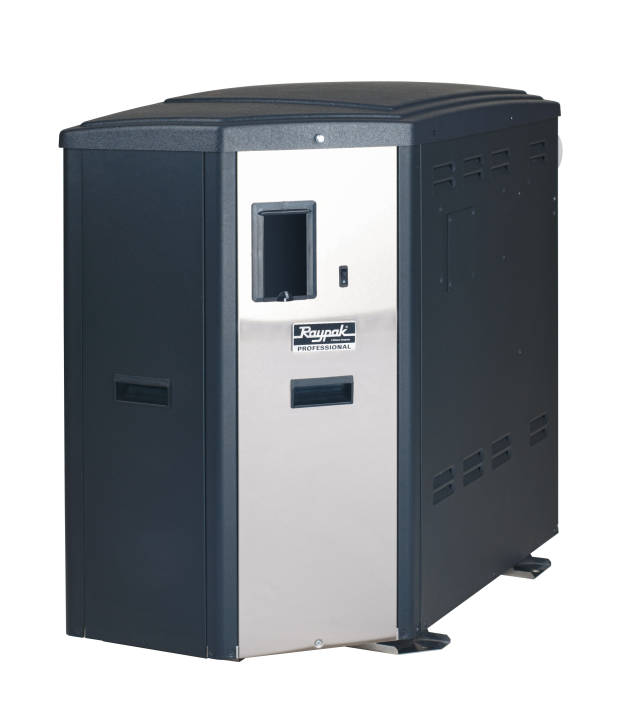

Raypak X94 Professional ASME Propane Pool Heater, 399K BTU, 94 Percent Efficient, Stainless Steel Heat Exchanger, S-R410-EP, 014281$13,93900
Raypak X94 Professional ASME Propane Pool Heater, 399K BTU, 94 Percent Efficient, Stainless Steel Heat Exchanger, S-R410-EP, 014281
$13,93900
$15,838.00
12% OFF
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
Out of stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- 94 percent thermal efficiency Raypak's condensing X94 puts about 375,060 BTU/hr of its 399,000 BTU/hr input into the water.
- Stainless steel ASME exchanger The heat exchanger bears the ASME H-stamp and is National Board registered.
- Low NOx Raypak lists the X94 Professional as a low NOx heater, for residential or commercial use.
- Category IV vent Vents in PVC, CPVC, polypropylene or stainless steel, with a 4 inch flue collar and combustion air inlet.
- Flow switch and T&P standard An external bypass, a temperature and pressure gauge and a flow switch come with the heater.
- Rear connections Every connection is on the back, and Raypak designs the X94 so units nest together on a small footprint.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
X94 Professional ASME Propane Pool Heater, 399K BTU, 94 Percent Efficient, Stainless Steel Heat Exchanger, S-R410-EP, 014281
$13,93900
Raypak
Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
$3,85900
Raypak
156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
$1,94900
Pentair
MasterTemp 250 Natural Gas Pool Heater, EC-462026
$3,73900
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
Subtotal
Similar products
Other products people compare with this one.
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$3,85900
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$1,94900
Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900
Web Price
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$2,59900
Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,17900
Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$3,62900
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$2,87900
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,68900
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,02900
Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900
Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$3,42900
Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900
Web Price
Pentair MasterTemp 400 Natural Gas Pool Heater, Low NOx HD, 460805$4,30899
Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$1,89900
Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,08900
Raypak Pool Heater, 200K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-C, 009216$2,61900
Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,23900
Raypak 180K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,06900
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Product details
The Raypak X94 Professional S-R410-EP, part number 014281, is Raypak's condensing propane pool and spa heater: 399,000 BTU/hr input at 94 percent thermal efficiency, a stainless steel ASME heat exchanger and low NOx combustion, for residential or commercial pools.
Efficiency
At 94 percent, Raypak's sizing table puts the output at 375,060 BTU/hr, against 327,180 for its 82 percent 406A at the same input. The X94 condenses, so it vents as Category IV in PVC, CPVC, polypropylene or stainless steel and drains condensate through a 3/4 inch hose barb.
The build
The stainless steel heat exchanger bears the ASME H-stamp and is National Board registered. An external bypass, a temperature and pressure gauge and a flow switch are standard, and every connection is on the rear. Raypak designs the X94 with a small footprint, and units nest together. Whether a pool needs an ASME heater is for the local code and the inspector to say.
Installation
Water connections are 2 inch PVC slip, with 2 inch CPVC swivel unions supplied, and the gas connection is 3/4 inch NPT. Raypak's manual gives a flow range of 40 to 125 GPM, a 120 V, 5 A supply, and full rated input up to 4,500 ft. The heater can be installed indoors or out.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 014281 |
| Model | S-R410-EP ASME |
| Series | X94 Professional |
| UPC | 840891035121 |
| Type | Condensing ASME pool and spa heater, low NOx |
| Fuel | Propane |
| Heat input | 399,000 BTU/hr |
| Heat output | 375,060 BTU/hr at 94 percent |
| Thermal efficiency | 94 percent, by Raypak |
| Ignition | Electronic, digital IID |
| Heat exchanger | Stainless steel, ASME H-stamped, National Board registered |
| Emissions | Low NOx |
| Elevation | Full rated input to 4,500 ft; consult Raypak above that |
| Electrical | 120 V, single phase, 60 Hz, 5 A |
| Water connections | 2 in PVC slip, with 2 in CPVC swivel unions supplied |
| Gas connection | 3/4 in NPT |
| Water flow | 40 to 125 GPM |
| Venting | Category IV: PVC, CPVC, polypropylene or stainless steel; 4 in |
| Condensate drain | 3/4 in hose barb |
| Included | External bypass, temperature and pressure gauge, flow switch |
| Installation | Indoor or outdoor; all connections on the rear |
| Shipping weight | 300 lb |
| Warranty | 3 years, parts and labor, by Raypak |
| Ships | Freight |
Downloads
Installation and Operation Manual
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5199
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$3,85900
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$1,94900
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$25199
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$2,59900
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$3,62900
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$2,87900
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,68900
Raypak Boiler Burner 10-Pack, 100-10000414$4799
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$91099
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$37499
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,02900
Questions and answers
What people ask about this product, answered by our pool techs.
Is Raypak 014281 natural gas or propane?
Propane. Raypak's natural gas X94 Professional is part number 014280, S-R410-EN.
How efficient is the Raypak X94 S-R410-EP?
94 percent thermal efficiency, by Raypak. At 399,000 BTU/hr input that is 375,060 BTU/hr into the water, by Raypak's sizing table.
What vent does the Raypak X94 S-R410-EP need?
Category IV vent material, in PVC, CPVC, polypropylene or stainless steel, by Raypak's manual. Combustion air can be ducted in 4 inch metal or PVC pipe.
What flow rate does the Raypak X94 014281 need?
40 GPM minimum and 125 GPM maximum, by Raypak's manual. The water connections are 2 inch PVC slip.
What warranty does Raypak give the X94 S-R410-EP?
Three years, parts and labor, under Raypak's pool heater limited warranty for its Professional digital heaters, which names the SR-410.
Where is the manual for the Raypak X94 014281?
Under Downloads on this page. It is Raypak's X94 Professional Gas-Fired Pool and Spa Heater Installation and Operation Manual, part number 241494.
