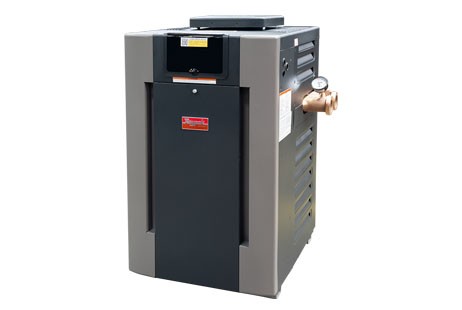

Raypak 266K BTU Propane ASME Digital Pool Heater, Cupro-Nickel, B-R266A-EP-X, 017412 In stock$4,52500
Raypak 266K BTU Propane ASME Digital Pool Heater, Cupro-Nickel, B-R266A-EP-X, 017412
$4,52500
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- ASME certified Built to the ASME code that commercial pool and spa installations are usually required to meet.
- Cupro-nickel heat exchanger Chosen over copper for water chemistry that would eat a standard exchanger, including salt and heavy bather load.
- Bronze header Paired with the cupro-nickel exchanger for corrosion resistance on the water side.
- Digital IID control Digital control with intermittent ignition rather than a standing pilot.
- 266K BTU on propane Sized for commercial duty and set up for propane gas as supplied.
- Elevation rated Listed for installation from 0 to 2000 ft without an altitude conversion.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
266K BTU Propane ASME Digital Pool Heater, Cupro-Nickel, B-R266A-EP-X, 017412
$4,52500
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
Subtotal
Similar products
Other products people compare with this one.
Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,49900
Web Price
Pentair MasterTemp 400 Natural Gas Pool Heater, Low NOx HD, 460805$4,30899
Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,78000
Web Price
Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900
Web Price
Raypak Heater, 360K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-X, 014953$4,54000
Web Price
Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038$3,39100
Web Price

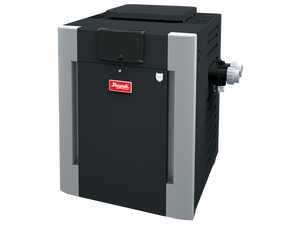

Raypak Pool Heater, 399K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-C, 009227$4,20000
Web Price
Raypak 180K BTU Propane Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EP-X, 014950$3,29100
Web Price
Raypak AVIA 399K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R404A-EP-C, 018039$4,20000
Web Price
Pentair MasterTemp Natural Gas Heater 400 BTU Low NOx, 460736$4,12799
Raypak 333K BTU Propane Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R336A-EP-C, 009226$3,63200
Raypak In-Ground Pool Heater, 200K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, P-R206A-EP-C, 009224$2,83800
Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,33100
Web Price
Raypak P-R336A-EP-X Heater, 300K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, 014952$4,08700
Web Price

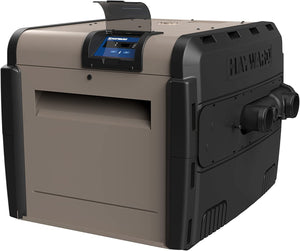

Hayward Universal H-Series Propane Gas 250,000 BTU Low NOx Pool Heater, W3H250FDP$3,99900
Web Price
Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,00999

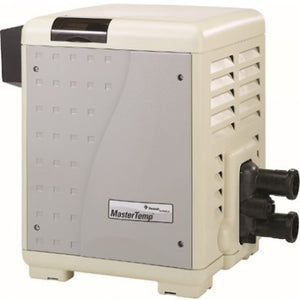

Pentair MasterTemp 250K Natural Gas Heater IID ASME, 460771$4,33099
Pentair MasterTemp Heater 400,000 BTU LP Low NOx ASME, 460776$4,85099
Raypak 399K BTU Propane ASME Digital IID Pool Heater, Bronze Header, Cupro-Nickel, B-R406A-EP-X, 017414$5,59600
Web Price
Raypak E3T Digital Pool Electric Heater 27kW 92,128 BTU, 100-10000666$2,99900
Web Price
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Product details

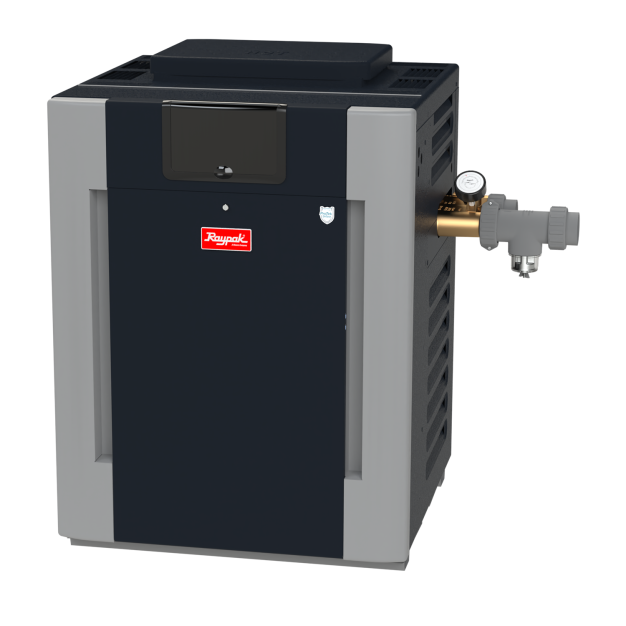

The Raypak B-R266A-EP-X is a 266K BTU commercial pool and spa heater running on propane gas, part number 017412. It carries ASME certification, a bronze header and a cupro-nickel heat exchanger, with digital IID control.
Why this specification exists
Commercial water is harder on a heater than a backyard pool. Bather load, aggressive chemistry and salt all attack the water side first, so this build pairs a cupro-nickel exchanger with a bronze header instead of the copper and cast assemblies used on residential heaters. ASME certification is the other half of the picture, and is commonly required on public and commercial installations.
Control and ignition
The digital IID control lights the burner on demand rather than holding a standing pilot, and the digital interface gives readable setpoints and fault codes rather than a dial.
Before you order
Confirm two things: the gas supply is propane, not natural gas, and the installation sits within the listed elevation range, given as 0 to 2000 ft in one source and 0 to 1999 ft in another. A higher site needs the altitude specific version.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 017412 |
| Model | B-R266A-EP-X |
| UPC | 840891042021 |
| Type | ASME pool and spa heater |
| Fuel | Propane |
| Heat input | 266,000 BTU/hr |
| Heat output | 218,120 BTU/hr at 82 percent |
| Thermal efficiency | 82 percent, by Raypak |
| Ignition | Electronic, digital IID |
| Heat exchanger | Cupronickel fin tube |
| Headers | Bronze, ASME |
| Certification | ASME |
| Elevation | 0 to 2,000 ft |
| Electrical | 120 or 240 VAC, single phase, 60 Hz |
| Amp draw | 4 A at 120 V, 2 A at 240 V |
| Water connections | 2 in |
| Gas connection | 3/4 in NPT |
| Cabinet width | 23 in |
| Shipping weight | 235 lb, 16 more with the indoor draft hood |
| Warranty | 1 year, by Raypak |
| Ships | Freight |
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$4,80000
Web Price
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,49900
Web Price
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,39800
Web Price
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,20000
Web Price
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,17900
Web Price
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,99900
Web Price
Raypak Boiler Burner 10-Pack, 100-10000414$4199
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$91099
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,78000
Web Price
Questions and answers
What people ask about this product, answered by our pool techs.
Is Raypak 017412 natural gas or propane?
Propane. Raypak builds the 266A for one fuel, and sells the natural gas heater as a separate part number.
What elevation is Raypak 017412 rated for?
0 to 2,000 ft, by Raypak's catalog. Raypak's catalog lists this cupronickel model for that band only.
What does the X mean in B-R266A-EP-X, 017412?
A cupronickel heat exchanger. Raypak's models ending in C have a copper fin tube exchanger.
What power and connections does Raypak 017412 need?
120 or 240 VAC, single phase. Raypak's brochure gives 4 A at 120 V and 2 A at 240 V. The water connections are 2 inch and the gas connection 3/4 inch NPT.
What warranty does Raypak give the B-R266A-EP-X, 017412?
One year, by Raypak's catalog.
Where is the manual for the Raypak B-R266A-EP-X 017412?
Under Downloads on this page. It is Raypak's Digital Installation and Operation Manual for models 206A, 266A, 336A and 406A, part number 241236, which covers the bronze header ASME versions too.
