Product details

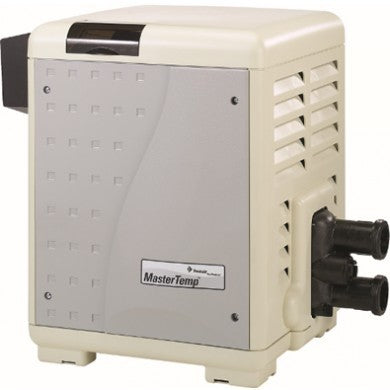

The Pentair MasterTemp 460775 is the 400,000 BTU natural gas commercial pool heater in ASME configuration, with electronic ignition, Low NOx operation and a digital temperature control.

Commercial output

At 400,000 BTU this is full commercial capacity, sized for large volumes of water and for the short recovery times a commercial schedule demands. The heat exchanger on this model is listed as copper. Electronic ignition removes the standing pilot, so the heater is not burning gas between cycles.

Read this before you order

ASME model MasterTemp heaters do not come with tubes and unions, and those parts are no longer available to buy separately. That makes this the right heater only if you are replacing a previous Pentair ASME unit and already have the hookups in place. If you are not certain, check what is on the pad before ordering.

Installation

A gas heater of this size needs a correctly sized gas line, proper venting and a qualified installer. Confirm those before the heater arrives, since it ships by freight.

Specifications
Brand Pentair
Manufacturer part number 460775
Series MasterTemp
UPC 788379747558
Type ASME pool and spa heater
Fuel Natural gas
Heat input 400,000 BTU/hr
Heat exchanger Copper
Ignition Hot surface (HSI), no standing pilot
Headers Bronze, ASME
Certification ASME
Electrical 120 or 240 VAC, single phase, 60 Hz
Amp draw About 5 A at 120 V, 2.5 A at 240 V; 15 A circuit
Water connections 2 in
Gas connection 3/4 in
Controls Digital
Emissions Low NOx
Included Heater only, tubes and unions not included
Shipping weight 147 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What is different about the ASME MasterTemp 400, 460775?
It is the ASME certified version of the 400,000 BTU heater, built with bronze headers and a copper heat exchanger. Pentair makes a heavy duty ASME version with a cupronickel exchanger under another part number. Whether a pool needs an ASME heater is for the local code and the inspector to say.
Does the ASME MasterTemp 400, 460775, come with tubes and unions?
No. Pentair ASME model heaters are not supplied with tubes and unions as standard equipment, and those pieces are no longer available to buy. Order this heater only if you are confident the hookups from your previous Pentair ASME heater can be reused.
Is 460775 natural gas or propane?
Natural gas. Pentair's propane ASME MasterTemp 400 is part number 460776.
Where is the manual for the ASME MasterTemp 400?
Under Downloads on this page, as the Owners Manual. It is Pentair's MasterTemp Installation and User's Guide, part number 472592, which covers the 175,000 to 400,000 BTU models in natural gas and propane, the HD and ASME versions included.
What do the ERR codes on an ASME MasterTemp 400 mean?
Each one names the safety device that opened. ERR PS is the water pressure switch, which means no water is flowing through the heater. ERR HLS is the high limit switch, ERR AFS the air flow switch, ERR IGN a failed ignition and ERR SFS a stack flue temperature above 480 degrees F. What to check for each is in our pool heater error code guide.
