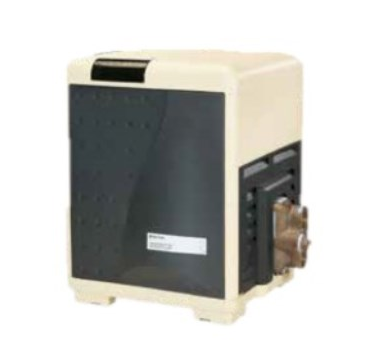

Pentair 461020 MasterTemp Low NOx commercial natural gas pool heater, 250K BTU ASMEPentair MasterTemp Low NOx Commercial Natural Gas Pool Heater, 250K BTU ASME, 461020 In stock$4,54299
Pentair 461020 MasterTemp Low NOx commercial natural gas pool heater, 250K BTU ASME
Shop all Pentair

Pentair MasterTemp Low NOx Commercial Natural Gas Pool Heater, 250K BTU ASME, 461020

Ask a questionMPN 461020
$4,54299
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 250,000 BTU input Pentair rates the BTUH input on this MasterTemp at 250,000.
  • ASME rated The ASME version of the MasterTemp, which is what commercial specifications normally call for.
  • Heavy duty cupro nickel The high performance, heavy duty exchanger, chosen where water chemistry is hard on plain copper.
  • Digital control Digital control type with electronic ignition, so there is no standing pilot to relight.
  • Low NOx Built to the Low NOx standard that many regions now require on new gas heaters.
  • 120 gpm through 2 inch Rated for 120 gpm flow with 2 inch water connections and a 3/4 inch gas connection.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair MasterTemp Low NOx Commercial Natural Gas Pool Heater, 250K BTU ASME, 461020, SKU PUR-15-0778. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair MasterTemp Low NOx Commercial Natural Gas Pool Heater, 250K BTU ASME, 461020
Pentair

MasterTemp Low NOx Commercial Natural Gas Pool Heater, 250K BTU ASME, 461020

$4,54299
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307

$37099
Pentair MasterTemp 125 Manifold Kit, 474972
Pentair

MasterTemp 125 Manifold Kit, 474972

$28399
Pentair Flame Holder Kit for MasterTemp Model 125 Heater Burner System, 474994
Pentair

Flame Holder Kit for MasterTemp Model 125 Heater Burner System, 474994

$15699
Subtotal

Similar products

Other products people compare with this one.

Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900 Pentair MasterTemp 250 natural gas pool heater EC-462026 Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900 Web Price Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600 Pentair MasterTemp 400 natural gas pool heater EC-462028 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,17900 Raypak 156A P-D156A 150,000 BTU propane above ground pool and spa heater, part 014786 Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,64900 Raypak AVIA P-R264A-EN-N 264K BTU natural gas low NOx pool heater with WiFi, front view Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$4,00700 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300 Raypak AVIA P-R404A-EP-N 399,000 BTU propane gas pool and spa heater with WiFi Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,92300 Pentair MasterTemp 400,000 BTU propane gas pool heater, model EC-462029 Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900 Web Price
Raypak P-R206A-EN-X 200K BTU natural gas pool and spa heater Raypak 180K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,39000 Raypak 009225 Digital 266K BTU propane pool heater P-R266A-EP-C Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,37400 Raypak 009218 digital 333K BTU natural gas pool heater, model P-R336A-EN-C Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,84100 Pentair MasterTemp 461021 400K BTU heavy duty ASME natural gas pool heater Pentair MasterTemp Digital IID Heavy Duty ASME Natural Gas Low NOx Heater 400K BTU, 461021$5,07799 Raypak P-R406A-EP-X 399K BTU propane pool and spa heater with cupro-nickel heat exchanger, front view Raypak Heater, 360K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-X, 014953$4,67600 Raypak AVIA P-R264A-EP-C 264,000 BTU propane low NOx pool heater Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038$3,49300 Raypak Digital P-R406A-EN-X 399K BTU natural gas pool and spa heater, part 014941 Raypak 360K BTU Natural Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft Elevation, P-R406A-EN-X, 014941$4,67600 Raypak 009221 P-R266A-EN-C #51 high altitude 266K BTU natural gas pool heater Raypak High Altitude R266A Digital Natural Gas Heater, 266K BTU, Copper Exchanger, P-R266A-EN-C #51, 2000-6000 Ft Elevation, 009221$3,37400 Raypak P-R206A-EP-X 200,000 BTU propane pool heater with cupro-nickel heat exchanger, front view Raypak 180K BTU Propane Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EP-X, 014950$3,39000 Raypak 156A above ground pool and spa heater, natural gas 150K BTU, high altitude model Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785$2,64900

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair 461020 is the commercial MasterTemp, an ASME rated natural gas pool and spa heater with 250,000 BTU input and a heavy duty cupro nickel heat exchanger.

What the commercial version adds

Two things separate it from the backyard MasterTemp. It is ASME rated, which is what most commercial specifications and inspectors ask for on a public pool. And the exchanger is the high performance, heavy duty cupro nickel build, which holds up better where water chemistry runs hard on plain copper. On a commercial pool that gets shocked, corrected and pushed harder than a home pool, that difference shows up in the service life.

Controls and firing

Control is digital with electronic ignition, so there is no standing pilot burning fuel between cycles and nothing to relight after a windy night. It is Low NOx rated, which matters in the regions that now require it on new gas installations.

Planning the installation

The cabinet measures 23.02 inches wide, 32.61 inches deep and 28.15 inches high. Water connections are 2 inch, the gas connection is 3/4 inch, and the heater is rated to 120 gpm of flow. Electrically it wants 120/240 VAC, 60 Hz, single phase. Gas heater installation is licensed work, and a commercial ASME heater is not an install to attempt without one.

Specifications
Brand Pentair
Manufacturer part number 461020
UPC 788379858261
Type ASME pool and spa heater, heavy duty
Fuel Natural gas
Heat input 250,000 BTU/hr
Heat exchanger Cupronickel, heavy duty
Ignition Hot surface (HSI), no standing pilot
Headers Bronze, ASME
Certification ASME
Electrical 120 or 240 VAC, single phase, 60 Hz
Amp draw About 5 A at 120 V, 2.5 A at 240 V; 15 A circuit
Water connections 2 in
Gas connection 3/4 in
Controls Digital
Item Low NOx Pool and Spa Heater
Cabinet Width 23.02"
Cabinet Depth 32.61"
Cabinet Height 28.15"
Flow Rate 120 gpm
Shipping weight 144 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S, 170145$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What is the MasterTemp 250 HD ASME, 461020?
The heavy duty ASME version of the 250,000 BTU heater: ASME certified, with bronze headers and a cupronickel heat exchanger in place of copper. Whether a pool needs an ASME heater is for the local code and the inspector to say.
Does the MasterTemp 250 HD ASME come in propane?
No. Pentair's manual lists the 250 HD ASME, part number 461020, for natural gas only.
Where is the manual for the MasterTemp 250 HD ASME?
Under Downloads on this page, as the Owners Manual. It is Pentair's MasterTemp Installation and User's Guide, part number 472592, which covers the 175,000 to 400,000 BTU models in natural gas and propane, the HD and ASME versions included.
What connections and power does 461020 need?
2 inch water connections and a 3/4 inch gas connection, on 120 or 240 VAC, single phase, 60 Hz. Pentair's manual gives about 5 A at 120 V and 2.5 A at 240 V, on a 15 A circuit.
Can the MasterTemp 250 HD ASME be installed indoors?
Pentair certifies the ASME MasterTemp for indoor installation with its Direct Air Intake Duct Kit. Outdoors it needs no kit.
