CMP 25357-273-564 sand filter manual air relief valve and gauge assemblyCMP Sand Filter Manual Air Relief Valve Gauge Assembly, 25357-273-564 In stock$8399
CMP 25357-273-564 sand filter manual air relief valve and gauge assembly
Shop all CMP

CMP Sand Filter Manual Air Relief Valve Gauge Assembly, 25357-273-564

Ask a questionMPN 25357-273-564
$8399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Valve and gauge in one The manual air relief valve and the pressure gauge come as a single assembly.
  • Replacement for 273564 CMP lists this assembly as the replacement for part number 273564.
  • Sand filter application Built for the top of a sand filter, where air is bled off after every service.
  • The gauge is your diagnostic Filter pressure is how you decide when to backwash, so a fogged or stuck gauge leaves you guessing.
  • Bleed air before you start Trapped air in a filter tank is a safety matter as well as a performance one, and the manual relief valve is how it is released.
  • One part number Ordering the assembly avoids matching a separate valve, gauge and seat that have to work together.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CMP Sand Filter Manual Air Relief Valve Gauge Assembly, 25357-273-564, SKU CTM-061-2768. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CMP Sand Filter Manual Air Relief Valve Gauge Assembly, 25357-273-564
CMP

Sand Filter Manual Air Relief Valve Gauge Assembly, 25357-273-564

$8399
CMP Generic Bottom Collector Manifold for Hayward® CX3000C, 25357-750-000
CMP

Generic Bottom Collector Manifold for Hayward® CX3000C, 25357-750-000

$6799
CMP Generic Top Manifold Assembly with Built-in Air Relief, DEX2400C, 25357-700-000
CMP

Generic Top Manifold Assembly with Built-in Air Relief, DEX2400C, 25357-700-000

$6399
CMP FNS Plus Top Manifold Assembly, 25357-600-000
CMP

FNS Plus Top Manifold Assembly, 25357-600-000

$9299
CMP Heavy Duty J-Style Top Manifold for CV340, CV460, CV580, CL340, CL460, CL580 Cartridge Filters, 25357-850-000
CMP

Heavy Duty J-Style Top Manifold for CV340, CV460, CV580, CL340, CL460, CL580 Cartridge Filters, 25357-850-000

$9599
CMP Generic Multiport Valve Replacement for Hayward® Vari-Flo SP0714T, 27515-154-000
CMP

Generic Multiport Valve Replacement for Hayward® Vari-Flo SP0714T, 27515-154-000

$13199
CMP 2" Pump Union Ribbed T-Gasket, 21023-030-000
CMP

2" Pump Union Ribbed T-Gasket, 21023-030-000

$499
Subtotal

Similar products

Other products people compare with this one.

Pentair 273564Z genuine manual air relief assembly for Triton II sand filters Pentair Genuine OEM Manual Air Relief Assembly for Triton II, 273564Z$9099 Pentair Black Manual Air Relief Assembly | 273550 Pentair Black Manual Air Relief Assembly | 273550$9199 Sta-Rite 24850-0105 air relief valve and pressure gauge assembly for System 3 filters Sta-Rite Valve and Gauge Assembly for System 3 Filters, 24850-0105$11099 Waterway Plastics 505-2160 lateral and manifold assembly for 22 inch Carefree sand filter Waterway Lateral and Manifold Assembly for 22" Carefree Sand Filter, 505-2160$7799 Waterway 505-2150 lateral and manifold assembly for the 19 inch Carefree sand filter Waterway Lateral and Manifold Assembly for 19 Inch Carefree Sand Filter, 505-2150$6999 Jacuzzi 42377309 snap fit standpipe assembly with lateral for Laser 225L sand filter Jacuzzi Standpipe Assembly for Laser 225L Sand Filter, Snap Fit with Lateral, 42377309$7699 Jandy R0745100 filter clamp assembly and hardware for SFTM top mount sand filters Jandy Filter Clamp Assembly and Hardware, R0745100$7199 Pentair 155151 flexible hose kit, 1.5 in. x 6 ft, for Sand Dollar filter systems Pentair Sand Filter Hose Kit 1.5 in. x 6 ft, 155151$6099 Pentair 152220Z 2 inch NPT left-hand threaded spigot sand filter drain Pentair Genuine OEM 2" NPT Left-Hand Threaded Spigot Sand Filter Drain, 152220Z$4699 Hayward SX244CD2FWS lower elbow assembly with air tube for S244S sand filter Hayward Lower Elbow Assembly with Air Tube, S244S, SX244CD2FWS$9399
Hayward SX200K access cover, dome lid for S200 and S240 sand filters Hayward S200/S240 Sand Filter Access Cover, SX200K$7799 Hayward SX310CD2FWS lower elbow assembly with air tube for S310S filter Hayward Lower Elbow Assembly with Air Tube S310S, SX310CD2FWS$9799 Waterway 505-2080 lateral and manifold assembly for 26 inch ClearWater and TWM sand filters Waterway Lateral and Manifold Assembly for 26" ClearWater and TWM Sand Filters, 505-2080$8099 Waterway 550-1831 PVC flex hose assembly for sand filters Waterway PVC Flex Hose Assembly, 26" Sand Filters, 550-1831$7699 Paragon Aquatics B4804 10 inch Stark effluent lateral for THS Series filters Paragon 10" Stark Effluent Lateral for THS Series Horizontal Sand Filter, B4804$5199 Pentair 51020900 two piece plastic multiport valve clamp assembly Pentair Clamp Assembly, Multiport Valve, 51020900$4999 Pentair Air Bleed Tube Assembly 320 Sq Ft | 170029 Pentair Air Bleed Tube Assembly 320 Sq Ft | 170029$4899 Hayward Sand Filter Tank O-Ring S240 | SX240Z1 Hayward Sand Filter Tank O-Ring S240 | SX240Z1$7599 Jacuzzi 42375709R000 snap-fit stand pipe assembly for the Jacuzzi Laser 160L sand filter Jacuzzi Snap-Fit Stand Pipe for Laser 160L Sand Filter, 42375709R000$4299 Sta-Rite 24200-0110 15 inch collector hub assembly for T-150BP-1 sand filter Sta-Rite 15 in. Collector Hub Assembly for T-150BP-1 Cristal-Flo and Waterford Sand Filters, 24200-0110$6199

Product details

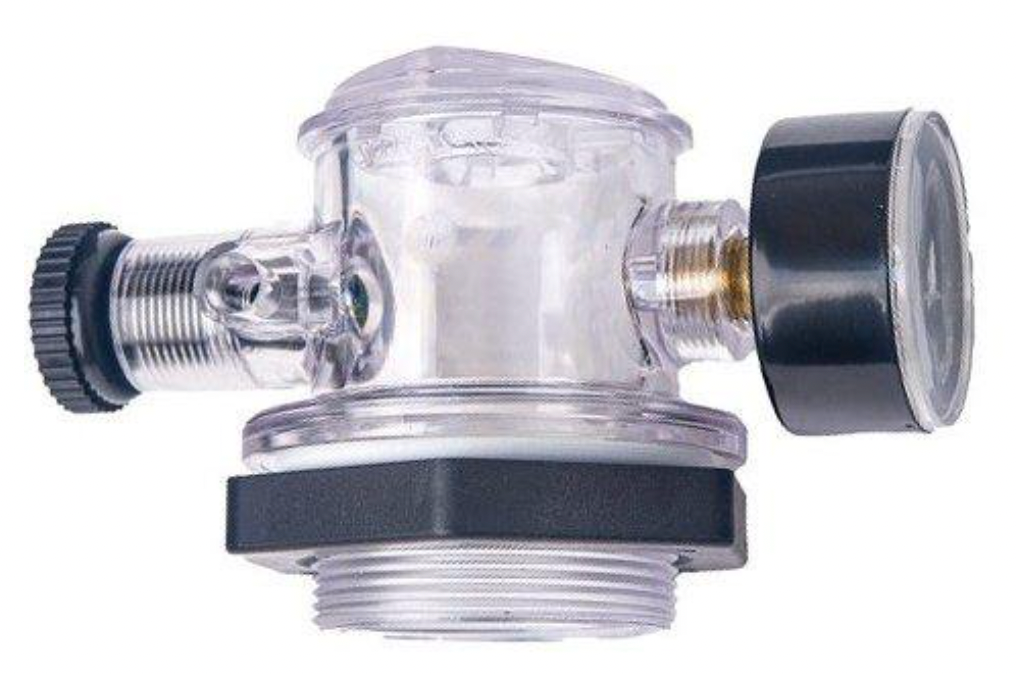

This is the CMP manual air relief valve and pressure gauge assembly for sand filters, part number 25357-273-564. CMP lists it as the replacement for part 273564.

Two jobs in one fitting

The assembly sits on top of the filter and does two things at once. The manual relief valve lets you purge air from the tank, which you have to do after opening the filter, changing media, or refilling a drained system. The gauge tells you the pressure inside. Those two readings are the whole basis of routine filter maintenance: you note the clean starting pressure and backwash when it climbs. A gauge that has fogged, stuck or lost its zero takes that reference away, and owners end up backwashing on a calendar instead of on the actual condition of the media.

Why replace it as an assembly

The relief valve, its seat and the gauge are matched to each other. Sourcing them separately means matching thread sizes and gauge ranges, and a mismatched combination either leaks or reads wrong. Ordering the complete assembly under one part number takes that guesswork out. When you refit it, bleed the tank properly before bringing the system up to full pressure.

Specifications
Brand CMP
Manufacturer part number 25357-273-564
UPC 849640030936
Type Manual air relief valve with gauge assembly
Application Sand filter
Replacement for 273564
Shipping weight 0.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CMP

Aquamoto 58470-110-700 jumbo floating chlorine dispenser for 3 in. tablets Aquamoto Jumbo Chlorine Floater for 3" Chlorine Tabs, 58470-110-700$2099 CMP PowerClean Ultra in-line chlorinator 25280-100-000 with clear glass lid CMP PowerClean Ultra In-Line Chlorinator with Clear Glass Lid, 25280-100-000$14599 CMP 21063-200-000 2 in. MPT x 2 in. slip CPVC pump union CMP Pump Union, Threaded 2" MPT x 2" Slip, CPVC, 21063-200-000$2099 CMP 21063-154-000 CPVC pump union, 1-1/2 in. slip by male thread with o-ring CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1799 CMP 25563-300-500 five pack of foam sweep hose tail scrubbers for Polaris cleaners CMP Sweep Hose Tail Scrubber (5 Pack), 25563-300-500$1199 CMP 27182-352-000 FlowSkim heavy duty skimmer basket with 12 inch handle for Hayward SP-1082 skimmers CMP FlowSkim HD Skimmer Basket with 12" Handle for Hayward® SP-1082 Skimmers, 27182-352-000$3299 CMP 25357-750-000 bottom collector manifold, replacement for Hayward CX3000C CMP Generic Bottom Collector Manifold for Hayward® CX3000C, 25357-750-000$6799 CMP DEL AOP 25 Next Gen ozone and UV-C pool sanitizer, part 53000-025-000, front view CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000$1,46799 CMP 25280-110-000 PowerClean Ultra in-line tablet chlorinator with white lid CMP PowerClean Ultra In-Line Chlorinator, White Lid, 25280-110-000$14799 CMP 27180-009-000 B-9 replacement skimmer basket for Hayward SP1070 skimmers CMP Pool Skimmer Basket, Replaces Hayward® SP1070-E, 27180-009-000$1399
CMP 25506-320-100 32 in. white PVC channel drain cover and frame CMP 32-Inch PVC Channel Drain Cover and Frame, White, 25506-320-100$13699 CMP 25280-109-200 clear glass PowerClean Ultra chlorinator cover CMP Clear Glass PowerClean Chlorinator Cover, 25280-109-200$3399 CMP 25549-500-000 stainless steel pool light adapter repair ring CMP Pool Light Adapter Repair Ring, 25549-500-000$5099 CMP 25552-020-300 white pool eyeball jet cap cover, 1-1/2 in. MIP CMP Pool Eyeball Jet Cap Cover, 25552-020-300$1099 CMP 25280-150-000 Powerclean Ultra VS in-line chlorinator with clear glass lid CMP Powerclean Ultra VS In-line Chlorinator, Clear Glass Lid, 25280-150-000$16699 CMP 25503-460-000 Brilliant Wonders 4 in. bubbler body assembly for gunite pools, white CMP Brilliant Wonders 4" Bubbler Body Assembly Gunite, 25503-460-000$11999 CMP FlowSkim 12 in. pool skimmer basket handle attachment CMP FlowSkim Pool Skimmer Basket Handle Attachment, 12 in., 25573-300-000$1999 CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigot CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000$3999 CMP 27182-300-000 FlowSkim skimmer basket and handle for Hayward SP1070E and U3 skimmers CMP FlowSkim Basket and Handle SP1070E, U3, 27182-300-000$3199 CMP 25810-400-050 Pool Defender 2 in. compact sacrificial zinc anode CMP Pool Defender 2 in. Compact Sacrificial Zinc Anode, 25810-400-050$8399

Questions and answers

What people ask about this product, answered by our pool techs.

What part does this replace?
CMP lists it as the replacement for part number 273564.
Does the gauge come with it?
Yes. The pressure gauge is part of the assembly, together with the manual air relief valve.
Why is my filter gauge reading wrong?
Gauges fog, stick and drift out of calibration with age and chemical exposure. If the needle does not return to zero with the pump off, the gauge is finished and the whole assembly is the straightforward fix.
When do I use the manual air relief?
After any service that lets air into the filter, and any time the tank has been drained. Start the pump and hold the valve open until water runs steadily instead of air.
