CMP 21023-030-000 ribbed T-gasket for 2 inch pump unionsCMP 2" Pump Union Ribbed T-Gasket, 21023-030-000 In stock$499
CMP 21023-030-000 ribbed T-gasket for 2 inch pump unions
Shop all CMP

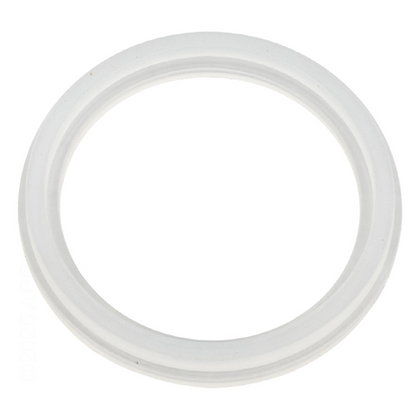

CMP 2" Pump Union Ribbed T-Gasket, 21023-030-000

Ask a questionMPN 21023-030-000
$499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 2 inch unions Sized for the 2 inch union used on pump suction and discharge connections.
  • Ribbed T profile The T section seats in the union groove and the ribs give the sealing faces something to bite on.
  • CMP part Custom Molded Products number 21023-030-000.
  • Stops a weeping union A hardened gasket is the usual reason a union drips no matter how hard the collar is turned.
  • Do not chase it with torque Cranking a union nut down on a dead gasket cracks collars; replacing the gasket is the actual fix.
  • Worth having spare Unions get opened every time a pump is pulled, and gaskets rarely survive many cycles.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CMP 2" Pump Union Ribbed T-Gasket, 21023-030-000, SKU CTM-851-0008. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CMP 2" Pump Union Ribbed T-Gasket, 21023-030-000
CMP

2" Pump Union Ribbed T-Gasket, 21023-030-000

$499
CMP Generic Bottom Collector Manifold for Hayward® CX3000C, 25357-750-000
CMP

Generic Bottom Collector Manifold for Hayward® CX3000C, 25357-750-000

$6799
CMP Generic Top Manifold Assembly with Built-in Air Relief, DEX2400C, 25357-700-000
CMP

Generic Top Manifold Assembly with Built-in Air Relief, DEX2400C, 25357-700-000

$6399
CMP FNS Plus Top Manifold Assembly, 25357-600-000
CMP

FNS Plus Top Manifold Assembly, 25357-600-000

$9299
CMP Heavy Duty J-Style Top Manifold for CV340, CV460, CV580, CL340, CL460, CL580 Cartridge Filters, 25357-850-000
CMP

Heavy Duty J-Style Top Manifold for CV340, CV460, CV580, CL340, CL460, CL580 Cartridge Filters, 25357-850-000

$9599
CMP Generic Multiport Valve Replacement for Hayward® Vari-Flo SP0714T, 27515-154-000
CMP

Generic Multiport Valve Replacement for Hayward® Vari-Flo SP0714T, 27515-154-000

$13199
CMP Sand Filter Manual Air Relief Valve Gauge Assembly, 25357-273-564
CMP

Sand Filter Manual Air Relief Valve Gauge Assembly, 25357-273-564

$8399
Subtotal

Similar products

Other products people compare with this one.

Pentair 071426Z rubber union o-ring Pentair Genuine OEM Replacement Union O-Ring, 071426Z$599 Hayward SX200Z9 drain cap gasket for S200, S240 and EasyClear filters Hayward Drain Cap Gasket, SX200Z9$499 Waterway 711-4050 1.5 in heater o-ring gasket Waterway 1.5 in Heater O-Ring Gasket, 711-4050$499 SuperPro Diffuser O-Ring for Pentair Pump 355331 | O-421-9 SuperPro Diffuser O-Ring for Pentair Pump 355331 | O-421-9$399 Active Pool Supply SPX1600S GASKET STRAINER COVER | O-177-9 Active Pool Supply SPX1600S GASKET STRAINER COVER | O-177-9$699 Pentair Gasket for Bulkhead Inside | 51013600 Pentair Gasket for Bulkhead Inside | 51013600$599 Astral Fluidra Gasket for Sight Glass | 00600R0001 Astral Fluidra Gasket for Sight Glass | 00600R0001$599 Hayward DEX2400Z5 outlet elbow o-ring, 2-3/16 in. inside diameter Hayward Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5$399 Jandy R0442500 outlet tube o-ring for DEL48 and DEL60 DE filters Jandy Outlet Tube O-Ring, R0442500$399 Hayward SP1022C 1-1/2 in. white threaded drain plug with o-ring Hayward 1-1/2" Plug with O-Ring, SP1022C$599
Pentair 191474Z drain plug o-ring for Clean and Clear Plus filters Pentair Genuine OEM Drain Plug O-Ring for Clean and Clear Plus, 191474Z$599 Pentair 274494 valve adapter o-ring, 2-3/8 in. inside diameter, 3/16 in. cross section Pentair O-Ring, Valve Adapter 2-3/8" ID, 3/16" Cross Section, 274494$599 Hayward SX200Z4 valve O-ring, 2-1/4 in. inside diameter Hayward O-Ring, Valve 2-1/4", SX200Z4$399 Hayward DEX360M bulkhead o-ring for SwimClear cartridge filters Hayward Bulkhead O-Ring for SwimClear Cartridge Filters, DEX360M$399 Pentair 192115 genuine OEM drain plug o-ring, 1/16 by 1/2 inch Pentair Genuine OEM O-Ring for Drain Plug, 192115$399 Pentair 273513 rubber air bleeder screw o-ring for pool filters Pentair O-Ring for Air Bleeder, 273513$399 Hayward O-Ring for Perflex DE Filter | ECX9611246 Hayward O-Ring for Perflex DE Filter | ECX9611246$342 Pentair 274495 white O-ring, 3/16 inch by 2 5/8 inch Pentair Genuine OEM O-Ring 3/16" x 2 5/8", White, 274495$599 Hayward CX900H Star Clear Plus locking knob o-ring Hayward StarClear Plus Knob O-Ring, CX900H$399 Hayward CX250Z7 locking knob o-ring for Star Clear cartridge filter dome lids Hayward Star Clear Locking Knob O-Ring, CX250Z7$399

Product details

The CMP 21023-030-000 is the ribbed T-gasket for 2 inch pump unions, made by Custom Molded Products.

How it seals

A union joins two pipe halves with a threaded collar. The gasket does the actual sealing, not the collar. This one has a T shaped section: the stem locates in the groove so the gasket cannot creep out of position, and the flange is squeezed between the two faces as the collar is tightened.

When to replace it

Union gaskets harden, flatten and take a set. The symptom is a union that keeps weeping no matter how hard the collar is turned, and the common mistake is to keep turning. That splits collars and does nothing for the leak. Fit a new gasket, tighten by hand until it just stops, and the joint seals. Because unions get opened every time a pump comes off the pad, it is worth keeping a spare.

Specifications
Brand CMP
Manufacturer part number 21023-030-000
Type Union ribbed T-gasket
Size 2"
Manufacturer Custom Molded Products
Shipping weight 0.01 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CMP

Aquamoto 58470-110-700 jumbo floating chlorine dispenser for 3 in. tablets Aquamoto Jumbo Chlorine Floater for 3" Chlorine Tabs, 58470-110-700$2099 CMP PowerClean Ultra in-line chlorinator 25280-100-000 with clear glass lid CMP PowerClean Ultra In-Line Chlorinator with Clear Glass Lid, 25280-100-000$14599 CMP 21063-200-000 2 in. MPT x 2 in. slip CPVC pump union CMP Pump Union, Threaded 2" MPT x 2" Slip, CPVC, 21063-200-000$2099 CMP 21063-154-000 CPVC pump union, 1-1/2 in. slip by male thread with o-ring CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1799 CMP 25563-300-500 five pack of foam sweep hose tail scrubbers for Polaris cleaners CMP Sweep Hose Tail Scrubber (5 Pack), 25563-300-500$1199 CMP 27182-352-000 FlowSkim heavy duty skimmer basket with 12 inch handle for Hayward SP-1082 skimmers CMP FlowSkim HD Skimmer Basket with 12" Handle for Hayward® SP-1082 Skimmers, 27182-352-000$3299 CMP 25357-750-000 bottom collector manifold, replacement for Hayward CX3000C CMP Generic Bottom Collector Manifold for Hayward® CX3000C, 25357-750-000$6799 CMP DEL AOP 25 Next Gen ozone and UV-C pool sanitizer, part 53000-025-000, front view CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000$1,46799 CMP 25280-110-000 PowerClean Ultra in-line tablet chlorinator with white lid CMP PowerClean Ultra In-Line Chlorinator, White Lid, 25280-110-000$14799 CMP 27180-009-000 B-9 replacement skimmer basket for Hayward SP1070 skimmers CMP Pool Skimmer Basket, Replaces Hayward® SP1070-E, 27180-009-000$1399
CMP 25506-320-100 32 in. white PVC channel drain cover and frame CMP 32-Inch PVC Channel Drain Cover and Frame, White, 25506-320-100$13699 CMP 25280-109-200 clear glass PowerClean Ultra chlorinator cover CMP Clear Glass PowerClean Chlorinator Cover, 25280-109-200$3399 CMP 25549-500-000 stainless steel pool light adapter repair ring CMP Pool Light Adapter Repair Ring, 25549-500-000$5099 CMP 25552-020-300 white pool eyeball jet cap cover, 1-1/2 in. MIP CMP Pool Eyeball Jet Cap Cover, 25552-020-300$1099 CMP 25280-150-000 Powerclean Ultra VS in-line chlorinator with clear glass lid CMP Powerclean Ultra VS In-line Chlorinator, Clear Glass Lid, 25280-150-000$16699 CMP FlowSkim 12 in. pool skimmer basket handle attachment CMP FlowSkim Pool Skimmer Basket Handle Attachment, 12 in., 25573-300-000$1999 CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigot CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000$3999 CMP 27182-300-000 FlowSkim skimmer basket and handle for Hayward SP1070E and U3 skimmers CMP FlowSkim Basket and Handle SP1070E, U3, 27182-300-000$3199 CMP 25810-400-050 Pool Defender 2 in. compact sacrificial zinc anode CMP Pool Defender 2 in. Compact Sacrificial Zinc Anode, 25810-400-050$8399 CMP Spa Master 25580-090-000 white 2-1/2 inch gunite jet body with niche CMP Spa Master 2-1/2" White Gunite Jet Body with Niche, 25580-090-000$2699

Questions and answers

What people ask about this product, answered by our pool techs.

What size union does this fit?
2 inch pump unions.
What is a T-gasket?
It is a gasket with a T shaped cross section. The stem sits down in the union groove and the flange forms the sealing face between the two halves.
My union still drips after tightening. Is this the part?
Usually. Once a union gasket has taken a permanent set or gone hard, no amount of tightening will seal it, and over tightening splits the collar instead.
Is a barcode listed?
No UPC is on record for this item, so search by the CMP part number.
Ask your own question
