Pentair 78210400 stainless steel large light niche with 3/4 inch top brass hub for concrete installationPentair Amerlite Stainless Steel Concrete Light Niche, 3/4 in. Top Hub, 78210400$12589
Pentair 78210400 stainless steel large light niche with 3/4 inch top brass hub for concrete installation
Shop all Pentair

Pentair Amerlite Stainless Steel Concrete Light Niche, 3/4 in. Top Hub, 78210400

Ask a questionMPN 78210400
$12589
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Stainless steel housing The 78210400 niche has a stainless steel housing for concrete pool installation.
  • 3/4 in. top brass hub It has a 3/4 inch top brass hub.
  • Fits Amerlite and IntelliBrite The 3/4 inch top hub fits Pentair Amerlite or IntelliBrite pool lights.
  • 12.5 in. overall diameter Overall diameter is 12.5 inches.
  • 9.86 in. inside diameter, 8.02 in. deep Inside diameter is 9.86 inches and the niche is 8.02 inches deep.
  • Bonding lugs included It has internal and external bonding lugs for grounding.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Amerlite Stainless Steel Concrete Light Niche, 3/4 in. Top Hub, 78210400, SKU AMP-30-616. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Amerlite Stainless Steel Concrete Light Niche, 3/4 in. Top Hub, 78210400
Pentair

Amerlite Stainless Steel Concrete Light Niche, 3/4 in. Top Hub, 78210400

$12589
Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128
Pentair

Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128

$43900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Pentair GloBrite to MicroBrite Niche Adapter, 618040
Pentair

GloBrite to MicroBrite Niche Adapter, 618040

$2799
Pentair IntelliBrite 5G 55W White Engine, 619917Z
Pentair

IntelliBrite 5G 55W White Engine, 619917Z

$58299
Pentair IntelliBrite 5g White LED 300W Replacement Engine, 619875Z
Pentair

IntelliBrite 5g White LED 300W Replacement Engine, 619875Z

$54599
Pentair O-Ring Replacement Kit for GloBrite Light, 620057
Pentair

O-Ring Replacement Kit for GloBrite Light, 620057

$3599
Pentair IntelliBrite 5G Color LED Engine Replacement Kit, Includes Gasket, 619818Z
Pentair

IntelliBrite 5G Color LED Engine Replacement Kit, Includes Gasket, 619818Z

$68699
Subtotal

Similar products

Other products people compare with this one.

Pentair 78244300 small stainless steel light niche with 1 inch rear hub Pentair 1" Rear Hub Small Stainless Steel Niche for Concrete Pools, 78244300$9799 Pentair 600095 stainless steel IntelliBrite face ring assembly with clamp and gasket Pentair Stainless Steel IntelliBrite LED Pool Light Face Ring Assembly with Gasket, 600095$10299 Pentair 79206700 concrete Amerlite PVC large light niche Pentair Concrete Amerlite PVC Niche, 79206700$9799 Pentair 79110600 stainless steel face ring assembly for large pool lights Pentair Stainless Steel Face Ring Assembly, 79110600$8899 Pentair 79111600 SpaBrite stainless steel face ring assembly Pentair SpaBrite Stainless Steel Face Ring Assembly, 79111600$8699 Pentair 79200100 Amerlite 8 hole pattern liner sealing ring for large stainless steel niches Pentair Amerlite Niche Sealing Ring, 79200100$15000 Web Price Pentair Niches SS Amerlite Concrete .75" Rear | 78210700 Pentair Niches SS Amerlite Concrete .75" Rear | 78210700$13599 Pentair 580037 ColorVision gunite niche kit for the LED light bubbler Pentair ColorVision Gunite Niche Kit, 580037$14399 Pentair 619864Z IntelliBrite 5G lens and gasket assembly kit Pentair IntelliBrite 5G Lens Kit, 619864Z$8699 Pentair 78232500 Amerlite large stainless steel light niche for vinyl and fiberglass pools, 1 in. rear hub Pentair Amerlite Large Stainless Steel Light Niche for Vinyl and Fiberglass Pools, 1 in. Rear Hub, 78232500$18999

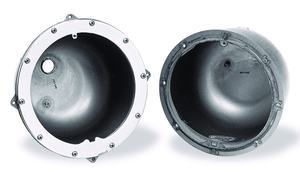

Pentair Niche Amerlite 10 Hole Fiber Liner .75" | Stainless Steel | 78232400 Pentair Niche Amerlite 10 Hole Fiber Liner .75" | Stainless Steel | 78232400$22599 Pentair 619355Z stainless steel pilot screw with captive gum washer for pool lights Pentair Pilot Screw, Stainless Steel with Captive Gum Washer, 619355Z$1399 Pentair 620400Z 8-3/8 inch silicone gasket for IntelliBrite 5G color LED pool light Pentair 8-3/8" Silicone Gasket for IntelliBrite 5G Color LED Pool Light, 620400Z$5599 Pentair 79101600Z gasket for 8-3/8 in pool light lens Pentair Gasket for 8-3/8" Light Lens, 79101600Z$3699 Pentair 620039 vinyl niche for GloBrite white pool and spa LED lights Pentair Vinyl Niche for GloBrite White Pool and Spa LED Lights, 620039$2599 Pentair 620054 vinyl replacement face plate kit for GloBrite LED lights Pentair Vinyl Replacement Face Plate Kit for GloBrite White and Color LED Lights, 620054$4399 Pentair 79108600 white 4 inch AquaLight silicone lens gasket Pentair 4" AquaLight Silicone Lens Gasket, White, 79108600$4399 Pentair 620276 fuse harness kit for 12V IntelliBrite 5G white LED pool lights Pentair Fuse Harness Kit for 12V IntelliBrite 5G White LED Lights, 620276$3099 Pentair 79108500Z 4 inch rubber lens gasket for SpaBrite and AquaLight lights Pentair 4" Rubber Lens Gasket for SpaBrite and AquaLight, 79108500Z$2099 SuperPro O-344-9 4 in. lens gasket for Spabrite and Aqualight fixtures SuperPro Lens Gasket, American Products / Pentair, Spabrite / Aqualight, 4" Diameter, O-344-9$1299

Product details

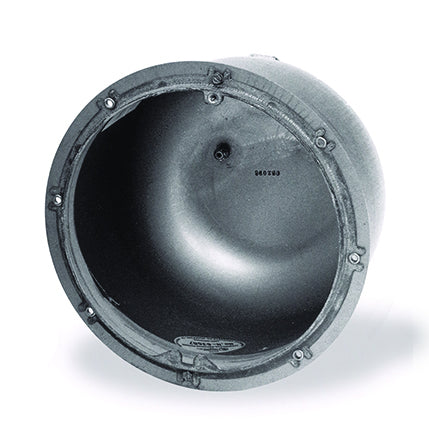

The Pentair 78210400 is a stainless steel large underwater light niche for concrete pool installation, with a 3/4 inch top brass hub.

What it does

The niche is set into the pool wall during concrete construction and holds the light fixture housing in place, giving the light a sealed pocket to sit in against the shell. This niche has a 3/4 inch top hub, which fits Pentair Amerlite or IntelliBrite pool lights.

Size and construction

The housing is stainless steel with a brass hub, measuring 12.5 inches in overall diameter, 9.86 inches inside diameter and 8.02 inches deep. It includes internal and external bonding lugs, the connection points used to bond the niche into the pool equipotential grounding system.

Fit and compatibility

Because the niche sets the hub size the light must match, confirm which hub pattern your Amerlite or IntelliBrite fixture uses before ordering a niche for new construction or a full niche replacement. Pentair makes large stainless steel niches in more than one top hub size.

Before you order

This niche is built for concrete pool installation, not for a vinyl liner or fiberglass shell. Confirm the 3/4 inch top hub pattern matches your light before ordering.

Specifications
Brand Pentair
Manufacturer part number 78210400
UPC 788379648626
Type Concrete installation light niche
Material Stainless steel housing, brass hub
Top hub size 3/4 in.
Overall diameter 12.5 in.
Inside diameter 9.86 in.
Depth 8.02 in.
Includes Internal and external bonding lugs
Fits Pentair Amerlite and IntelliBrite pool lights with a 3/4 in. top hub
Shipping weight 5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What lights fit the Pentair 78210400 niche?
Its 3/4 inch top hub fits Pentair Amerlite or IntelliBrite pool lights.
What is the 78210400 made of?
It has a stainless steel housing with a brass top hub.
What size is the 78210400 niche?
It is 12.5 inches in overall diameter, 9.86 inches inside diameter and 8.02 inches deep.
Does the 78210400 niche have grounding lugs?
Yes, it has internal and external bonding lugs.
