Pentair 155062 genuine OEM piping assembly with hub for Sand Dollar SD40 and Tagelus TA50Pentair Genuine OEM Piping Assembly with Hub, SD40, TA50, TA50D, 155062 In stock$4899
Pentair 155062 genuine OEM piping assembly with hub for Sand Dollar SD40 and Tagelus TA50
Shop all Pentair

Pentair Genuine OEM Piping Assembly with Hub, SD40, TA50, TA50D, 155062

Ask a questionMPN 155062
$4899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair Factory part 155062, the OEM piping assembly with hub.
  • Sand Dollar and Tagelus Listed for the Sand Dollar SD40 and the Tagelus TA50 and TA50D.
  • Standpipe and hub together Comes as the piping assembly with its hub rather than as separate pieces.
  • Plastic construction Built in plastic, as Pentair specifies for this assembly.
  • The path sand escapes through A cracked standpipe or hub is the usual reason a filter starts putting sand back into the pool.
  • Do it while the tank is open Emptying a sand filter is the hard part of the job, so replace suspect internals in one visit.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Genuine OEM Piping Assembly with Hub, SD40, TA50, TA50D, 155062, SKU PAC-051-2874. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Genuine OEM Piping Assembly with Hub, SD40, TA50, TA50D, 155062
Pentair

Genuine OEM Piping Assembly with Hub, SD40, TA50, TA50D, 155062

$4899
Pentair Genuine OEM 1.5" HiFlow Valve Top Assembly, 272531
Pentair

Genuine OEM 1.5" HiFlow Valve Top Assembly, 272531

$15499
Pentair Sand Filter Hose Kit 1.5 in. x 6 ft, 155151
Pentair

Sand Filter Hose Kit 1.5 in. x 6 ft, 155151

$6099
Pentair Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters, 272541
Pentair

Genuine OEM Valve Body O-Ring for Cristal-Flo II and Sand Dollar Filters, 272541

$1199
Pentair Genuine OEM Sand Filter Drain Cap, 154712
Pentair

Genuine OEM Sand Filter Drain Cap, 154712

$3399
Pentair Pump Connection Assembly SD40, 155710Z
Pentair

Pump Connection Assembly SD40, 155710Z

$7099
Pentair Genuine OEM Stand Pipe Assembly SD60, 152227
Pentair

Genuine OEM Stand Pipe Assembly SD60, 152227

$12899
Subtotal

Similar products

Other products people compare with this one.

Pentair 190059Z OEM pressure gauge with indicator for pool filters Pentair OEM Pressure Gauge with Indicator, 190059Z$5899 Pentair 154698 sand drain spigot with 3/4 inch NPT thread Pentair Genuine OEM Spigot 3/4" NPT Sand Drain, 154698$3299 Pentair 155711 pump connection assembly for the Sand Dollar SD60 filter Pentair Pump Connection Assembly SD60, 155711$6999 Pentair 354588 union adapter for Sand Dollar sand filter systems Pentair Union Adapter for Sand Dollar, 354588$2799 Pentair 155709 pump to filter connection assembly for Sand Dollar above ground filter systems Pentair Pump to Filter Connector SD35, 155709$6799 Pentair 152226 stand pipe assembly for Sand Dollar SD80 sand filters Pentair Genuine OEM Stand Pipe Assembly SD80, 152226$11099 Pentair 150085 lateral for 22 inch sand filters, 1/4 turn Pentair Genuine OEM Lateral for 22" Filter, 1/4 Turn, After 10-04, 150085Z$1399 Pentair 150084 quarter turn sand filter lateral for 18 in and 20 in filters Pentair Genuine OEM Lateral for 18 in and 20 in Filters, 1/4 Turn, After 10/04, 150084$1299 Pentair 154715 sand drain gasket for Meteor top mount sand filters Pentair Genuine OEM Sand Drain Gasket, Meteor, 154715$999 Pentair 152000 standpipe assembly for the Cristal-Flo SD70 sand filter Pentair Cristal-Flo SD70 Standpipe Assembly, 152000$12699
Pentair 155051 sand guide for Sand Dollar top mount sand filters Pentair 155051 Sand Guide$1799

Product details

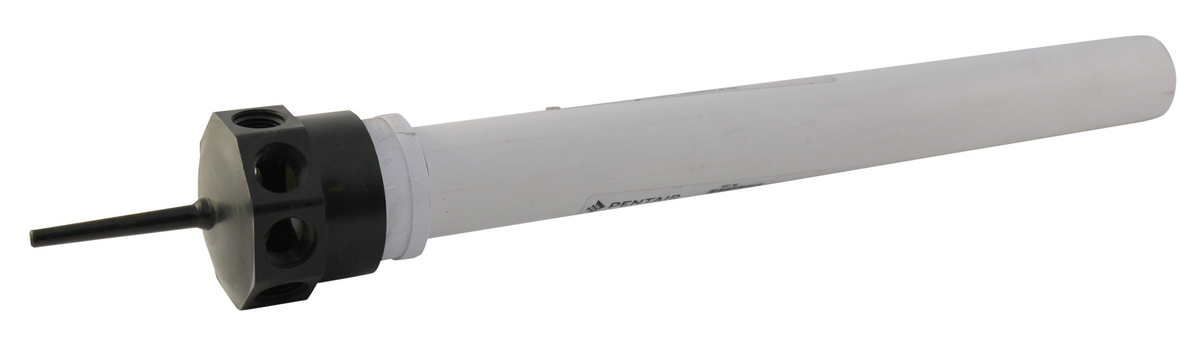

The Pentair 155062 is the genuine OEM piping assembly with hub for the Sand Dollar SD40 and the Tagelus TA50 and TA50D sand filters. It is supplied as one plastic assembly.

What it does

The piping assembly runs down the center of the tank and carries filtered water from the underdrain hub back up to the valve. Every gallon the filter cleans travels through it, so a crack anywhere along the standpipe or at the hub gives unfiltered water and sand a short cut past the laterals. That is the fault owners see as sand blowing back into the pool through the returns after a clean.

Doing the job once

Getting to this part means opening the filter and removing the sand, which is the bulk of the work. While the tank is empty, look over the laterals, the drain assembly and the tank gasket as well, since they age alongside the piping and are sold separately. Replacing everything suspect in one visit saves emptying the tank twice.

Specifications
Brand Pentair
Manufacturer part number 155062
UPC 788379669768
Type Piping assembly with hub
Part type Pool filter part
Material Plastic
Fits Pentair Sand Dollar SD40, Tagelus TA50, Tagelus TA50D
Shipping weight 1.15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters does this fit?
The Pentair Sand Dollar SD40 and the Tagelus TA50 and TA50D.
What is included?
The piping assembly together with its hub, in plastic. Laterals, sand and the drain plug are separate parts.
Is it a genuine Pentair part?
Yes. It is the Pentair OEM part, number 155062.
Why would this need replacing?
Cracks in the standpipe or hub let unfiltered water and sand bypass the laterals, which is what puts sand back into the pool through the returns.
