Raypak P-R336A-MP-C #57 Propane Gas Pool Heater, 332.5K BTU, 009202 In stock$4,16800
Raypak P-R336A-MP-C #57 Propane Gas Pool Heater, 332.5K BTU, 009202
$4,16800
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
In stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- 332.5K BTU input The mid to upper size in the atmospheric R206A through R406A range.
- Propane fired Built for LP gas, so confirm your fuel supply before ordering.
- Millivolt Plus controls Raypak Millivolt Plus rather than a digital control board.
- Copper heat exchanger The standard exchanger for pools kept in normal chemical balance.
- Polymer headers Headers molded in polymer rather than cast metal.
- Ships by freight A heater this size moves on a pallet, not through a parcel carrier.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
P-R336A-MP-C #57 Propane Gas Pool Heater, 332.5K BTU, 009202
$4,16800
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
Subtotal
Similar products
Other products people compare with this one.
Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900
Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,64900
Pentair MasterTemp 400 Natural Gas Pool Heater, Low NOx HD, 4608055.0 (1)
$4,30899
Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,92300
Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900
Web Price
Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,37400
Raypak Heater, 360K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-X, 014953$4,67600
Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038$3,49300
Raypak Pool Heater, 399K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-C, 009227$4,42600
Raypak 180K BTU Propane Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EP-X, 014950$3,39000
Raypak AVIA 399K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R404A-EP-C, 018039$4,42600
Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,57599
Pentair MasterTemp Natural Gas Heater 400 BTU Low NOx, 460736$4,12799
Raypak In-Ground Pool Heater, 200K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, P-R206A-EP-C, 009224$3,02300
Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,44800
Hayward Universal H-Series Propane Gas 250,000 BTU Low NOx Pool Heater, W3H250FDP$3,99900
Web Price
Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,00999
Raypak E3T ELS-R-0018-3-TI Electric Pool and Spa Heater, 3-Phase, 18KW, 208V, 019141$2,12000
Raypak Analog Propane Gas Heater 106,000 BTU, P-R106A-AP-C, 014781$2,11900
Pentair MasterTemp 250K Natural Gas Heater IID ASME, 460771$4,33099
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Product details

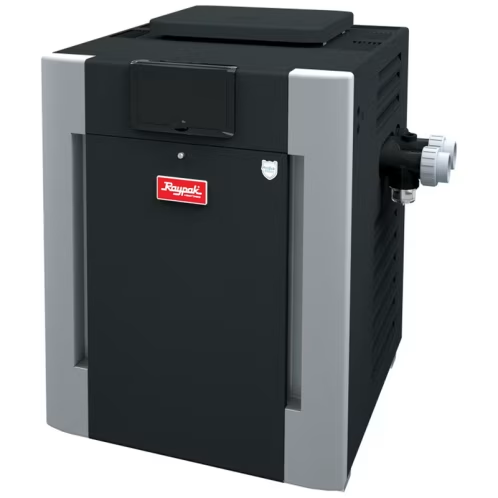

The Raypak P-R336A-MP-C is a propane fired atmospheric pool heater rated at 332.5K BTU input, built with Millivolt Plus controls, polymer headers and a copper heat exchanger. It is Raypak part number 009202.
Controls
Millivolt Plus is the mechanical route rather than the digital one. It suits installations where a simple, serviceable control set is preferred over a board and a display, and it is a common choice on replacements where the existing plumbing and controls stay as they are.
Construction
Polymer headers put a molded, non metallic part in the water path at each end of the exchanger. The exchanger itself is copper, which is the standard specification for a pool kept in normal chemical balance. Pools with aggressive water or high salt levels are usually specified with a different exchanger.
Before you order
This is the propane version, listed as P-R336A-MP-C #57, so make sure your gas supply is LP and not natural gas. Sizing, gas line capacity and venting all need to be checked against the installation, and the heater ships by freight on a pallet.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 009202 |
| Model | P-R336A-MP-C #57 |
| UPC | 840891012610 |
| Type | Pool and spa heater |
| Fuel | Propane |
| Heat input | 332,500 BTU/hr, the input of Raypak's 336A size |
| Ignition | Millivolt, standing pilot; needs no electrical supply |
| Heat exchanger | Copper fin tube |
| Headers | Polymer |
| Manufacturer status | Not in Raypak's 2025 residential catalog, which lists the digital ignition heaters only |
| Ships | Freight |
Downloads
Brochure
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$30299
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5099
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$5,14200
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$21699
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$3,53400
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900
Raypak Boiler Burner 10-Pack, 100-10000414$4199
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$43099
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8299
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10899
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$77399
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$69499
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,36999
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$32199
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300
Questions and answers
What people ask about this product, answered by our pool techs.
Does the Raypak P-R336A-MP-C need an electrical supply?
No. It is a millivolt heater: a standing pilot generates the voltage the gas valve needs, so it runs with no power connection.
Is the Raypak P-R336A-MP-C still made?
It is not in Raypak's 2025 residential catalog, which lists the digital ignition heaters only. This listing is for the unit on hand.
Is Raypak 009202 natural gas or propane?
Propane. The MP in the model number is Raypak's code for millivolt ignition on propane.
How big is the Raypak P-R336A-MP-C?
Raypak's model size is the input in thousands of BTU/hr, so the 336A is a 333,000 BTU/hr heater.
What heat exchanger does the Raypak 009202 have?
Copper fin tube, with polymer headers: the C and the P in the model number.
