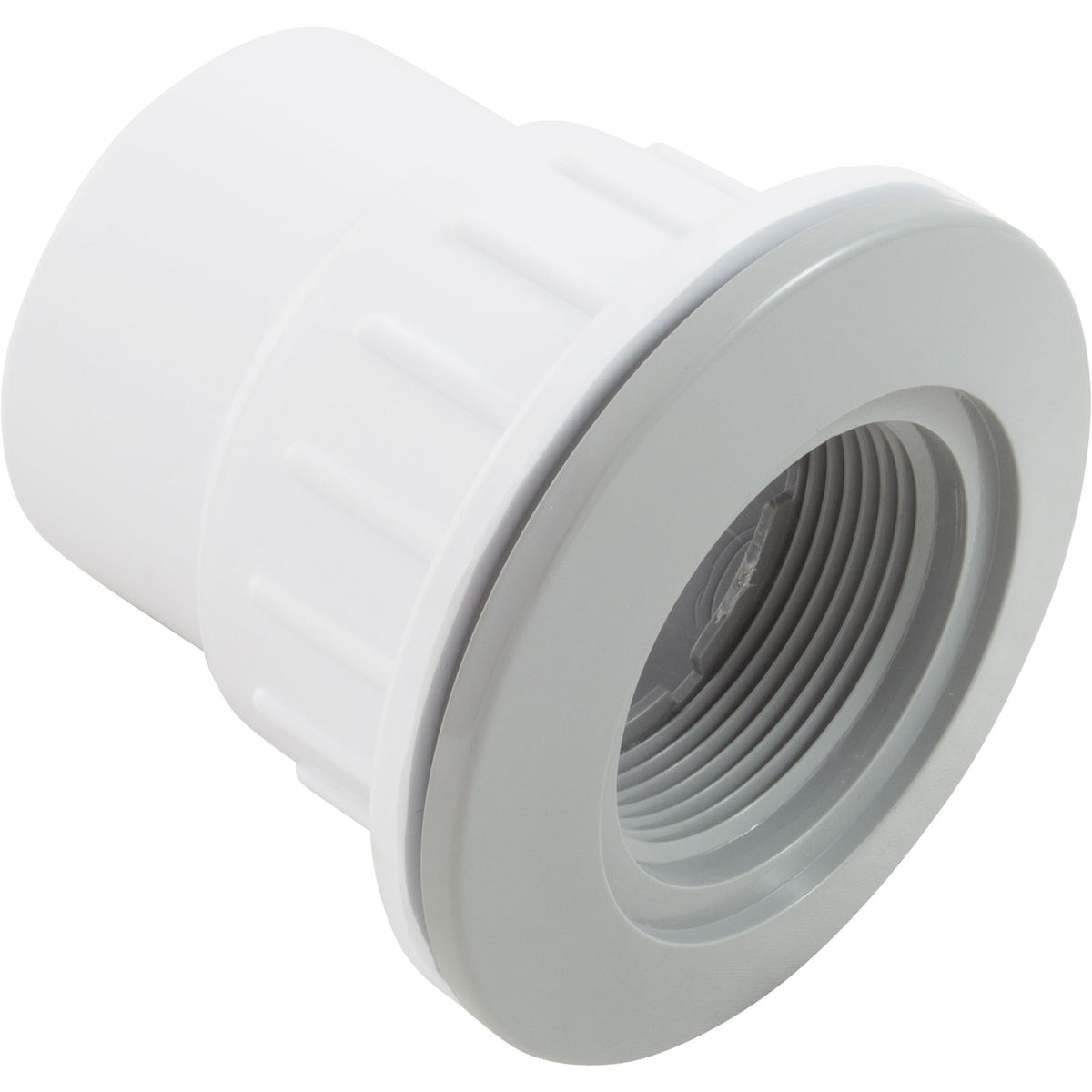

CMP 25523-501-100 gray fiberglass wall fitting, 1-1/2 inch socket by 2 inch spigot, with nut and gasketCMP 1-1/2" Socket x 2" Spigot Gray Fiberglass Wall Fitting with Nut and Gasket, 25523-501-100 In stock$1399
CMP 25523-501-100 gray fiberglass wall fitting, 1-1/2 inch socket by 2 inch spigot, with nut and gasket
Shop all CMP

CMP 1-1/2" Socket x 2" Spigot Gray Fiberglass Wall Fitting with Nut and Gasket, 25523-501-100

Ask a questionMPN 25523-501-100
$1399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Socket one side, spigot the other 1-1/2 inch socket takes pipe inside it, while the 2 inch spigot slides into a 2 inch socket.
  • Nut and gasket included The sealing parts come with it, so the fitting can go straight into the wall.
  • For fiberglass pools The fiberglass wall version of the CMP fitting.
  • Gray finish Supplied in gray.
  • CMP 25523-501-100 The factory part number, so there is no guessing at a cross reference.
  • Seal at the wall The gasket and nut are what keep the penetration watertight, and they are the parts that age first.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CMP 1-1/2" Socket x 2" Spigot Gray Fiberglass Wall Fitting with Nut and Gasket, 25523-501-100, SKU CTM-25-2804. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CMP 1-1/2" Socket x 2" Spigot Gray Fiberglass Wall Fitting with Nut and Gasket, 25523-501-100
CMP

1-1/2" Socket x 2" Spigot Gray Fiberglass Wall Fitting with Nut and Gasket, 25523-501-100

$1399
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$34999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

CMP 25552-020-300 white pool eyeball jet cap cover, 1-1/2 in. MIP CMP Pool Eyeball Jet Cap Cover, 25552-020-300$1099 Hayward SP1419D 3/4 inch HydroStream eyeball return jet, white Hayward 3/4" HydroStream Eyeball Return Jet, White, SP1419D$799 Hayward SPX1408C vinyl liner return inlet face plate gasket Hayward Return Inlet Gasket, Vinyl Liner 1.5", SPX1408C$1399 Hayward SP1419C 1/2 inch HydroStream eyeball return jet in white Hayward 1/2" HydroStream Eyeball Return Jet, White, SP1419C$1099 Hayward SP1023 1-1/2 inch return inlet fitting with locknut and gaskets Hayward 1-1/2 Inch FIP Return Inlet Fitting with Locknut and Gasket, SP1023$1599 Hayward SP1419B 3/8 inch HydroStream eyeball return jet in white Hayward 3/8" HydroStream Eyeball Return Jet, White, SP1419B$799 Hayward SPX1411B threaded white ABS face plate for SP1411 vinyl liner inlet fitting Hayward Threaded Face Plate for SP1411 Vinyl Liner Inlet Fitting, SPX1411B$1599 Hayward SP1023G above-ground pool wall fitting with locknut and gaskets Hayward Above-Ground Wall Fitting with Locknut and Gaskets, SP1023G$1999 CMP 25552-307-000 dark gray Hydrostream inlet fitting with 3/4 inch opening CMP 1.5" MPT Dark Gray Hydrostream Fitting with 3/4" Opening, 25552-307-000$1199 Hayward SPX1420A1 rubber flow director for a 1 inch eyeball fitting Hayward Rubber Flow Director, SPX1420A1$1699
CMP 25523-700-000 white fiberglass wall fitting with flush eyeball CMP 1-1/2" Socket x 2" Spigot White Fiberglass Wall Fitting and Flush Eyeball, 25523-700-000$1899 CMP 25545-100-000 white vinyl return faceplate kit replacing Hayward SPX1408B CMP Replacement Hayward® SPX1408B White Vinyl Inlet Fitting Face Plate with Screws and Gaskets, 25545-100-000$1399 Hayward SP1408S2DGR 2 inch socket dark gray return fitting for vinyl pools Hayward 2" SKT Dark Gray Return Fitting for Vinyl Pools, SP1408S2DGR$1999 AquaStar DIV0101 2 in. x 1.5 in. white return diverter plate AquaStar 2 in. x 1.5 in. White Return Diverter Plate, DIV0101$1699 Hayward SP1419ABLK Hydrostream slotted jet fitting in black Hayward Hydrostream Jet Fitting Slotted, Black, SP1419ABLK$899 Pentair 542405 standard body return fitting in white for concrete pools Pentair 1.5 inch Threaded x 1.5 inch Socket Standard Body Return Fitting for Concrete, White, 542405$1599 AquaStar JO101 white flush retrofit eyeball AquaStar White Flush Retrofit Eyeball, JO101$1799 CMP 25523-701-000 gray fiberglass pool return fitting CMP Fiberglass Return Fitting, Gray, 25523-701-000$1999 Hayward SP1421D 3/4 in Insider HydroStream return jet fitting, white Hayward 3/4 in Insider HydroStream, White, SP1421D$799 CMP 25524-204-000 black wall return fitting, 1.5 inch FIP by 2 inch CMP Wall Return Fitting, 1.5" FIP x 2" Insider Fitting, Black, 25524-204-000$899

Product details

The CMP 25523-501-100 is a gray fiberglass wall fitting with a 1-1/2 inch socket on one end and a 2 inch spigot on the other, supplied with the nut and gasket.

Reading the connections

The two ends work in opposite directions and it is worth being clear on which is which before ordering. The socket end is a female connection: 1-1/2 inch pipe goes inside it. The spigot end is male and sized like 2 inch pipe, so it goes into a 2 inch socket. Getting these the wrong way round is the usual reason a fitting arrives and will not go together.

The nut and gasket

Both are in the box. They are the parts that actually seal the penetration through the wall, and they are also the parts that harden and start to weep with age, which is often what brings someone to replace the whole fitting rather than just the pipework behind it.

Specifications
Brand CMP
Manufacturer part number 25523-501-100
UPC 849640007501
Type Wall fitting
Inlet 1-1/2 inch socket
Outlet 2 inch spigot
Color Gray
Pool wall type Fiberglass
Included Nut and gasket
Shipping weight 1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CMP

Aquamoto 58470-110-700 jumbo floating chlorine dispenser for 3 in. tablets Aquamoto Jumbo Chlorine Floater for 3" Chlorine Tabs, 58470-110-700$2099 CMP PowerClean Ultra in-line chlorinator 25280-100-000 with clear glass lid CMP PowerClean Ultra In-Line Chlorinator with Clear Glass Lid, 25280-100-000$14599 CMP 21063-200-000 2 in. MPT x 2 in. slip CPVC pump union CMP Pump Union, Threaded 2" MPT x 2" Slip, CPVC, 21063-200-000$2099 CMP 21063-154-000 CPVC pump union, 1-1/2 in. slip by male thread with o-ring CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1799 CMP 25563-300-500 five pack of foam sweep hose tail scrubbers for Polaris cleaners CMP Sweep Hose Tail Scrubber (5 Pack), 25563-300-500$1199 CMP 27182-352-000 FlowSkim heavy duty skimmer basket with 12 inch handle for Hayward SP-1082 skimmers CMP FlowSkim HD Skimmer Basket with 12" Handle for Hayward® SP-1082 Skimmers, 27182-352-000$3299 CMP 25357-750-000 bottom collector manifold, replacement for Hayward CX3000C CMP Generic Bottom Collector Manifold for Hayward® CX3000C, 25357-750-000$6799 CMP DEL AOP 25 Next Gen ozone and UV-C pool sanitizer, part 53000-025-000, front view CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000$1,46799 CMP 25280-110-000 PowerClean Ultra in-line tablet chlorinator with white lid CMP PowerClean Ultra In-Line Chlorinator, White Lid, 25280-110-000$14799 CMP 27180-009-000 B-9 replacement skimmer basket for Hayward SP1070 skimmers CMP Pool Skimmer Basket, Replaces Hayward® SP1070-E, 27180-009-000$1399
CMP 25506-320-100 32 in. white PVC channel drain cover and frame CMP 32-Inch PVC Channel Drain Cover and Frame, White, 25506-320-100$13699 CMP 25280-109-200 clear glass PowerClean Ultra chlorinator cover CMP Clear Glass PowerClean Chlorinator Cover, 25280-109-200$3399 CMP 25549-500-000 stainless steel pool light adapter repair ring CMP Pool Light Adapter Repair Ring, 25549-500-000$5099 CMP 25552-020-300 white pool eyeball jet cap cover, 1-1/2 in. MIP CMP Pool Eyeball Jet Cap Cover, 25552-020-300$1099 CMP 25280-150-000 Powerclean Ultra VS in-line chlorinator with clear glass lid CMP Powerclean Ultra VS In-line Chlorinator, Clear Glass Lid, 25280-150-000$16699 CMP 25503-460-000 Brilliant Wonders 4 in. bubbler body assembly for gunite pools, white CMP Brilliant Wonders 4" Bubbler Body Assembly Gunite, 25503-460-000$11999 CMP FlowSkim 12 in. pool skimmer basket handle attachment CMP FlowSkim Pool Skimmer Basket Handle Attachment, 12 in., 25573-300-000$1999 CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigot CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000$3999 CMP 27182-300-000 FlowSkim skimmer basket and handle for Hayward SP1070E and U3 skimmers CMP FlowSkim Basket and Handle SP1070E, U3, 27182-300-000$3199 CMP 25810-400-050 Pool Defender 2 in. compact sacrificial zinc anode CMP Pool Defender 2 in. Compact Sacrificial Zinc Anode, 25810-400-050$8399

Questions and answers

What people ask about this product, answered by our pool techs.

What is the difference between the socket and the spigot side?
The 1-1/2 inch socket accepts pipe inside it. The 2 inch spigot is sized to slide into a 2 inch socket, so it fits like a length of pipe would.
Does the nut and gasket come with it?
Yes. CMP 25523-501-100 is supplied with both.
What color is it?
Gray.
What pool wall is it for?
It is the fiberglass wall version of the fitting.
