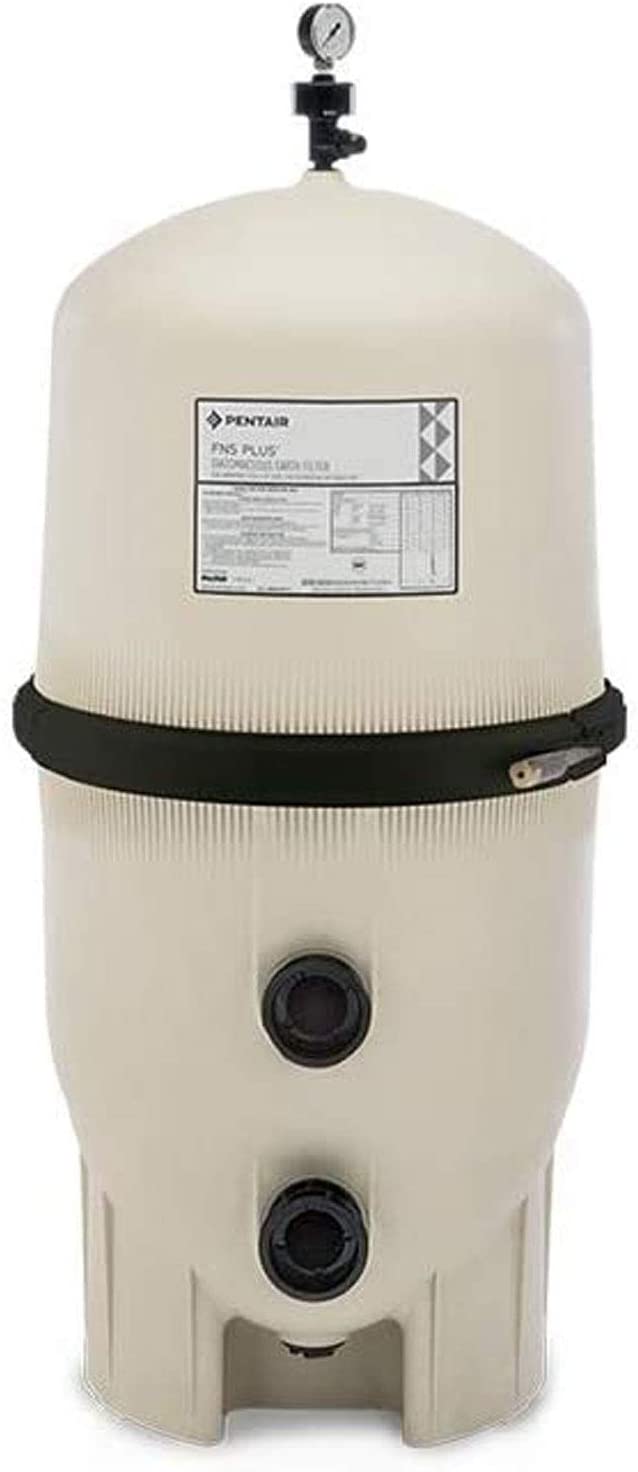

Pentair FNS Plus 36 sq. ft. vertical grid DE filter FNSP36, part EC-180007
Shop all Pentair

Pentair FNS Plus 36 sq. ft. DE Filter FNSP36, EC-180007

Ask a questionMPN EC-180007
$1,22900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Curved vertical grids More filter surface in the same tank, so it traps more dirt and goes longer between cleanings.
  • Low restriction internals The flow path needs less pumping power to reach a given flow rate, which shows up as lower utility costs.
  • Fiberglass reinforced tank Chemical resistant polypropylene reinforced with fiberglass for strength and a long service life.
  • Removable grid pack The whole grid assembly lifts out as one unit, which makes cleaning faster.
  • Efficient backwash The internal design is laid out for both filtration and backwashing efficiency.
  • Model FNSP36 36 square feet of filter area, Pentair part number EC-180007.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair FNS Plus 36 sq. ft. DE Filter FNSP36, EC-180007, SKU PAC-05-0083. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair FNS Plus 36 sq. ft. DE Filter FNSP36, EC-180007
Pentair

FNS Plus 36 sq. ft. DE Filter FNSP36, EC-180007

$1,22900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400
Pentair

Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400

$40599
Pentair 60 Sq Ft Element Assembly Complete, 59023300
Pentair

60 Sq Ft Element Assembly Complete, 59023300

$45899
Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ
Sta-Rite

Pentair 2" Bottom Mount Pressure Gauge, 1/4" NPT, 15060-0000TZ

$5299
Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800
Pentair

Genuine OEM High Flow Manual Air Relief Valve, 98209800

$3999
Pentair Genuine OEM 2" Bulkhead O-Ring, 154492
Pentair

Genuine OEM 2" Bulkhead O-Ring, 154492

$1199
Pentair Brass Plated Stainless Steel 1/4 in.-20 Hex Nut for DE Filters and Multiport Valves, 98211400
Pentair

Brass Plated Stainless Steel 1/4 in.-20 Hex Nut for DE Filters and Multiport Valves, 98211400

$799
Subtotal

Similar products

Other products people compare with this one.

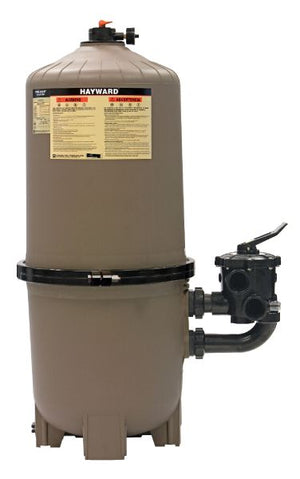

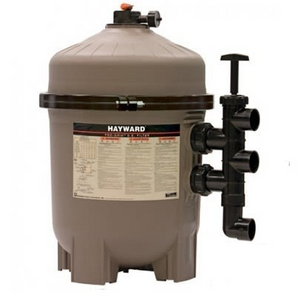

Hayward Pro-Grid W3DE3620 36 sq ft vertical grid DE pool filter Hayward Pro-Grid 36 Sq Ft DE Pool Filter, Valve Not Included, W3DE3620$1,38900 Web Price Waterway Crystal Water Filter DE 60 Sq Ft Gray | 570-0060-07 Waterway Crystal Water Filter DE 60 Sq Ft Gray | 570-0060-07$1,26899 Hayward D.E. Perflex Extended Cycle Above Ground Pool Filter | W3EC75A Hayward D.E. Perflex Extended Cycle Above Ground Pool Filter | W3EC75A$1,23900 Web Price Waterway Crystal Water Filter DE 48 Sq Ft Gray | 570-0048-07 Waterway Crystal Water Filter DE 48 Sq Ft Gray | 570-0048-07$1,17599 Hayward D.E. ProGrid Pool Filter | 72 sq. ft. | Requires Backwash Va | DE7220 Hayward Pro-Grid 72 Sqft DE Pool Filter - Valve Not Included | DE7220$1,95099 Pentair Triton II TR100 30 in. side mount sand filter tank, EC-140210 Pentair Triton II TR100 30" Side Mount Sand In-Ground Pool Filter, EC-140210$1,62199 Pentair Clean & Clear CC200 200 sq ft cartridge pool filter, EC-160318 Pentair Clean & Clear CC200 200 sq ft Cartridge Pool Filter, EC-160318$1,06900 Web Price Pentair FNS Plus 48 sq. ft. DE filter FNSP48, EC-180008 Pentair FNS Plus DE Filter, 48 Sq. Ft., FNSP48, EC-180008$1,40199 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$92799 Pentair Clean & Clear RP EC-160354 100 sq ft cartridge pool filter Pentair Clean & Clear RP 100 sq ft Cartridge Pool Filter, EC-160354$64900 Web Price
Pentair FNS Plus FNSP60 60 sq ft vertical grid DE filter Pentair FNS Plus DE Filter 60 sq ft FNSP60, EC-180009$1,50900 Pentair Clean & Clear Plus 420 sq ft cartridge pool filter, EC-160301 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301$1,61900 Web Price Pentair Clean & Clear Plus 520 sq ft cartridge pool filter, EC-160332 Pentair Clean & Clear Plus 520 sq ft Cartridge Pool Filter, EC-160332$1,94299 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$76899 Pentair Clean & Clear RP 200 sq ft cartridge filter, EC-160353 Pentair Clean & Clear RP Cartridge Filter, 200 sq ft, EC-160353$1,04900 Web Price AquaStar PLF35000 PipeLine cartridge filter AquaStar PipeLine Cartridge Filter for Pools up to 35,000 Gallons, PLF35000$1,06499 Pentair Tagelus TA100D 30 in. top mount sand filter with 2 in. multiport valve, almond Pentair Tagelus TA100D Top Mount 30 in. Pool Sand Filter with 2 in. Multiport Valve, EC-145240$1,75999 Pentair Clean & Clear Plus 320 sq ft cartridge pool filter EC-160340 Pentair Clean & Clear Plus 320 sqft Cartridge Pool Filter, EC-160340$1,45399 Pentair EC-160317 Clean & Clear Plus 150 sq ft cartridge pool filter Pentair Clean & Clear Plus 150 sq ft Cartridge Pool Filter, EC-160317$90900 Web Price Pentair Sand Dollar SD80 26 in. sand filter with top mount 1-1/2 in. multiport valve Pentair Sand Dollar SD80 26" Pool Sand Filter with Top Mount 1-1/2" Multiport Valve, EC-145333$80079

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair FNS Plus FNSP36 is a 36 square foot vertical grid DE filter for inground pools, Pentair part number EC-180007. DE filtration gives the finest water polish of the three filter types, and the FNS Plus design is built around getting the most filter area out of a compact tank.

Curved grids, more capacity

The grids inside are curved rather than flat, which fits more filtration surface into the same diameter. More surface holds more dirt, so the filter runs longer between backwashes and cleanings. The internal flow path is refined to minimise restriction, so the pump needs less power to push the required flow, and that shows up as lower running costs.

Built to last on the pad

The tank is chemical resistant polypropylene reinforced with fiberglass for strength. The grid pack is removable as one assembly, so when it is time for a full clean you lift it out, hose it down and drop it back in rather than fighting with individual grids.

Before you order

This is the 36 sq. ft. size in the FNS Plus range. Match filter area to your pump flow and pool volume; if you are replacing an existing FNSP36, this is the direct like for like unit.

Specifications
Brand Pentair
Manufacturer part number EC-180007
UPC 788379500498
Model FNSP36
Filter type Vertical grid DE
Filter area 36 sq. ft.
Tank Fiberglass reinforced polypropylene
Grid pack Removable
Pool type Inground
Shipping weight 70 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20999 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$40499 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14999 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$31099
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,15699 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$47999 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$30899 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$39599 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$30799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$29699 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40599 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

What does 36 sq. ft. mean?
It is the total surface area of the DE grids inside the tank. More area means more dirt holding capacity and longer runs between cleanings for a given pool.
Why curved grids instead of flat ones?
Curving the vertical grids packs more filter surface into the same tank diameter. That is what gives the FNS Plus its capacity without a larger footprint.
How is it cleaned?
Backwash to flush the DE and dirt, then recharge with fresh DE. For a deep clean, the grid pack comes out as a single removable assembly so you can hose the grids off.
Is the tank plastic?
It is fiberglass reinforced polypropylene, chosen for chemical resistance and strength rather than a plain molded plastic.
