Jacuzzi 42212316R DE filter grid, 8-1/2 in by 18 inJacuzzi DE Filter Grid 8-1/2" x 18" (4 Required), 42212316R In stock$5199
Jacuzzi 42212316R DE filter grid, 8-1/2 in by 18 in
Shop all Jacuzzi Bros.

Jacuzzi DE Filter Grid 8-1/2" x 18" (4 Required), 42212316R

Ask a questionMPN 42212316R
$5199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Four per filter This size is used four times in the grid set, so count what you need before ordering.
  • Fits three Jacuzzi families Used in the Avalanche, Landslide and original style Earthworks DE filters.
  • 8-1/2 in by 18 in The short grid in the set, paired with the taller grids in the same tank.
  • Jacuzzi part 42212316R The replacement grid for these Jacuzzi DE filter models.
  • Restores filtration A torn or collapsed grid lets DE powder pass straight back to the pool.
  • Sold individually Priced as a single grid, so order the quantity the filter takes.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jacuzzi DE Filter Grid 8-1/2" x 18" (4 Required), 42212316R, SKU JAC-051-8822. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jacuzzi DE Filter Grid 8-1/2" x 18" (4 Required), 42212316R
Jacuzzi Bros.

Jacuzzi DE Filter Grid 8-1/2" x 18" (4 Required), 42212316R

$5199
Jacuzzi Sight Glass Deflector, 13038203R
Jacuzzi Bros.

Jacuzzi Sight Glass Deflector, 13038203R

$1099

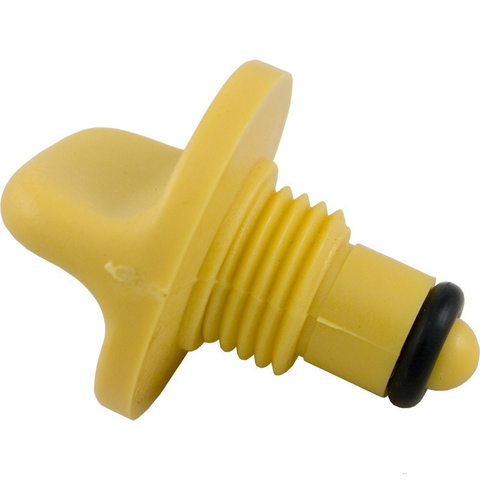

Jacuzzi Air Bleeder Valve with O-Ring, 39254701R
Jacuzzi Bros.

Jacuzzi Air Bleeder Valve with O-Ring, 39254701R

$999
Jacuzzi Drain Cap with Gasket, 4626-16
Jacuzzi Bros.

Jacuzzi Drain Cap with Gasket, 4626-16

$1299

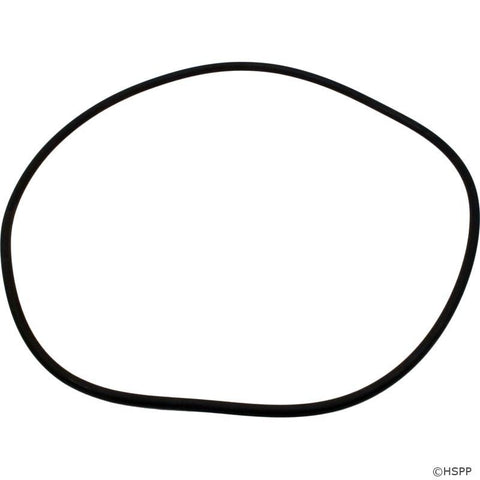

Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R
Jacuzzi Bros.

Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R

$1699
Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R
Jacuzzi Bros.

Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R

$3299
Jacuzzi Air Bleed Assembly, 1/4" PVC, 4669-08
Jacuzzi Bros.

Jacuzzi Air Bleed Assembly, 1/4" PVC, 4669-08

$3899
Subtotal

Similar products

Other products people compare with this one.

Jacuzzi 4638-03B DE filter grid, 7 inches by 18 inches Jacuzzi DE Filter Grid 7" x 18" (2 Required), 4638-03B$4999 Jacuzzi 42356907R DE filter grid, 8-1/2 by 12 inch Jacuzzi DE Filter Grid 8-1/2" x 12" (4 Required), 42356907R$4499 Jacuzzi 42357004R DE filter grid, 7 in by 12 in Jacuzzi DE Filter Grid 7" x 12" (2 Required), 42357004R$4299 SuperPro FC-9350 full size 11 by 30 inch vertical DE filter grid SuperPro 60 Sq. Ft. Filter Grid Each, Large, FC-9350$4099 SuperPro FC-9845 D.E. filter grid, 16-1/2 in x 18 in SuperPro D.E. Filter Grid, 16-1/2 in x 18 in, FC-9845$3299 SuperPro FC-9825 DE filter grid, 11 inch by 18 inch element SuperPro DE Filter Grid, 11 in x 18 in, FC-9825$3599 SuperPro FC-9850 D.E. filter grid, 19-1/4 by 18 inches SuperPro DE Filter Grid 19-1/4" x 18", FC-9850$4899 Hayward DEX4800DS short partial DE filter grid element for Pro-Grid DE4820 Hayward Short DE Filter Grid Element, 24 in., for Pro-Grid DE4820, DEX4800DS$3799 Pentair 191322 full DE filter grid, 19-3/4 inch, for ST40/ST50 and Turbo 66 filters Pentair Turbo 66 ST40/ST50 Full Grid, 19-3/4", 191322$5399 Hayward DEX4800DA 48 sq ft full D.E. filter grid element Hayward 48 Sq. Ft. Full Grid Element for Micro Clear and Pro Grid D.E. Filters, DEX4800DA$5699
SuperPro FC-9885 offset D.E. filter grid, 16-1/2 by 18 inches SuperPro Grid D.E. 16-1/2" x 18" Offset, FC-9885$4099 SuperPro FC-9840 DE filter grid, 15-3/16 by 18 inches SuperPro DE Grid 15-3/16" x 18", FC-9840$3799 Pentair 59009800 large DE filter grid assembly, 88 GPM Pentair Large DE Grid, 88 GPM, 59009800$4799 Hayward ECX1031PAK5 Perflex EC65 flex-tube assembly, 13-3/8 inch, five pack Hayward 13-3/8" EC65 Flex Tube, 5 Pack, ECX1031PAK5$4399 Hayward DEX7200DC DE7220 Pro-Grid filter element cluster assembly Hayward DE7220 Pro-Grid Pool Filter Element Cluster, DEX7200DC$1,08099 Pentair 59023500 FNS Plus 36 sq ft complete DE grid element assembly Pentair FNS Plus Filter Element Assembly Complete 36 Sqft, 59023500$36799 Pentair 59023800 complete 24 sqft DE filter grid assembly Pentair 24 sqft Grid Assembly Complete, 59023800$40599 Jandy R0501300 complete DE grid assembly for DEV48 and DEL48 filters Jandy Complete Grid Assembly for DEV/DEL 48 Sq Ft Filters, R0501300$47999 Pentair 59002500 complete DE element assembly, 48 sq ft, for Titan DE filters Pentair Titan DE Filter Element Assembly Complete, 48 sq ft, 59002500$52399 Hayward DEX2420DC filter element cluster assembly for DE2420 Pro-Grid DE filters Hayward DE2420 Filter Element Cluster Assembly, DEX2420DC$53899

Product details

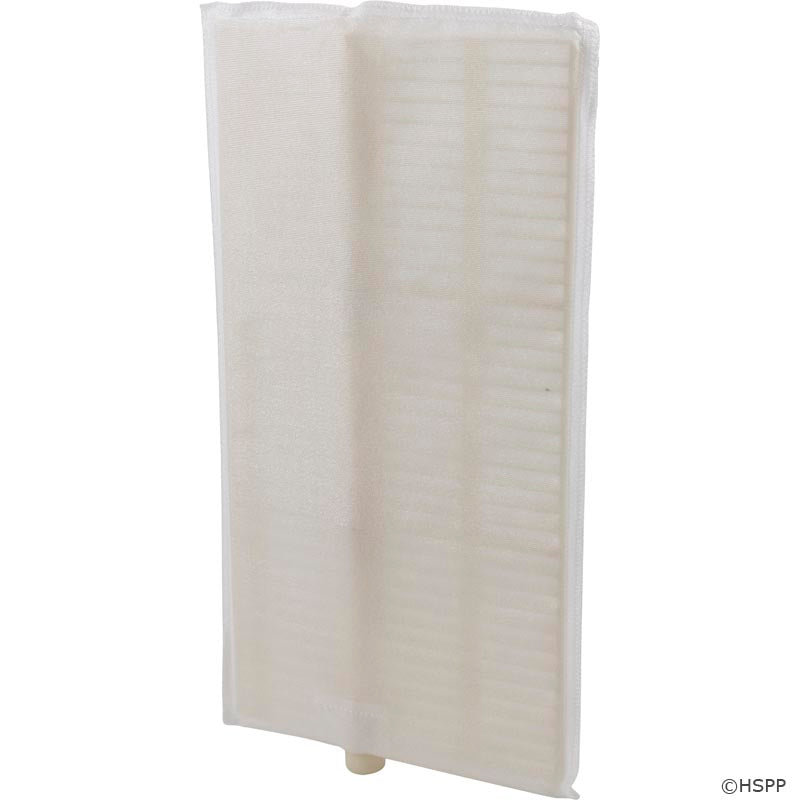

This is the Jacuzzi 42212316R DE filter grid, 8-1/2 in by 18 in. Four of them are required in the grid set, alongside the narrower grids that make up the rest of the assembly.

Where it fits

The grid is used in the Jacuzzi Avalanche DE filters AV-40, AV-60, AV-80 and AV-100, the Landslide LS40, LS55 and LS70, and the original style Earthworks EW75, EW100, EW125 and EW150.

When to replace a grid

DE grids fail at the fabric. A tear, a split seam or a face that will no longer clean up all have the same result: DE powder passes through instead of being held, and it returns to the pool through the returns. Since grids age together, it is worth inspecting the whole set while the tank is open.

Specifications
Brand Jacuzzi
Manufacturer part number 42212316R
Type DE filter grid
Dimensions 8-1/2 in x 18 in
Quantity required 4
Fits Jacuzzi Avalanche AV-40, AV-60, AV-80, AV-100 DE filters
Also fits Jacuzzi Landslide LS40, LS55, LS70 DE filters
Also fits Jacuzzi Earthworks original style EW75, EW100, EW125, EW150 DE filters
Shipping weight 1.02 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Jacuzzi Bros.

Jacuzzi 13038203R sight glass deflector for DVK series dial valves Jacuzzi Sight Glass Deflector, 13038203R$1099 Jacuzzi 39254701R plastic air bleeder valve with o-ring for pool filters Jacuzzi Air Bleeder Valve with O-Ring, 39254701R$999 Jacuzzi 47056999R 20 inch tank o-ring for Tri-Clops cartridge filters Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R$1699 Jacuzzi 42356907R DE filter grid, 8-1/2 by 12 inch Jacuzzi DE Filter Grid 8-1/2" x 12" (4 Required), 42356907R$4499 Jacuzzi 4626-16 drain cap with gasket Jacuzzi Drain Cap with Gasket, 4626-16$1299 Jacuzzi 1/4 inch PVC air bleed assembly for Earthworks and Tri-Clops filters Jacuzzi Air Bleed Assembly, 1/4" PVC, 4669-08$3899 Jacuzzi 47038047R OEM filter tank o-ring for Sherlock filters Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R$3299 Jacuzzi dirt catcher for CFR 100 cartridge filter, part 4666-15B Jacuzzi Dirt Catcher, CFR 100, 4666-15B5.0 (1) $12999 Jacuzzi 4638-03B DE filter grid, 7 inches by 18 inches Jacuzzi DE Filter Grid 7" x 18" (2 Required), 4638-03B$4999 Jacuzzi 4628-17 plastic sight glass for DVK-6 and DVK-7 dial valves Jacuzzi Sight Glass for DVK-6 and DVK-7 Dial Valves, 4628-17$1399

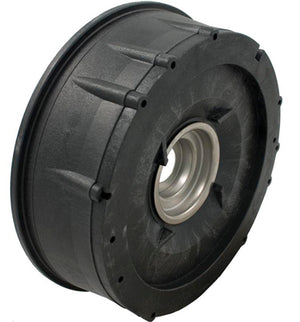

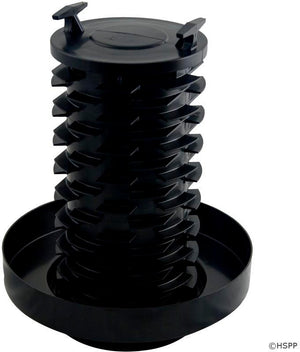

Jacuzzi replacement tank lid for CFR cartridge filters Jacuzzi Tank Lid for CFR 50, 75, 100 and 150 Cartridge Filters, 4666-13A$8499 Jacuzzi Bros lock ring for CFR, Landslide and Sand Trap filters Jacuzzi Lock Ring, 42285007$5499 Jacuzzi 43114404R W Series skimmer face flange Jacuzzi W Series Skimmer Face Flange, 43114404R$9699 Jacuzzi 10-1462-07 eye seal ring for 1/2 HP to 3 HP pumps Jacuzzi Eye Seal Ring 1/2HP-3HP, 10-1462-07$2599 Jacuzzi 42-2995-03-R dirt catcher for the CFR 75 cartridge filter Jacuzzi Dirt Catcher, CFR 75, 42-2995-03-R$10599 Jacuzzi 1/4 inch black plastic drain plugs with o-rings, set of two Jacuzzi Drain Plug 1/4" with O-Ring (Set of 2), 30060906R2$1199 Jacuzzi 42357004R DE filter grid, 7 in by 12 in Jacuzzi DE Filter Grid 7" x 12" (2 Required), 42357004R$4299 Jacuzzi dirt catcher for the CFR 50 cartridge filter Jacuzzi Dirt Catcher, CFR 50, 4666-15$9099 Jacuzzi 42367102R filter lock ring for SherLok and Avalanche filters Jacuzzi Filter Lock Ring, 42367102R$7399 Jacuzzi 5064-18D seal housing for Magnum Plus and Magnum Force pumps Jacuzzi Seal Housing for Magnum Plus and Magnum Force Pumps, 1.5-3 HP FR and 5 HP UR, 5064-18D$8899

Questions and answers

What people ask about this product, answered by our pool techs.

How many of these does my filter take?
Four. This size is required four times in the grid set.
Which Jacuzzi filters use this grid?
The Avalanche AV-40 through AV-100, the Landslide LS40, LS55 and LS70, and the original style Earthworks EW75 through EW150.
Is this the only grid size in the filter?
No. This is the 8-1/2 in by 18 in grid. The set also uses a narrower grid, which is a separate Jacuzzi part.
When should a DE grid be replaced?
When the fabric is torn, split at a seam, or so clogged that it will not clean up. Any of those lets DE powder blow back into the pool and drops filtration.
