Jacuzzi Seal Housing for Magnum Plus and Magnum Force Pumps, 1.5-3 HP FR and 5 HP UR, 5064-18D In stock$8899
Jacuzzi Seal Housing for Magnum Plus and Magnum Force Pumps, 1.5-3 HP FR and 5 HP UR, 5064-18D
30 day returns · Easy, with prepaid labels provided
Quick overview
- For Magnum Plus and Magnum Force The seal housing used on these Jacuzzi pumps in 1.5 to 3 HP FR and 5 HP UR.
- Identify by the raised section There is a raised section about 1/4 inch tall around the front where the impeller sits, with a 1/4 by 5/16 inch notch on its outside edge.
- Raised section bore 5-1/4 inch Measure the inside diameter of that raised section to confirm the match.
- Motor side 7-5/16 inch That is the maximum outside diameter, measured at the motor side.
- Front face 6-9/16 inch The front measures 6-9/16 inch outside diameter, with 9 small holes around the outside and 3 more on the face.
- 2-1/4 inch deep Front to back depth of the housing.
Need a hand?
Similar products
Other products people compare with this one.
Pentair Seal Package for EQ and C Series Pumps, 071725S$5199
Go-Kit Seal and Gasket Kit for Hayward® TriStar Pumps, Go-Kit TriStar$5599
Sta-Rite Seal Plate for Dyna-Glas and Dyna-Max Pumps, C3-184PZ$13299
Pentair Seal and Gasket Kit for MPRA and MPEA Pumps, PP3000$6399
Jandy Impeller Kit for Stealth SHPF/SHPM and PlusHP PHPF/PHPM Pumps, R0807202$6099
Sta-Rite Impeller for 1-1/2 HP Dyna-Max and Dyna-Pro Pumps, C105-236PC$5799
Sta-Rite Impeller for Dyna-Glas/Dyna-Max Series and Dyna-Pro/Dyna-Pro E Pumps, C105-236P$5799
Hayward Diffuser for MaxFlo VS and MaxFlo XL Pumps, SPX2300B$5499
Hayward SPX2600E5 Seal Plate for SP2600X Series Pumps$6299
Stenner Pumps QuickPro Roller Assembly for Classic, SVP and M128 Series Pumps, QP500-1$4799
Stenner Pumps PMBRPL2 Rotor Assembly for 45, 85 and 170 Series Adjustable and Fixed Pumps$12999
Pentair Cam and Ramp Strainer Lid Clamp, Almond, for WhisperFlo and IntelliFlo Pumps, 357199Z$5099
Polaris Quick Connect Install Kit for Booster Pumps, New Style, R0617100$6299
Pentair Impeller for IntelliFlo and WhisperFlo 3 HP WFE-12, 073131Z$9099
Pentair 2 in. and 2.5 in. Union Kit for 3 HP IntelliFlo3 Pool Pump, 410028Z$5299
SuperPro Jandy SHPF and SHPM Series Viton Seal Kit, GOKIT82V-9$4999
Hayward Seal Plate for Super II Pump, SPX3020E$6799
Hayward Shaft Seal Assembly for 5060 Booster Pump, SPX1250XZ2C$4999
Pentair 1.5" Black Union Kit for SuperMax and SuperFlo, 351157$8199
Pentair Replacement Basket for WhisperFloXF and IntelliFloXF Pump, 400007Z$4599
Product details

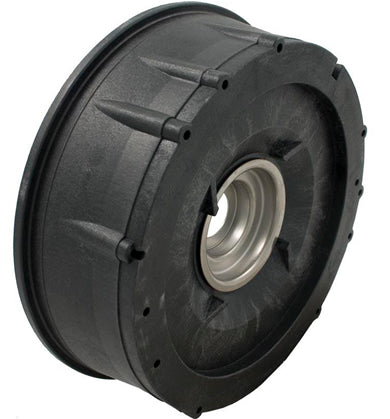

This is the Jacuzzi 5064-18D seal housing for Magnum Plus and Magnum Force pumps in the 1.5 to 3 HP FR and 5 HP UR sizes.
What it does
The seal housing is the plate between the motor and the wet end. It carries the stationary half of the shaft seal, positions the impeller, and bolts up to the motor face. A cracked housing, a corroded seal seat or a distorted mounting face all show up the same way: a pump that weeps from behind the impeller no matter how many new seals go into it.
Making sure it is the right one
Several Jacuzzi housings look alike, so measure before ordering. The maximum outside diameter at the motor side is 7-5/16 inch and the depth front to back is 2-1/4 inch. At the front, the outside diameter is 6-9/16 inch, with nine small holes around the outside and three more on the face. Around the front where the impeller sits there is a raised section about 1/4 inch tall, extending out to the outside screw holes, with a 1/4 by 5/16 inch notch on its outer edge. The inside diameter of that raised section measures 5-1/4 inch.
While you have it apart
A seal housing rarely fails on its own. If you are replacing one, fit a new shaft seal at the same time and inspect the impeller and the o-rings, since the pump is already open and the labor is the expensive part of the job.
| Brand | Jacuzzi |
|---|---|
| Manufacturer part number | 5064-18D |
| Type | Seal housing |
| Part type | Pool pump part |
| Fits | Jacuzzi Magnum Plus and Magnum Force pumps, 1.5 to 3 HP FR and 5 HP UR |
| Outside diameter at motor side | 7-5/16" maximum |
| Outside diameter at front | 6-9/16" |
| Front to back | 2-1/4" |
| Raised section | About 1/4" tall around the front where the impeller sits, extending to the outside screw holes |
| Raised section inside diameter | 5-1/4" |
| Notch | 1/4" x 5/16" on the outside edge of the raised section |
| Hole pattern | 9 small holes around the outside of the front, plus 3 additional holes on the front |
| Shipping weight | 1.28 lb |
| Ships | Parcel |
