Jacuzzi 47056999R 20 inch tank o-ring for Tri-Clops cartridge filtersJacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R In stock$1799
Jacuzzi 47056999R 20 inch tank o-ring for Tri-Clops cartridge filters
Shop all Jacuzzi Bros.

Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R

Ask a questionMPN 47056999R
$1799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 20 inch o-ring The tank o-ring size used on the Tri-Clops cartridge filter body.
  • Tri-Clops filters Listed for the Jacuzzi Tri-Clops cartridge filter range.
  • Seals the tank halves This is the o-ring the filter clamp compresses to keep the tank from weeping.
  • Part 47056999R The Jacuzzi number for the tank o-ring, worth quoting when ordering.
  • Change it when you open the filter Tank o-rings take a set and rarely reseal properly once the tank has been apart.
  • Cheap insurance A weeping filter tank costs water and chemicals until the seal is replaced.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R, SKU JAC-051-8888. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R
Jacuzzi Bros.

Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R

$1799
Jacuzzi Sight Glass Deflector, 13038203R
Jacuzzi Bros.

Jacuzzi Sight Glass Deflector, 13038203R

$1199
Jacuzzi Air Bleeder Valve with O-Ring, 39254701R
Jacuzzi Bros.

Jacuzzi Air Bleeder Valve with O-Ring, 39254701R

$999
Jacuzzi Drain Cap with Gasket, 4626-16
Jacuzzi Bros.

Jacuzzi Drain Cap with Gasket, 4626-16

$1299
Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R
Jacuzzi Bros.

Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R

$3399
Jacuzzi Sight Glass for DVK-6 and DVK-7 Dial Valves, 4628-17
Jacuzzi Bros.

Jacuzzi Sight Glass for DVK-6 and DVK-7 Dial Valves, 4628-17

$1399
Jacuzzi Air Bleed Assembly, 1/4" PVC, 4669-08
Jacuzzi Bros.

Jacuzzi Air Bleed Assembly, 1/4" PVC, 4669-08

$3999
Subtotal

Similar products

Other products people compare with this one.

SuperPro O-429-9 generic tank o-ring for Hayward filters, replaces DEX2400K SuperPro Tank O-Ring (Generic) for Select Hayward Filters, O-429-9$1499 Sta-Rite 35505-1429 O-ring for System 3 cartridge filters Sta-Rite O-Ring for System 3 Cartridge Filters, 35505-1429$1399 SuperPro O-342-9 lid o-ring for Commander Series filters SuperPro Lid O-Ring for Commander Series Filters, O-342-9$1099 SuperPro O-484-9 generic filter tank o-ring for Sta-Rite PLM filters SuperPro Generic Filter Tank O-Ring for Sta-Rite PLM, After 2/97, O-484-9$1599 Sta-Rite 24206-0103S air release valve with o-ring for PXC, System:2 PLDE and Posi-Clear filters Sta-Rite Air Release Valve with O-Ring for PXC, System:2 PLDE and Posi-Clear Filters, 24206-0103S$2199 Aladdin O-305-9 tank o-ring for the Hayward C-250-F filter Aladdin O-Ring for Hayward C-250-F Tank, O-305-9$1399 Waterway 805-0339 bulkhead coupler o-ring for Crystal Water filters Waterway Bulkhead O-Ring for Crystal Water Filters, 805-0339$1099 Tank Channel O-Ring Tank Channel O-Ring$1599 Pentair 87300400Z tank body o-ring for Clean and Clear and Predator filters Pentair Tank Body O-Ring, Clean and Clear, 87300400Z$1699 Jandy R0792000 outlet tube O-ring for CV, CL, DEV and DE filters Jandy OEM Outlet Tube O-Ring For CV/CL/DEV/DE Cartridge Filter, R0792000$1999
Sta-Rite 35505-1424 adapter to tank O-ring, 2-3/8 inch inside diameter Sta-Rite O-Ring, 2-3/8" ID, Adapter to Tank, PLM/PLD, 35505-1424$1699 Waterway 805-0460 Clearwater II tank lid O-ring, 16-1/4 inch outside diameter Waterway Clearwater II Tank Lid O-Ring, OD 16-1/4", 805-0460$2299 Hayward CCX1000Z5 air relief o-ring set of 2 Hayward OEM O-Ring Set for Air Relief, Set of 2, CCX1000Z5$1099 Sta-Rite U9-301 gray tank o-ring for Posi-Flo cartridge filters Sta-Rite Posi-Flo Tank O-Ring, Gray, U9-301$1399 Sta-Rite 32185-7074 drain cap with gasket for Posi-Clear cartridge filters Sta-Rite Drain Cap with Gasket for Posi-Clear Filters, 32185-7074$1399 Hayward CX3030F inlet elbow for SwimClear cartridge filters Hayward CX3030F Inlet Elbow for SwimClear Cartridge Filters (after Sept. 2012)$2099 Hayward CX5000Z3 air relief tube for C5020 and C5025 cartridge filters Hayward CX5000Z3 Air Relief Tube for C5020/C5025 Filters$2599 SuperPro O-231V-9 lid o-ring listed for CLX200K SuperPro Lid O-Ring for CLX200K, O-231V-9$1299 Hayward DEX2400Z3A air relief valve stem o-ring set of 3 Hayward O-Ring for Air Relief Valve Stem, Set of 3, DEX2400Z3A$1899 Hayward CX120D filter lid o-ring for the Micro-Star cartridge filter Hayward O-Ring for Micro Star-Clear Filter Lid, CX120D$2399

Product details

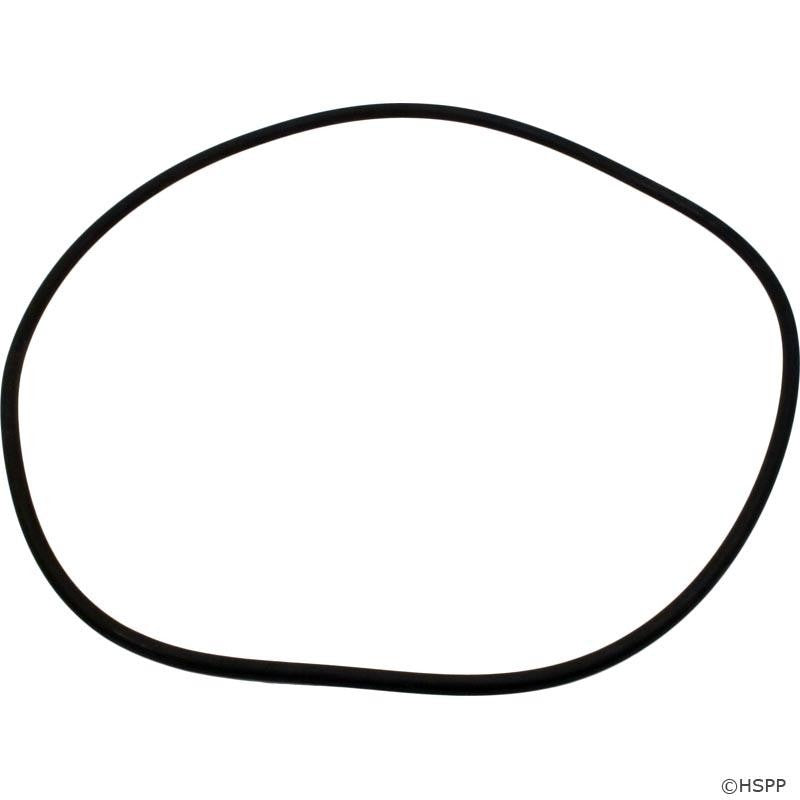

The Jacuzzi 47056999R is the 20 inch tank o-ring for Tri-Clops cartridge filters. It is the seal between the tank halves, the one the band clamp compresses when the filter is closed up.

When to replace it

Tank o-rings are the most common reason a cartridge filter weeps at the seam. The rubber takes a set in its groove, and once the tank has been opened it often will not seat the same way again. Anyone opening a Tri-Clops to change cartridges is better off putting a new o-ring in while the tank is apart than chasing a drip afterwards.

Fitting notes

Seat the o-ring fully in its groove before bringing the halves together, and use a pool rated silicone lubricant. Petroleum based grease will break the rubber down. Jacuzzi lists this part for the Tri-Clops range, with the parts diagram covering the TC-300, TC-450 and TC-600 and the part also carried against the TC-330, TC-440 and TC-550.

Specifications
Brand Jacuzzi
Manufacturer part number 47056999R
Type Tank o-ring
Size 20"
Fits Jacuzzi Tri-Clops cartridge filters, TC-300, TC-450, TC-600
Also listed for Tri-Clops TC-330, TC-440, TC-550
Shipping weight 0.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Jacuzzi Bros.

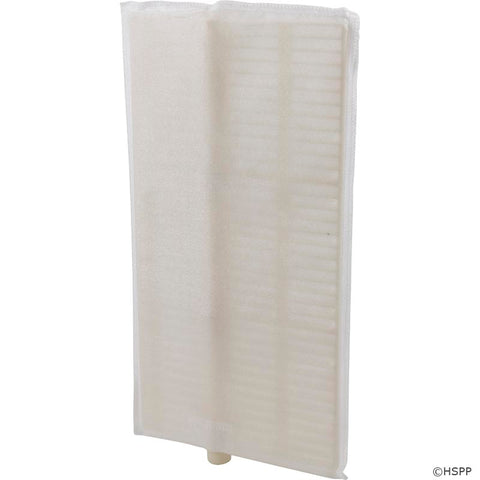

Jacuzzi 13038203R sight glass deflector for DVK series dial valves Jacuzzi Sight Glass Deflector, 13038203R$1199 Jacuzzi 42212316R DE filter grid, 8-1/2 in by 18 in Jacuzzi DE Filter Grid 8-1/2" x 18" (4 Required), 42212316R$5399 Jacuzzi 39254701R plastic air bleeder valve with o-ring for pool filters Jacuzzi Air Bleeder Valve with O-Ring, 39254701R$999 Jacuzzi 42356907R DE filter grid, 8-1/2 by 12 inch Jacuzzi DE Filter Grid 8-1/2" x 12" (4 Required), 42356907R$4699 Jacuzzi 4626-16 drain cap with gasket Jacuzzi Drain Cap with Gasket, 4626-16$1299 Jacuzzi 1/4 inch PVC air bleed assembly for Earthworks and Tri-Clops filters Jacuzzi Air Bleed Assembly, 1/4" PVC, 4669-08$3999 Jacuzzi 47038047R OEM filter tank o-ring for Sherlock filters Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R$3399 Jacuzzi dirt catcher for CFR 100 cartridge filter, part 4666-15B Jacuzzi Dirt Catcher, CFR 100, 4666-15B$13399 Jacuzzi 4638-03B DE filter grid, 7 inches by 18 inches Jacuzzi DE Filter Grid 7" x 18" (2 Required), 4638-03B$5199 Jacuzzi 4628-17 plastic sight glass for DVK-6 and DVK-7 dial valves Jacuzzi Sight Glass for DVK-6 and DVK-7 Dial Valves, 4628-17$1399
Jacuzzi replacement tank lid for CFR cartridge filters Jacuzzi Tank Lid for CFR 50, 75, 100 and 150 Cartridge Filters, 4666-13A$8799 Jacuzzi Bros lock ring for CFR, Landslide and Sand Trap filters Jacuzzi Lock Ring, 42285007$5599 Jacuzzi 43114404R W Series skimmer face flange Jacuzzi W Series Skimmer Face Flange, 43114404R$6899 Jacuzzi 10-1462-07 eye seal ring for 1/2 HP to 3 HP pumps Jacuzzi Eye Seal Ring 1/2HP-3HP, 10-1462-07$2699 Jacuzzi 42-2995-03-R dirt catcher for the CFR 75 cartridge filter Jacuzzi Dirt Catcher, CFR 75, 42-2995-03-R$10899 Jacuzzi 1/4 inch black plastic drain plugs with o-rings, set of two Jacuzzi Drain Plug 1/4" with O-Ring (Set of 2), 30060906R2$1199 Jacuzzi 42357004R DE filter grid, 7 in by 12 in Jacuzzi DE Filter Grid 7" x 12" (2 Required), 42357004R$4499 Jacuzzi dirt catcher for the CFR 50 cartridge filter Jacuzzi Dirt Catcher, CFR 50, 4666-15$9399 Jacuzzi 42367102R filter lock ring for SherLok and Avalanche filters Jacuzzi Filter Lock Ring, 42367102R$7599 Jacuzzi 5064-18D seal housing for Magnum Plus and Magnum Force pumps Jacuzzi Seal Housing for Magnum Plus and Magnum Force Pumps, 1.5-3 HP FR and 5 HP UR, 5064-18D$9199

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters does it fit?
Jacuzzi Tri-Clops cartridge filters. The parts diagram covers the TC-300, TC-450 and TC-600, and the part is also listed against the TC-330, TC-440 and TC-550.
What size is it?
It is the 20 inch tank o-ring for the Tri-Clops filter body.
Should I replace it every time I open the filter?
It is good practice. Tank o-rings take a set in the groove and often will not reseal cleanly once the clamp has been off, which shows up as a slow weep at the seam.
Do I need lubricant?
Use a pool rated silicone lubricant on a tank o-ring. Petroleum grease attacks the rubber.
Ask your own question
