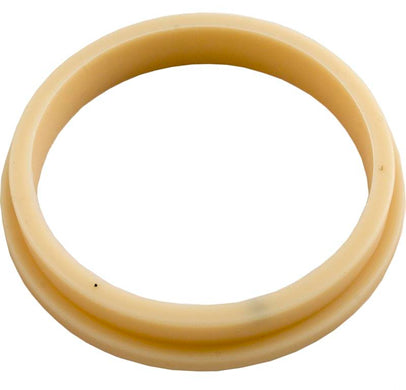

Jacuzzi 10-1462-07 eye seal ring for 1/2 HP to 3 HP pumpsJacuzzi Eye Seal Ring 1/2HP-3HP, 10-1462-07 In stock$2699
Jacuzzi 10-1462-07 eye seal ring for 1/2 HP to 3 HP pumps
Shop all Jacuzzi Bros.

Jacuzzi Eye Seal Ring 1/2HP-3HP, 10-1462-07

Ask a questionMPN 10-1462-07
$2699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Wide Jacuzzi coverage Fits across the Cygnet, J, JCM, K, KM, L, Magnum and Ring-Lok families, with the horsepower range varying by model.
  • Horsepower matters Some families are covered at all horsepowers, Magnum at 0.5 to 3.0 HP and the Ring-Lok models only at 0.5 to 1.0 HP. Read the fits list against your motor.
  • Sets impeller clearance The eye seal ring is the wear surface the impeller eye runs against, and the gap there is what the pump loses flow through.
  • A worn ring costs flow When the ring is grooved or oversized, water recirculates inside the volute instead of going down the return line.
  • Change it with the impeller If the impeller is out for any reason, the eye seal ring is the piece worth inspecting while everything is apart.
  • Jacuzzi Bros part Carried under the Jacuzzi Bros brand as part number 10-1462-07.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jacuzzi Eye Seal Ring 1/2HP-3HP, 10-1462-07, SKU JAC-101-6431. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jacuzzi Eye Seal Ring 1/2HP-3HP, 10-1462-07
Jacuzzi Bros.

Jacuzzi Eye Seal Ring 1/2HP-3HP, 10-1462-07

$2699
Jacuzzi Drain Plug 1/4" with O-Ring (Set of 2), 30060906R2
Jacuzzi Bros.

Jacuzzi Drain Plug 1/4" with O-Ring (Set of 2), 30060906R2

$1199
Jacuzzi Motor Housing Bracket, 02136802R
Jacuzzi Bros.

Jacuzzi Motor Housing Bracket, 02136802R

$5299
Jacuzzi Seal Housing for Magnum Plus and Magnum Force Pumps, 1.5-3 HP FR and 5 HP UR, 5064-18D
Jacuzzi Bros.

Jacuzzi Seal Housing for Magnum Plus and Magnum Force Pumps, 1.5-3 HP FR and 5 HP UR, 5064-18D

$9199
Jacuzzi Basket Assembly for Magnum and Magnum Plus Pumps, 16109704R
Jacuzzi Bros.

Jacuzzi Basket Assembly for Magnum and Magnum Plus Pumps, 16109704R

$3699
Jacuzzi Strainer Basket for Cygnet, LR, SLR, Dominator, CLR and SharkJet Pumps, 16105215
Jacuzzi Bros.

Jacuzzi Strainer Basket for Cygnet, LR, SLR, Dominator, CLR and SharkJet Pumps, 16105215

$3299
Jacuzzi 1HP Impeller (3-3/4" Diameter), 5069-05A
Jacuzzi Bros.

Jacuzzi 1HP Impeller (3-3/4" Diameter), 5069-05A

$3899
Subtotal

Similar products

Other products people compare with this one.

Pentair 356173Z seal plate o-ring for the 3HP IntelliFlo3 pool pump Pentair Seal Plate O-Ring for 3HP IntelliFlo3 Pool Pump, 356173Z$1399 Jandy R0449100 pump lid seal gasket with o-ring Jandy Pump Lid Seal Gasket with O-Ring, R0449100$1999 Pentair 355619Z SuperFlo and Pinnacle seal bracket O-ring Pentair SuperFlo Seal Bracket O-Ring, 355619Z$1699 Pentair 357099Z square ring for the seal plate on Max-E-Pro and IntelliPro pumps Pentair Square Ring, Seal Plate, Max-E-Pro / IntelliPro, 357099Z$1999 SuperPro GO-KIT14-9 seal kit for Jacuzzi Magnum pumps SuperPro Jacuzzi Magnum Pump Seal Kit, GO-KIT14-9$3099 Jacuzzi 42282806R replacement lock ring stamped 011202 Jacuzzi Replacement Lock Ring, 42282806R$3199 Pentair 356148Z seal plate o-ring for the IntelliFlo3 VSF 1.5 HP pump Pentair Seal Plate O-Ring for IntelliFlo3 VSF 1.5 HP Pump, 356148Z$1399 Sta-Rite U9-228A seal plate o-ring for Pinnacle pumps Sta-Rite Seal Plate O-Ring for Pinnacle, U9-228A$1799 Aladdin O-304-9 cartridge and seal plate o-ring, replaces 07-1445 and P-24263 Aladdin Cartridge and Seal Plate O-Ring for WhisperFlo and Purex, Replaces 07-1445 and P-24263, O-304-9$1499 Pentair 356198 seal kit for WhisperFlo and IntelliFlo pool pumps Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198$3799
Aladdin GO-KIT32-9 seal and gasket kit for Pentair WhisperFlo and IntelliFlo pumps Aladdin Seal & Gasket Kit for Pentair WhisperFlo & IntelliFlo Pool Pumps, GO-KIT32-9$3499 CMP 21063-154-000 CPVC pump union, 1-1/2 in. slip by male thread with o-ring CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1799 Aladdin GO-KIT 71 seal kit for the old style Polaris PB4-60 booster pump Aladdin GO-KIT 71 Seal Kit for Polaris PB4-60 Booster Pump$1699 Jandy R0479400 mechanical shaft seal, 5/8 in. inside diameter Jandy Mechanical Seal, 5/8" ID, R0479400$3499 Jandy R0446200 lid seal o-ring for Stealth and ePump pool pumps Jandy Lid Seal, R0446200$3299 Pentair 357872 IntelliFlo3 and IntelliPro3 pump rebuild seal set kit Pentair IntelliFlo3 and IntelliPro3 Pump Rebuild Seal Set Kit, 357872$3099 Hayward SPX3021R impeller ring, 2-3/4 in. OD, for 3/4 to 3 HP pumps Hayward 3/4 HP to 3 HP Impeller Ring, 2-3/4 in. OD, SPX3021R$1699 Jandy R0446000 drain plug with o-ring, set of 2 Jandy Drain Plug with O-Ring (Set of 2), R0446000$2099 Jandy R0445500 mechanical shaft seal, 13/16 in. ID, shown with both seal sizes for illustration Jandy Mechanical Shaft Seal, 13/16" ID, R0445500$3399 Pentair 355329Z square front housing o-ring for Challenger pool pumps Pentair Challenger Front Housing O-Ring, 355329Z$2299

Product details

The Jacuzzi 10-1462-07 is the eye seal ring used across a wide span of Jacuzzi pool pumps, from the Cygnet and J series through the Magnum family and the Ring-Lok models.

What it does

The eye seal ring is the fixed wear surface that the eye of the impeller spins inside. That clearance is the seal between the pressure side of the impeller and the suction side. As the ring wears and the gap opens, some of the water the impeller has already moved slips straight back around instead of leaving through the discharge, and the pump quietly loses flow while sounding perfectly normal.

Read the fitment carefully

Coverage is not the same across every family. Cygnet, J, JCM, K, KM and the L models are listed at all horsepowers. Magnum, Magnum Plus and Magnum Force are covered from 0.5 to 3.0 HP. The Ring-Lok models and the RC are only covered from 0.5 to 1.0 HP. Find your model and its horsepower on the list before you order.

While you are in there

Reaching this ring means the pump is apart. Look at the impeller, the shaft seal and the housing gasket at the same time. Those are the parts that fail on the same clock, and a second teardown a month later is time nobody wants to spend twice.

Specifications
Brand Jacuzzi
Manufacturer part number 10-1462-07
Type Eye seal ring
Horsepower range 1/2HP-3HP
Fits, all horsepowers Cygnet Series; J, JCM, K and KM Series; L, LC, LCUN2, LT, LX, LTC, LCU, LTCU, LCM, ULCU, ULTCU Models; L3 and L25 Models; LH and LTH Models; LR, LR9, LR3, LR6 and LR25 Models
Fits, 0.5hp to 3.0hp Magnum, Magnum Plus and Magnum Force Models
Fits, 0.5hp to 1.0hp Ring-Lok P, PC and EP Models; Ring-Lok R, P, PC and UP Models; RC Model
Shipping weight 0.01 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Jacuzzi Bros.

Jacuzzi 13038203R sight glass deflector for DVK series dial valves Jacuzzi Sight Glass Deflector, 13038203R$1199 Jacuzzi 42212316R DE filter grid, 8-1/2 in by 18 in Jacuzzi DE Filter Grid 8-1/2" x 18" (4 Required), 42212316R$5399 Jacuzzi 39254701R plastic air bleeder valve with o-ring for pool filters Jacuzzi Air Bleeder Valve with O-Ring, 39254701R$999 Jacuzzi 47056999R 20 inch tank o-ring for Tri-Clops cartridge filters Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R$1799 Jacuzzi 42356907R DE filter grid, 8-1/2 by 12 inch Jacuzzi DE Filter Grid 8-1/2" x 12" (4 Required), 42356907R$4699 Jacuzzi 4626-16 drain cap with gasket Jacuzzi Drain Cap with Gasket, 4626-16$1299 Jacuzzi 1/4 inch PVC air bleed assembly for Earthworks and Tri-Clops filters Jacuzzi Air Bleed Assembly, 1/4" PVC, 4669-08$3999 Jacuzzi 47038047R OEM filter tank o-ring for Sherlock filters Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R$3399 Jacuzzi dirt catcher for CFR 100 cartridge filter, part 4666-15B Jacuzzi Dirt Catcher, CFR 100, 4666-15B$13399 Jacuzzi 4638-03B DE filter grid, 7 inches by 18 inches Jacuzzi DE Filter Grid 7" x 18" (2 Required), 4638-03B$5199
Jacuzzi 4628-17 plastic sight glass for DVK-6 and DVK-7 dial valves Jacuzzi Sight Glass for DVK-6 and DVK-7 Dial Valves, 4628-17$1399 Jacuzzi replacement tank lid for CFR cartridge filters Jacuzzi Tank Lid for CFR 50, 75, 100 and 150 Cartridge Filters, 4666-13A$8799 Jacuzzi Bros lock ring for CFR, Landslide and Sand Trap filters Jacuzzi Lock Ring, 42285007$5599 Jacuzzi 43114404R W Series skimmer face flange Jacuzzi W Series Skimmer Face Flange, 43114404R$6899 Jacuzzi 42-2995-03-R dirt catcher for the CFR 75 cartridge filter Jacuzzi Dirt Catcher, CFR 75, 42-2995-03-R$10899 Jacuzzi 1/4 inch black plastic drain plugs with o-rings, set of two Jacuzzi Drain Plug 1/4" with O-Ring (Set of 2), 30060906R2$1199 Jacuzzi 42357004R DE filter grid, 7 in by 12 in Jacuzzi DE Filter Grid 7" x 12" (2 Required), 42357004R$4499 Jacuzzi dirt catcher for the CFR 50 cartridge filter Jacuzzi Dirt Catcher, CFR 50, 4666-15$9399 Jacuzzi 42367102R filter lock ring for SherLok and Avalanche filters Jacuzzi Filter Lock Ring, 42367102R$7599 Jacuzzi 5064-18D seal housing for Magnum Plus and Magnum Force pumps Jacuzzi Seal Housing for Magnum Plus and Magnum Force Pumps, 1.5-3 HP FR and 5 HP UR, 5064-18D$9199

Questions and answers

What people ask about this product, answered by our pool techs.

Will it fit my Jacuzzi pump?
It covers the Cygnet, J, JCM, K, KM and the L family at all horsepowers, the Magnum, Magnum Plus and Magnum Force from 0.5 to 3.0 HP, and the Ring-Lok and RC models from 0.5 to 1.0 HP. Check your model and horsepower against that list.
What does an eye seal ring do?
It is the wear ring that the eye of the impeller turns inside. The clearance between the two is what stops water already pushed by the impeller from slipping back into the suction side.
How do I know mine is worn?
A pump that has lost flow with a clean strainer, a clean filter and a sound impeller usually has clearance opening up at the eye seal ring or the impeller hub.
Should I replace anything else at the same time?
The pump has to come apart to reach this ring, so it is the moment to look at the impeller, the shaft seal and the housing gasket rather than opening it again later.
