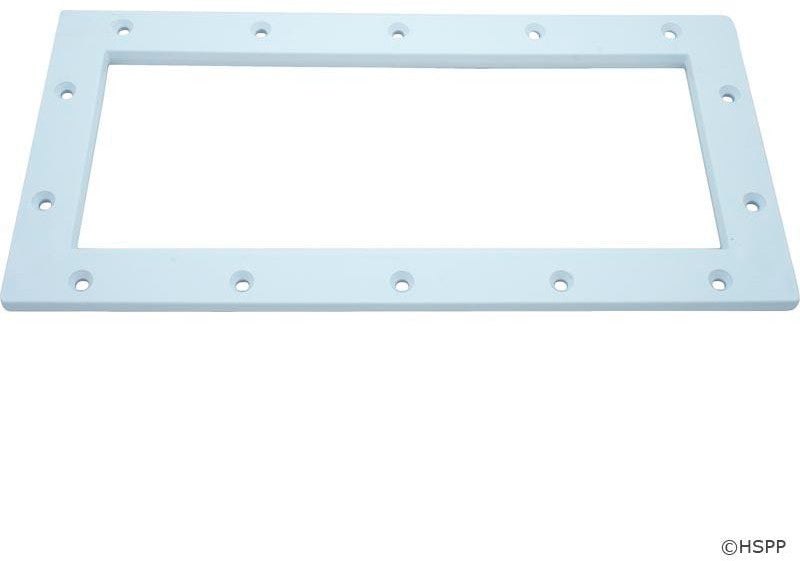

Jacuzzi 43114404R W Series skimmer face flangeJacuzzi W Series Skimmer Face Flange, 43114404R In stock$6899
Jacuzzi 43114404R W Series skimmer face flange
Shop all Jacuzzi Bros.

Jacuzzi W Series Skimmer Face Flange, 43114404R

Ask a questionMPN 43114404R
$6899
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • W Series skimmer The face flange for the Jacuzzi W Series skimmer line.
  • Listed for the WB The source names the WB skimmer specifically, while the part sits in the W Series parts group.
  • Measured part 16.5 inches by 8 inches by 0.5 inches, so you can check it against the flange you are removing.
  • The clamping face On a vinyl liner pool the face flange is what holds the liner against the skimmer throat.
  • Replace a cracked flange A flange that has cracked or warped no longer clamps evenly, and that is where liner leaks start.
  • Part number 43114404R Match this Jacuzzi number rather than going by appearance.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jacuzzi W Series Skimmer Face Flange, 43114404R, SKU JAC-251-1351. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jacuzzi W Series Skimmer Face Flange, 43114404R
Jacuzzi Bros.

Jacuzzi W Series Skimmer Face Flange, 43114404R

$6899
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$34999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Aqua Genie HG105 replacement skimmer face plate Aqua Genie HG105 Skimmer Face Plate$4699 Hayward SPX1085DPAK2 SP1085 skimmer face plate gasket, set of 2 Hayward SP1085 Skimmer Face Plate Gasket, Set of 2, SPX1085DPAK2$3699 Hayward SPX1090WMSG above ground pool skimmer face plate gaskets, 2 pack Hayward Above Ground Pool Skimmer Face Plate Gaskets (2 Pack), SPX1090WMSG$3499 Hayward Skimmer Face Plate Gasket, 2 Pack, SPX1084B$5299 Hayward SPX1071K skimmer weir assembly with spring loaded pins and foam float Hayward Skimmer Weir Assembly, SPX1071K$3499 Pentair 08650-0022 hinged weir door assembly for Sta-Rite and SwimQuip U-3 skimmers Pentair Weir Assembly for Sta-Rite U-3 Skimmer, 08650-0022$3899 CMP 27180-163-000 replacement skimmer basket for Kafko and Equator skimmers CMP Kafko/Equator Skimmer Basket, 27180-163-000$3499 Waterco 51B1017 Baker Hydro beige skimmer deck lid Waterco Baker Hydro Skimmer Lid, 51B1017$4099 Baker Hydro 51B1016 skimmer forming frame Baker Hydro Skimmer Forming Frame, 51B1016$4099 Val-Pak V22-110 U-3 skimmer basket B-9 with molded finger grip and weighted bottom Val-Pak U-3 Skimmer Basket (B-9), V22-110$3999
Replacement skimmer lid 59200209 for Anthony Sylvan pools Replacement Skimmer Lid for Anthony Sylvan Pools, 8-3/4 in. Top Diameter, 59200209$6299 AquaStar SKZ214 ZarStar large skimmer basket AquaStar ZarStar Skimmer Basket, SKZ214$9099 Pentair 516215Z white Bermuda skimmer deck lid, 9-1/4 inch Pentair Bermuda Skimmer Lid, White, 516215Z$4399 Sta-Rite 08650-0058 white U-3 skimmer lid deck cover Sta-Rite U-3 Skimmer Lid, White, 08650-0058$3699 Hayward SPX1085B widemouth skimmer face plate Hayward Widemouth Face Plate, SPX1085B$3599 Hayward SPX1070C white 9-7/8 inch skimmer deck lid for SP1070 skimmers Hayward Skimmer Deck Lid for Skimmer SP1070, SPX1070C$3699 Pentair 85001500 Admiral S20 skimmer weir door Pentair Admiral Skimmer Weir Door, S20, 8-1/16", 85001500$3499 Oreq G9 Gorilla Tuff pool skimmer basket Oreq Gorilla Tuff Pool Skimmer Basket$3599 Pentair Swimquip 08650-0042 U-3 skimmer vacuum plate Pentair Skimmer Vacuum Plate U-3, 08650-0042$3699 Hayward SP1082GV main drain skimmer valve assembly Hayward Main Drain Skimmer Valve, SP1082GV$5299

Product details

The Jacuzzi 43114404R is the skimmer face flange for the W Series, listed for the WB skimmer. It measures 16.5 inches by 8 inches by 0.5 inches.

What the flange does

The face flange is the plate on the front of the skimmer. On a vinyl liner pool it is the clamping surface: the liner and gasket are pulled between the flange and the skimmer throat, and the screws through it make the seal. If it cracks, warps or loses a screw boss, the clamp is uneven and water begins working its way behind the liner at the skimmer, which is one of the most common leak points on a liner pool.

Getting the right one

Jacuzzi built the W Series in several variants, and the WL, WC and WB share a parts group. The source names the WB skimmer for this flange. If your skimmer is a different W Series variant, measure the flange you are removing against 16.5 by 8 by 0.5 inches before you order.

While it is off

The faceplate gasket is a separate part. Since the flange has to come off to change either one, replace the gasket at the same time rather than reusing a compressed one.

Specifications
Brand Jacuzzi
Manufacturer part number 43114404R
UPC 060993292530
Series W Series
Type Skimmer face flange
Fits Jacuzzi WB skimmer
Dimensions 16.5" x 8" x 0.5"
Shipping weight 0.66 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Jacuzzi Bros.

Jacuzzi 13038203R sight glass deflector for DVK series dial valves Jacuzzi Sight Glass Deflector, 13038203R$1199 Jacuzzi 42212316R DE filter grid, 8-1/2 in by 18 in Jacuzzi DE Filter Grid 8-1/2" x 18" (4 Required), 42212316R$5399 Jacuzzi 39254701R plastic air bleeder valve with o-ring for pool filters Jacuzzi Air Bleeder Valve with O-Ring, 39254701R$999 Jacuzzi 47056999R 20 inch tank o-ring for Tri-Clops cartridge filters Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R$1799 Jacuzzi 42356907R DE filter grid, 8-1/2 by 12 inch Jacuzzi DE Filter Grid 8-1/2" x 12" (4 Required), 42356907R$4699 Jacuzzi 4626-16 drain cap with gasket Jacuzzi Drain Cap with Gasket, 4626-16$1299 Jacuzzi 1/4 inch PVC air bleed assembly for Earthworks and Tri-Clops filters Jacuzzi Air Bleed Assembly, 1/4" PVC, 4669-08$3999 Jacuzzi 47038047R OEM filter tank o-ring for Sherlock filters Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R$3399 Jacuzzi dirt catcher for CFR 100 cartridge filter, part 4666-15B Jacuzzi Dirt Catcher, CFR 100, 4666-15B$13399 Jacuzzi 4638-03B DE filter grid, 7 inches by 18 inches Jacuzzi DE Filter Grid 7" x 18" (2 Required), 4638-03B$5199
Jacuzzi 4628-17 plastic sight glass for DVK-6 and DVK-7 dial valves Jacuzzi Sight Glass for DVK-6 and DVK-7 Dial Valves, 4628-17$1399 Jacuzzi replacement tank lid for CFR cartridge filters Jacuzzi Tank Lid for CFR 50, 75, 100 and 150 Cartridge Filters, 4666-13A$8799 Jacuzzi Bros lock ring for CFR, Landslide and Sand Trap filters Jacuzzi Lock Ring, 42285007$5599 Jacuzzi 10-1462-07 eye seal ring for 1/2 HP to 3 HP pumps Jacuzzi Eye Seal Ring 1/2HP-3HP, 10-1462-07$2699 Jacuzzi 42-2995-03-R dirt catcher for the CFR 75 cartridge filter Jacuzzi Dirt Catcher, CFR 75, 42-2995-03-R$10899 Jacuzzi 1/4 inch black plastic drain plugs with o-rings, set of two Jacuzzi Drain Plug 1/4" with O-Ring (Set of 2), 30060906R2$1199 Jacuzzi 42357004R DE filter grid, 7 in by 12 in Jacuzzi DE Filter Grid 7" x 12" (2 Required), 42357004R$4499 Jacuzzi dirt catcher for the CFR 50 cartridge filter Jacuzzi Dirt Catcher, CFR 50, 4666-15$9399 Jacuzzi 42367102R filter lock ring for SherLok and Avalanche filters Jacuzzi Filter Lock Ring, 42367102R$7599 Jacuzzi 5064-18D seal housing for Magnum Plus and Magnum Force pumps Jacuzzi Seal Housing for Magnum Plus and Magnum Force Pumps, 1.5-3 HP FR and 5 HP UR, 5064-18D$9199

Questions and answers

What people ask about this product, answered by our pool techs.

Which skimmers does it fit?
The source names the Jacuzzi WB skimmer, and the part is filed under the W Series skimmer parts group alongside the WL and WC. If you have a WL or a WC, measure your existing flange against 16.5 by 8 by 0.5 inches and ask us before ordering.
What are the dimensions?
16.5 inches by 8 inches by 0.5 inches.
What does the face flange do?
It is the plate that bolts to the front of the skimmer. On a vinyl liner pool it clamps the liner and the gasket against the skimmer throat, which is what keeps water from getting behind the liner at the skimmer opening.
Does a gasket come with it?
This listing is the flange itself. The faceplate gasket is a separate Jacuzzi part, and it is worth replacing at the same time since the flange has to come off either way.
