Jacuzzi 47038047R OEM filter tank o-ring for Sherlock filtersJacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R In stock$3399

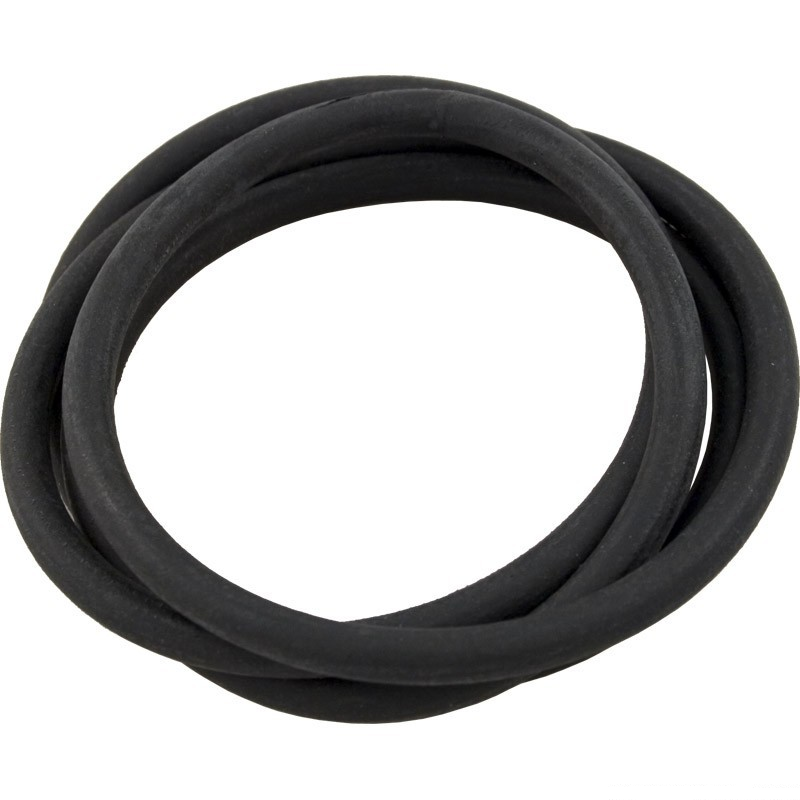

Jacuzzi 47038047R OEM filter tank o-ring for Sherlock filters
Shop all Jacuzzi Bros.

Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R

Ask a questionMPN 47038047R
$3399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jacuzzi part The factory 47038047R tank o-ring, not a guessed aftermarket size.
  • Measured to fit 11-3/4" outside diameter, 11-3/8" inside diameter, 3/16" thickness.
  • Rubber section Flexible rubber that compresses evenly when the tank halves are drawn together.
  • For Sherlock filters Sized for the Jacuzzi Sherlock filter tank joint.
  • Stops a weeping tank A flattened, hardened or nicked o-ring is the usual reason water seeps from the tank seam.
  • Replace it while you are in there Cheap insurance any time the tank is opened for a filter service.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R, SKU JAC-051-6420. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R
Jacuzzi Bros.

Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R

$3399
Jacuzzi Sight Glass Deflector, 13038203R
Jacuzzi Bros.

Jacuzzi Sight Glass Deflector, 13038203R

$1199
Jacuzzi Air Bleeder Valve with O-Ring, 39254701R
Jacuzzi Bros.

Jacuzzi Air Bleeder Valve with O-Ring, 39254701R

$999
Jacuzzi Drain Cap with Gasket, 4626-16
Jacuzzi Bros.

Jacuzzi Drain Cap with Gasket, 4626-16

$1299
Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R
Jacuzzi Bros.

Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R

$1799
Jacuzzi Sight Glass for DVK-6 and DVK-7 Dial Valves, 4628-17
Jacuzzi Bros.

Jacuzzi Sight Glass for DVK-6 and DVK-7 Dial Valves, 4628-17

$1399
Jacuzzi Air Bleed Assembly, 1/4" PVC, 4669-08
Jacuzzi Bros.

Jacuzzi Air Bleed Assembly, 1/4" PVC, 4669-08

$3999
Subtotal

Similar products

Other products people compare with this one.

Jandy R0792000 outlet tube O-ring for CV, CL, DEV and DE filters Jandy OEM Outlet Tube O-Ring For CV/CL/DEV/DE Cartridge Filter, R0792000$1999 Hayward CX800F 9-1/2 inch filter head o-ring for Star-Clear II filters Hayward OEM O-Ring for Filter Head, CX800F$4999 Jandy R0462700 tank lid o-ring for CS Series cartridge filters Jandy O-Ring for CS Series Tank, R0462700$2899 Pentair 195008 genuine OEM FNS tank o-ring for FNS D.E. filters Pentair Genuine OEM FNS Tank O-Ring, 195008$4599 Sta-Rite WC9-3 black tank o-ring for Posi-Flo II PTM cartridge filters Sta-Rite Black Tank O-Ring for Posi-Flo II PTM Cartridge Filters, WC9-3$4099 Jandy R0487400 lid O-ring for JS100-SM filter Jandy Lid O-Ring for JS100-SM Filter, R0487400$2499 Hayward CCX1000G XStream cartridge filter tank body o-ring Hayward XStream Cartridge Filter Tank Body O-Ring, CCX1000G$3399 Hayward CX120D filter lid o-ring for the Micro-Star cartridge filter Hayward O-Ring for Micro Star-Clear Filter Lid, CX120D$2399 Pentair 174704 tank o-ring, 12-1/32 in. diameter Pentair Genuine OEM Tank O-Ring, 12-1/32" Diameter, 174704$3299 Jacuzzi 42375709R000 snap-fit stand pipe assembly for the Jacuzzi Laser 160L sand filter Jacuzzi Snap-Fit Stand Pipe for Laser 160L Sand Filter, 42375709R000$4299
Astral 4404210302 filter lid o-ring for Terra and CEL DE filters Astral Filter Lid O-Ring for 2500 Terra and CEL DE Filters, 4404210302$1999 Hayward GMX600F genuine OEM o-ring, 6-3/4 in. inside diameter Hayward OEM O-Ring, 6-3/4" ID, GMX600F$2699 Jandy R0745800 valve tank o-ring for SFTM sand filters Jandy Valve Tank O-Ring, R0745800$2999 Pentair 154712 sand filter drain cap Pentair Genuine OEM Sand Filter Drain Cap, 154712$3499 Jandy R0523000 filter drain cap with O-ring and union nut Jandy Drain Cap with O-Ring and Union Nut for DEV and CL Filters, R0523000$3699 SuperPro O-497-9 generic tank o-ring, 20-7/8 inch ID by 7/16 inch thick SuperPro Generic Tank O-Ring 20-7/8" ID (7/16" Thick), O-497-9$2199 Pentair 152220Z 2 inch NPT left-hand threaded spigot sand filter drain Pentair Genuine OEM 2" NPT Left-Hand Threaded Spigot Sand Filter Drain, 152220Z$4799 Hayward CX900F filter head lid o-ring for Star Clear Plus cartridge filters Hayward Filter Head Lid O-Ring, CX900F$4399 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3399 Hayward CX250F Star-Clear filter head gasket Hayward OEM Star-Clear Filter Head Gasket, CX250F$4199

Product details

Jacuzzi 47038047R is the OEM tank o-ring for Sherlock filters. It seals the joint between the two halves of the filter tank, which is the one place on a filter that has to hold pressure every minute the pump runs.

Sizing

The ring measures 11-3/4" across the outside, 11-3/8" across the inside, and 3/16" thick, in rubber. Those three numbers matter more than they look: an o-ring a fraction too thin will not fill the groove under clamp load, and one a fraction too large rolls out of the groove as the tank closes.

When to replace it

Water weeping from the tank seam is the classic symptom. Rubber that has gone hard, taken a flat set in the groove, or picked up a nick from a screwdriver will not seal again however tight the clamp is drawn, and overtightening to chase the leak only damages the clamp. Fit a fresh ring instead, and make a habit of replacing it whenever the tank is opened for a filter service.

Specifications
Brand Jacuzzi
Manufacturer part number 47038047R
UPC 060993301225
Type Filter tank o-ring
Material Rubber
Outside diameter 11-3/4"
Inside diameter 11-3/8"
Thickness 3/16"
Fits Jacuzzi Sherlock filters
Sold as One o-ring
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Jacuzzi Bros.

Jacuzzi 13038203R sight glass deflector for DVK series dial valves Jacuzzi Sight Glass Deflector, 13038203R$1199 Jacuzzi 42212316R DE filter grid, 8-1/2 in by 18 in Jacuzzi DE Filter Grid 8-1/2" x 18" (4 Required), 42212316R$5399 Jacuzzi 39254701R plastic air bleeder valve with o-ring for pool filters Jacuzzi Air Bleeder Valve with O-Ring, 39254701R$999 Jacuzzi 47056999R 20 inch tank o-ring for Tri-Clops cartridge filters Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R$1799 Jacuzzi 42356907R DE filter grid, 8-1/2 by 12 inch Jacuzzi DE Filter Grid 8-1/2" x 12" (4 Required), 42356907R$4699 Jacuzzi 4626-16 drain cap with gasket Jacuzzi Drain Cap with Gasket, 4626-16$1299 Jacuzzi 1/4 inch PVC air bleed assembly for Earthworks and Tri-Clops filters Jacuzzi Air Bleed Assembly, 1/4" PVC, 4669-08$3999 Jacuzzi dirt catcher for CFR 100 cartridge filter, part 4666-15B Jacuzzi Dirt Catcher, CFR 100, 4666-15B$13399 Jacuzzi 4638-03B DE filter grid, 7 inches by 18 inches Jacuzzi DE Filter Grid 7" x 18" (2 Required), 4638-03B$5199 Jacuzzi 4628-17 plastic sight glass for DVK-6 and DVK-7 dial valves Jacuzzi Sight Glass for DVK-6 and DVK-7 Dial Valves, 4628-17$1399
Jacuzzi replacement tank lid for CFR cartridge filters Jacuzzi Tank Lid for CFR 50, 75, 100 and 150 Cartridge Filters, 4666-13A$8799 Jacuzzi Bros lock ring for CFR, Landslide and Sand Trap filters Jacuzzi Lock Ring, 42285007$5599 Jacuzzi 43114404R W Series skimmer face flange Jacuzzi W Series Skimmer Face Flange, 43114404R$6899 Jacuzzi 10-1462-07 eye seal ring for 1/2 HP to 3 HP pumps Jacuzzi Eye Seal Ring 1/2HP-3HP, 10-1462-07$2699 Jacuzzi 42-2995-03-R dirt catcher for the CFR 75 cartridge filter Jacuzzi Dirt Catcher, CFR 75, 42-2995-03-R$10899 Jacuzzi 1/4 inch black plastic drain plugs with o-rings, set of two Jacuzzi Drain Plug 1/4" with O-Ring (Set of 2), 30060906R2$1199 Jacuzzi 42357004R DE filter grid, 7 in by 12 in Jacuzzi DE Filter Grid 7" x 12" (2 Required), 42357004R$4499 Jacuzzi dirt catcher for the CFR 50 cartridge filter Jacuzzi Dirt Catcher, CFR 50, 4666-15$9399 Jacuzzi 42367102R filter lock ring for SherLok and Avalanche filters Jacuzzi Filter Lock Ring, 42367102R$7599 Jacuzzi 5064-18D seal housing for Magnum Plus and Magnum Force pumps Jacuzzi Seal Housing for Magnum Plus and Magnum Force Pumps, 1.5-3 HP FR and 5 HP UR, 5064-18D$9199

Questions and answers

What people ask about this product, answered by our pool techs.

What size is this o-ring?
It measures 11-3/4" on the outside diameter, 11-3/8" on the inside diameter, and 3/16" thick.
Which filter does it fit?
It is the OEM tank o-ring for Jacuzzi Sherlock filters, Jacuzzi part 47038047R.
My filter drips at the seam after cleaning. Is this the fix?
Usually. Once the o-ring takes a permanent set or picks up a nick, it will not seal again no matter how tight the clamp goes, and a new ring is the correct repair.
Do I get more than one?
No. This is a single o-ring, not a seal kit.
Ask your own question
