Hayward CCX1000G XStream cartridge filter tank body o-ringHayward XStream Cartridge Filter Tank Body O-Ring, CCX1000G In stock$3399

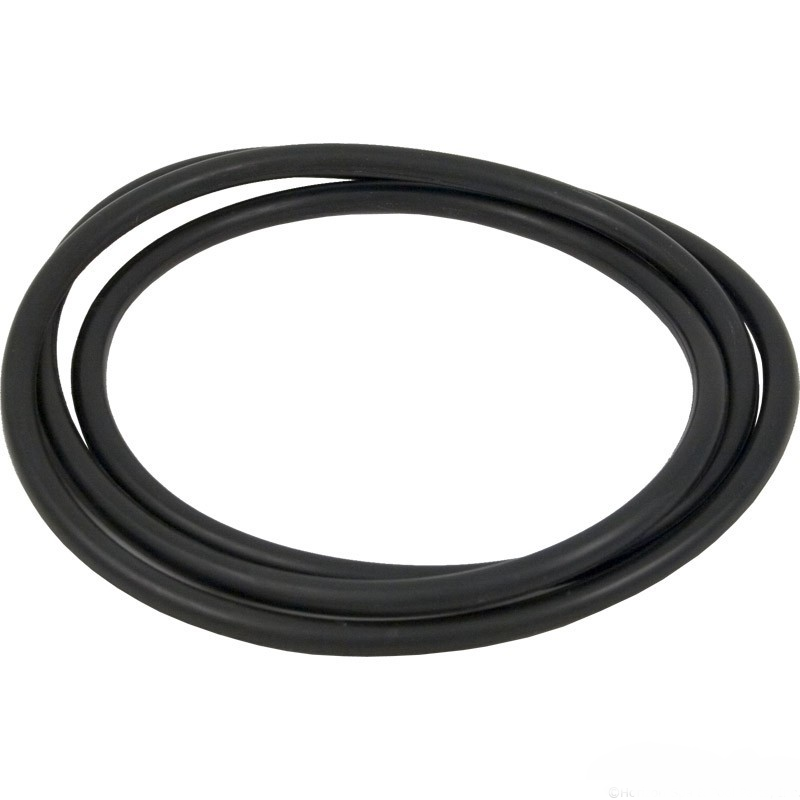

Hayward CCX1000G XStream cartridge filter tank body o-ring
Shop all Hayward

Hayward XStream Cartridge Filter Tank Body O-Ring, CCX1000G

Ask a questionMPN CCX1000G
$3399
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Factory Hayward part The original CCX1000G o-ring, not a generic ring sized by eye.
  • Seals the tank halves This is the o-ring in the joint between the filter head and the body, which is where a leaking XStream normally weeps.
  • Fits the XStream range Listed for the CC1000, CC1500, CC1750 and CC2000 cartridge filters.
  • Change it with the cartridge The ring is exposed every time the tank is opened, so replacing it during a cartridge change costs nothing in labor.
  • Inexpensive fix A tank leak is usually the o-ring rather than the tank, and this is the cheapest thing to rule out first.
  • Do not over tighten A seized or flattened old ring is the reason clamps get over tightened and tanks get cracked.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward XStream Cartridge Filter Tank Body O-Ring, CCX1000G, SKU HAY-051-7004. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward XStream Cartridge Filter Tank Body O-Ring, CCX1000G
Hayward

XStream Cartridge Filter Tank Body O-Ring, CCX1000G

$3399
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$14799
Hayward OEM O-Ring, 6-3/4" ID, GMX600F
Hayward

OEM O-Ring, 6-3/4" ID, GMX600F

$2699
Hayward Cover O-Ring, 5-1/2" ID, SPX0710XZ3
Hayward

Cover O-Ring, 5-1/2" ID, SPX0710XZ3

$599
Hayward® Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

® Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$18899
Hayward Cover O-Ring for Vari-Flo, SPX0715Z1
Hayward

Cover O-Ring for Vari-Flo, SPX0715Z1

$2599
Subtotal

Similar products

Other products people compare with this one.

Hayward CXLRL1001 SwimClear cartridge filter lid lock ring latch Hayward SwimClear Cartridge Filter Lid Lock Ring Latch, CXLRL1001$2199 Jandy R0792000 outlet tube O-ring for CV, CL, DEV and DE filters Jandy OEM Outlet Tube O-Ring For CV/CL/DEV/DE Cartridge Filter, R0792000$1999 Hayward CX900F filter head lid o-ring for Star Clear Plus cartridge filters Hayward Filter Head Lid O-Ring, CX900F$4399 Sta-Rite WC9-3 black tank o-ring for Posi-Flo II PTM cartridge filters Sta-Rite Black Tank O-Ring for Posi-Flo II PTM Cartridge Filters, WC9-3$4099 Hayward CX800F 9-1/2 inch filter head o-ring for Star-Clear II filters Hayward OEM O-Ring for Filter Head, CX800F$4999 Hayward CX900J E-ring for Star-Clear Plus cartridge filters Hayward E-Ring, Star-Clear Plus Filter, CX900J$2099 Jacuzzi 47038047R OEM filter tank o-ring for Sherlock filters Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R$3399 Hayward CX120D filter lid o-ring for the Micro-Star cartridge filter Hayward O-Ring for Micro Star-Clear Filter Lid, CX120D$2399 Hayward CXFHR1001 lid o-ring for SwimClear C100S, C150S and C200S cartridge filters Hayward SwimClear C100S/C150S and C200S Lid O-Ring, CXFHR1001$2899 Jandy R0462700 tank lid o-ring for CS Series cartridge filters Jandy O-Ring for CS Series Tank, R0462700$2799
Hayward SX360Z1 bulkhead o-ring for Pro Series, MicroClear and Super StarClear filters Hayward Bulkhead O-Ring (After 1996), SX360Z1$1999 Hayward ECX1322A air relief valve with o-ring for pool filters Hayward Air Relief Valve with O-Ring, ECX1322A$1899 Hayward CCX1000V manual air relief assembly with o-ring Hayward Air Relief Assembly with O-Ring, CCX1000V$2599 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3399 Hayward CX250F Star-Clear filter head gasket Hayward OEM Star-Clear Filter Head Gasket, CX250F$4199 Hayward DEX2420Z8A air relief o-ring kit, set of 2, for SwimClear and Pro-Grid filters Hayward SwimClear/Pro-Grid Air Relief O-Ring Kit, Set of 2, DEX2420Z8A$4399 Jandy R0374500 o-ring kit for the Jandy Energy Filter Jandy O-Ring Kit, Energy Filter, R0374500$2699 Waterway 805-0460 Clearwater II tank lid O-ring, 16-1/4 inch outside diameter Waterway Clearwater II Tank Lid O-Ring, OD 16-1/4", 805-0460$2299 Hayward ECX4077B1 filter check valve for Star-Clear, Perflex, ASL and ReGenX filters Hayward Filter Check Valve, Star-Clear/Perflex/ASL/RegenX, ECX4077B1$3099 Hayward CX250Z14A Star Clear 1/2 inch drain plug with O-ring Hayward Star Clear 1/2 in. Drain Plug with O-Ring, CX250Z14A$1899

Product details

The Hayward CCX1000G is the tank body o-ring for the XStream cartridge filter, the seal that sits between the upper and lower halves of the tank. It is the factory Hayward replacement.

Where it leaks

An XStream that drips at the seam under the clamp band is almost always telling you the body o-ring has hardened, flattened or split. The tank halves are not machined to seal on their own, and once the ring loses its shape no amount of extra tension on the band will make the joint dry. Tightening harder is how tanks and clamps get damaged.

When to change it

The ring is fully exposed every time the tank is opened for a cartridge clean, so it costs nothing extra to inspect it and very little to replace it. Fit it clean, without grit on the sealing face, and seat the halves squarely before the band is drawn up.

Fit

Listed for the Hayward XStream cartridge filters CC1000, CC1500, CC1750 and CC2000.

Specifications
Brand Hayward
Manufacturer part number CCX1000G
UPC 610377845632
Type Tank body o-ring
Fits Hayward XStream cartridge filters CC1000, CC1500, CC1750, CC2000
Part type Pool filter part
Shipping weight 0.15 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward® Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters does this fit?
The Hayward XStream cartridge filters: CC1000, CC1500, CC1750 and CC2000.
Where does this o-ring go?
In the joint between the upper and lower halves of the filter tank, where the clamp pulls the two together.
My filter is leaking at the band. Is this the fix?
It is the first thing to check. A flattened, cracked or dried out body o-ring is the usual cause of a leak at the tank seam.
How often should it be replaced?
Whenever it looks flat, cracked or hardened. Many owners simply replace it at the same time as the cartridge so the tank is resealed every time it is opened.
Ask your own question
