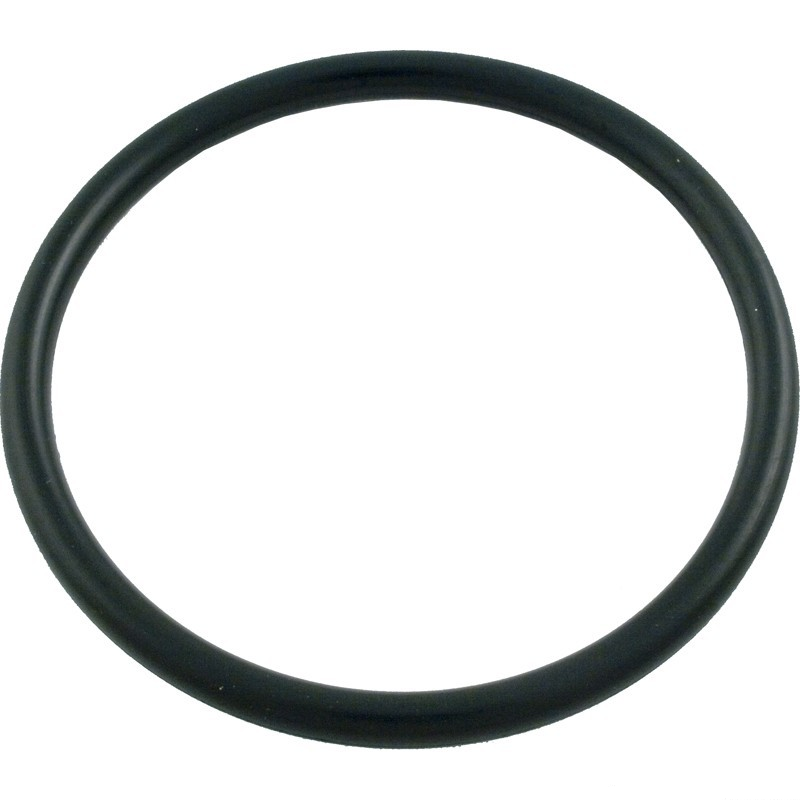

Hayward SX360Z1 bulkhead o-ring for Pro Series, MicroClear and Super StarClear filtersHayward Bulkhead O-Ring (After 1996), SX360Z1 In stock$2099
Hayward SX360Z1 bulkhead o-ring for Pro Series, MicroClear and Super StarClear filters
Shop all Hayward

Hayward Bulkhead O-Ring (After 1996), SX360Z1

Ask a questionMPN SX360Z1
$2099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Exact size 3-1/8 in. outside diameter, 2-3/4 in. inside diameter, 3/16 in. thick.
  • Fits three filter families Pro Series and Pro Series Plus sand, MicroClear vertical grid DE, and Super StarClear cartridge filters.
  • After 1996 The bulkhead o-ring for filters built after 1996.
  • Seals the bulkhead Sits between the bulkhead fitting and the tank to stop leaks at the connection.
  • Also called diffuser or union o-ring The same ring is listed under those names on Hayward DE filters.
  • Genuine Hayward Part SX360Z1, also shown as 20-SX360Z1.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Bulkhead O-Ring (After 1996), SX360Z1, SKU HAY-051-1998. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Bulkhead O-Ring (After 1996), SX360Z1
Hayward

Bulkhead O-Ring (After 1996), SX360Z1

$2099
Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit
Hayward

SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit

$15899
Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA
Hayward

Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA

$15299
Hayward OEM O-Ring, 6-3/4" ID, GMX600F
Hayward

OEM O-Ring, 6-3/4" ID, GMX600F

$2699
Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62
Hayward

Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62

$19399
Hayward Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5
Hayward

Outlet Elbow O-Ring, 2-3/16" ID, DEX2400Z5

$399
Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T
Hayward

2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T

$26199
Subtotal

Similar products

Other products people compare with this one.

Hayward ECX1322A air relief valve with o-ring for pool filters Hayward Air Relief Valve with O-Ring, ECX1322A$1899 Hayward CCX1000V manual air relief assembly with o-ring Hayward Air Relief Assembly with O-Ring, CCX1000V$2599 Hayward CX900J E-ring for Star-Clear Plus cartridge filters Hayward E-Ring, Star-Clear Plus Filter, CX900J$2099 Hayward CX250Z14A Star Clear 1/2 inch drain plug with O-ring Hayward Star Clear 1/2 in. Drain Plug with O-Ring, CX250Z14A$1899 Hayward CCX1000Z5 air relief o-ring set of 2 Hayward OEM O-Ring Set for Air Relief, Set of 2, CCX1000Z5$1099 Hayward SX200Z4PAK2 valve and union o-ring, 2 pack Hayward OEM Valve Union O-Ring, 2 Pack, SX200Z4PAK2$1899 Hayward DEX2400Z3A air relief valve stem o-ring set of 3 Hayward O-Ring for Air Relief Valve Stem, Set of 3, DEX2400Z3A$1899 Hayward CX120D filter lid o-ring for the Micro-Star cartridge filter Hayward O-Ring for Micro Star-Clear Filter Lid, CX120D$2399 Hayward ECX4077B1 filter check valve for Star-Clear, Perflex, ASL and ReGenX filters Hayward Filter Check Valve, Star-Clear/Perflex/ASL/RegenX, ECX4077B1$3099 Hayward CX900W Star-Clear Plus filter knob washer Hayward Star-Clear Plus Knob Washer, CX900W$1799
Hayward CX1100Z4 plastic air relief tube for C1100, C1200, S244S and S311 filters Hayward Plastic Air Relief Tube C1200/C1100/S244S/S311, CX1100Z4$2299 Hayward CX5000Z3 air relief tube for C5020 and C5025 cartridge filters Hayward CX5000Z3 Air Relief Tube for C5020/C5025 Filters$2599 Hayward SPX1485C replacement filter gasket Hayward Filter Gasket, SPX1485C$1199 Hayward CX4000Z3 air relief tube assembly for SwimClear and Super Star Clear cartridge filters Hayward Air Relief Tube for SwimClear and Super Star Clear Filters, CX4000Z3$2099 Hayward CX800Z4A StarClear auto air relief tube with screen Hayward StarClear Auto Air Relief Tube with Screen, CX800Z4A$2699 Hayward CX3000Z3 air relief tube assembly for cartridge filters Hayward Air Relief Tube, CX3000Z3$1899 Hayward SX200Z3 OEM bulkhead o-ring, 2-1/2 in. inside diameter Hayward OEM Bulkhead O-Ring, SX200Z3$899 Hayward DEX360M bulkhead o-ring for SwimClear cartridge filters Hayward Bulkhead O-Ring for SwimClear Cartridge Filters, DEX360M$342 Hayward SP1022C 1-1/2 in. white threaded drain plug with o-ring Hayward 1-1/2" Plug with O-Ring, SP1022C$599 Hayward SX200Z4 valve O-ring, 2-1/4 in. inside diameter Hayward O-Ring, Valve 2-1/4", SX200Z4$342

Product details

The Hayward SX360Z1 is the bulkhead o-ring for Hayward filters built after 1996. It is the genuine Hayward part, and it is also listed as 20-SX360Z1 and, on DE filters, as the diffuser o-ring or union o-ring.

Size

Outside diameter 3-1/8 in., inside diameter 2-3/4 in., thickness 3/16 in. Measure the old ring if you are unsure; a ring that has taken a set will read a little larger and thinner than these figures.

Which filters

Pro Series side mount sand filters S210S, S220S, S244S, S310S and S360S; Pro Series Plus S311SX, S311SXV and S360SX; MicroClear vertical grid DE filters DE2400, DE3600, DE4800 and DE6000; and Super StarClear cartridge filters C2000, C3000, C4000, C4500, C5000 and C5500.

What it does

An o-ring is a simple circular gasket that seals two parts against each other. Here it seals the bulkhead fitting to the tank. When it ages it hardens and flattens, and the connection starts to weep. A new ring is the fix, and the bulkhead fitting and spacer are separate parts if those turn out to be the problem instead.

Specifications
Brand Hayward
Manufacturer part number SX360Z1
Alternate part number 20-SX360Z1
UPC 610377209274
Type Bulkhead o-ring
Outside diameter 3-1/8 in.
Inside diameter 2-3/4 in.
Thickness 3/16 in.
Fits Hayward Pro Series S210S, S220S, S244S, S310S, S360S; Pro Series Plus S311SX, S311SXV, S360SX; MicroClear DE2400, DE3600, DE4800, DE6000; Super StarClear C2000, C3000, C4000, C4500, C5000, C5500
Model years After 1996
Shipping weight 0.01 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters use this o-ring?
Pro Series side mount sand filters S210S, S220S, S244S, S310S and S360S, Pro Series Plus S311SX, S311SXV and S360SX, MicroClear DE filters DE2400 through DE6000, and Super StarClear cartridge filters C2000 through C5500, on tanks built after 1996.
What are the dimensions?
3-1/8 in. outside diameter, 2-3/4 in. inside diameter and 3/16 in. thick.
Is this the same as the diffuser o-ring on my DE filter?
Yes. On Hayward DE filters the SX360Z1 is listed as the diffuser o-ring or union o-ring as well as the bulkhead o-ring.
Why does my filter leak at the bulkhead?
The o-ring between the bulkhead fitting and the tank flattens and hardens with age. Replacing it is the first step; if the leak continues, check the bulkhead fitting and spacer, which are separate parts.
Ask your own question
