Hayward HAXGSV0001 H-Series natural gas millivolt valveHayward H-Series Natural Gas Millivolt Valve, HAXGSV0001 In stock$55799

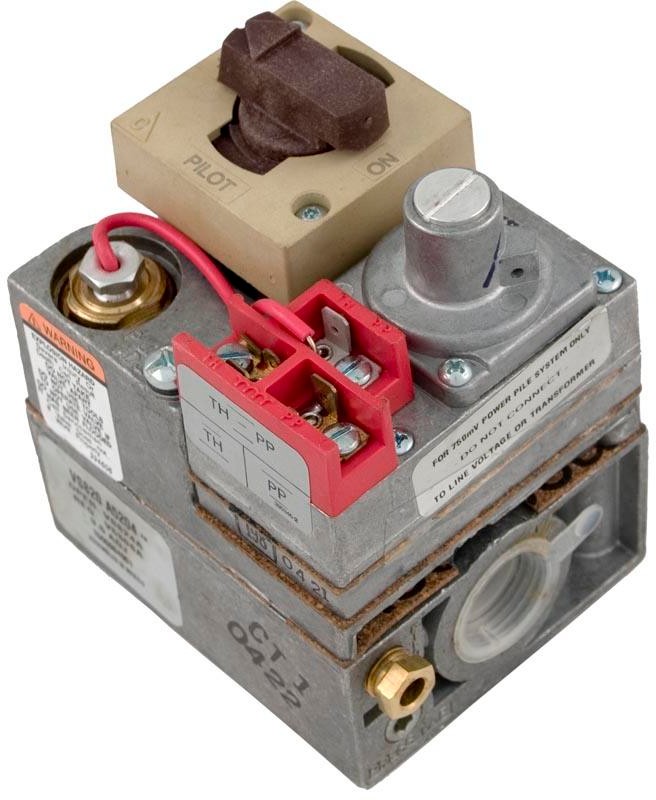

Hayward HAXGSV0001 H-Series natural gas millivolt valve
Shop all Hayward

Hayward H-Series Natural Gas Millivolt Valve, HAXGSV0001

Ask a questionMPN HAXGSV0001
$55799
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Natural gas This is the natural gas valve, not the propane version.
  • Millivolt control For millivolt H-Series heaters, the ones run by a thermopile rather than an electronic ignition board.
  • Genuine Hayward Hayward part HAXGSV0001, the factory valve.
  • H-Series Built for the Hayward H-Series heater line.
  • The part that gates the gas The gas valve opens and closes the fuel supply to the burner tray, so a failed valve is a heater that will not light or will not stay lit.
  • Check gas type first Natural gas and propane valves are not interchangeable, so confirm the fuel on the heater rating plate.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward H-Series Natural Gas Millivolt Valve, HAXGSV0001, SKU HAY-151-8225. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward H-Series Natural Gas Millivolt Valve, HAXGSV0001
Hayward

H-Series Natural Gas Millivolt Valve, HAXGSV0001

$55799
Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250
Hayward

Heat Exchanger Assembly for H250FD, FDXLHXA1250

$1,28299
Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003
Hayward

Natural Gas Valve Kit, FD Series, FDXLGSV0003

$41899
Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Hayward

H-Series Bezel & Keypad Assembly, FDXLBKP1930

$12399
Hayward HDF400 Thermistor, FDXLTER1931
Hayward

HDF400 Thermistor, FDXLTER1931

$6199
Hayward Flame Sensor, Low NOx/Universal, IDXLFLS1930
Hayward

Flame Sensor, Low NOx/Universal, IDXLFLS1930

$9199
Hayward Front Header Assembly, FDXLFHA1930
Hayward

Front Header Assembly, FDXLFHA1930

$31599
Subtotal

Similar products

Other products people compare with this one.

Hayward HAXGSV0003 H-Series ED1 propane millivolt gas valve Hayward H-Series ED1 Gas Valve, Propane, LP, Millivolt, HAXGSV0003$55399 Hayward FDXLGSV0002 LP gas valve for Universal H-Series FD heaters, 150K to 400K Hayward 150K-400K FD Series LP Gas Valve, FDXLGSV0002$30499 Hayward IDXVAL1931 gas valve kit for H Series above ground pool heaters Hayward H Series Gas Valve Kit, IDXVAL1931$45099 Hayward HAXGSV0004 propane gas valve for H-Series pool heaters Hayward Propane Gas Valve, HAXGSV0004$50999 Hayward IDXL2DB1930 display board for H-Series pool and spa heaters Hayward H-Series Display Board, IDXL2DB1930$35199 Hayward UHXPOSHZ14008 8 in. positive pressure indoor vent adapter for Universal H-Series H400 heaters Hayward Positive Pressure Indoor Vent Adapter for Universal H-Series H400 Heaters, 8 in., UHXPOSHZ14008$56599 Hayward HAXCPA1932 H-Series ED2 control bezel assembly Hayward H-Series Control Bezel Assembly ED2, HAXCPA1932$69099 Hayward IDXMOD1930 ignition module for H-Series above ground pool heaters Hayward Ignition Module for H-Series Above Ground Heaters, IDXMOD1930$48499 Hayward FDXLBCP1250 250K FD Series control panel and bezel kit Hayward 250K FD Series Control Panel and Bezel Kit, FDXLBCP1250$32899 Hayward FDXLBCP1150 control panel and bezel kit for Universal H-Series Low NOx heater Hayward Control Panel and Bezel Kit for Universal H-Series Low NOx Heater 150K BTU, FDXLBCP1150$32899
Hayward CONTROL MODULE H-SERIES ED1 | HAXMOD1930 Hayward CONTROL MODULE H-SERIES ED1 | HAXMOD1930$34499 Hayward FDXLICB1930 integrated control board for Universal H-Series FD heaters Hayward Control Board Kit, FD, FDXLICB1930$40799 Hayward FDXLBWR1930 combustion blower kit for Universal H-Series Low NOx pool heaters Hayward Combustion Blower Kit, FDXLBWR1930$31199 Hayward IDXL2BKP1930 bezel and touchpad assembly for Low NOx heaters, front view Hayward Bezel/Touchpad Assembly, Low NOx Heaters (2002 to Present), IDXL2BKP1930$32699 Hayward HDXFDSPB0001 display board and cable extension for Universal H-Series Low NOx heaters Hayward Display Board and Cable Ext, HDXFDSPB0001$31099 Hayward IDXLCPA1930 Low NOx control bezel assembly Hayward Low NOx Control Bezel Assembly, IDXLCPA1930$68899 Hayward FDXLBCP1400 control panel and bezel kit for Universal H-Series 400K heater Hayward Bezel Kit Control Panel 400, FDXLBCP1400$32899 Hayward IDXL2BWR1931 LoNox IDL2 blower and control board kit Hayward LoNox IDL2 Blower/Control Board Kit, IDXL2BWR1931$64299 Hayward IDXLFHA1930 Low NOx front header assembly Hayward Low NOx Front Header Assembly, IDXLFHA1930$45599 Hayward Transformer Fuse Board | IDXL2FSB1930 Hayward Transformer Fuse Board | IDXL2FSB1930$34499

Product details

The Hayward HAXGSV0001 is the natural gas millivolt gas valve for H-Series pool heaters. It is the genuine Hayward part.

Millivolt, not electronic

A millivolt heater has no ignition board and no separate power supply for the gas control. The pilot flame heats a thermopile, the thermopile produces a small voltage, and that voltage is what holds and operates the gas valve. It is a simple, self powered arrangement, and this valve is the version built for it.

Fuel type matters

This is the natural gas valve. The propane valve is a different part and the two are not interchangeable. Read the fuel type off the rating plate on the heater before ordering, and confirm the heater is a millivolt model rather than an electronic ignition one.

Specifications
Brand Hayward
Manufacturer part number HAXGSV0001
UPC 610377292054
Type Gas valve
Gas type Natural gas
Control Millivolt
Fits Hayward H-Series pool heaters
Shipping weight 3.25 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12499 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,37799 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$899 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$25399 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Will this work on a propane heater?
No. This is the natural gas valve. Check the rating plate on the heater and order the valve that matches the fuel it is set up for.
What does millivolt mean here?
A millivolt heater runs its gas valve on the small voltage produced by a thermopile in the pilot flame, with no separate power supply or ignition board. This valve is for that type.
Is this a genuine Hayward part?
Yes. It is Hayward part HAXGSV0001.
Which heaters does it fit?
It is listed as the H-Series natural gas millivolt valve. Confirm the exact model and fuel on your heater before ordering.
Ask your own question
