Waterway 672-0400 manifold with 1 inch slip, 1 inch spigot and four 3/8 inch ribbed barb portsWaterway Manifold 1" S x 1" Spg x (4) 3/8" RB, 672-0400 In stock$1199
Waterway 672-0400 manifold with 1 inch slip, 1 inch spigot and four 3/8 inch ribbed barb ports
Shop all Waterway

Waterway Manifold 1" S x 1" Spg x (4) 3/8" RB, 672-0400

Ask a questionMPN 672-0400
$1199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Waterway Plastics part The factory 672-0400 manifold.
  • Four 3/8 inch barb ports Feeds four separate 3/8 inch flexible lines from one run.
  • One inch slip and spigot A 1 inch slip socket at one end and a 1 inch spigot at the other, so manifolds can be chained in line.
  • Splits a single feed Takes one supply line and distributes it, which is how jet and air lines are run without plumbing each one back to the equipment pad.
  • Ribbed barb retention The RB ports are ribbed barbs, which grip flexible tubing once the clamp is on.
  • Solvent weld connections The 1 inch slip and spigot ends are PVC solvent weld joints, so the manifold becomes part of the pipe run.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway Manifold 1" S x 1" Spg x (4) 3/8" RB, 672-0400, SKU WWP-851-6388. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway Manifold 1" S x 1" Spg x (4) 3/8" RB, 672-0400
Waterway

Manifold 1" S x 1" Spg x (4) 3/8" RB, 672-0400

$1199
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$34999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Hayward SPX1091Z9 threaded extension coupling, 1-1/2 in. MIP x FIP, white Hayward Threaded Extension Coupling, 1-1/2 in. MIP x 1-1/2 in. FIP, White, SPX1091Z9$1699 Jandy R0412700 o-ring for 2 inch union Jandy 2" Union O-Ring, R0412700$1099 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1599 CMP 21063-750-000 3/4 inch male by 3/4 inch slip union CMP 3/4" Male x 3/4" Slip Union, 21063-750-000$1499 Waterway 711-4000 union gasket for 1-1/2 in. unions Waterway 1.5" Union Gasket, 711-4000$999 Aquamoto FullFlow 2 in. black PVC sweep 90 degree street elbow, slip by spigot Aquamoto FullFlow 2" PVC Sweep 90 Degree Street Elbow Slip x SPG, Black, 21006-004-000$1399 SuperPro 21049-200-000 2 inch PVC union, slip by slip SuperPro PVC 2" Union, Slip by Slip, 21049-200-000$1399 Lasco 436-015 1-1/2 inch PVC male adapter Lasco 1-1/2" PVC Male Adapter, 436-015$799 CMP FullFlow 21005-004-000 2 inch black PVC sweep 90 degree elbow, slip x slip CMP FullFlow 2" PVC Sweep 90 Degree Elbow Slip x Slip, Black, 21005-004-000$1399 Lasco 406-020 two inch schedule 40 PVC 90 degree elbow Lasco 90 Degree Elbow, 2 in. SCH 40 PVC, 406-020$1599
Lasco 437-251 PVC reducer bushing, 2 inch to 1-1/2 inch slip by slip Lasco 2" x 1-1/2" PVC Reducer Bushing, Slip x Slip, 437-251$699 Hayward SP1022SBLK black wall inlet fitting, 1-1/2 inch slip Hayward Wall Inlet Fitting Slip 1-1/2" Black, SP1022SBLK$799 Pentair 178732Z union nut C clip Pentair Genuine OEM Union Nut C Clip, 178732Z$1399 Lasco 429-020 PVC 2 inch slip by slip coupling Lasco PVC 2" Coupler, Slip by Slip Coupling, 429-020$699 Lasco 1436-015 1-1/2 inch PVC male adapter, insert by male pipe thread Lasco 1-1/2 in Male Adapter, INS x MIPT, 1436-015$699 AquaStar JO103 light gray flush retrofit eyeball with retrofit nut and eyeballs AquaStar Light Gray Flush Retrofit Eyeball, JO103$1599 SuperPro HTST520-1/2 Teflon thread seal tape, 1/2 inch roll SuperPro Teflon Tape 1/2"$799 Praher 200-903 two inch slip by male pipe thread PVC union Praher 2" Slip x MIP Union, 200-903$1599 Praher 150-100 1-1/2 inch white slip by slip union Praher 1-1/2" Slip by Slip Union, 150-100$1399 Hayward SP1042 chrome plated round escutcheon plate for 1-1/2 inch pipe Hayward Chrome Plated Escutcheon SP1042$1599

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Product details

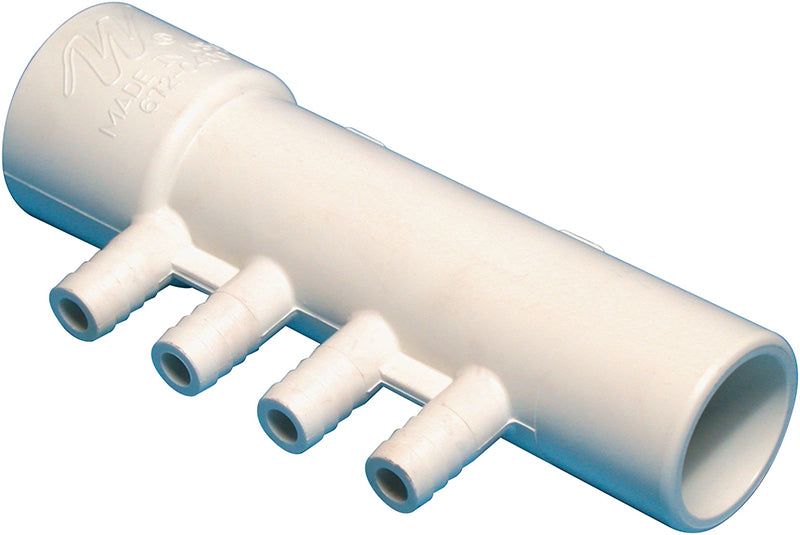

Waterway 672-0400 is a four port manifold with a 1 inch slip socket at one end, a 1 inch spigot at the other and four 3/8 inch ribbed barb ports along its body.

What a manifold is for

Running a separate line back to the equipment pad for every jet or air outlet would be impractical. A manifold takes one supply and splits it into several smaller feeds, so a single 1 inch run can serve four 3/8 inch lines. The slip and spigot ends mean manifolds can be joined end to end when a run needs more ports than one piece provides.

Reading the connections

S is a slip socket, the female end a pipe is glued into. Spg is a spigot, the male end that glues into a socket. RB is a ribbed barb, the port that flexible tubing pushes over and is then clamped. The 1 inch ends are solvent weld PVC joints, so this becomes a permanent part of the pipe run once it is glued.

Specifications
Brand Waterway
Manufacturer part number 672-0400
UPC 806105205377
Type Manifold
Connections 1" S x 1" Spg x (4) 3/8" RB
Socket end 1 inch slip (S)
Spigot end 1 inch spigot (Spg)
Barb ports Four at 3/8 inch ribbed barb (RB)
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2199 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$2999 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$1999 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3299 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1599 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3299 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9699 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6699

Questions and answers

What people ask about this product, answered by our pool techs.

What do S, Spg and RB mean?
S is a slip socket, the female end a pipe glues into. Spg is a spigot, the male end that glues into a socket. RB is a ribbed barb, the port that flexible tubing pushes onto.
How many ports does it have?
Four 3/8 inch ribbed barb ports, plus the 1 inch slip and 1 inch spigot ends.
Can I run two of these in a row?
The slip socket at one end and the spigot at the other are what allow manifolds to be joined in line, which is the usual way of extending a run.
What size tubing goes on the ports?
The ports are 3/8 inch ribbed barbs, so they take 3/8 inch flexible tubing.
Ask your own question
