Waterway 805-0436 pump lid o-ring for 6 inch trap coverWaterway O-Ring for 6" Trap Cover, 805-0436 In stock$799
Waterway 805-0436 pump lid o-ring for 6 inch trap cover
Shop all Waterway

Waterway O-Ring for 6" Trap Cover, 805-0436

Ask a questionMPN 805-0436
$799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Waterway part 805-0436 The replacement lid o-ring for the 6 inch trap cover.
  • Measured to fit 5-7/8 inch inside diameter, 6-3/8 inch outside diameter, 1/4 inch cord thickness.
  • Stops a losing-prime pump A flat or cracked lid o-ring lets the trap draw air, and the pump loses prime.
  • Used across the range Fits Waterway Hi-Flo, Champion 56 and Center Discharge pool pumps.
  • Lubricate on install A thin film of silicone o-ring lubricant helps the lid seat and seal without pinching.
  • Wear item Heat and chemistry harden the ring over time, so it is worth keeping a spare on the shelf.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway O-Ring for 6" Trap Cover, 805-0436, SKU WWP-101-8056. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway O-Ring for 6" Trap Cover, 805-0436
Waterway

O-Ring for 6" Trap Cover, 805-0436

$799
Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600
Waterway

6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600

$7099
Waterway 3/8" Drain Plug, Black, 715-1201
Waterway

3/8" Drain Plug, Black, 715-1201

$499
Waterway Hi-Flo Pump Drain Plug O-Ring, 805-0111
Waterway

Hi-Flo Pump Drain Plug O-Ring, 805-0111

$342
Waterway Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230
Waterway

Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230

$799
Waterway Union Gasket 2", 711-4010
Waterway

Union Gasket 2", 711-4010

$1099
Waterway Pump Shaft Slinger 313-1400
Waterway

Pump Shaft Slinger 313-1400

$499
Subtotal

Similar products

Other products people compare with this one.

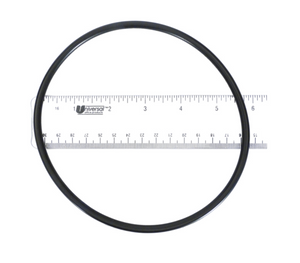

Waterway 805-0256 pump volute faceplate o-ring Waterway Pump Volute Faceplate O-Ring, 805-0256$999 Waterway 805-0238 diffuser o-ring for Champion 56 and SVL56 pool pumps Waterway Champion 56 Diffuser O-Ring, 805-0238$599 SuperPro O-76-9 o-ring for the Hayward Max-Flo pump strainer cover SuperPro O-Ring for Hayward® Max-Flo Pump and Strainer Cover, SPX0125T, O-76-9$1099 Sta-Rite 35505-1437 trap lid o-ring for ABG series pool and spa pumps Sta-Rite Trap Lid O-Ring for ABG Series Pool and Spa Pumps, 35505-1437$899 Pentair 39300600 locking lid o-ring for the Ultra Flo pump Pentair Locking Lid O-Ring for Ultra Flo Pump, 39300600$499 Pentair LA415 rubber volute O-ring for the Letro booster pump Pentair Volute O-Ring for Letro Booster Pump, LA415$899 Pentair 354634 diffuser bracket O-ring for the Dynamo aboveground pool pump Pentair Diffuser O-Ring for Dynamo$699 Pentair 39010000 impeller screw o-ring for American Products Ultra-Flow pumps Pentair Impeller Screw O-Ring for Ultra-Flow Pumps, 39010000$899 Pentair 357255Z strainer cover o-ring, Buna-N 70, size 2-357 Pentair Strainer Cover O-Ring, Buna-N 70, #2-357, 357255Z$1099 Waterway 319-1370 Executive wear ring for 4-5 HP pumps Waterway Executive Wear Ring 4-5 HP, 319-1370$1099
Pentair 350103 o-ring for OptiFlo pool pumps Pentair O-Ring for OptiFlo Pumps, 350103$1099 Sta-Rite U9-199 diffuser o-ring for the PLBC booster pump Sta-Rite Diffuser O-Ring for PLBC Booster Pump, U9-199$499 Hayward SPX0125T strainer cover gasket for Max-Flo pumps Hayward Strainer Cover Gasket for Max-Flo Pumps, SPX0125T$699 Waterway O-242 volute o-ring for the Viper pump wet end Waterway Volute O-Ring O-242$1099 Aladdin O-64-9 collar o-ring for pool pump and valve fittings Aladdin Universal Collar O-Ring for Pool Pump and Valve Fittings, O-64-9$655 Aladdin O-329-9 bronze pump volute o-ring, 5 inch I.D. Aladdin Bronze Pump Volute O-Ring for Pentair Pumps, 5 in. I.D., 3/32 in. Thickness, O-329-9$799 Aladdin O-446-14 drain plug o-ring for Aqua-Flo FMHP pumps Aladdin Drain Plug O-Ring for Aqua-Flo FMHP Pumps, O-446-14$699 Pentair 350013Z pump lid o-ring, 5-3/4 in. inside diameter Pentair Lid O-Ring, 5-3/4" ID, 350013Z$599 Pentair 355330 Challenger strainer pot flange o-ring, 2-3/8 inch ID Pentair Challenger Strainer Pot Flange O-Ring$1099 Pentair 350336Z diffuser o-ring for WhisperFlo XF and IntelliFlo XF pumps Pentair WhisperFlo XF / IntelliFlo XF Diffuser O-Ring #2-336, 350336Z$799

Product details

Waterway 805-0436 is the lid o-ring for the 6 inch pump trap cover. It seals the clear lid against the strainer pot, which is what lets the pump hold a vacuum and keep its prime.

The size

The ring measures 5-7/8 inches inside diameter and 6-3/8 inches outside diameter, with a 1/4 inch cord thickness. It is used on Waterway Hi-Flow, Champion 56 and Center Discharge pool pumps.

When to change it

Pool chemistry and heat harden the rubber over time. Once the ring flattens, cracks or takes a permanent set, the lid stops sealing and the pump starts drawing air at the trap. Symptoms are a pump that will not prime, a basket that never fills, or a trickle of water weeping past the lid. Replacing the ring is a two minute job and it is worth keeping a spare on hand.

Clean the groove and the sealing face before fitting the new ring, then seat the lid by hand. A thin film of silicone o-ring lubricant helps it sit evenly and keeps the lid from sticking.

Specifications
Brand Waterway
Manufacturer part number 805-0436
UPC 806105129826
Type Pump lid o-ring
Inside diameter 5-7/8"
Outside diameter 6-3/8"
Cord thickness 1/4"
Fits Waterway Hi-Flow, Waterway Champion 56, Waterway Center Discharge pool pumps
Shipping weight 0.02 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2299 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3099 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$2099 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3399 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1699 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16799 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3999 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3399 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9999 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6899

Questions and answers

What people ask about this product, answered by our pool techs.

What size is this o-ring?
Inside diameter 5-7/8 inches, outside diameter 6-3/8 inches, and a 1/4 inch cord thickness.
Which pumps does it fit?
Waterway pumps that use the 6 inch trap cover, including the Hi-Flow, the Champion 56 and the Center Discharge models.
My pump keeps losing prime. Is this the fix?
It is the first thing to check. A hardened, flattened or split lid o-ring lets the trap pull air, and the pump will not hold prime.
Do I need lubricant?
It is not required, but a light coat of silicone o-ring lubricant helps the ring seat evenly and makes the lid easier to remove next time.
Ask your own question
