Waterway 805-0256 pump volute faceplate o-ringWaterway Pump Volute Faceplate O-Ring, 805-0256 In stock$999
Waterway 805-0256 pump volute faceplate o-ring
Shop all Waterway

Waterway Pump Volute Faceplate O-Ring, 805-0256

Ask a questionMPN 805-0256
$999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Waterway The factory 805-0256 volute faceplate o-ring.
  • Measured for you 5-3/4 in. inside diameter, 6 in. outside diameter, 1/8 in. cord thickness.
  • Hi-Flo pumps Listed for the Waterway Hi-Flo above ground pump range.
  • Seals the volute face It sits between the faceplate and the volute, holding prime on the suction side.
  • A prime loss suspect A flattened or cracked o-ring lets air in and the pump loses prime.
  • Lubricate on assembly A silicone o-ring lubricant helps it seat and keeps it from pinching.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway Pump Volute Faceplate O-Ring, 805-0256, SKU WWP-851-8022. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway Pump Volute Faceplate O-Ring, 805-0256
Waterway

Pump Volute Faceplate O-Ring, 805-0256

$999
Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600
Waterway

6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600

$7099
Waterway 3/8" Drain Plug, Black, 715-1201
Waterway

3/8" Drain Plug, Black, 715-1201

$499
Waterway Hi-Flo Pump Drain Plug O-Ring, 805-0111
Waterway

Hi-Flo Pump Drain Plug O-Ring, 805-0111

$342
Waterway Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230
Waterway

Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230

$799
Waterway O-Ring for 6" Trap Cover, 805-0436
Waterway

O-Ring for 6" Trap Cover, 805-0436

$799
Waterway Union Gasket 2", 711-4010
Waterway

Union Gasket 2", 711-4010

$1099
Subtotal

Similar products

Other products people compare with this one.

Waterway 805-0439 lid o-ring for SVL56 pump Waterway Lid O-Ring for SVL56 Pump, 805-0439$1299 Pentair LA415 rubber volute O-ring for the Letro booster pump Pentair Volute O-Ring for Letro Booster Pump, LA415$899 Waterway 805-0238 diffuser o-ring for Champion 56 and SVL56 pool pumps Waterway Champion 56 Diffuser O-Ring, 805-0238$599 Waterway O-242 volute o-ring for the Viper pump wet end Waterway Volute O-Ring O-242$1099 Waterway 400-5670 pump union assembly with o-ring, 2 in. nut by 2 in. slip Waterway Pump Union Assembly with O-Ring, 2" Nut x 2" Slip, 400-5670$1199 Aladdin O-329-9 bronze pump volute o-ring, 5 inch I.D. Aladdin Bronze Pump Volute O-Ring for Pentair Pumps, 5 in. I.D., 3/32 in. Thickness, O-329-9$799 Pentair 356173Z seal plate o-ring for the 3HP IntelliFlo3 pool pump Pentair Seal Plate O-Ring for 3HP IntelliFlo3 Pool Pump, 356173Z$1399 Speck 2920341220 casing o-ring for Model 433 pool pump Speck O-Ring for Model 433 Pool Pump Casing, 2920341220$1420 Waterway 400-4060 1-1/2 inch PVC pump half union assembly Waterway Pump Union Assembly 1-1/2", 400-4060$899 Waterway 400-5570 pump union assembly, 2" nut by 2" slip Waterway Pump Union Assembly, 2" Nut x 2" Slip, 400-5570$1199

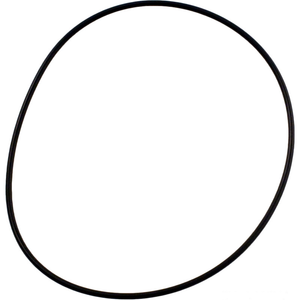

Pentair 355331Z Waterfall and Challenger pump diffuser o-ring Pentair Waterfall/Challenger Pump Diffuser O-Ring, 355331Z$1199 Waterway 400-5990 pump union assembly, 2.5 in. by 2 in., for Executive pumps Waterway 2.5" x 2" Pump Union Assembly, 400-5990$1494 Waterway 319-1370 Executive wear ring for 4-5 HP pumps Waterway Executive Wear Ring 4-5 HP, 319-1370$1099 Waterway 806-1400 faceplate gasket for Champion 56 frame pump Waterway Faceplate Gasket for Champion 56 and Econo-Flo, 806-1400$1299 SuperPro O-76-9 o-ring for the Hayward Max-Flo pump strainer cover SuperPro O-Ring for Hayward® Max-Flo Pump and Strainer Cover, SPX0125T, O-76-9$1099 Pentair 352626 volute o-ring O-257 for Pac-Fab Hydropump pumps Pentair O-Ring, Volute Hydropump, 352626$1199 Pentair 356148Z seal plate o-ring for the IntelliFlo3 VSF 1.5 HP pump Pentair Seal Plate O-Ring for IntelliFlo3 VSF 1.5 HP Pump, 356148Z$1399 Aladdin O-64-9 collar o-ring for pool pump and valve fittings Aladdin Universal Collar O-Ring for Pool Pump and Valve Fittings, O-64-9$655 Gecko O-Ring Volute 251 FMCP/TMCP | 92200270 Gecko O-Ring Volute 251 FMCP/TMCP | 92200270$1399 Gecko Geko O-Ring Volute 158 FMHP | 92200090 Gecko Geko O-Ring Volute 158 FMHP | 92200090$1099

Product details

The Waterway 805-0256 is the volute faceplate o-ring for Hi-Flo above ground pumps. It measures 5-3/4 in. inside diameter, 6 in. outside diameter, with a 1/8 in. cord.

What it seals

The o-ring sits between the faceplate and the volute, on the suction side of the pump. Everything there runs under vacuum while the pump is working, which means a seal that has hardened, cracked or taken a permanent set does not simply drip, it pulls air in. That shows up as a pump that will not hold prime, air in the pump pot, or a pump that primes and then loses it after a while.

Fitting

Clean the groove before the new o-ring goes in and use a silicone o-ring lubricant. That helps it seat evenly and stops it rolling or pinching as the faceplate is drawn down, which is the usual reason a fresh o-ring still leaks.

Specifications
Brand Waterway
Manufacturer part number 805-0256
UPC 806105129710
Type Volute faceplate o-ring
Part type Pool pump part
Inside diameter 5-3/4 in.
Outside diameter 6 in.
Cord thickness 1/8 in.
Fits Waterway Hi-Flo above ground pumps
Shipping weight 0.01 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2299 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3099 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$2099 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3399 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1699 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16799 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3999 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3399 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9999 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6899

Questions and answers

What people ask about this product, answered by our pool techs.

What are the dimensions?
5-3/4 in. inside diameter, 6 in. outside diameter, and a 1/8 in. cord thickness.
Which pumps does it fit?
Waterway lists 805-0256 for the Hi-Flo above ground pumps.
My pump keeps losing prime. Could this be it?
It is a common cause. The volute faceplate o-ring is on the suction side, so once it goes hard or takes a set it draws air instead of sealing, and the pump loses prime.
Should I lubricate it?
Yes. A silicone o-ring lubricant helps it seat evenly and keeps it from pinching or rolling as the faceplate goes back on.
Ask your own question
