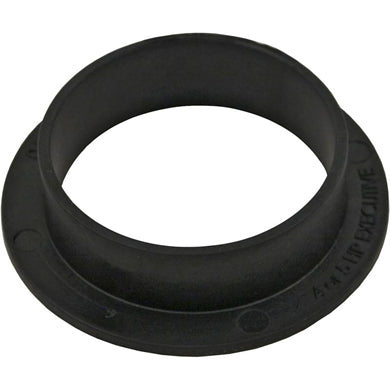

Waterway 319-1370 Executive wear ring for 4-5 HP pumpsWaterway Executive Wear Ring 4-5 HP, 319-1370 In stock$999
Waterway 319-1370 Executive wear ring for 4-5 HP pumps
Shop all Waterway

Waterway Executive Wear Ring 4-5 HP, 319-1370

Ask a questionMPN 319-1370
$999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Waterway Part 319-1370, the factory wear ring for the Executive series.
  • For 4 HP and 5 HP Sized for the larger Executive impellers rather than the small horsepower rings.
  • Both frames Listed in the Waterway Executive 48 frame and 56 frame pump parts breakdowns.
  • Restores the impeller clearance The wear ring sets the running gap that keeps the pump moving water efficiently.
  • Wearing part It is meant to wear instead of the volute, so it is replaced during any full pump rebuild.
  • Pairs with a reseal Most techs change the wear ring while the shaft seal and gaskets are already out.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway Executive Wear Ring 4-5 HP, 319-1370, SKU WWP-101-1370. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway Executive Wear Ring 4-5 HP, 319-1370
Waterway

Executive Wear Ring 4-5 HP, 319-1370

$999
Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600
Waterway

6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600

$7099
Waterway 3/8" Drain Plug, Black, 715-1201
Waterway

3/8" Drain Plug, Black, 715-1201

$499
Waterway Hi-Flo Pump Drain Plug O-Ring, 805-0111
Waterway

Hi-Flo Pump Drain Plug O-Ring, 805-0111

$342
Waterway Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230
Waterway

Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230

$799
Waterway O-Ring for 6" Trap Cover, 805-0436
Waterway

O-Ring for 6" Trap Cover, 805-0436

$799
Waterway Union Gasket 2", 711-4010
Waterway

Union Gasket 2", 711-4010

$1099
Subtotal

Similar products

Other products people compare with this one.

Aqua-Flo 92830070 wear ring for Flo-Master XP2 pumps Aqua-Flo Wear Ring for Flo-Master XP2, 92830070$1599 Waterway 805-0256 pump volute faceplate o-ring Waterway Pump Volute Faceplate O-Ring, 805-0256$999 Waterway 805-0238 diffuser o-ring for Champion 56 and SVL56 pool pumps Waterway Champion 56 Diffuser O-Ring, 805-0238$599 Waterway O-242 volute o-ring for the Viper pump wet end Waterway Volute O-Ring O-242$1099 Waterway 400-5670 pump union assembly with o-ring, 2 in. nut by 2 in. slip Waterway Pump Union Assembly with O-Ring, 2" Nut x 2" Slip, 400-5670$1199 Waterway 805-0439 lid o-ring for SVL56 pump Waterway Lid O-Ring for SVL56 Pump, 805-0439$1299 Waterway Waterways Volute Oring For Executive | 805-0261 Waterway Waterways Volute Oring For Executive | 805-0261$1599 Pentair 350013Z pump lid o-ring, 5-3/4 in. inside diameter Pentair Lid O-Ring, 5-3/4" ID, 350013Z$599 Pentair 152509 square section 8.5 in. closure o-ring for Challenger pumps Pentair Genuine OEM O-Ring, Square 8.5 in. Closure, 152509$1299 Pentair 355330 Challenger strainer pot flange o-ring, 2-3/8 inch ID Pentair Challenger Strainer Pot Flange O-Ring$1099
Pentair 351446 WhisperFlo XF seal plate o-ring Pentair WhisperFlo XF Seal Plate O-Ring, 351446$1299 Pentair 350336Z diffuser o-ring for WhisperFlo XF and IntelliFlo XF pumps Pentair WhisperFlo XF / IntelliFlo XF Diffuser O-Ring #2-336, 350336Z$799 Sta-Rite U178-920P 1/4 inch drain plug with o-ring Sta-Rite Drain Plug with O-Ring, 1/4 in. NPT, U178-920P$899 Pentair 355227Z WhisperFlo WFE diffuser o-ring Pentair WhisperFlo WFE Diffuser O-Ring, 355227Z$699 Pentair LA415 rubber volute O-ring for the Letro booster pump Pentair Volute O-Ring for Letro Booster Pump, LA415$899 Polaris R0537000 drain plug with o-ring for the PB4-60 booster pump Polaris Drain Plug with O-Ring for PB4-60, R0537000$1599 Pentair 354634 diffuser bracket O-ring for the Dynamo aboveground pool pump Pentair Diffuser O-Ring for Dynamo$699 Gecko 92200300 volute O-ring for Aqua-Flo Flo-Master XP and XP2 pumps Gecko Volute O-Ring for Aqua-Flo Pumps, 92200300$1399 Hayward SPX5500K Power-Flo Matrix strainer cover o-ring Hayward OEM Power-Flo Matrix Strainer O-Ring, SPX5500K$1099 Hayward SPX1500P strainer cover O-ring for Power-Flo pumps Hayward O-Ring, Strainer Cover for Power-Flo Pump, SPX1500P$1599

Product details

The Waterway 319-1370 is the wear ring for 4 HP and 5 HP Executive pool pumps. It is listed in Waterway Executive parts breakdowns for both the 48 frame and the 56 frame builds.

Why the wear ring matters

The wear ring sits around the impeller and sets the clearance the pump runs at. It is designed to wear so the volute does not. Once that gap opens up, water recirculates inside the pump instead of going out to the returns, and the symptom is falling flow and pressure from a motor that still sounds healthy.

Fitting

Getting to the wear ring means opening the pump, so it is normal to replace the shaft seal and any hardened gaskets in the same job rather than pulling the pump apart twice. Match the horsepower first: this ring covers the 4 HP and 5 HP Executive, not the smaller models.

Specifications
Brand Waterway
Manufacturer part number 319-1370
UPC 806105065322
Part type Pool pump part
Type Wear ring
Horsepower 4-5 HP
Fits Waterway Executive 48 frame and 56 frame pumps
Shipping weight 0.05 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2299 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$2999 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$2099 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3399 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1699 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16299 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3899 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3399 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9999 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6899

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this fit?
Waterway Executive pumps at 4 HP and 5 HP. It appears in both the 48 frame and the 56 frame Executive parts breakdowns.
Will it fit a smaller Executive pump?
This ring is listed for 4-5 HP. A lower horsepower Executive uses a different wear ring, so match the horsepower before ordering.
What does a wear ring do?
It sets the running clearance around the impeller. A worn ring lets water slip back inside the pump, so flow and pressure drop even though the motor sounds fine.
Should I replace anything else at the same time?
The shaft seal and the slinger are already accessible once the pump is apart, so many techs change them in the same visit.
