Waterway 400-5570 pump union assembly, 2" nut by 2" slipWaterway Pump Union Assembly, 2" Nut x 2" Slip, 400-5570 In stock$1199
Waterway 400-5570 pump union assembly, 2" nut by 2" slip
Shop all Waterway

Waterway Pump Union Assembly, 2" Nut x 2" Slip, 400-5570

Ask a questionMPN 400-5570
$1199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 2" nut to 2" slip Union nut onto a 2" threaded pump port, 2" slip socket for the PVC side.
  • Glues straight to 2" pipe The pipe end takes 2" PVC with a standard slip joint.
  • Makes the pump serviceable A union at the pump is what lets you break the plumbing loose without cutting pipe.
  • Genuine Waterway Factory part number 400-5570.
  • Running 1-1/2" pipe? A 2" to 1-1/2" reducer bushing is sold separately if your PVC is the smaller size.
  • Assembly, not just a nut Supplied as the complete union assembly.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Waterway Pump Union Assembly, 2" Nut x 2" Slip, 400-5570, SKU WWP-85-8903. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Waterway Pump Union Assembly, 2" Nut x 2" Slip, 400-5570
Waterway

Pump Union Assembly, 2" Nut x 2" Slip, 400-5570

$1199
Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600
Waterway

6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600

$7099
Waterway 3/8" Drain Plug, Black, 715-1201
Waterway

3/8" Drain Plug, Black, 715-1201

$499
Waterway Hi-Flo Pump Drain Plug O-Ring, 805-0111
Waterway

Hi-Flo Pump Drain Plug O-Ring, 805-0111

$342
Waterway Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230
Waterway

Pump Union, 2" Nut x 1-1/2" Slip or 2" Spigot, 400-9230

$799
Waterway O-Ring for 6" Trap Cover, 805-0436
Waterway

O-Ring for 6" Trap Cover, 805-0436

$799
Waterway Union Gasket 2", 711-4010
Waterway

Union Gasket 2", 711-4010

$1099
Subtotal

Similar products

Other products people compare with this one.

Waterway 400-5670 pump union assembly with o-ring, 2 in. nut by 2 in. slip Waterway Pump Union Assembly with O-Ring, 2" Nut x 2" Slip, 400-5670$1199 Waterway 400-4060 1-1/2 inch PVC pump half union assembly Waterway Pump Union Assembly 1-1/2", 400-4060$899 Waterway 400-5990 pump union assembly, 2.5 in. by 2 in., for Executive pumps Waterway 2.5" x 2" Pump Union Assembly, 400-5990$1494 Waterway Waterways 1" Union Assembly Slip Tiny Might | 400-1990 Waterway Waterways 1" Union Assembly Slip Tiny Might | 400-1990$799 Waterway 400-5491B 1-1/2 inch split nut with screws Waterway 1-1/2" Split Nut with Screws, 400-5491B$699 Magic Plastics 0602-20 two inch pump union assembly Magic Plastics 2" Pump Union Assembly, 0602-20$1399 Len Gordon 2-05-0047 2 inch pump split union nut Len Gordon 2" Pump Split Union Nut, 2-05-0047$699 Aqua-Flo 91431150 2 inch pump union nut Aqua-Flo 2" Pump Union Nut, 91431150$1399 Waterway 400-4240 pump union, 1-1/2 inch SPG Waterway 1-1/2" SPG Union, 400-4240$1099 U.S. Seal PS201 pump shaft seal assembly with ceramic seat U.S. Seal Pump Shaft Seal Assembly PS201$699
Pentair 98212200 plastic union nut replacement Pentair Union Nut Replacement, 98212200$1699 Waterway 805-0256 pump volute faceplate o-ring Waterway Pump Volute Faceplate O-Ring, 805-0256$999 SuperPro SP0121109020 two inch pump repair split nut with screws SuperPro 2" Pump Repair Split Nut with Screws, SP0121109020$1099 CMP 21063-150-000 1-1/2 inch CPVC pump union, SKT x MIP CMP 1-1/2" Pump Union SKT x MIP, CPVC, 21063-150-000$1599 U.S. Seal PS100 replacement pump shaft seal assembly U.S. Seal PS100 Replacement Pump Seal Assembly$699 Waterway 805-0439 lid o-ring for SVL56 pump Waterway Lid O-Ring for SVL56 Pump, 805-0439$1299 U.S. Seal PS1000 mechanical shaft seal assembly for pool pumps U.S. Seal PS1000 Shaft Seal Assembly$699 U.S. Seal PS200 mechanical shaft seal assembly for pool pumps U.S. Seal PS200 Mechanical Seal Assembly$1199 Aladdin GO-KIT 71 seal kit for the old style Polaris PB4-60 booster pump Aladdin GO-KIT 71 Seal Kit for Polaris PB4-60 Booster Pump$1699 U.S. Seal PS-3867 heavy duty mechanical shaft seal assembly U.S. Seal Heavy Duty Mechanical Seal Assembly (PS200), PS-3867$1599

Product details

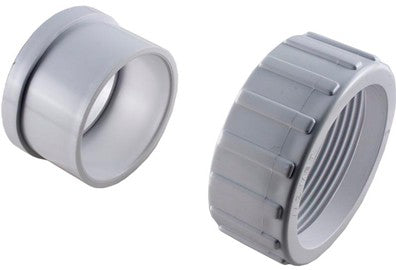

The Waterway 400-5570 is a complete pump union assembly. One end is a 2" union nut that threads onto a 2" pump port, and the other end is a 2" slip socket that glues to 2" PVC pipe.

Why the union matters

The union is the joint that makes a pump serviceable. With one on each side, a pump can be unthreaded and lifted out for a seal change, a motor swap or a winter teardown, and go back in the same afternoon. Without them, every one of those jobs starts with a saw and ends with new couplings and a wait for glue to cure.

If your pipe is 1-1/2"

Plenty of installations run 1-1/2" PVC into a pump with 2" ports. A 2" to 1-1/2" reducer bushing sits in the slip socket and lets you glue to the smaller pipe. It is a separate item, so add it to the order if that is what you have in the ground.

Specifications
Brand Waterway
Manufacturer part number 400-5570
Type Pump union assembly
Pump side 2" union nut, for a 2" threaded pump
Pipe side 2" slip
Connects to 2" PVC pipe
Sold as Complete assembly
Shipping weight 0.25 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Waterway

A Waterway pump and filter on an equipment pad beside an infinity pool. Engineered for pool, spa and bath. Waterway

Waterway equipment

Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165 Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500 Waterway 3/4 HP Booster Pump, SG3810430-1PDA
Shop Waterway equipment

Waterway parts

Waterway Renegade Pool Skimmer Basket, 542-3240 Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600 Waterway Adjustable Spa Jet, Gunite, 210-3400 Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700
Shop Waterway parts
Pool filters: a Waterway cartridge filter and pumpFittings and valves: a white Waterway PVC fitting
Waterway makes pumps, filters, skimmers, jets, valves and fittings for pools, spas and baths.Shop all Waterway

Customer reviews

More from Waterway

Waterway 550-4407 Crystal Water filter tank body, gray, with label Waterway Tank Body, Crystal Water, Gray, with Label, 550-4407$45699 Waterway 310-6600 6 in. pump trap assembly with 2 in. x 2 in. ports, front view Waterway 6 in. Pump Trap Assembly, 2 in. x 2 in. Ports, 310-6600$7099 Waterway 550-0701B lock ring for Pro Clean Plus 125 and 150 sq ft filters Waterway Lock Ring, Pro Clean Plus, 550-0701B$9099 Waterway 522-5167-6S ClearWater II 150 sq. ft. cartridge filter system with 1.5 HP Hi-Flo II two speed pump Waterway 150 Sq. Ft. 1.5 HP 2 Speed Clearwater Cartridge Filter System, 522-5167-6S$89999 Waterway ClearWater II 520-5147-6S 100 sq ft cartridge filter system with 1.5 HP pump Waterway 100 SqFt ClearWater II Cartridge Filter System for Above Ground Pool 1.5HP, 520-5147-6S$74599 Waterway 542-3240 Renegade pool skimmer basket Waterway Renegade Pool Skimmer Basket, 542-3240$2199 Waterway 210-3700 poly gunite jet assembly with 1.5 inch by 2 inch tee body Waterway Poly Gunite Jet Assembly 1.5" x 2" Tee Body, 210-3700$2299 Waterway 210-3400 adjustable gunite spa jet Waterway Adjustable Spa Jet, Gunite, 210-3400$3099 Waterway 550-0621 tank lid with lock ring and pressure gauge for Pro Clean Plus 125 and 150 sq ft filters Waterway Tank Lid with Lock Ring, Pro Clean Plus 125/150 sq ft, 550-0621$25499 Waterway 218-1447 gray wall fitting escutcheon for vinyl liner pool returns Waterway Wall Fitting Escutcheon, Gray, for In-Ground Vinyl Liner Return Fittings, 218-1447$699
Waterway 229-8127 thread-in 5-scallop twin roto Poly Storm gunite jet internal in gray Waterway Thread-in 5-Scallop Twin Roto Poly Storm Gunite Jet Internal, Gray, 229-8127$2099 Waterway 805-0000 Crystal Water filter tank o-ring Waterway Crystal Water Tank O-Ring, 805-0000$3399 Waterway 400-4030 1-1/2 inch union, male pipe thread by female slip Waterway 1-1/2" x 1-1/2" S Union MPT, 400-4030$1699 Waterway 540-8500 Renegade wide mouth vinyl liner skimmer, 9 in. throat, white Waterway Complete Renegade Vinyl Skimmer, Wide Mouth, 9 in. Throat, White, 540-8500$16799 Waterway 640-1900 V 10 inch Tru Flo cover and frame in white Waterway 10" Tru Flo Cover and Frame, White, 640-1900 V$3999 Waterway 505-1970 filter collar valve wrench for split-nut threaded sand filters Waterway Filter Collar Valve Wrench, 505-1970$1999 Waterway 210-6090 Roto Deluxe Jet in white Waterway Roto Deluxe Jet, White, 210-6090$3399 Waterway 600-9600 valve lid diverter assembly with spider gasket Waterway Lid Diverter Assembly with Gasket, 600-9600$9999 Waterway 400-5080 2 in. union, male pipe thread by female slip Waterway 2" Union, Male Pipe Thread by Female Slip, 400-5080$1899 Waterway 640-4740 V universal grate, 12 in. x 12 in., white Waterway Universal Grate, 12 in. x 12 in., White, 640-4740 V$6899

Questions and answers

What people ask about this product, answered by our pool techs.

What size pipe does it take?
2" PVC on the slip side. The other end is a 2" union nut that threads onto a 2" pump port.
My plumbing is 1-1/2". Can I still use it?
Yes, with a reducer. A 2" to 1-1/2" reducer bushing is a separate item and drops into the slip socket so you can glue to 1-1/2" pipe.
Is the nut included?
Yes. It ships as a complete union assembly, not as loose pieces.
Why fit a union at the pump at all?
So the pump can come off without cutting pipe. Without unions, changing a seal or swapping a pump means a saw and a set of couplings every time.
