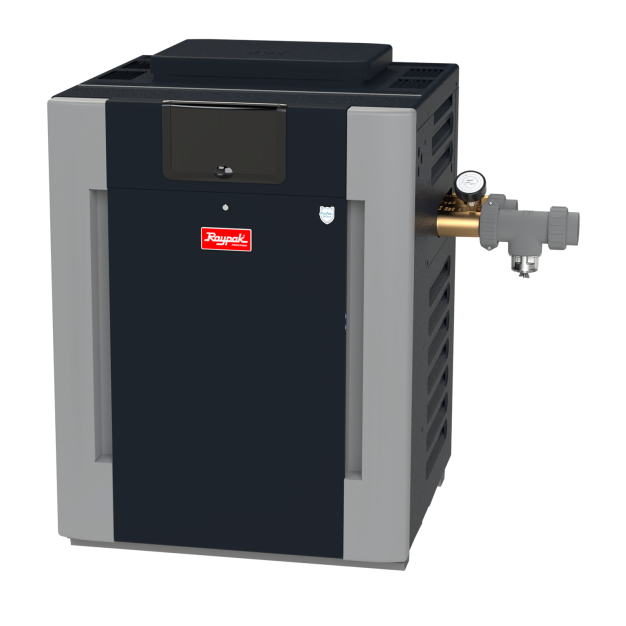

Raypak Digital ASME Propane Pool Heater, 199.5K BTU, Cupro-Nickel Heat Exchanger, Bronze Headers, 0 to 2,000 ft, B-R206A-EP-X #57, 017411
30 day returns · Easy, with prepaid labels provided
Does it fit your equipment?
Your model:
Quick overview
- ASME construction Bronze headers on an ASME heat exchanger, the build many commercial and public pool codes ask for.
- Cupronickel fin tube The X at the end of B-R206A-EP-X: Raypak offers its ASME heaters in copper or cupronickel, and this is the cupronickel one.
- 0 to 2,000 ft Raypak's #57 part number for sites up to 2,000 ft; its #58, #59 and #60 propane part numbers cover sites up to 7,000 ft.
- ProTek Shield A module at the inlet that takes the corrosion in place of the heat exchanger and is easy to replace when it wears.
- Digital control An LCD for temperature and settings, with a microprocessor that reads out diagnostics and watches operating status.
- 199,500 BTU/hr Raypak's 206A size, about 163,590 BTU/hr into the water at its rated 82 percent thermal efficiency.
Need a hand?
Frequently bought together

Digital ASME Propane Pool Heater, 199.5K BTU, Cupro-Nickel Heat Exchanger, Bronze Headers, 0 to 2,000 ft, B-R206A-EP-X #57, 017411
Similar products
Other products people compare with this one.
Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900
Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$2,64900
Pentair MasterTemp 400 Natural Gas Pool Heater, Low NOx HD, 4608055.0 (1)
$4,30899
Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,92300
Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900
Web Price
Raypak 266K BTU Propane Gas In-ground Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 ft Elevation, P-R266A-EP-C, 009225$3,37400
Raypak Heater, 360K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-X, 014953$4,67600
Raypak AVIA 264K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R264A-EP-C, 018038$3,49300
Raypak Pool Heater, 399K BTU, Propane Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EP-C, 009227$4,42600
Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,25699
Raypak AVIA 399K BTU Propane Gas IID Low NOx Pool Heater with WiFi, Copper Tubing, 0-4500 Ft. Elevation, P-R404A-EP-C, 018039$4,42600
Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,68199
Pentair MasterTemp Natural Gas Heater 400 BTU Low NOx, 460736$4,12799
Raypak 333K BTU Propane Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R336A-EP-C, 009226$3,84100
Raypak 18Kw 240V E3T Electric Heater ELS-R-0018-1-TIB, 100-10000665$2,44800
Raypak P-R336A-EP-X Heater, 300K BTU, Propane Gas, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, 014952$4,21000
Hayward Universal H-Series Propane Gas 250,000 BTU Low NOx Pool Heater, W3H250FDP$3,99900
Web Price
Coates PHS Series Electric Heater 3-Phase 36kW 480V, 34836PHS-3$3,08299
Pentair MasterTemp 250K Natural Gas Heater IID ASME, 460771$4,33099
Raypak 266K BTU Propane Gas ASME Pool Heater, Digital IID, Bronze Header, Copper Heat Exchanger, B-R266A-EP-C, 017384$4,04800
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F



Product details
The Raypak B-R206A-EP-X #57, part number 017411, is the 206A size of Raypak's Digital ASME pool and spa heater: 199,500 BTU/hr input on propane, 2 inch bronze headers, a cupronickel fin tube heat exchanger and an orifice set for installations from 0 to 2,000 ft.
The ASME build
The B at the front of the model number is Raypak's code for bronze ASME headers, which give the heater the strength commercial code requirements call for. It ships with a 125 psi pressure relief valve, carries the ANSI Z21.56 design certification, and can be installed indoors or out, directly on a combustible surface. Whether a pool needs an ASME heater is for the local code and the inspector to say.
Heat exchanger and protection
The tubes are cupronickel, the X at the end of the model number. Raypak uses a straight tube design with no bends or helical coils, and fits the ProTek Shield module at the inlet, which Raypak engineers to take the brunt of the corrosion that occurs over time and recommends for chlorinated and salt water pools.
Controls
The digital LCD sets the temperature and the heater's settings, and the microprocessor shows a diagnostic readout while it monitors operating status. The control ties into an existing remote system, and the self adjusting burner compensates for gas pressure changes. Power is 120 or 240 VAC, single phase.
Before you order
Raypak sells the 206A ASME heater under separate part numbers by fuel, exchanger and elevation band. This one is propane, cupronickel, 0 to 2,000 ft. At Raypak's rated 82 percent thermal efficiency it puts about 163,590 BTU/hr into the water.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 017411 |
| Model | B-R206A-EP-X #57 |
| Series | Digital ASME |
| UPC | 840891042013 |
| Type | ASME pool and spa heater |
| Fuel | Propane |
| Heat input | 199,500 BTU/hr |
| Heat output | 163,590 BTU/hr at 82 percent |
| Thermal efficiency | 82 percent, by Raypak |
| Ignition | Electronic, digital IID |
| Heat exchanger | Cupronickel fin tube |
| Headers | 2 in bronze, ASME |
| Certification | ASME; ANSI Z21.56 design certified |
| Elevation | 0 to 2,000 ft |
| Electrical | 120 or 240 VAC, single phase, 60 Hz |
| Amp draw | 4 A at 120 V, 2 A at 240 V |
| Water connections | 2 in |
| Gas connection | 3/4 in NPT |
| Cabinet width | 20 in |
| Included | 125 psi pressure relief valve, ProTek Shield module |
| Installation | Indoor or outdoor; can sit on a combustible surface |
| Shipping weight | 212 lb, 14 more with the indoor draft hood |
| Warranty | 1 year, parts and labor, by Raypak |
| Ships | Freight |
