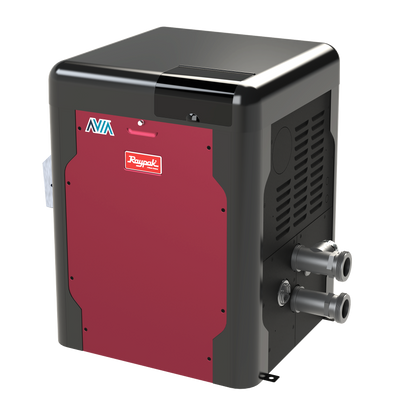

Raypak AVIA 264K BTU Propane Low NOx Pool Heater with Wi-Fi, HD NiTek Heat Exchanger, 0 to 4,500 ft, P-R264A-EP-N, 018050$3,45900
Raypak AVIA 264K BTU Propane Low NOx Pool Heater with Wi-Fi, HD NiTek Heat Exchanger, 0 to 4,500 ft, P-R264A-EP-N, 018050
$3,45900
$3,890.00
11% OFF
FREE Delivery
Typically ships within 0 days This item ships directly from the manufacturer.
Out of stock
30 day returns · Easy, with prepaid labels provided
Quick overview
- NiTek HD exchanger The N at the end of the model: nickel coated tubing that Raypak says cuts scale formation by more than half and is 300 percent more erosion resistant than copper.
- 264,000 BTU/hr propane About 221,760 BTU/hr into the water at Raypak's rated 84 percent thermal efficiency.
- Wi-Fi built in Raypak's free Raymote app controls and monitors the heater once it is on the home network.
- Low NOx The AVIA is a low NOx heater with direct spark ignition and no standing pilot.
- 0 to 4,500 ft Raypak's high elevation kit 018762F takes the propane AVIA from 4,501 to 10,000 ft.
- Three year warranty Raypak gives the AVIA 3 years, parts and labor, in a single family home.
Need a hand?
Bilingual support from pool professionals.
Frequently bought together
Current item
Raypak
AVIA 264K BTU Propane Low NOx Pool Heater with Wi-Fi, HD NiTek Heat Exchanger, 0 to 4,500 ft, P-R264A-EP-N, 018050
$3,45900
Raypak
Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
$3,85900
Raypak
156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
$1,94900
Pentair
MasterTemp 250 Natural Gas Pool Heater, EC-462026
$3,73900
Web Price
Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Get your unadvertised price ›
Subtotal
Similar products
Other products people compare with this one.
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$3,85900
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$1,94900
Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900
Web Price
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$2,59900
Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,17900
Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$3,62900
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$2,87900
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,68900
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,02900
Pentair MasterTemp 125 Heater 125K BTU, Propane Gas, with Cord, EC-462025$2,24900
Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$3,42900
Pentair MasterTemp Propane Gas Heater 400k BTU, EC-462029$4,78900
Web Price
Pentair MasterTemp 400 Natural Gas Pool Heater, Low NOx HD, 460805$4,30899
Raypak 150K BTU Above Ground Pool and Spa Gas Heater, Digital Controls, Electronic Ignition, Propane Gas, 0-1999 ft Elevation, 014786$1,89900
Raypak AVIA 399K BTU Propane Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-4500 Ft. Elevation, P-R404A-EP-N, 018051$4,08900
Raypak Pool Heater, 200K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-C, 009216$2,61900
Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,23900
Raypak 180K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,06900
From Raypak
Raypak heaters
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784
Genuine Raypak parts
Raypak Genuine OEM Protek Shield Module Assembly, 017960F
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F
Raypak makes gas pool and spa heaters, heat pumps and electric heaters, with genuine replacement parts.Shop all Raypak
Product details

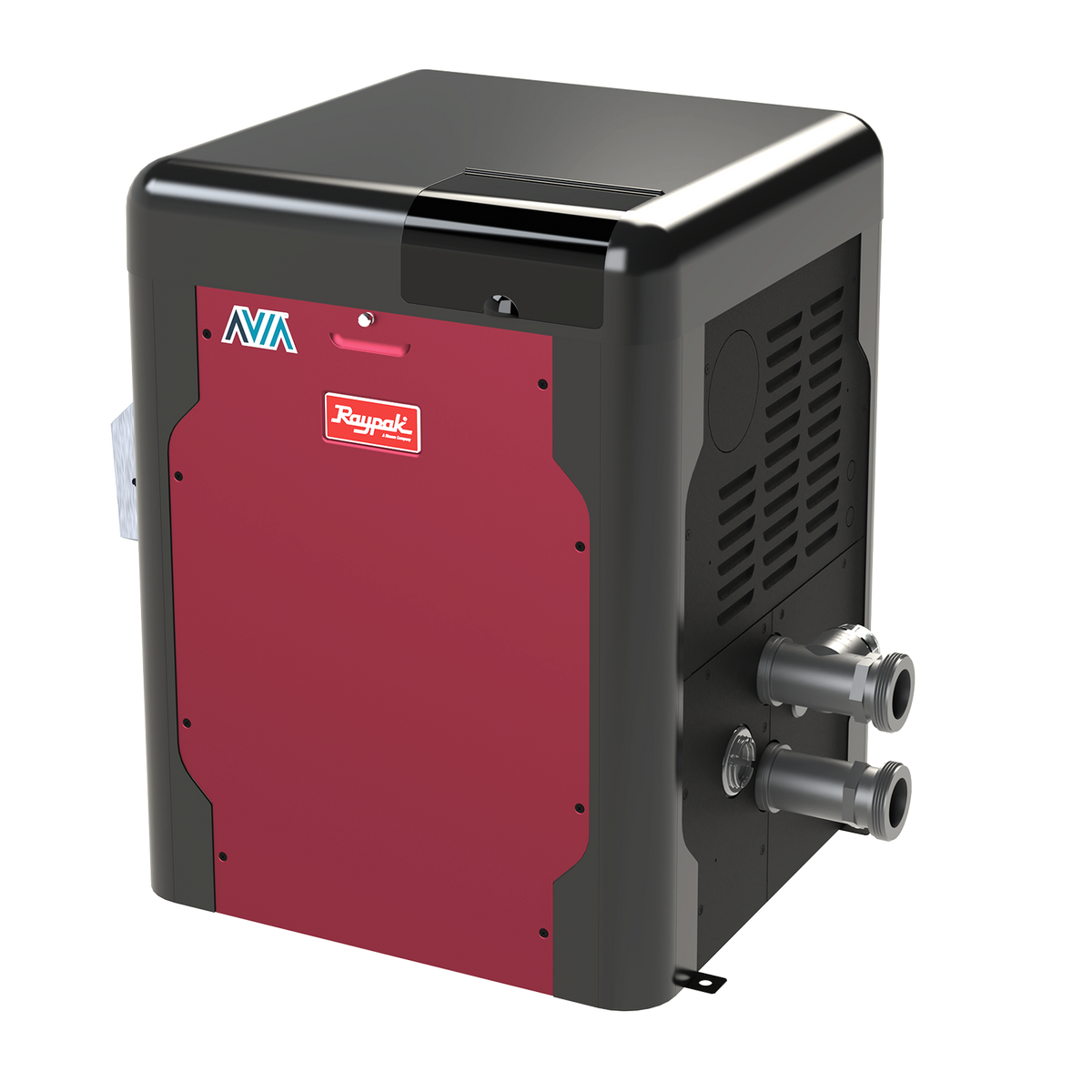

The Raypak AVIA P-R264A-EP-N, part number 018050, is the propane AVIA in the 264 size with Raypak's HD NiTek heat exchanger: 264,000 BTU/hr input, low NOx, built in Wi-Fi, rated from sea level to 4,500 ft.
NiTek
NiTek is Raypak's nickel coated tubing, the N at the end of the model number. Raypak's testing puts it at more than 50 percent less scale formation in hard water, up to 2 percent more thermal efficiency than cupronickel and the same as copper, and 300 percent more erosion resistance than copper. The polymer headers carry the ProTek Shield module.
Wi-Fi and control
Wi-Fi is built in, and Raypak's free Raymote app controls and monitors the heater once it is on the home network. Ignition is direct spark, with no standing pilot.
Before you order
This is the propane heater. Raypak lists it for 0 to 4,500 ft and sells high elevation kit 018762F for 4,501 to 10,000 ft. Water connections are 2 inch buttress and the gas connection 3/4 inch NPT. At Raypak's rated 84 percent thermal efficiency it puts about 221,760 BTU/hr into the water.
| Brand | Raypak |
|---|---|
| Manufacturer part number | 018050 |
| Model | P-R264A-EP-N |
| Series | AVIA HD |
| Type | Pool and spa heater |
| Fuel | Propane |
| Heat input | 264,000 BTU/hr |
| Heat output | 221,760 BTU/hr at 84 percent |
| Thermal efficiency | 84 percent, by Raypak |
| Ignition | Direct spark |
| Heat exchanger | NiTek, nickel coated HD tubing |
| Headers | Polymer, with ProTek Shield |
| Emissions | Low NOx |
| Elevation | 0 to 4,500 ft; 4,501 to 10,000 ft with Raypak high elevation kit 018762F |
| Water connections | 2 in buttress |
| Gas connection | 3/4 in NPT |
| Connectivity | Wi-Fi, Raymote app |
| Unit weight | 135 lb |
| Shipping weight | 155 lb |
| Warranty | 3 years, parts and labor, by Raypak; 1 year if installed anywhere other than a single family home |
| Ships | Freight |
Downloads
Installation and Operation Manual
Request a quote
Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.
Customer reviews
Verified store reviews
SHOPPER APPROVED
See all reviews →
More from Raypak
Raypak Heat Pump Digital Control Board 9350/9353 5450-8450, 100-10000347$29699
Raypak Genuine OEM Protek Shield Module Assembly, 017960F$5199
Raypak Crosswind V Heat Pump, 138,000 BTU, with Titanium Heat Exchanger and Digital Controls, TWPH-8550EHT08$3,85900
Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$1,94900
Raypak Genuine OEM 3/4" IID Pool Heater Natural Gas Electronic Valve, 003900F$25199
Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls, TWPH-6560EHT01$2,59900
Raypak Kit-PC 3-Wire Board Controller IID for 206A-408 Pool Heaters, 100-10000345$32499
Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$3,62900
Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$2,87900
Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$1,68900
Raypak Boiler Burner 10-Pack, 100-10000414$4799
Raypak Inlet/Outlet Header Complete with ProTek Shield, 017959F$40799
Raypak Genuine OEM Propane and Natural Gas Pilot, 002003F$8199
Raypak 100K Temp Sensor Kit, 9350/9353 and 5450-8450 Heat Pumps, H000329$10299
Raypak Burner Tray with Burners for 406A Pool Heaters, 010394F$91099
Raypak Genuine OEM Copper Tube Bundle 266/267, 010060F$81599
Raypak 266A Polymer Cu-Ni Tube Bundle, 014931F$1,29299
Raypak 11kW 240V E3T Electric Heater ELS-D-0011-1-Ti, 017122$1,15400
Web Price
Raypak Burner Tray with LP Burners Pro (Sea Level) for Heat Exchanger Models 399 and 406A, 019209F$37499
Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,02900
Questions and answers
What people ask about this product, answered by our pool techs.
Is the Raypak AVIA P-R264A-EP-N, 018050, natural gas or propane?
Propane. Raypak's natural gas AVIA with the same NiTek exchanger is P-R264A-EN-N, part number 018044.
Can the Raypak AVIA 018050 go above 4,500 ft?
Yes, with Raypak's high elevation kit 018762F, which its catalog lists for the propane AVIA from 4,501 to 10,000 ft. Up to 4,500 ft it needs no kit.
Does the Raypak AVIA P-R264A-EP-N need a separate Wi-Fi module?
No. Wi-Fi is built in, and Raypak's Raymote app, which is free, controls and monitors the heater once it is on the home network.
What is the difference between the AVIA P-R264A-EP-N and P-R264A-EP-C?
The heat exchanger. The N model has Raypak's NiTek nickel coated HD tubing; the C model, 018038, has copper. Raypak rates both at 84 percent thermal efficiency.
What warranty does Raypak give the AVIA 018050?
Three years, parts and labor, under Raypak's pool heater limited warranty, or one year if the heater is installed anywhere other than a single family home.
Where is the manual for the propane AVIA 018050?
Under Downloads on this page. It is Raypak's AVIA Installation and Operation Manual for models 264 and 404, part number 100-10000111.
