Pentair 59001500 tie rod, 1/4 inch by 21-1/2 inch, for a 36 sq ft DE filterPentair Tie Rod, 1/4 in x 21-1/2 in, 36 Sq Ft DE Filter, 59001500 In stock$4799

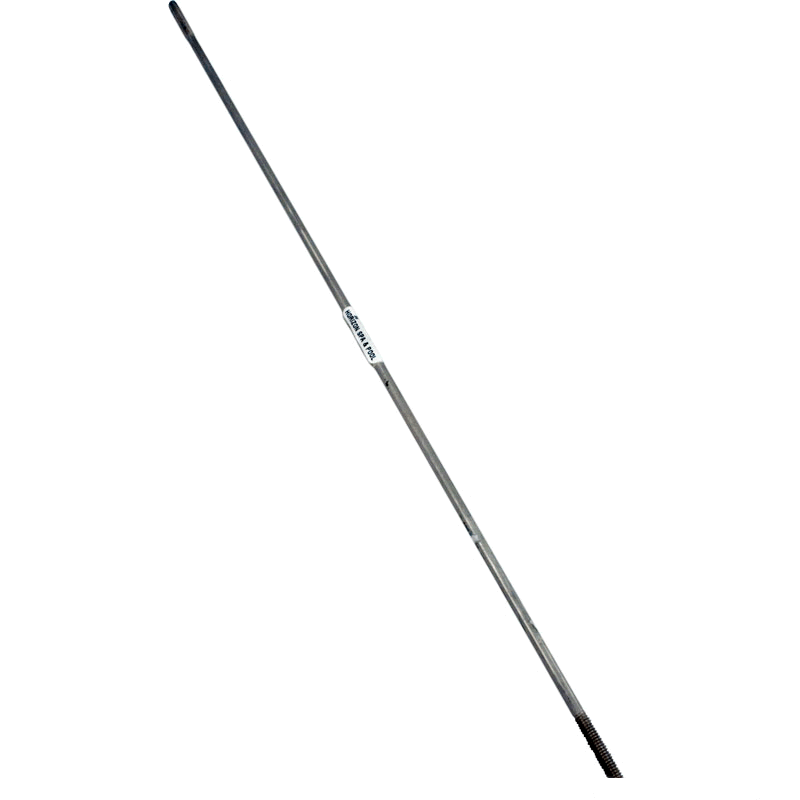

Pentair 59001500 tie rod, 1/4 inch by 21-1/2 inch, for a 36 sq ft DE filter
Shop all Pentair

Pentair Tie Rod, 1/4 in x 21-1/2 in, 36 Sq Ft DE Filter, 59001500

Ask a questionMPN 59001500
$4799
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Sized to the 36 sq ft tank The 21-1/2 inch length is specific to the 36 square foot DE filter, not the larger elements.
  • 1/4 inch thread Threaded 1/4 inch, matching the original hardware.
  • Genuine Pentair Part number 59001500 from Pentair rather than a cut-to-length substitute.
  • Holds the grid assembly together The tie rods are what clamp the DE grid stack into one rigid unit inside the tank.
  • Two parts listings It appears with Pentair PacFab FNS Plus DE filter parts and with American Products Titan CM and Titan RPM DE filter parts.
  • Replace them as a set A corroded rod is rarely the only one, and mixing old and new hardware unloads the stack unevenly.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Tie Rod, 1/4 in x 21-1/2 in, 36 Sq Ft DE Filter, 59001500, SKU AMP-051-1175. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Tie Rod, 1/4 in x 21-1/2 in, 36 Sq Ft DE Filter, 59001500
Pentair

Tie Rod, 1/4 in x 21-1/2 in, 36 Sq Ft DE Filter, 59001500

$4799
Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800
Pentair

Genuine OEM High Flow Manual Air Relief Valve, 98209800

$3899
Pentair Genuine OEM Clamp Kit with Tension Control, 190003
Pentair

Genuine OEM Clamp Kit with Tension Control, 190003

$30199
Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152
Pentair

2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152

$29799
Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400
Pentair

Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400

$39399
Pentair OEM Tank O-Ring 20-7/8" ID (7/16" Thick), 39010200Z
Pentair

OEM Tank O-Ring 20-7/8" ID (7/16" Thick), 39010200Z

$6099
Pentair 60 Sq Ft Element Assembly Complete, 59023300
Pentair

60 Sq Ft Element Assembly Complete, 59023300

$44499
Subtotal

Similar products

Other products people compare with this one.

Pentair 59002100 tie rod, 1/4 inch by 27-1/2 inch, for 48 square foot DE filters Pentair Tie Rod 1/4" x 27-1/2" for 48 Sqft DE Filter, 59002100$4999 Pentair 190092 9.5 inch internal air bleed assembly for FNS Plus DE filter Pentair 9.5 inch Internal Air Bleed Assembly for FNS Plus DE Filter, 190092$3399 Pentair 071442Z filter tank o-ring for 18 inch pool filter tank Pentair OEM Filter Tank O-Ring, 18 Inch Tank, 071442Z$5099 Pentair 195008 genuine OEM FNS tank o-ring for FNS D.E. filters Pentair Genuine OEM FNS Tank O-Ring, 195008$4499 Pentair 172855 genuine OEM strainer air vent, 3/4 inch air relief screen Pentair Genuine OEM Strainer Air Vent, 172855$2899 Pentair 178575Z bottom bulkhead for Quad D.E. and FNS Plus filters Pentair Bottom Bulkhead for Quad DE and FNS Plus Filters, 178575Z$3199 Pentair 98209803 manual air relief valve assembly for pool filters Pentair Manual Air Relief Assembly, 98209803$3199 Pentair 98725800 filter template for FNS Plus DE filters Pentair Template for FNS Plus Filter, 98725800$1399 Pentair 194988 clamp spring for Nautilus DE filter Pentair Clamp Spring for Nautilus DE Filter, 1-1/2 in. x 1-1/8 in., 194988$1355 Pentair 53004800Z stainless steel washer for Nautilus DE filter clamp Pentair Stainless Steel Washer, 7/8 in. OD for Nautilus DE Filter Clamp, 53004800Z$949
Pentair 190141 two inch DE filter bulkhead with o-ring Pentair Genuine OEM Filter Bulkhead with O-Ring, 190141$10799 Pentair 59023700 top manifold with air bleed for FNS Plus D.E. filters Pentair Manifold Top with Air Bleed for FNS Plus D.E. Filter/RPM Titan & Nautilus Filters, 59023700$14499 Pentair 170022 tan tank lid for the FNS Plus FNSP60 DE pool filter Pentair Tank Lid for FNS Plus FNSP60 DE Filter, 170022$39999 Pentair 154747 spacer washer for PacFab Nautilus DE filters Pentair 154747 Genuine OEM Spacer Washer$2099 Pentair 195830 2 inch all purpose plug with o-ring for the FNS24 D.E. filter Pentair 2" FNS24 All Purpose Plug with O-Ring, 195830$2099 Pentair 194989Z machined metal nut for PacFab Nautilus DE filters Pentair Nut Machined, 194989Z$1999 Pentair 190037 standpipe assembly for the 60 SQFT PacFab FNS DE filter Pentair Genuine OEM Standpipe Assembly 60 SQFT, 190037$7699 Pentair 190035 standpipe assembly for the 36 sq ft PacFab FNS Plus DE filter Pentair Genuine OEM Standpipe Assembly 36 SQFT, 190035$7699 Pentair 194997Z machined clamp nut for FNS, INS and Quad DE filters Pentair Genuine OEM Machined Nut, 194997Z$1899 Pentair 59000600 FNS Plus stand pipe o-ring, size 2-137 Pentair FNS Plus Stand Pipe O-Ring, 59000600$1799

Product details

Pentair 59001500 is a tie rod for a 36 square foot DE pool filter, threaded 1/4 inch and measuring 21-1/2 inches long.

What tie rods do

Inside a DE filter the grids are held as a stack, and the tie rods are the hardware that clamps that stack into one rigid assembly. If a rod corrodes through or a nut lets go, the grid stack loosens, elements shift and DE finds its way back into the pool. Rod length is tied to the tank size, which is why the 36 square foot filter takes this 21-1/2 inch rod rather than the longer ones used on the bigger tanks.

Fitting notes

Rods age at more or less the same rate, so if one has failed the others are usually close behind. Replacing the full set keeps the clamping load even across the assembly.

Parts listings

This rod appears in two places in the source data, with Pentair PacFab FNS Plus DE filter parts and with American Products Titan CM and Titan RPM DE filter parts. Confirm against the diagram for your own tank.

Specifications
Brand Pentair
Manufacturer part number 59001500
UPC 788379694289
Part type Pool Filter Part
Type Tie rod
Thread 1/4 inch
Length 21-1/2 inches
Filter size 36 sq ft
Listed for Pentair PacFab FNS Plus DE filter
Also listed for American Products Titan CM and Titan RPM DE filter parts
Shipping weight 0.25 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which filter size does this rod suit?
The 36 square foot DE filter. Pentair uses a longer rod for the 48 and 60 square foot tanks, so the length is the thing to check.
What are the thread and length?
1/4 inch thread, 21-1/2 inches long.
Which filters is it listed for?
The source puts it under Pentair PacFab FNS Plus DE filter parts and also under American Products Titan CM and Titan RPM DE filter parts. Check your own parts diagram before ordering.
Should I replace all the rods at once?
It is the sensible approach. Rods corrode at a similar rate, and a stack held by a mix of old and new hardware does not clamp evenly.
