Jandy R0575400 high pressure switch for JE Series pool heat pumpJandy JE Series Heat Pump High Pressure Switch, R0575400$6599

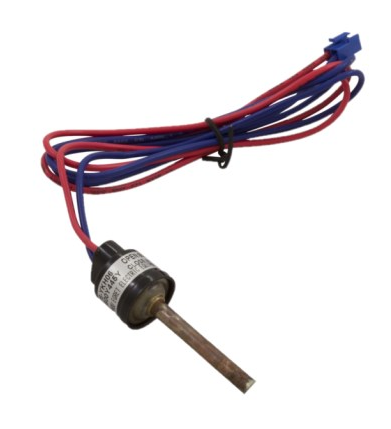

Jandy R0575400 high pressure switch for JE Series pool heat pump
Shop all Jandy

Jandy JE Series Heat Pump High Pressure Switch, R0575400

Ask a questionMPN R0575400
$6599
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Jandy part Factory part number R0575400 for the JE Series heat pump.
  • Refrigerant safety cutout Opens the control circuit when high side pressure climbs past the safe limit.
  • JE Series specific Built for the Jandy JE Series pool heat pump, not a generic HVAC switch.
  • Common nuisance trip cause A failing switch can shut a healthy heat pump down and read as a refrigerant fault.
  • Direct replacement Swaps for the original switch on the same fitting and wiring.
  • Diagnose first Confirm the pressure fault is not real before condemning the switch, since a genuine high pressure trip is protecting the compressor.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jandy JE Series Heat Pump High Pressure Switch, R0575400, SKU AEH-151-1141. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jandy JE Series Heat Pump High Pressure Switch, R0575400
Jandy

JE Series Heat Pump High Pressure Switch, R0575400

$6599
Jandy Igniter Kit for JXi Heater Models 200/260/400, R0457502
Jandy

Igniter Kit for JXi Heater Models 200/260/400, R0457502

$6299
Jandy Access Door Kit for JXi Heaters, R0589600
Jandy

Access Door Kit for JXi Heaters, R0589600

$4399
Jandy JXi User Interface Kit for Model 200/260/400, R0591900
Jandy

JXi User Interface Kit for Model 200/260/400, R0591900

$24699
Jandy Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001
Jandy

Pressure Switch with Siphon Loop Kit for Model 200/260/400 JXi Heaters, R0457001

$5899
Jandy 3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100
Jandy

3-Port Manifold for Model 200, 260, 400 JXi Heaters, R0590100

$16999
Jandy Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500
Jandy

Gasket and Seals Kit for Model 200, 260, 400 JXi Heaters, R0589500

$9699
Subtotal

Similar products

Other products people compare with this one.

Raypak H000326 switch decal membrane for 5450, 6450 and 8450 heat pumps Raypak 5450/6450/8450 Heat Pump Switch Decal Membrane, H000326$8299 Hayward HPX11024258 HeatPro heat pump replacement HP switch Hayward HeatPro Heat Pump Replacement HP Switch, HPX11024258$7999 Pentair 473381 2 inch by 2 inch heat pump PVC union Pentair 2" Heat Pump PVC Union, 473381$3399 Raypak H000051 capacitor, 80 MFD 440 VAC, for heat pump pool heaters Raypak H000051 Capacitor for 8350/9350/9353/8320ti Heat Pump Pool Heater, 3 Phase, 80 MFD, 440 VAC$7399 Raypak H000331 heat pump transformer for 5450, 6450 and 8450 models Raypak Heat Pump Transformer for 5450, 6450 and 8450, H000331$5699 Raypak H000127 capacitor, 80+5 MFD 370 VAC, for 5350, 6350 and 6200 heat pump pool heaters Raypak Capacitor for 5350/6350/6200 Heat Pump Pool Heater, 3 Phase, 80+5 MFD, 370 VAC, H000127$7399 Raypak H000299 DPST fan relay for 2350, 3350 and 4350 heat pump pool heaters Raypak H000299 DPST Fan Relay for 2350/3350/4350 Heat Pump Pool Heater$3499 Pentair 473121 1/2 in. single direction dryer line for UltraTemp heat pumps Pentair 1/2" Single Dryer Line for UltraTemp Heat Pump, 473121$9799 Pentair 461030Z water union and tie down kit for the UltraTemp heat pump Pentair Water Union and Tie Down Kit for UltraTemp Heat Pump, 461030Z$7699 Raypak H000317 PVC union connector kit with built-in drain for heat pump pool heaters Raypak Genuine OEM Heat Pump Union Connector Kit, H000317$6999
Hayward CHXPRS1931 pressure switch, CZ model Hayward Pressure Switch, CZ Model, CHXPRS1931$7699 Hayward HPX11024169 defrost sensor for HeatPro heat pump Hayward Defrost Sensor for HeatPro Heat Pump, HPX11024169$5299 Raypak brand image shown for the H000011 liquid line drier Raypak H000011 Liquid Line Drier for 5200/6200/8200/6300 Heat Pump Pool Heater$9499 Hayward HPX11024151 7.5uF capacitor for Summit and HeatMaster heat pumps Hayward Capacitor for Summit and HeatMaster Heat Pumps 7.5uF, HPX11024151$3799 Hayward HPX1985 contactor for HeatPro heat pumps Hayward HPX1985 Contactor for HeatPro Heat Pumps$9199 Pentair 473665 probe thermistor defrost sensor for pool and spa heat pumps Pentair 473665 Probe Thermistor Defrost Sensor for Pool and Spa Heat Pumps$4999 Raypak H000074 heat exchanger repair part for RHP heat pumps Raypak Heat Exchanger Repair for R22 RHP 5310, 6310, and 8320TI Heat Pumps, H000074$7499 Pentair 473731Z UltraTemp capacitor with mounting bracket, 440V Pentair UltraTemp Capacitor Replacement with Bracket, 440V, 473731Z$9299 Pentair 473656 low pressure switch for ThermalFlo Titanium heat pump Pentair Low Pressure Switch for ThermalFlo Titanium Heat Pump, 473656$11499 Hayward HPX95005-310188 HP50A heat pump LCD controller Hayward HP50A Heat Pump LCD Controller, HPX95005-310188$11999

Product details

The Jandy R0575400 is the high pressure switch for the JE Series pool heat pump. It is the genuine Jandy replacement part.

What it protects

A heat pump moves heat by circulating refrigerant, and the compressor lives on the high pressure side of that loop. If pressure there climbs past the design limit, the compressor is at risk. The high pressure switch is a simple safety device that opens the control circuit when that happens, shutting the unit down before the expensive part is damaged.

Diagnosing before you replace

A heat pump repeatedly faulting on high pressure has two possible causes: the switch has failed and is opening when it should not, or the pressure really is high. Genuinely high head pressure comes from a dirty or blocked coil, a fan not moving air properly, or poor water flow through the heat exchanger. Check those first. Replacing a switch that was doing its job correctly just removes the protection and leaves the underlying fault in place.

Specifications
Brand Jandy
Manufacturer part number R0575400
UPC 052337063708
Type High pressure switch
Fits Jandy JE Series heat pump
Function Refrigerant high side safety cutout
Shipping weight 0.3 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Jandy

A swimmer diving from the blocks in a dark pool. Everything you need for the perfect pool. Jandy

Jandy equipment

Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400 Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80 Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715
Shop Jandy equipment

Genuine Jandy parts

Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800 Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200 Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500
Shop Jandy parts
Heater parts: a Jandy JXi heaterPump parts: a Jandy VS FloPro variable speed pumpSalt systems: a Jandy AquaPure salt cell
Jandy makes pumps, filters, heaters, salt chlorinators, valves, lighting and automation for pools and spas.Shop all Jandy

Customer reviews

More from Jandy

Jandy R0693900 TruClear PCB replacement assembly Jandy R0693900 TruClear PCB Cell Replacement Assembly for Pro Series Chlorine Generator$75499 Jandy R0452500 new style port sensor kit for 3 port AquaPure cell with 16 ft cable Jandy Port Sensor Kit for 3 Port Cell with 16' Cable, R0452500$24599 Jandy R0448800 clear pump lid and black lock ring assembly with seal, PHPF/PHPM Jandy Lid & Lock-Ring Assembly with Seal, PHPF/PHPM, R0448800$7899 Jandy PLC1400 AquaPure 3 port 14 blade replacement salt cell kit with 16 ft cable Jandy AquaLink AquaPure 3-Port 14-Blade Replacement Salt Cell Kit, 40K Gallons, 16' Cable, PLC1400$1,39500 Jandy R0452400 AquaPure PureLink 3-port 14-blade replacement salt cell Jandy AquaPure PureLink 3-Port 14-Blade 1400 Replacement Salt Cell Kit for 40,000 Gallon Pools, R0452400$1,22900 Jandy R0466500 replacement bottom tank assembly for CL and DEV filters with unions, outlet elbow and retaining ring Jandy Replacement Bottom Tank Assembly for CL & DEV Model Filters, R0466500$67399 Jandy R0984100 AquaPure power interface PCB large backboard with screws Jandy R0984100 AquaPure Power Interface PCB, Large Backboard with Screws$23999 Zodiac R0503000 Nature2 Fusion Soft 1400 replacement cell kit for pools to 40,000 gallons Zodiac Nature2 Fusion Soft 1400 Cell Kit for 40,000-Gallon Pools, R0503000$1,04900 Jandy BWVL-MPV-80 2 in. side mount multiport valve with unions Jandy 2" Side Mount Multi-Port Valve with Unions for DEV48/60, JS60-SM or JS100-SM, BWVL-MPV-80$32799 Jandy R0357200 pressure gauge with air release assembly, front view Jandy Genuine Replacement Gauge with Air Release Assembly, R0357200$7999
Jandy R0445800 pump lid and locking ring assembly with o-ring for Stealth and ePump pumps Jandy Lid & Locking Ring Assembly with O-Ring, R0445800$11799 Jandy R0554700 tank top for CV, CL, DEV and DEL series filters Jandy CV Series Cartridge Filter Tank Top R0554700$52299 Jandy R0402800 16 ft AquaPure PureLink DC cell cord for the 3-port cell Jandy 16' AquaPure PureLink DC Cell Cord, R0402800$2599 Jandy R0452300 AquaPure PureLink 3-port 7-blade replacement salt cell kit with 16 ft cord Jandy AquaPure PureLink 3-Port 7-Blade Replacement Cell Kit, R0452300$70099 Jandy 4424 JVA 24V valve actuator Jandy Valve Actuator JVA 24V, 4424$23399 Jandy R0479800 pump housing body for FloPro FHPM and VS FloPro pumps Jandy Pump Housing Body for FHPM FloPro & VS FloPro, R0479800$24999 Jandy R0461900 gray top housing assembly for CS100 and CS150 cartridge filters Jandy Top Housing Assembly CS100, CS150, R0461900$33199 Jandy TRUGUARDR TruGuard mineral sanitizer replacement cartridge Jandy TruGuard Mineral Sanitizer Replacement Cartridge, TRUGUARDR$24899 Jandy R0445601 pump body for Stealth SHPF/SHPM, WaterFall SWF and ePump JEP, rear view Jandy Pump Body for Stealth SHPF/SHPM Pumps, R0445601$38199 Jandy R0663800 cover assembly with user interface for the TruClear chlorine generating system Jandy Cover Assembly with User Interface for TruClear Chlorine Generating System, R0663800$41999

Questions and answers

What people ask about this product, answered by our pool techs.

What does the high pressure switch do?
It monitors refrigerant pressure on the high side and opens the control circuit if pressure gets too high, stopping the unit before the compressor is damaged.
My heat pump keeps faulting on high pressure. Is the switch bad?
Not necessarily. Restricted air flow across the coil, a dirty coil, or low water flow can all raise head pressure for real. Rule those out before replacing the switch.
Which heat pumps does it fit?
The Jandy JE Series.
Is this the genuine part?
Yes. It is the Jandy OEM high pressure switch, part number R0575400.
