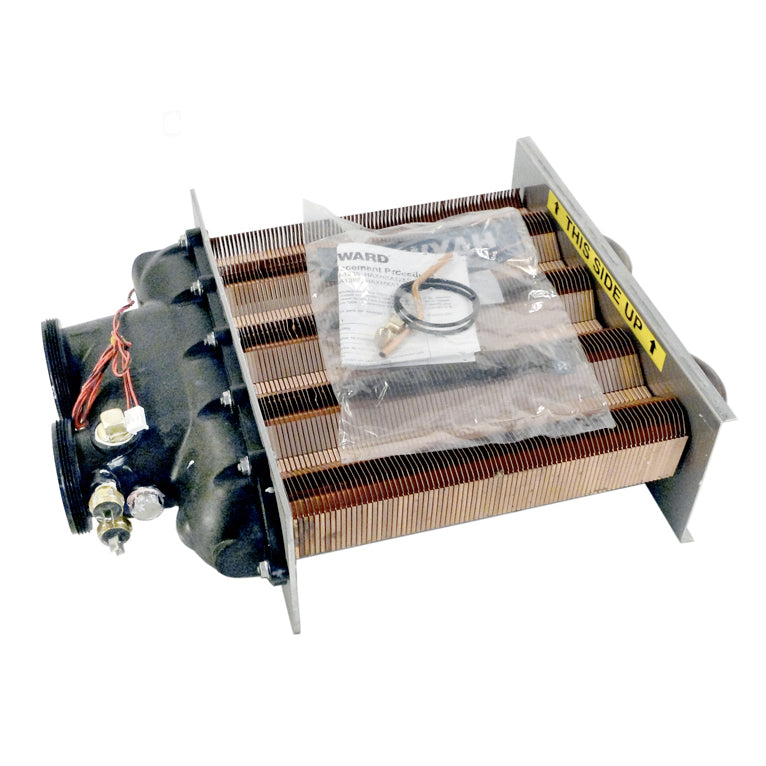

Hayward H-Series Heat Exchanger Assembly, 150,000 BTU, HAXHXA1153

Ask a questionMPN HAXHXA1153
$1,39999
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward Factory part HAXHXA1153, the assembly Hayward builds into the 150,000 BTU H-Series heater.
  • Sized for the 150 model Rated for the 150,000 BTU heater, not the larger H-Series bodies.
  • Covers three heater styles Fits H-150 millivolt, electronic ED1 style and electronic ED2 style heaters.
  • Supplied as an assembly Comes as the complete heat exchanger assembly rather than loose tubes and headers.
  • The core of the heater This is where combustion heat passes into the pool water, so a failed exchanger stops heating and can leak.
  • A major repair done right Replacing the exchanger returns an otherwise sound heater to service instead of scrapping the whole unit.
