Hayward Universal H-Series W3H200FDN pool heater, front viewHayward Universal H-Series Natural Gas 200,000 BTU Low NOx Pool Heater, W3H200FDN In stock$3,69900 Web Price
Hayward Universal H-Series W3H200FDN pool heater, front view
Shop all Hayward

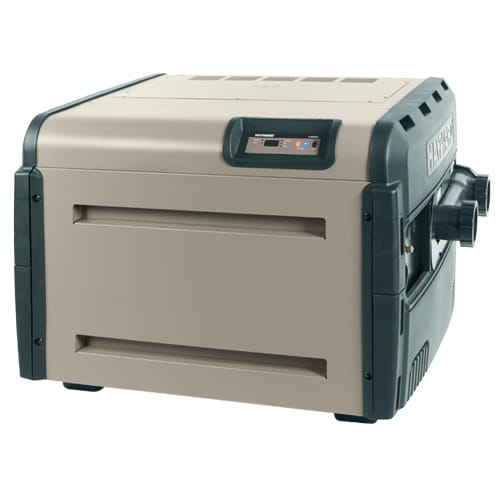

Hayward Universal H-Series Natural Gas 200,000 BTU Low NOx Pool Heater, W3H200FDN

Ask a questionMPN W3H200FDN
$3,69900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
FREE Delivery
In stock

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Natural gas, 200,000 BTU The 200K BTU natural gas model in the Universal H-Series line, part W3H200FDN.
  • Low NOx A Low NOx heater, which matters where local code calls for one on a new install.
  • Induced draft Hayward builds this model with an induced draft design.
  • Pool and spa Rated by Hayward as a pool and spa heater, not a pool only unit.
  • Adaptable to the install Hayward designs the Universal H-Series around installation flexibility rather than one fixed layout.
  • Aimed at the trade Hayward positions the Universal H-Series at the pool service professional.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Universal H-Series Natural Gas 200,000 BTU Low NOx Pool Heater, W3H200FDN, SKU HAY-15-1010. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Universal H-Series Natural Gas 200,000 BTU Low NOx Pool Heater, W3H200FDN
Hayward

Universal H-Series Natural Gas 200,000 BTU Low NOx Pool Heater, W3H200FDN

$3,69900 Web Price Some manufacturers don’t allow us to publicly display their best prices online. When you request an Unadvertised Deal, you’re asking us to unlock a special offer that isn’t shown on the site.
Get your unadvertised price ›
Solar Sun Rings Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02
Solar Sun Rings

Swimming Pool Solar Cover, Blue Sunburst, 5-Foot Diameter, 6-Pack, SSR-SB-02

$29999
Swimline Universal Solar Cover Reel Strap Kit, 5100SK
Swimline

Universal Solar Cover Reel Strap Kit, 5100SK

$3399
Rocky's Reel Systems #3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307
Rocky's Reel Systems

#3A Portable Residential Reel System, End System Only with 3 in. Hubs, 307

$37099
Subtotal

Similar products

Other products people compare with this one.

Raypak 156A 150,000 BTU natural gas above ground pool and spa heater, part 014784 Raypak 156A 150K BTU Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas, 0-4999 ft Elevation, 014784$2,64900 Pentair MasterTemp 250 natural gas pool heater EC-462026 Pentair MasterTemp 250 Natural Gas Pool Heater, EC-462026$3,73900 Web Price Pentair MasterTemp EC-462024 125,000 BTU natural gas pool heater Pentair MasterTemp Natural Gas 125K BTU Pool Heater, EC-462024$2,21299 Raypak 014779 106A analog natural gas above ground pool heater Raypak Analog Natural Gas Above Ground Pool Heater 105,000 BTU, P-R106A-AN-C, 014779$2,11900 Raypak 009217 P-R266A-EN-C 266K BTU natural gas digital pool heater, front view Raypak 266K BTU Natural Gas Pool Heater, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R266A-EN-C, 009217$3,37400 Raypak 009219 Digital 399K BTU natural gas pool and spa heater, model P-R406A-EN-C Raypak Pool Heater, 399K BTU, Natural Gas, Digital Ignition, Copper Heat Exchanger, 0-2000 Ft. Elevation, P-R406A-EN-C, 009219$4,42600 Pentair MasterTemp 400 natural gas pool heater EC-462028 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028$4,17900 Raypak AVIA P-R264A-EN-N 264K BTU natural gas low NOx pool heater with WiFi, front view Raypak AVIA 264K BTU Natural Gas Low NOx Pool Heater with WiFi, HD NiTek Heat Exchanger, 0-10,000 Ft. Elevation, P-R264A-EN-N, 018044$4,00700 Raypak AVIA P-R404A-EN-N 399K BTU natural gas pool and spa heater Raypak AVIA 399K BTU Natural Gas Low NOx Pool Heater with WiFi, HD Nitek Tubing, 0-10,000 ft Elevation, P-R404A-EN-N, 018045$4,92300 Raypak P-R206A-EN-X 200K BTU natural gas pool and spa heater Raypak 180K BTU Natural Gas Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft. Elevation, P-R206A-EN-X, 014938$3,39000
Raypak 009218 digital 333K BTU natural gas pool heater, model P-R336A-EN-C Raypak Digital 333K BTU Natural Gas Pool Heater, Copper Heat Exchanger, 0-2000 Ft Elevation, P-R336A-EN-C, 009218$3,84100 Pentair MasterTemp 461021 400K BTU heavy duty ASME natural gas pool heater Pentair MasterTemp Digital IID Heavy Duty ASME Natural Gas Low NOx Heater 400K BTU, 461021$5,07799 Raypak Digital P-R406A-EN-X 399K BTU natural gas pool and spa heater, part 014941 Raypak 360K BTU Natural Gas Pool Heater, Digital Ignition, Cupro-Nickel Heat Exchanger, 0-2000 Ft Elevation, P-R406A-EN-X, 014941$4,67600 Raypak 009221 P-R266A-EN-C #51 high altitude 266K BTU natural gas pool heater Raypak High Altitude R266A Digital Natural Gas Heater, 266K BTU, Copper Exchanger, P-R266A-EN-C #51, 2000-6000 Ft Elevation, 009221$3,37400 Raypak 156A above ground pool and spa heater, natural gas 150K BTU, high altitude model Raypak 156A Above Ground Pool and Spa Heater, Digital Controls, Electronic Ignition, Natural Gas 150K BTU, High Altitude 5000 to 9999 Ft, 014785$2,64900 Coates 34854PHS-4 PHS Series 54 kW 480 V three phase electric pool heater Coates PHS Series Electric Heater 3 Phase 54kW 480V, 34854PHS-4$3,57599 Raypak 009193 P-R266A-MN-C 266,000 BTU natural gas pool heater Raypak P-R266A-MN-C #50 Natural Gas Heater, 266K BTU, Millivolt Plus, Polymer Headers, Copper Exchanger, 009193$3,81100 Web Price Coates 32015CE CE Series 15kW 208V three phase electric pool and spa heater Coates CE Series Electric Heater, 3-Phase, 15kW, 208V, 32015CE$2,07899 Pentair MasterTemp 400 pool heater, three quarter view Pentair MasterTemp Natural Gas Heater 400 BTU Low NOx, 460736$4,12799 Raypak B-R406A-EN-C 399K BTU natural gas ASME pool heater, front view Raypak Heater, 399K BTU, Natural Gas, ASME, Digital IID, Bronze Header, Copper Heat Exchanger, 0-2000 Ft. Elevation, B-R406A-EN-C, 017374$5,25200

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

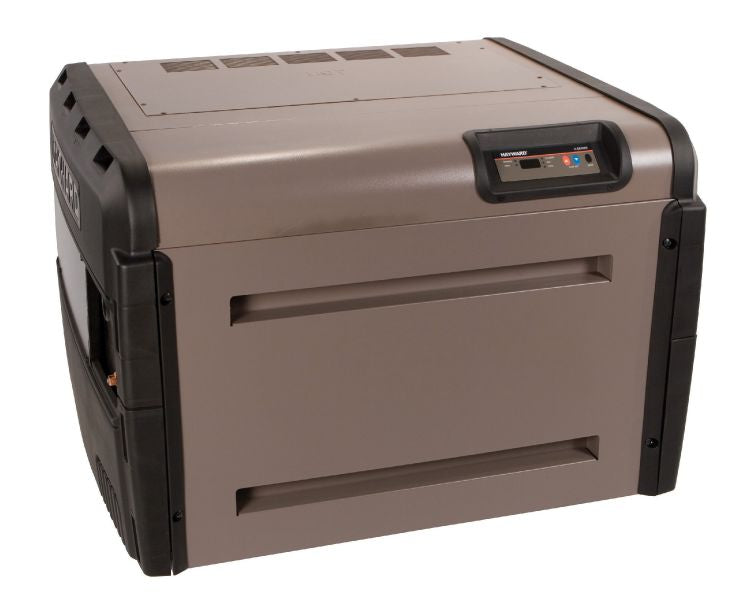

The Hayward W3H200FDN is the 200,000 BTU natural gas model in the Universal H-Series, a Low NOx pool and spa heater with an induced draft design.

What the Universal H-Series is for

Hayward built the line around the pool service professional: efficient, high performance and adaptable to the install in front of you rather than assuming one plumbing and venting layout. That flexibility is the reason the series turns up on so many retrofits, where the equipment pad was laid out for something else.

Low NOx

This is the Low NOx version. In a lot of regions that is not optional on a new heater, so check what your local code asks for before you buy. The heater is rated for both pool and spa duty.

Sizing and installation

200,000 BTU is the input rating. The right size for a given pool depends on the water volume, how long a season you want, and how much wind and shade the pool sees, so have the heater sized to the site. Gas heaters need correct gas supply, venting and clearances, which is work for a licensed installer.

Specifications
Brand Hayward
Manufacturer part number W3H200FDN
Series Universal H-Series
UPC 0610377387217
Type Gas pool and spa heater
Fuel Natural gas
Heat input 200,000 BTU/hr
Heat output 166,000 BTU/hr at 83 percent
Thermal efficiency 83 percent, by Hayward
Ignition Hot surface
Heat exchanger Cupro nickel
Emissions Low NOx, meets SCAQMD Rule 1146.2
Electrical 120 or 240 V, single phase, 60 Hz
Amp draw 5.5 A circuit; 15 A maximum breaker
Water connections 2 in x 2-1/2 in CPVC unions
Warranty 1 year on parts, no labor, by Hayward for its Open Line (W3) models
Elevation To 10,100 ft unmodified, natural gas
Dimensions 24 in high, 22 in wide, 29.5 in long
Unit weight 140 lb
Shipping weight 161 lb
Manufacturer status Hayward lists the W3H200FDN as discontinued, replaced by the W3HS200FDN
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit, SP0714T$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder, CL200EF$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,20799 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,13499 Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What is the difference between H200FDN and W3H200FDN?
The sales channel and the warranty, not the heater. W3H200FDN is the Open Line number, which Hayward approves for sale online and in stores. H200FDN is the Expert Line number for the same size and fuel, sold through stores and pool professionals. This listing is W3H200FDN.
Is the Hayward W3H200FDN discontinued?
Hayward's own site lists the W3H200FDN as discontinued and names the W3HS200FDN as its replacement. This listing is the W3H200FDN.
What does the AO code mean on a Hayward H200FDN?
The blower vacuum switch is open, by Hayward's troubleshooting guide; AC means it is closed. Our pool heater error code guide covers both and the other codes.
What altitude can the Hayward H200FDN be installed at?
Up to 10,100 ft on natural gas with no modification, by Table 1 of Hayward's manual.
What warranty does Hayward give the W3H200FDN?
One year on parts, with no labor coverage. That is Hayward's warranty for its Open Line, the W3 part numbers it approves for sale online. Hayward's longer parts and labor warranties belong to its Expert Line numbers, which it sells only through stores and pool professionals.
Where is the manual for the Hayward H200FDN?
Under Downloads on this page, as the Installation Manual. It is Hayward's Universal H-Series installation manual, and covers the H150FD through H500FD heaters in natural gas and propane.
