Pentair 59000400 Titan SS top manifold for DE filtersPentair Titan SS Top Manifold, 59000400 In stock$13999

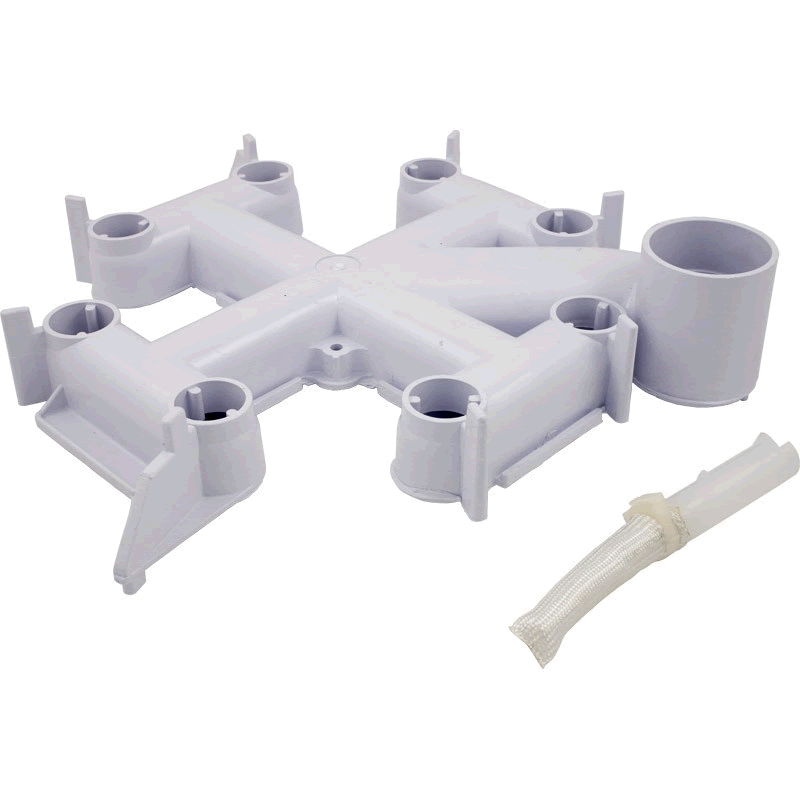

Pentair 59000400 Titan SS top manifold for DE filters
Shop all Pentair

Pentair Titan SS Top Manifold, 59000400

Ask a questionMPN 59000400
$13999
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Pentair part Factory part number 59000400 for the Titan DE filter family.
  • Titan SS and Titan CM Listed for both the Titan stainless steel and the Titan CM DE filter builds.
  • Holds the grid pack together The top manifold caps the DE grids and keeps them spaced and upright inside the tank.
  • Fixes DE bypass at the top Cracks, warped ports or a broken lug at the manifold let powder past the grids and back into the pool.
  • Inspect it at every teardown Once the tank is open, a hairline crack in the manifold is far easier to catch than to diagnose later.
  • Replace with the grids in mind A manifold that has failed often means the grids have been under strain too, so check the whole pack.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Titan SS Top Manifold, 59000400, SKU AMP-051-1163. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Titan SS Top Manifold, 59000400
Pentair

Titan SS Top Manifold, 59000400

$13999
Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506
Pentair

Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506

$20399
Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800
Pentair

Genuine OEM High Flow Manual Air Relief Valve, 98209800

$3899
Pentair Genuine OEM Clamp Kit with Tension Control, 190003
Pentair

Genuine OEM Clamp Kit with Tension Control, 190003

$30199
Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152
Pentair

2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152

$29799
Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S
Pentair

Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S

$46499
Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400
Pentair

Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400

$39399
Subtotal

Similar products

Other products people compare with this one.

Pentair 59023700 top manifold with air bleed for FNS Plus D.E. filters Pentair Manifold Top with Air Bleed for FNS Plus D.E. Filter/RPM Titan & Nautilus Filters, 59023700$14499 Hayward DEX2400C top collector manifold with flex air relief for Pro-Grid and Micro-Clear DE filters Hayward Top Collector Manifold with Flex Air Relief (OEM), DEX2400C$10299 CMP 25357-600-000 top manifold assembly for Pentair FNS Plus DE filters CMP FNS Plus Top Manifold Assembly, 25357-600-000$9299 Waterway 550-4200 top manifold with air screen for Crystal Water DE filters Waterway Top Manifold with Air Screen, 550-4200$7899 Jandy R0359000 manifold assembly for DEV48, DEV60, DEL48 and DEL60 DE filters Jandy Genuine OEM Manifold Assembly for DEV48/60 and DEL48/60 DE Filters, R0359000$11699 Pentair 155333P base for filter and pump Pentair Base for Filter and Pump, 155333P$10099 Sta-Rite 24801-0101 manifold for System 3 S8D110 DE filter Sta-Rite Manifold for System 3 S8D110 DE Filter, 24801-0101$17699 Pentair 190141 two inch DE filter bulkhead with o-ring Pentair Genuine OEM Filter Bulkhead with O-Ring, 190141$10799 Pentair 261003 manual bleeder with pressure gauge, 2-3/8 in Pentair Genuine OEM Manual Bleeder with Gauge, 261003$11799 Sta-Rite 24800-0100Z manifold for System 3 S7D75 DE filter Sta-Rite Manifold for System 3 S7D75 DE Filter, 24800-0100Z$18099
Pentair 190036 PacFab FNS standpipe assembly for the 48 sq ft DE filter Pentair PacFab FNS Standpipe Assembly, 48 sq ft, 190036$8199 Pentair 170036 outlet pipe assembly for the Quad pool and spa D.E. filter Pentair Outlet Pipe Assembly for Quad Pool and Spa D.E. Filter, 170036$9499 Pentair 313202Z No. 80 bag assembly for the 11 inch separation tank Pentair 11" #80 Separation Tank Bag Assembly, 313202Z$16599 Pentair 196024S diverter assembly retro kit for the Quad D.E. filter Pentair Quad D.E. Diverter Assembly Retro Kit, 196024S$10999 Pentair PacFab 190043 inlet pipe assembly for the FNS Plus DE filter Pentair Genuine OEM Inlet Pipe Assembly for FNS Plus, 190043$10799 Pentair 190037 standpipe assembly for the 60 SQFT PacFab FNS DE filter Pentair Genuine OEM Standpipe Assembly 60 SQFT, 190037$7699 Pentair 190035 standpipe assembly for the 36 sq ft PacFab FNS Plus DE filter Pentair Genuine OEM Standpipe Assembly 36 SQFT, 190035$7699 Hayward ECX11034SET Perflex top and bottom tube sheet set for EC65 and EC75 filters Hayward Perflex Top and Bottom Tube Sheet Set, ECX11034SET$10099 Hayward ECX1004ASET top and bottom tube sheet set for EC40 and EC50 filters Hayward EC40/EC50 Top and Bottom Tube Sheet Set, ECX1004ASET$8199 Pentair Black Manual Air Relief Assembly | 273550 Pentair Black Manual Air Relief Assembly | 273550$9199

Product details

The Pentair 59000400 is the top manifold for the Titan stainless steel and Titan CM DE filters. It is the genuine Pentair replacement part.

What the top manifold does

Inside a DE filter the grids stand in a pack, and the top manifold is what holds their upper ends in position and seals them. It keeps the grids spaced so water passes evenly across every face, and it stops unfiltered water from taking a shortcut past the media. When the manifold cracks or a port distorts, filtered and unfiltered water mix, and diatomaceous earth ends up back in the pool.

When to change it

The manifold is worth inspecting every time the tank comes apart. Look for hairline cracks around the ports, a broken lug, or a body that no longer sits square on the grid tops. Because a failing manifold puts uneven load on the grids themselves, it is sensible to check the whole element pack while you have it out.

Specifications
Brand Pentair
Manufacturer part number 59000400
UPC 788379680824
Part type Pool filter part
Type Top manifold
Fits Pentair Titan stainless steel DE filter, Titan CM DE filter
Shipping weight 1.9 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-348190$74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which filters does this manifold fit?
It is listed for the Pentair Titan stainless steel DE filter and the Titan CM DE filter.
Is this the top or the bottom manifold?
The top. It caps the grid assembly, and the lower components are separate parts.
Why would the top manifold need replacing?
Age, over pressure and rough handling during cleaning crack the plastic or distort the grid ports. Once the seal at the grid tops is imperfect, DE finds its way past the media.
Do the grids come with it?
No. This listing is the manifold itself. The DE grids and the rest of the element assembly are ordered separately.
