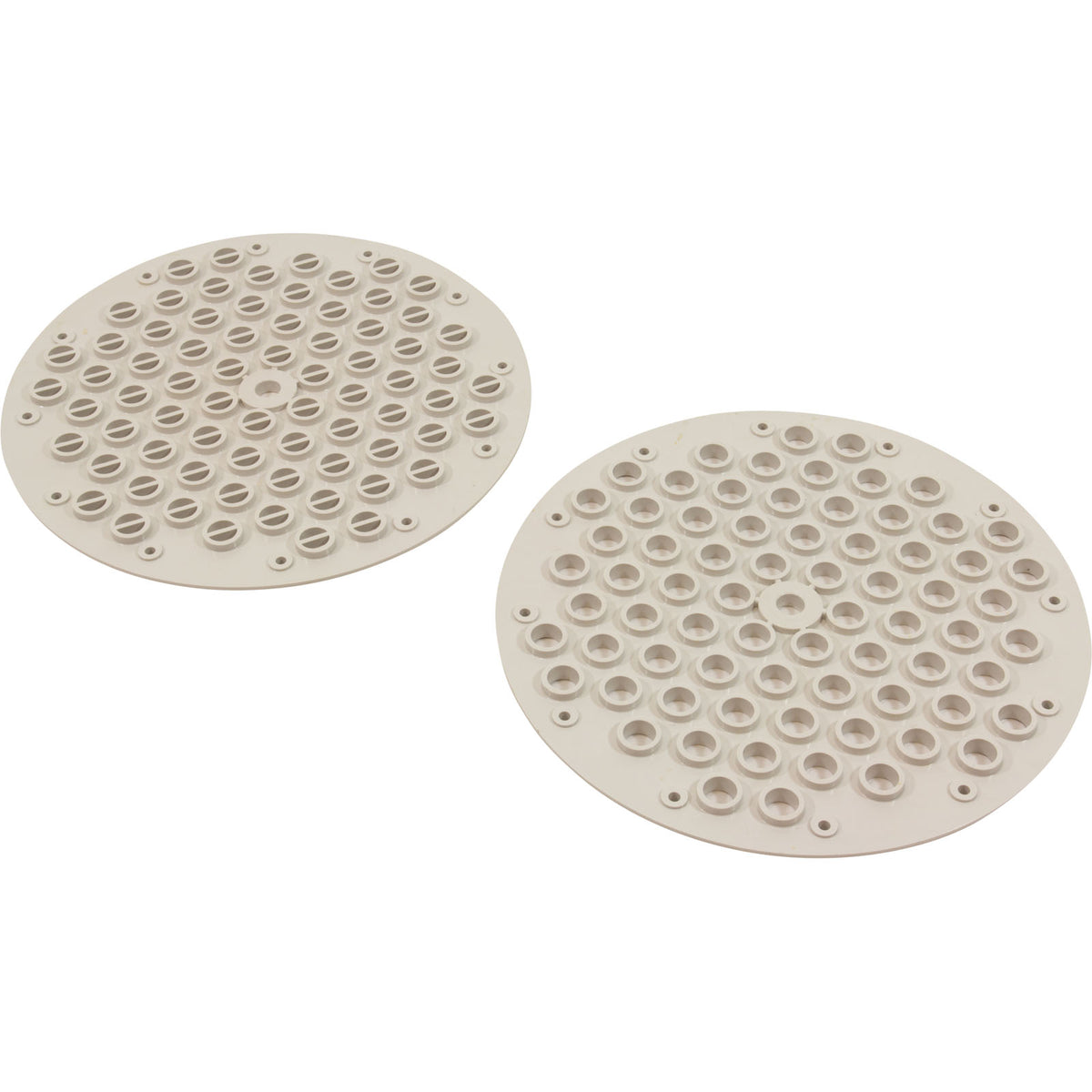

Hayward EC40/EC50 Top and Bottom Tube Sheet Set, ECX1004ASET

Ask a questionMPN ECX1004ASET
$8199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Genuine Hayward The factory part, number ECX1004ASET.
  • Top and bottom together The set covers both tube sheets rather than one on its own.
  • Fits EC40 and EC50 Listed for both filter models.
  • Replace as a pair The sheets hold the element square at both ends, so a warped or cracked one is worth changing alongside its partner.
  • Element hardware, not the tubes These are the structural sheets the element assembly is built around.
  • Inspect the rest while it is apart Once the element is out, the tubes and the remaining hardware are all within reach.
Full description and specifications ↓
