Pentair A&A Manufacturing 225571 1-1/2 in. five port top feed T-valvePentair A&A Manufacturing 1-1/2" 5-Port Top Feed T-Valve without QuikStop 225571$39499
Pentair A&A Manufacturing 225571 1-1/2 in. five port top feed T-valve
Shop all Pentair

Pentair A&A Manufacturing 1-1/2" 5-Port Top Feed T-Valve without QuikStop 225571

Ask a questionMPN 225571
$39499
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Five zones, one at a time Sends high pressure water to a single zone, then indexes to the next, so every pop-up head gets full flow.
  • Top feed design Water enters from the top of the valve body, which is what makes this the top feed version.
  • Speed control built in The upper housing carries the speed control mechanism that sets how quickly the valve indexes.
  • Durable upper housing The housing is the part that takes the wear, and it is built for it.
  • Without QuikStop This is the plain version. If your system needs the QuikStop feature, order the valve that has it.
  • Helps the heater work Cycling water through every zone circulates the whole pool rather than heating only the top layer.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair A&A Manufacturing 1-1/2" 5-Port Top Feed T-Valve without QuikStop 225571, SKU ANA-20-712. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair A&A Manufacturing 1-1/2" 5-Port Top Feed T-Valve without QuikStop 225571
Pentair

A&A Manufacturing 1-1/2" 5-Port Top Feed T-Valve without QuikStop 225571

$39499
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$34999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Lasco KIT30711Z 3 inch 711 Series PVC butterfly valve with flange kit Lasco 3" 711 Series Butterfly Valve and Flange Kit with Zinc Bolts, KIT30711Z$26999 Pentair 225570 1-1/2 in five port top feed T-valve with QuikStop Pentair 1-1/2" 5-Port Top Feed T-Valve with QuikStop, 225570$39399 Lasco KIT40711Z 4 inch 711 Series butterfly valve and flange kit with zinc bolts Lasco 4 in. 711 Series Butterfly Valve and Flange Kit with Zinc Bolts, KIT40711Z$37699 Lasco KIT40711S 4 inch 711 Series butterfly valve and flange kit with stainless steel bolts Lasco 4" 711 Series Butterfly Valve & Flange Kit with Stainless Steel Bolts, KIT40711S$50599 Lasco KIT30711S 3 inch 711 Series butterfly valve and flange kit with stainless steel bolts Lasco 3" 711 Series Butterfly Valve and Flange Kit With Stainless Steel Bolts, KIT30711S$31099 Pentair T40FNW vanishing edge autofill with Fluidmaster valve, white Pentair Vanishing Edge Autofill with Fluidmaster Valve, White, T40FNW$32799 Pentair 230148 1.5 in. 6 port low profile T-valve kit Pentair 1.5 in. 6 Port Low Profile T-Valve Kit, 230148$13299 Pentair 263056 three way CPVC FullFloXF diverter valve, black Pentair 3-Way CPVC FullFloXF Diverter Valve, Black, 2" x 2.5", 263056$11499 Jandy 4719 Neverlube 3 port diverter valve, 2-1/2 inch by 3 inch Jandy Neverlube Valve 3 Port, 2-1/2" x 3", 4719$11399 CMP 25923-204-000 HydroSeal 3-way CPVC diverter valve, 2 inch, with unions CMP 3-Way CPVC HydroSeal Diverter Valve with Unions, 2", 25923-204-000$11099
Jandy 4944 NeverLube 3 port valve, 2-1/2 in. by 2 in. Jandy Neverlube 3 Port Valve, 2-1/2" x 2", 4944$10399 Waterway 2.5" Slide Valve Assembly for Crystal Water DE PVC | 600-1500 Waterway 2.5" Slide Valve Assembly for Crystal Water DE PVC | 600-1500$10399 Jandy 7307 PVC check valve, 2-1/2 inch to 3 inch slip x slip Jandy Check Valve, 2-1/2" to 3" PVC Slip x Slip, 7307$10199 CMP Hydroseal 1-1/2 inch 3-way diverter valve with unions, black CMP Hydroseal 1-1/2 Inch 3-Way Valve with Unions, 25923-154-000$10199 Pentair 263060 FullFloXF 2.5 inch CPVC check valve with 3 inch slip outside Pentair FullFloXF 2.5" Check Valve CPVC with 3" Slip Outside, 263060$9599 Jandy 4716 Neverlube positive seal two way diverter valve, 2 in. x 2-1/2 in. Jandy 2"-2 1/2" Neverlube Positive Seal 2-Way Diverter Valve, 4716$9299 Zodiac Jandy Pro Series 1 1/2-2" Check Valve 90 Degree CPVC | 7511 Zodiac Jandy Pro Series 1 1/2-2" Check Valve 90 Degree CPVC | 7511$9299 Jandy 4718 Neverlube 2 port dial valve with 2-1/2 inch and 3 inch PVC connections Jandy Neverlube Valve 2 Port, 2-1/2" x 3", 4718$8999 Pentair 263035 three way CPVC diverter valve, 1-1/2 inch by 2 inch Pentair 3-Way 1-1/2" x 2" CPVC Diverter Valve, 263035$8999 Jandy 7512 90 degree check valve, 2 inch slip by 2-1/2 inch spigot Jandy 90 Degree Check Valve, 2" SLIP x 2-1/2" SPG, 7512$8999

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

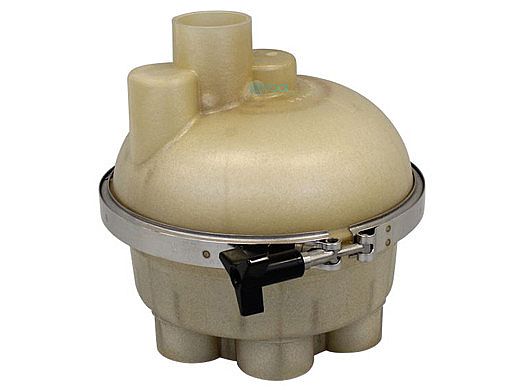

The Pentair 225571 is the 1-1/2 in. five port top feed T-valve from A&A Manufacturing, supplied in the version without QuikStop. It is the valve that drives an in floor pop-up cleaning system.

How it works

Rather than trickling water to every pop-up head at once, the valve sends the full pressure to one zone at a time and then indexes to the next. That is what gives each head enough force to actually move debris toward the main drain instead of stirring it around. The speed control mechanism in the upper housing sets how fast the valve steps between zones.

A side benefit at the heater

Because the valve keeps pushing water out through the floor, it turns over the whole body of water instead of leaving the warm layer sitting on top. Pools with heaters see the benefit as more even temperature rather than a hot surface and a cold bottom.

Before you order

Check whether the valve you are replacing has QuikStop. This is the version without it, so the two are not interchangeable.

Specifications
Brand Pentair
Manufacturer part number 225571
UPC 818965010374
Type 5-port top feed T-valve
Port size 1-1/2"
Zones 5
Feed Top feed
QuikStop Not included on this version
Formerly branded A&A Manufacturing
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46799 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

How many zones does this valve run?
Five. It sends water to one zone at a time and moves on to the next.
What does without QuikStop mean?
It is the version built without the QuikStop feature. If your existing valve has QuikStop, order the matching valve rather than this one.
Is this a Pentair part or an A&A part?
Both names apply. A&A Manufacturing is now part of Pentair, and the part number 225571 is unchanged.
Where does the speed control sit?
In the upper housing of the valve, which also carries the mechanism that indexes the valve from zone to zone.
