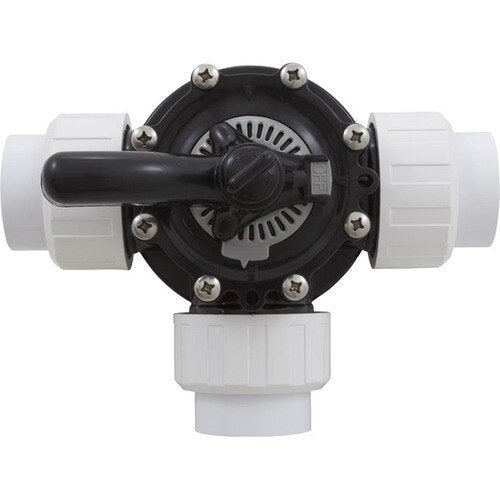

CMP Hydroseal 1-1/2 inch 3-way diverter valve with unions, black
Shop all CMP

CMP Hydroseal 1-1/2 Inch 3-Way Valve with Unions, 25923-154-000

Ask a questionMPN 25923-154-000
$10199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Three way diversion Splits or switches flow between two lines from one handle, the standard spa and water feature control.
  • Unions included The valve comes with its unions, so it can be taken out later without cutting pipe.
  • CPVC body A CPVC valve rather than standard PVC, giving it more headroom on hot water lines.
  • NSF approved Listed by CMP as NSF approved.
  • 1-1/2 inch socket Sized for 1-1/2 inch socket connections.
  • Black The black Hydroseal finish.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About CMP Hydroseal 1-1/2 Inch 3-Way Valve with Unions, 25923-154-000, SKU CTM-56-1045. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item CMP Hydroseal 1-1/2 Inch 3-Way Valve with Unions, 25923-154-000
CMP

Hydroseal 1-1/2 Inch 3-Way Valve with Unions, 25923-154-000

$10199
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5799
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$899
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2399
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$34999
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19299
Subtotal

Similar products

Other products people compare with this one.

Jandy 4715 Neverlube 3-port diverter valve, 1-1/2 in. x 2 in., top view Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715$7199 Pentair Compool 263028 three port diverter valve, 2 in. x 2.5 in. Pentair Three Port Diverter Valve 2" x 2.5", 263028$5799 Pentair Rainbow R172288 chemical resistant 1-1/2 in. x 2 in. spring check valve Pentair Chemical Resistant 1-1/2" x 2" Check Valve, R172288$7499 Jandy 4717 NeverLube 3 port diverter valve, 2 in. x 2-1/2 in. Jandy NeverLube Valve 3 Port, 2" x 2-1/2", 4717$9999 Jandy 7305 spring check valve, 2 in. internal by 2-1/2 in. external ports Jandy 2 in. / 2-1/2 in. Check Valve, 7305$8099 Jandy 4716 Neverlube positive seal two way diverter valve, 2 in. x 2-1/2 in. Jandy 2"-2 1/2" Neverlube Positive Seal 2-Way Diverter Valve, 4716$9299 Pentair 263029 two port PVC diverter valve, 2 in. x 2-1/2 in. Pentair Two Port Diverter Valve, 2 in. x 2-1/2 in., 263029$5199 Jandy 4944 NeverLube 3 port valve, 2-1/2 in. by 2 in. Jandy Neverlube 3 Port Valve, 2-1/2" x 2", 4944$10399 Hayward PSV3SDGR 1-1/2 in by 2 in PSV Series 3-way diverter valve in PVC Hayward 1-1/2" x 2" PSV Series 3-Way Diverter Valve, PVC, PSV3SDGR$5399 Jandy 7235 two way check valve with 1-1/2 inch and 2 inch ports Jandy Check Valve, 1-1/2" / 2", 7235$6399
Pentair 263042 black CPVC straight check valve for pool plumbing Pentair Check Valve, CPVC, 2", 263042$7999 Hayward PSCV2S2DGR 2 in. x 2-1/2 in. straight PVC check valve, gray Hayward 2 in. x 2-1/2 in. Straight PVC PSV Check Valve, PSCV2S2DGR$5299 Hayward SP0735 1-1/2 in. 4 way ball valve Hayward 1-1/2" 4 Way Ball Valve, SP0735$8099 Pentair 230148 1.5 in. 6 port low profile T-valve kit Pentair 1.5 in. 6 Port Low Profile T-Valve Kit, 230148$13299 Jandy 4718 Neverlube 2 port dial valve with 2-1/2 inch and 3 inch PVC connections Jandy Neverlube Valve 2 Port, 2-1/2" x 3", 4718$8999 Pentair 263035 three way CPVC diverter valve, 1-1/2 inch by 2 inch Pentair 3-Way 1-1/2" x 2" CPVC Diverter Valve, 263035$8999 Praher OV3-1500U 1-1/2 inch 3 port valve with unions Praher 3 Port Valve, 1-1/2" with Union, OV3-1500U$5299 Hayward PSV3S2 3-way PSV Series CPVC diverter valve, 2 in. x 2.5 in. Hayward 3-Way PSV Series Valve, CPVC 2" x 2.5", PSV3S2$8899 Jandy 3407 Space Saver two port positive seal valve Jandy Valve 2 Port 1.5-2" Space Saver, 3407$6799 Jandy 1154 three port CPVC diverter valve, gray Jandy Valve 3 Port 1.5-2" CPVC, 1154$8599

Product details

The CMP Hydroseal 3-way diverter valve is a 1-1/2 inch socket valve in black CPVC, supplied with unions and listed as NSF approved.

What a 3-way valve does

One handle, two destinations. Turn it to send flow one way, the other way, or split it between the two. That is what makes it the standard control for pool and spa changeovers and for feeding a waterfall or bubbler off the return line without adding a second pump.

Why the unions matter

A valve glued directly into hard pipe becomes a cutting job the day it needs service. This one arrives with unions on it, so the valve can be unscrewed and lifted out and a replacement dropped in without touching the plumbing around it.

Material

CPVC rather than standard PVC. The difference shows on hot water lines, where CPVC has more temperature headroom, which is why it is preferred near heaters and on spa plumbing.

Specifications
Brand CMP
Manufacturer part number 25923-154-000
Alternate part number 25923-154-00
UPC 849640020173
Type 3-way diverter valve
Series Hydroseal
Size 1-1/2 inch socket
Material CPVC
Approval NSF approved
Included Unions
Color Black
Shipping weight 1.2 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from CMP

Aquamoto 58470-110-700 jumbo floating chlorine dispenser for 3 in. tablets Aquamoto Jumbo Chlorine Floater for 3" Chlorine Tabs, 58470-110-700$2099 CMP PowerClean Ultra in-line chlorinator 25280-100-000 with clear glass lid CMP PowerClean Ultra In-Line Chlorinator with Clear Glass Lid, 25280-100-000$14599 CMP 21063-200-000 2 in. MPT x 2 in. slip CPVC pump union CMP Pump Union, Threaded 2" MPT x 2" Slip, CPVC, 21063-200-000$2099 CMP 21063-154-000 CPVC pump union, 1-1/2 in. slip by male thread with o-ring CMP Pump Union CPVC 1-1/2" Slip by Male Thread with O-Ring, 21063-154-000$1799 CMP 25563-300-500 five pack of foam sweep hose tail scrubbers for Polaris cleaners CMP Sweep Hose Tail Scrubber (5 Pack), 25563-300-500$1199 CMP 27182-352-000 FlowSkim heavy duty skimmer basket with 12 inch handle for Hayward SP-1082 skimmers CMP FlowSkim HD Skimmer Basket with 12" Handle for Hayward® SP-1082 Skimmers, 27182-352-000$3299 CMP 25357-750-000 bottom collector manifold, replacement for Hayward CX3000C CMP Generic Bottom Collector Manifold for Hayward® CX3000C, 25357-750-000$6799 CMP DEL AOP 25 Next Gen ozone and UV-C pool sanitizer, part 53000-025-000, front view CMP Next Gen DEL AOP 25 Ozone + UV-C Sanitation for Residential Pools, 25,000 Gallons, 120V/240V, 53000-025-000$1,46799 CMP 25280-110-000 PowerClean Ultra in-line tablet chlorinator with white lid CMP PowerClean Ultra In-Line Chlorinator, White Lid, 25280-110-000$14799 CMP 27180-009-000 B-9 replacement skimmer basket for Hayward SP1070 skimmers CMP Pool Skimmer Basket, Replaces Hayward® SP1070-E, 27180-009-000$1399
CMP 25506-320-100 32 in. white PVC channel drain cover and frame CMP 32-Inch PVC Channel Drain Cover and Frame, White, 25506-320-100$13699 CMP 25280-109-200 clear glass PowerClean Ultra chlorinator cover CMP Clear Glass PowerClean Chlorinator Cover, 25280-109-200$3399 CMP 25549-500-000 stainless steel pool light adapter repair ring CMP Pool Light Adapter Repair Ring, 25549-500-000$5099 CMP 25552-020-300 white pool eyeball jet cap cover, 1-1/2 in. MIP CMP Pool Eyeball Jet Cap Cover, 25552-020-300$1099 CMP 25280-150-000 Powerclean Ultra VS in-line chlorinator with clear glass lid CMP Powerclean Ultra VS In-line Chlorinator, Clear Glass Lid, 25280-150-000$16699 CMP 25503-460-000 Brilliant Wonders 4 in. bubbler body assembly for gunite pools, white CMP Brilliant Wonders 4" Bubbler Body Assembly Gunite, 25503-460-000$11999 CMP FlowSkim 12 in. pool skimmer basket handle attachment CMP FlowSkim Pool Skimmer Basket Handle Attachment, 12 in., 25573-300-000$1999 CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigot CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000$3999 CMP 27182-300-000 FlowSkim skimmer basket and handle for Hayward SP1070E and U3 skimmers CMP FlowSkim Basket and Handle SP1070E, U3, 27182-300-000$3199 CMP 25810-400-050 Pool Defender 2 in. compact sacrificial zinc anode CMP Pool Defender 2 in. Compact Sacrificial Zinc Anode, 25810-400-050$8399

Questions and answers

What people ask about this product, answered by our pool techs.

What is a 3-way valve used for?
Directing flow between two destinations from a single handle. Typical uses are switching between pool and spa, or splitting return flow between the pool and a water feature.
Does it come with unions?
Yes. The unions are included, which means the valve can be removed later without cutting the pipe on either side.
Why CPVC instead of PVC?
CPVC handles higher temperatures than standard PVC, which matters on the hot side of a spa or heater loop.
What size pipe does it take?
1-1/2 inch socket connections.
