Hayward PSCV2S2 2 in by 2.5 in black CPVC check valveHayward 2" x 2.5" CPVC Check Valve, PSCV2S2 In stock$6499
Hayward PSCV2S2 2 in by 2.5 in black CPVC check valve
Shop all Hayward

Hayward 2" x 2.5" CPVC Check Valve, PSCV2S2

Ask a questionMPN PSCV2S2
$6499
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Clear removable top You can see the valve working and get inside it without cutting the pipe out.
  • CPVC body Built from corrosion resistant materials for pool and spa plumbing.
  • Two socket sizes Sized 2 in by 2.5 in, so check both ends against your pipe before ordering.
  • Rated to 50 psi Confirm your system pressure stays under that figure at the point where the valve goes in.
  • Directional A check valve only passes flow one way, so the body has to be installed facing the right direction.
  • Serviceable design Other check valves are sealed units that get replaced whole when the flapper fails.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward 2" x 2.5" CPVC Check Valve, PSCV2S2, SKU HAY-56-4201. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward 2" x 2.5" CPVC Check Valve, PSCV2S2
Hayward

2" x 2.5" CPVC Check Valve, PSCV2S2

$6499
Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L
Hayward

Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L

$1799
Hayward Paralevel Startup Kit, 004-760-2921-00
Hayward

Paralevel Startup Kit, 004-760-2921-00

$5999
Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7
Hayward

1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7

$1099
Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA
Hayward

Genuine OEM SP1082 Skimmer Basket, SPX1082CA

$2499
Paramount 6 Port Water Valve Module, 004-302-4408-00
Paramount

6 Port Water Valve Module, 004-302-4408-00

$36099
Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841
Hayward

Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841

$19199
Subtotal

Similar products

Other products people compare with this one.

Jandy 4715 Neverlube 3-port diverter valve, 1-1/2 in. x 2 in., top view Jandy 1-1/2 in. x 2 in. Neverlube Positive Seal 3-Port Diverter Valve, 4715$7399 Pentair Compool 263028 three port diverter valve, 2 in. x 2.5 in. Pentair Three Port Diverter Valve 2" x 2.5", 263028$5999 Pentair Rainbow R172288 chemical resistant 1-1/2 in. x 2 in. spring check valve Pentair Chemical Resistant 1-1/2" x 2" Check Valve, R172288$7799 Jandy 7305 spring check valve, 2 in. internal by 2-1/2 in. external ports Jandy 2 in. / 2-1/2 in. Check Valve, 7305$8399 CMP 25830-400-000 Hydro Seal black CPVC check valve, 2 in. socket x 2.5 in. spigot CMP Hydro Seal Black CPVC Check Valve 2 in. S x 2.5 in. SPGT 25830-400-000$4099 Jandy 4716 Neverlube positive seal two way diverter valve, 2 in. x 2-1/2 in. Jandy 2"-2 1/2" Neverlube Positive Seal 2-Way Diverter Valve, 4716$9499 Hayward SP0723 Trimline 2-way ball valve, 1-1/2 inch mpt by 1-1/2 inch fpt Hayward Trimline 2-Way Ball Valve, 1-1/2" mpt x 1-1/2" fpt, SP0723$4199 Pentair 263029 two port PVC diverter valve, 2 in. x 2-1/2 in. Pentair Two Port Diverter Valve, 2 in. x 2-1/2 in., 263029$5299 Hayward PSV3S2DGR 2 in by 2-1/2 in PSV Series 3-way diverter valve in PVC Hayward 2" x 2-1/2" PSV Series 3-Way Diverter Valve, PVC, PSV3S2DGR$5199 Hayward PSV3SDGR 1-1/2 in by 2 in PSV Series 3-way diverter valve in PVC Hayward 1-1/2" x 2" PSV Series 3-Way Diverter Valve, PVC, PSV3SDGR$5599
Jandy 7235 two way check valve with 1-1/2 inch and 2 inch ports Jandy Check Valve, 1-1/2" / 2", 7235$6499 Pentair 263037 three port diverter valve, 1-1/2 inch by 2 inch Pentair Three Port Diverter Valve 1-1/2" x 2", 263037$5099 Pentair 263042 black CPVC straight check valve for pool plumbing Pentair Check Valve, CPVC, 2", 263042$8299 Hayward PSV2S2DGR PSV series 2-way diverter valve, 2 in. x 2-1/2 in. PVC Hayward PSV Series 2-Way Diverter Valve, 2 in. x 2-1/2 in. PVC, PSV2S2DGR$5199 Hayward PSCV2S2DGR 2 in. x 2-1/2 in. straight PVC check valve, gray Hayward 2 in. x 2-1/2 in. Straight PVC PSV Check Valve, PSCV2S2DGR$5499 Hayward PSV2SDGR 1-1/2 inch by 2 inch PSV Series 2-way PVC diverter valve Hayward 1-1/2" x 2" PSV Series 2-Way Diverter Valve, PVC, PSV2SDGR$4399 Hayward SP0735 1-1/2 in. 4 way ball valve Hayward 1-1/2" 4 Way Ball Valve, SP0735$8399 Jandy 4718 Neverlube 2 port dial valve with 2-1/2 inch and 3 inch PVC connections Jandy Neverlube Valve 2 Port, 2-1/2" x 3", 4718$9299 PoolMiser RP-402 replacement float valve PoolMiser Valve Only, RP-402$3299 Pentair 263035 three way CPVC diverter valve, 1-1/2 inch by 2 inch Pentair 3-Way 1-1/2" x 2" CPVC Diverter Valve, 263035$9299

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Product details

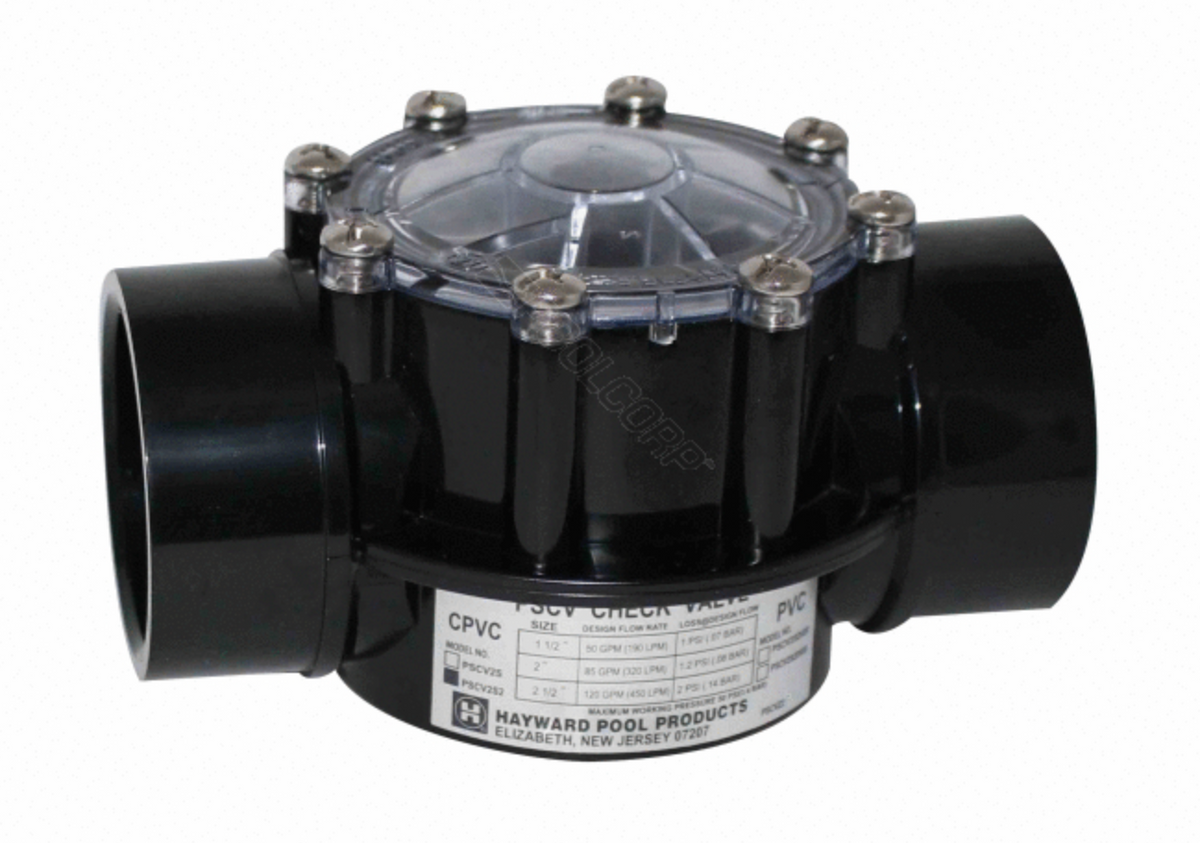

The Hayward PSCV2S2 is a CPVC check valve sized 2 in by 2.5 in, in black. It carries a pressure rating of 50 psi and is built from corrosion resistant materials, which is what keeps it serviceable in a line that runs treated pool water day after day.

The clear top is the point

Most check valves are opaque, so the only way to know whether the flapper is still sealing is to cut the valve out and look. This one has a clear removable top. You can watch it operate with the pump running, and when the internals do eventually wear you open it in place instead of taking a saw to the plumbing.

Before you order

The two sizes are not interchangeable, so measure both sides of the run where the valve is going. And note the direction of flow when you glue it in: a check valve fitted backwards stops water rather than allowing it, and that is a mistake that is expensive to undo once the solvent has set.

Specifications
Brand Hayward
Manufacturer part number PSCV2S2
UPC 610377237963
Type Check valve
Material CPVC
Color Black
Dimensions 2" x 2.5"
Pressure Rating 50 psi
Shipping weight 1.5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12899 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,42099 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$15299 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,28999 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,09900 Web Price Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5999 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19199 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1799
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$19399 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2499 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$20399 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20899 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26199 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

Why does it have two different sizes on it?
It is listed at 2 in by 2.5 in. Measure both the pipe going in and the pipe coming out before you order, since one end will not match the other.
Can I service it without cutting my plumbing?
Yes, that is the reason for the clear removable top. Designs without one have to be cut out of the line when the internals wear.
What pressure is it good for?
It is rated at 50 psi. If your plumbing sees more than that where the valve would sit, this is not the right valve for the spot.
Does it matter which way it goes in?
Yes. A check valve passes flow in one direction only. Installed backwards it will block the line rather than protect it.
