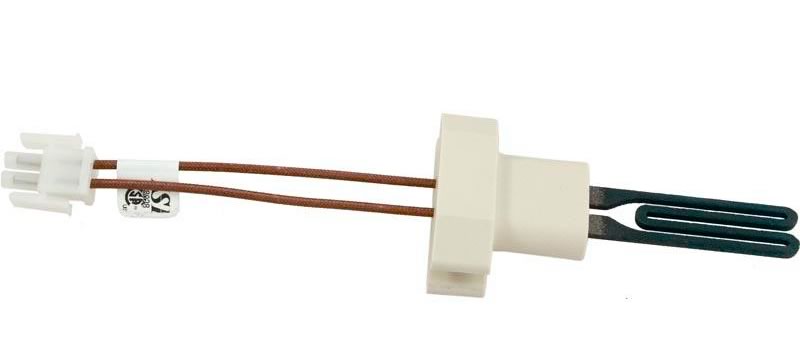

Hayward IDXLIGN1930 240V hot surface ignitor for H-Series Low NOx heatersHayward Ignitor 240V for H-Series Low NOx Heaters, IDXLIGN1930 In stock$16199
Hayward IDXLIGN1930 240V hot surface ignitor for H-Series Low NOx heaters
Shop all Hayward

Hayward Ignitor 240V for H-Series Low NOx Heaters, IDXLIGN1930

Ask a questionMPN IDXLIGN1930
$16199
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Hayward IDXLIGN1930 The factory 240 volt hot surface ignitor, not a generic element.
  • For H-Series Low NOx Built for the Universal H-Series Low NOx induced draft heaters.
  • Ignitor and plug Supplied complete with the plug already fitted.
  • Ceramic body The hot surface section is ceramic and formed in a shape close to an M.
  • Two pin AMP plug The plug is a two pin AMP style at the end of two 5 inch wires.
  • Handle by the base only Hot surface ignitors are brittle, and finger oil or a knock on the ceramic will shorten the life of a new one.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Hayward Ignitor 240V for H-Series Low NOx Heaters, IDXLIGN1930, SKU HAY-151-1583. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Hayward Ignitor 240V for H-Series Low NOx Heaters, IDXLIGN1930
Hayward

Ignitor 240V for H-Series Low NOx Heaters, IDXLIGN1930

$16199
Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250
Hayward

Heat Exchanger Assembly for H250FD, FDXLHXA1250

$1,10299
Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003
Hayward

Natural Gas Valve Kit, FD Series, FDXLGSV0003

$41899
Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Hayward

H-Series Bezel & Keypad Assembly, FDXLBKP1930

$12299
Hayward HDF400 Thermistor, FDXLTER1931
Hayward

HDF400 Thermistor, FDXLTER1931

$6199
Hayward Flame Sensor, Low NOx/Universal, IDXLFLS1930
Hayward

Flame Sensor, Low NOx/Universal, IDXLFLS1930

$8899
Hayward Front Header Assembly, FDXLFHA1930
Hayward

Front Header Assembly, FDXLFHA1930

$30399
Subtotal

Similar products

Other products people compare with this one.

Hayward FDXLBKP1932 blue bezel and keypad assembly with door Hayward Blue Bezel and Keypad Assembly with Door for Universal H-Series Low NOx Heaters, FDXLBKP1932$20999 Hayward FDXLPRM1930 polymer return manifold for Universal H-Series and FD Series heaters Hayward Polymer Return Manifold, Universal H-Series and Low NOx FD Series Heaters, FDXLPRM1930$8499 Hayward FDXLGSK1930 H-Series Low NOx air side gasket kit Hayward H-Series Low NOx Air Side Gasket Kit, FDXLGSK1930$9499 Hayward HAXBRN1930 burner tube for H-Series pool heaters Hayward Burner Tube for H-Series Heaters, HAXBRN1930$12699 Hayward IDXTST1930 thermostat for H-Series above ground pool heaters Hayward Thermostat for H-Series Above Ground Heaters, IDXTST1930$15599 Hayward H-Series Low NOx Thermostat | IDXLTER1930 Hayward H-Series Low NOx Thermostat | IDXLTER1930$13399 Hayward FDXLIGN1930 Universal H-Series ignitor kit Hayward Universal H-Series Ignitor Kit, FDXLIGN1930$13099 Hayward IDXL2VPS1930 Low NOx air pressure switch Hayward Air Pressure Switch, Low NOx, After 09/04, IDXL2VPS1930$10299 Hayward IDXL2IGN1930 Low NOx silicon nitride igniter for H-Series heaters Hayward IDXL2IGN1930 Low NOx Silicon Nitride Igniter, After 09/04$13999 Hayward IDXL2TRF1930 Universal H-Series 240V transformer Hayward Universal H-Series Transformer, 240V, IDXL2TRF1930$15899
Hayward Ignitor-Bracket Assy H-Series | HAXIGN1931 Hayward Ignitor-Bracket Assy H-Series | HAXIGN1931$11999 Hayward H-Series Above Ground Heater Ignitor Assembly | IDXIGN1930 Hayward H-Series Above Ground Heater Ignitor Assembly | IDXIGN1930$12299 Hayward HAXPLT1932 H-Series millivolt propane pilot Hayward H-Series Millivolt Propane Pilot, HAXPLT1932$22799 Hayward IDXLVPS1930 H-Series vent pressure switch Hayward H-Series Vent Pressure Switch, IDXLVPS1930$12799 Hayward HAXTST1930 thermostat kit with knob for H-Series pool heaters Hayward Thermostat Kit, H-Series/Induced Draft, with Knob, HAXTST1930$9599 Hayward HAXPLT1931 H-Series natural gas pilot assembly Hayward H-Series Natural Gas Pilot Assembly, HAXPLT1931$14899 Hayward IDXLBKP1135 bezel and keypad assembly for the HS135 pool heater Hayward Bezel and Keypad Assembly for HS135 Heater, IDXLBKP1135$22299 Hayward HAXBPK1932 new style bypass kit for H-Series heaters Hayward H-Series By-Pass Kit, New Style, HAXBPK1932$8599 Hayward HAXLDK1930 H-Series and induced draft heater LED kit Hayward H-Series and Induced Draft LED Kit, HAXLDK1930$9299 Hayward IDXBLS1930 H-Series above ground heater blower switch Hayward H-Series Blower Switch, Above Ground, IDXBLS1930$13199

Product details

Hayward IDXLIGN1930 is the 240 volt hot surface ignitor used in the Universal H-Series Low NOx induced draft heaters. It is the genuine Hayward part and comes with the plug already fitted.

What you are getting

The body is ceramic, with the hot surface portion formed in a shape close to an M. Two 5 inch wires run out of the body to a two pin AMP style plug. Overall it measures about 9-1/2 inches from the plug to the far end, with a 4-3/8 inch body not counting the wires and plug, a 2-9/16 inch hot surface section, 2-1/4 inches wide and 1 inch front to back.

Why they fail

A hot surface ignitor spends its life going from cold to glowing and back, and ceramic does not do that forever. A heater that clicks through its sequence, purges, and then locks out without lighting is often looking at an ignitor that no longer reaches temperature, or one that has cracked.

Fitting

Shut off the gas and kill power at the breaker before opening the heater. Handle the new ignitor by its base and keep your fingers off the ceramic, since oil from skin creates a hot spot. Set it in the same position in the burner as the one you removed.

Specifications
Brand Hayward
Manufacturer part number IDXLIGN1930
UPC 610377626019
Type Hot surface ignitor
Voltage 240V
Fits Hayward Universal H-Series Low NOx induced draft heaters
Included Ignitor and plug
Material Ceramic, with the hot surface portion in a shape close to an M
Plug 2 pin AMP style, at the end of two 5" wires
Overall length About 9-1/2" from plug to opposite end
Body length 4-3/8" not including wires and plug
Hot surface section 2-9/16"
Width 2-1/4"
Front to back 1"
Shipping weight 1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Hayward

This industry builds more than pools. We build moments. Hayward

Hayward equipment

Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10 Hayward AquaRite Salt System Complete, 40,000 Gallon Pools, W3AQR15 Hayward TracVac Suction Wall Climbing Pool Cleaner for In-ground Pools up to 40 ft, W3HSCTRACCU Hayward Pro-Grid 60 Sqft DE Pool Filter, Valve Not Included, W3DE6020
Shop Hayward equipment

Genuine Hayward parts

Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15 Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA Hayward H-Series Bezel & Keypad Assembly, FDXLBKP1930
Shop Hayward parts
Pool cleaners: Hayward TracVac and PoolCleaner suction cleaners lined up on a pool deckPool automation: the Hayward app on a phone held up in front of an infinity poolPool water features: two bubblers in a tiled spa, a woman relaxing on a lounger behind
Hayward makes pumps, filters, heaters, salt systems, cleaners, lighting and automation for residential pools.Shop all Hayward

Customer reviews

More from Hayward

Hayward SP0714T Vari-Flo XL 1.5 in. top mount multiport valve kit, front view Hayward SP0714T Vari-Flo XL 1.5 in. Top Mount Multiport Valve Kit$15899 Hayward CL200EF in-line automatic pool chlorinator, 9 lb tablet feeder Hayward CL200EF In-Line Automatic Pool Chlorinator, 9 lb Chemical Feeder$12999 Hayward GLX-CTL-RITE AquaRite salt system power center, control box only Hayward AquaRite Salt System Power Center (Requires Salt Cell), GLX-CTL-RITE$1,16900 Hayward SPX0714BA Vari-Flo XL valve key cover handle assembly for SP0714T Hayward Genuine OEM Vari-Flo XL Filter Valve Key Cover Handle Assembly, SPX0714BA$14799 Hayward FDXLHXA1250 heat exchanger assembly for the H250FD Universal H-Series low NOx heater Hayward Heat Exchanger Assembly for H250FD, FDXLHXA1250$1,10299 Hayward TurboCell T-15 W3T-CELL-15 salt cell, replacement for AquaRite systems Hayward TurboCell T-15 Salt Cell for Inground Pools up to 40,000 Gallons, W3T-CELL-15$1,13499 Paralevel Startup Kit, part number 004-760-2921-00 Hayward Paralevel Startup Kit, 004-760-2921-00$5799 Hayward GLX-PCB-PRO main PCB for Goldline ProLogic and AquaPlus controls Hayward Main PCB Replacement for Goldline ProLogic Automation and Chlorination After 10/2008, GLX-PCB-PRO$1,07599 Hayward SP10841 Auto-Skim skimmer for vinyl and fiberglass pools, white with square lid Hayward Auto-Skim Skimmer for Vinyl/Fiberglass Pools, 1.5" FPT, Square Lid, White, SP10841$19299 Hayward SPX0714L cover o-ring for SP0714T Vari-Flo XL valve Hayward Cover O-Ring for SP0714T Vari-Flo XL Valve, SPX0714L$1899
Paramount 005422901500 two lamp UV kit with boot and o-ring for HydraPure and Ultra UV2 sanitizers Paramount 2-Lamp Kit with Boot and O-Ring for HydraPure and Ultra UV2 Sanitizers, 005422901500$26899 Hayward W3T-CELL-9 TurboCell T-9 salt cell with 15 ft cord Hayward TurboCell T-9 Salt Cell for Inground Pools up to 25,000 Gallons, Genuine AquaRite Replacement, W3T-CELL-9$89900 Web Price Hayward SP0710X62 Vari-Flo 1.5 in. side mount multiport valve for Pro Series sand filters Hayward Vari-Flo 1.5" Side Mount Multiport Valve for Sand Filters, SP0710X62$18899 Hayward SPX1082CA genuine OEM skimmer basket, 7 in. top diameter Hayward Genuine OEM SP1082 Skimmer Basket, SPX1082CA$2399 Hayward SPX1091Z7 1-1/2 in. combo hose adapter, 2 pack Hayward 1-1/2" Combo Hose Adapter for Filters, Pumps, Skimmers and Chlorine Feeders (2 Pack), SPX1091Z7$1099 Hayward SPX0740BA key cover and handle assembly for SP740DE multiport valve Hayward OEM Key Cover and Handle Assembly for SP740DE, SPX0740BA$19799 Hayward CX200XRE 200 sq. ft. replacement filter cartridge for the SwimClear C200S Hayward Genuine OEM SwimClear C200S Filter Cartridge, CX200XRE$20299 Hayward HLXPROUPG Pro Logic Retrofit Kit, OmniPL Hayward Pro Logic Retrofit Kit, OmniPL, HLXPROUPG$1,99900 Web Price Hayward SP071620T 2 in. top mount backwash valve with clamp for Pro Series S310T and S310T2 Hayward 2" Top Mount Backwash Valve with Clamp, Fits Pro Series Sand Filters S310T / S310T2, SP071620T$26299 Hayward FDXLGSV0003 natural gas valve kit for Universal H-Series FD heaters Hayward Natural Gas Valve Kit, FD Series, FDXLGSV0003$41899

Questions and answers

What people ask about this product, answered by our pool techs.

What comes with it?
The ignitor and the plug. The plug is a two pin AMP style at the end of two 5 inch wires.
Which heaters does it fit?
Hayward Universal H-Series Low NOx induced draft heaters.
How long is it?
About 9-1/2 inches overall from the plug to the far end. The body alone is 4-3/8 inches, the M shaped hot surface portion is 2-9/16 inches, the width is 2-1/4 inches and it is 1 inch front to back.
Any advice on fitting a new one?
Hold it by the base, never by the ceramic, and do not touch the hot surface with bare fingers. Isolate power at the breaker and shut off the gas before you open the heater, and check that the new ignitor sits at the same position in the burner as the old one.
