Pentair Super Flo 1.5HP 115V 230V Up-Rated Pool Pump | 340039Pentair SuperFlo 1.5 HP Up-Rated Single Speed Pool Pump, 115/230V, 340039$46199
Pentair Super Flo 1.5HP 115V 230V Up-Rated Pool Pump | 340039
Shop all Pentair

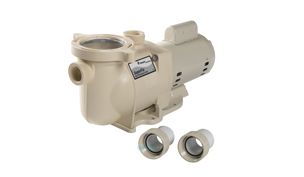

Pentair SuperFlo 1.5 HP Up-Rated Single Speed Pool Pump, 115/230V, 340039

Ask a questionMPN 340039
$46199
FREE Delivery
Out of stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • 1.5 HP, single speed An up-rated 1.5 HP SuperFlo pump for inground pools.
  • Dual voltage Runs on 115V or 230V service when wired to match the motor nameplate.
  • Self-priming Primes itself for a quick start once the strainer pot is filled with water.
  • See-through Cam and Ramp lid Check the strainer basket for leaves and debris without opening the pump.
  • Unionized fittings Union connections for 1.5 in. and 2 in. pipe make the pump simpler to plumb and replace.
  • Built for compact pads Thick walled body parts and a heavy duty 56 square flange motor in a small footprint.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair SuperFlo 1.5 HP Up-Rated Single Speed Pool Pump, 115/230V, 340039, SKU PAC-10-0039. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair SuperFlo 1.5 HP Up-Rated Single Speed Pool Pump, 115/230V, 340039
Pentair

SuperFlo 1.5 HP Up-Rated Single Speed Pool Pump, 115/230V, 340039

$46199
Pentair Genuine OEM High Flow Diffuser O-Ring, 355030
Pentair

Genuine OEM High Flow Diffuser O-Ring, 355030

$1799
Pentair SuperFlo and SuperMax Seal Kit, Chemical, Salt and Ozone Resistant, 356197
Pentair

SuperFlo and SuperMax Seal Kit, Chemical, Salt and Ozone Resistant, 356197

$3999
Intermatic 24HR Panel Mount Timer 240V, PB914N66
Intermatic

24HR Panel Mount Timer 240V, PB914N66

$5999
Subtotal

Similar products

Other products people compare with this one.

CaliMar CMARVSP1.0 variable speed pool pump with clear strainer lid, 2 in. union connections and top mounted drive housing CaliMar Variable Speed Pool Pump, 1 HP, 230V, 2 in. Ports, CMARVSP1.0$64900 Web Price Aqua-Flo Flo-Master XP2 2.5 hp 230v two speed spa pump, part 06125000-1040 Aqua Flo Flo-Master XP2, 2.5 hp 230v, 2-Speed Pump, 06125000-1040$44299 Aqua-Flo Circ-Master CMHP 1/15 HP 115V side discharge circulation pump Aqua-Flo Circ-Master 1/15 HP 115V CMHP, 02093000-2010$28299 Aqua-Flo Circ-Master CMHP 1/15 HP 230V circulation pump, part 02093001-2010 Aqua-Flo Circ-Master CMHP 1/15 HP 230V Circulation Pump, 02093001-2010$25699 Aqua-Flo 02107000-1010 Flo-Master FMHP side discharge 48 frame 2 speed pump Aqua-Flo Flo-Master FMHP Side Discharge, 48-Frame, 115V, 1.0 HP, .75 OPHP, 2-Speed, 02107000-1010$35399 HydroQuip 10-6154106 WOW circulation pump HydroQuip 1-1/2" WOW Circulation Pump 1HP/15HP 230V 0.6 Amp, 10-6154106$24399 Grundfos 12-18 GPM circulating pump, 230V, Hydroquip part 59896292 Hydroquip Grundfos 12-18 GPM Circulating Pump, 230V, 59896292$19199 Hayward Max-Flo XL 1.0 HP max-rated inground pool pump Hayward Max-Flo XL, 1.0 HP Max-Rated, W3SP2307X10$74900 Web Price CaliMar CaliFlow variable speed pool pump, 1 HP, 230V, CMARCFVSP2010 CaliMar CaliFlow Variable Speed Pool Pump, 1 HP, 230V, 2 in. Ports, CMARCFVSP2010$74900 Web Price Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $75699
Hayward W3SP2605X7 Super Pump 3/4 HP up rated inground pool pump Hayward Super Pump .75 HP UR 115/230V, W3SP2605X7$79900 Web Price CMI REV-SS REV single speed primary pool pump, 2 HP CMI REV Single Speed Primary Pool Pump 2 HP, REV-SS$81799 Waterway 1-1/2" Center Discharge Wet End 2HP | 310-1141 Waterway 1-1/2" Center Discharge Wet End 2HP | 310-1141$8499 Hayward Super Pump W3SP2607X10, 1 HP max rated in-ground pool pump, side view Hayward Super Pump 1 HP Max Rated 115/230V, W3SP2607X10$84900 Web Price Moov MP15VSP dual voltage variable speed inverter pool pump, 1.2 HP Moov VSP Dual Voltage Inverter Pump, 1.2 HP, 115/230V, MP15VSP$89900 Pentair WhisperFlo EC-015583 1 HP TEFC pool pump Pentair WhisperFlo 1 HP Pool Pump, 1.1 THP, Totally Enclosed Fan Cooled, 115-230V, EC-015583$95900 Moov MP15AIDV Ai Inverter variable speed pool pump with Wi-Fi, 1.25 THP Moov Ai Inverter Variable Speed Pool Pump with Wi-Fi, 220/240V 50/60Hz TEFC 1.25THP, MP15AIDV$1,09900 Waterway PD-165 Power Defender variable speed in ground pool pump, 1.65 HP 230V Waterway Power Defender Variable Speed Pump 1.65HP 230V, PD-165$1,29399 Pentair SuperFlo VST 342002 variable speed pool pump, TradeGrade Pentair SuperFlo VST Pool Pump, TradeGrade, 342002$1,29424 Pentair 011642 WhisperFlo WFK-6 three phase 1.5HP pool pump Pentair WhisperFlo Energy Efficient Pool Pump, 3 Phase, 208/230/460V, 1.5HP Full Rated, 011642$1,30599

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair SuperFlo 340039 is a single speed pool pump with an up-rated 1.5 HP motor that runs on 115V or 230V. SuperFlo pumps are built for inground pools, with thick walled body parts, a heavy duty 56 square flange motor and a small footprint that suits a tight equipment pad.

Features

The pump is self-priming, and its see-through Cam and Ramp lid lets you check the strainer basket without opening the pot. Unionized fittings for 1.5 in. and 2 in. pipe make installation and later replacement simpler.

Installation

Pentair specifies a minimum of 5 ft from the inside pool wall, 3 ft from a heater outlet, no more than 10 ft above the water level, and 3 in. of rear clearance so the motor can come off for service. Keep any valve, elbow or tee on the suction side at least five pipe diameters from the pump inlet. Wiring must match the motor nameplate, the motor must be grounded and bonded with solid copper wire no smaller than 8 AWG, and the circuit must be GFCI protected.

Care

Look at the strainer basket at least once a week and keep the lid o-ring clean and lubricated. Before freezing weather, shut off power, drain the pump through its two drain plugs and cover the motor, but never wrap it in plastic or other airtight material.

From Pool School

What Size Pool Pump Do I Need?Enter the gallons, the turnover and the suction pipe. Get the flow and what the pipe carries. Read How Long Should I Run My Pool Pump?Hours from the turnover, why a variable speed pump runs longer and slower, and each manufacturer's schedule. Read How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read
Specifications
Brand Pentair
Manufacturer part number 340039
UPC 788379691028
Model SuperFlo High Performance Pump
Horsepower 1.5 HP, up-rated
Speed Single speed
Voltage 115/230V
Motor Heavy duty 56 square flange
Pipe size 1-1/2 in.
Fittings Unions for 1.5 in. and 2 in. pipe
Lid See-through Cam and Ramp lid
Priming Self-priming
Color Almond
Application Inground pools
Shipping weight 38 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $75699 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,67299 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S, 170145$48299 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29899 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Can I run it on 115V or 230V?
Yes. It is a dual voltage 115/230V pump. Check the motor nameplate and set and wire the motor for the voltage you are supplying, because a supply that does not match the nameplate can permanently damage the motor.
What does up-rated mean?
Up-rated and full-rated describe how a pump motor is rated. An up-rated motor carries a lower service factor than a full-rated motor with the same nameplate horsepower, so when replacing a pump, match the rating type as well as the horsepower.
Where can the pump be installed?
Pentair calls for at least 5 ft from the inside wall of the pool, at least 3 ft from a heater outlet and no more than 10 ft above the water level, with 3 in. of clearance behind the motor for service. Keep suction piping short and keep any valve, elbow or tee at least five pipe diameters from the pump inlet.
How do I prime it?
Fill the strainer pot with water before the first start, seat the lid and clamp, open the air relief valve on the filter and start the pump while standing clear. Close the valve once a steady stream of water appears. Never run the pump dry, because that damages the shaft seal.
