Pentair 356755 EQ Series pump strainer housingPentair Pump Housing, EQ Series, 356755 In stock$2,87699
Pentair 356755 EQ Series pump strainer housing
Shop all Pentair

Pentair Pump Housing, EQ Series, 356755

Ask a questionMPN 356755
$2,87699
FREE Delivery
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Housing, EQ Series Pentair's name for 356755, item 22 on the EQ Series parts list.
  • Genuine Pentair New OEM part number 356755.
  • Pump housing, not the strainer pot the strainer pot is a separate Pentair assembly, 356725.
  • Lid gasket is a separate part Pentair lists the strainer pot lid gasket on its own, 350166z.
  • UPC 788379689858 Match it against the old part.
  • Commercial grade Built for the EQ Series commercial line.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair Pump Housing, EQ Series, 356755, SKU PAC-101-6502. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair Pump Housing, EQ Series, 356755
Pentair

Pump Housing, EQ Series, 356755

$2,87699
Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198
Pentair

Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198

$3799
Pentair OptiFlo Strainer Pot with Drain Plug, 357228Z
Pentair

OptiFlo Strainer Pot with Drain Plug, 357228Z

$4099
Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149
Pentair

WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149

$28799
Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S
Pentair

3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S

$78199
Pentair Lid O-Ring, 5-3/4" ID, 350013Z
Pentair

Lid O-Ring, 5-3/4" ID, 350013Z

$599
Pentair Genuine OEM O-Ring, Square 8.5 in. Closure, 152509
Pentair

Genuine OEM O-Ring, Square 8.5 in. Closure, 152509

$1399
Subtotal

Similar products

Other products people compare with this one.

Pentair C-Series Pump Impeller 20HP | CHK-200 CHKL-200 | 3PH High He | 73832 Pentair C-Series Pump Impeller 20HP | CHK-200 CHKL-200 | 3PH High Head | 073832$1,34099 Pentair 073829 high head impeller for 7.5 HP C Series commercial pool pump Pentair High Head Impeller 7.5HP for C Series Pump, 073829$1,32399 Pentair 070227 bronze closed face medium head impeller for 7.5 HP C Series commercial pumps Pentair C Series Pump Impeller, 1PH or 3PH Medium Head, 7.5HP, 070227$1,26999 Pentair C-Series Pump Impeller 10HP | CM-100, CMK100, CMKL-100 | 1PH or 3PH Medium Head | 070226 Pentair C-Series Pump Impeller 10HP | CM-100, CMK100, CMKL-100 | 1PH or 3PH Medium Head | 070226$1,27499 Pentair 356002Z Pinnacle high flow pump housing in almond Pentair Pinnacle Pump Housing, Almond, 356002Z$29999 Pentair 350089Z SuperFlo pump housing volute Pentair Superflo Pump Housing, Volute, 350089Z$26899 Pentair 357157 black volute replacement housing for WhisperFlo WFE pump and pot Pentair Black Volute Replacement Housing for WhisperFlo WFE Pump and Pot, 357157$21099 Pentair 400002Z XF Series seal plate for the WhisperFlo XF pump Pentair XF Series Seal Plate for WhisperFlo XF Pump, 400002Z$17399 Pentair Hair & Lint Strainer Pot Complete EQ Series Pumps 6"x6" | 340013 Pentair Hair & Lint Strainer Pot Complete EQ Series Pumps 6"x6" | 340013$1,30299 Pentair 356163Z drive and drive hardware kit for the 3 HP IntelliFlo3 pool pump Pentair Drive and Drive Hardware Kit for 3HP IntelliFlo3 Pool Pump, 356163Z$1,06399
Pentair 356795Z EQ Series seal plate, 11 by 2.5 inches Pentair EQ Series Seal Plate, 11" x 2.5", 356795Z$92899 Pentair 353127 drive with cover kit for the SuperFlo VS variable speed pump Pentair Drive with Cover Kit for SuperFlo VS Pump, 353127$74199 Pentair 350171 lock ring with lid gasket for EQ Series pumps Pentair Lock Ring/Lid Gasket for EQ Series Pumps, 350171$62599 Pentair C5-249 high head impeller, 5 HP, for D Series pumps Pentair High Head Impeller, 5 HP, for D Series Pumps, C5-249$60399 Pentair Diffuser Assembly for EQ Series EQW300 EQ1500 | 356735 Pentair Diffuser Assembly for EQ Series EQW300 EQ1500 | 356735$51099 Pentair 350027Z EQ Series impeller assembly for EQ1500 and EQW300 pumps Pentair EQ Series Impeller Assembly, 350027Z$50499 Pentair 350028Z EQ1000 pump impeller assembly Pentair EQ1000 Pump Impeller Assembly, 350028Z$45799 Pentair 356750Z EQ Series clear strainer lid Pentair EQ Series Strainer Lid, Clear, 356750Z$43799 Pentair 350030Z EQ500 pump impeller assembly Pentair EQ500 Pump Impeller Assembly, 350030Z$39599 Hayward SPX3100AAZ Super II threaded pump housing with strainer Hayward Super II Pump Housing, Threaded, 1.5" x 1.5", SPX3100AAZ$38199

Product details

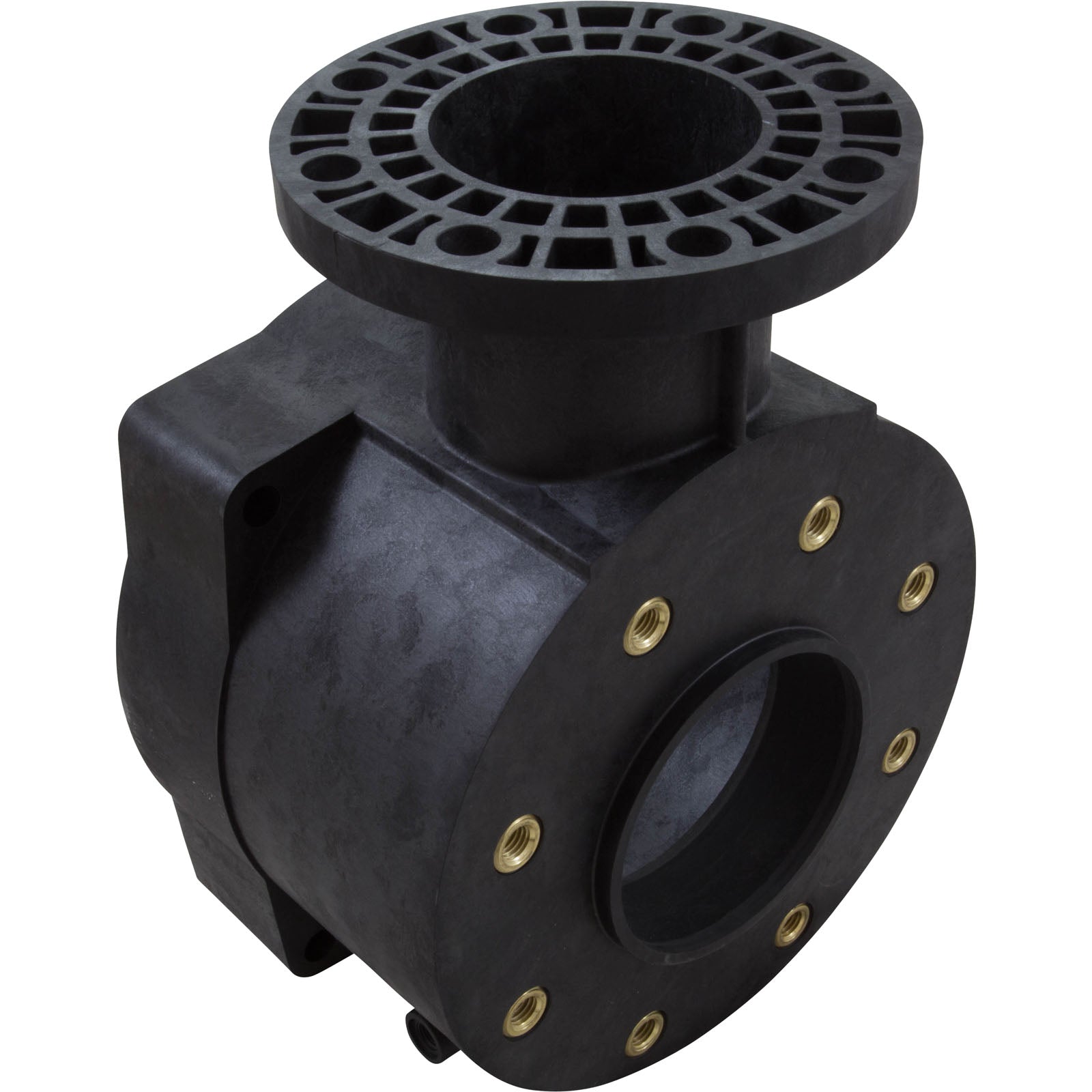

The Pentair 356755 is the pump housing for the EQ Series High Performance Commercial Pump, listed by Pentair as item 22, Housing - EQ Series, in the pump's illustrated parts list.

Fit

Pentair uses the one housing part number across its 6 in by 4 in EQ Series pumps, from the 3 HP EQ300 up to the 15 HP EQK1500, including the three phase K models and the EQKT models. Pentair describes the EQ Series as a commercial plastic pump for commercial pools, a drop-in replacement for C Series and CSP pumps, with a Cam and Ramp see-thru lid.

What goes with the housing

The housing is the front housing of the pump. The motor end assembly is held to it by four 5/8-11 brass nuts (356776z), and it is sealed by the seal plate O-ring (356780z) and the diffuser O-ring (350037z). The drain plug is 357161z with its own O-ring, 192115z. The strainer pot is a separate assembly, 356725 for the pot, with its own lid gasket (350166z) and pot flange O-ring (350013z).

Before you order

Check the model on the pump label and match 356755 against the parts list in Pentair's EQ Series guide. Pentair says to drain the pump and lock out power before opening it, and to lubricate the O-rings with silicone when you reassemble so they do not pinch.

From Pool School

How to Prime a Pool PumpFrom the breaker to a full pot, each manufacturer's time limit, and what to check when it won't catch prime. Read Replace the Pool Pump Motor or the Whole Pump?The manufacturers' tests first, what each repair replaces, and the federal motor rule. Read
Specifications
Brand Pentair
Manufacturer part number 356755
UPC 788379689858
Type Pump housing
Fits Pentair EQ Series commercial pool pumps
Condition New, OEM
Pentair parts list Item 22, Housing - EQ Series, EQ Series High Performance Commercial Pump guide
Pump sizes in parts list 6 in by 4 in EQ Series pumps, 3 HP to 15 HP
Seal plate O-ring 356780z
Diffuser O-ring 350037z
Shipping weight 15.75 lb
Ships Freight

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, 2.2 THP, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 1.1 THP, 115/208-230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS / VST 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 5237695.0 (1) $39399 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14699 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, 3 HP Max, 3.95 THP, 230V, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S, 170145$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 5237705.0 (1) $38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$40199 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Which pumps does this fit?
Pentair EQ Series commercial pool pumps.
Is it genuine Pentair?
Yes. It is a new OEM Pentair part, number 356755.
Are the lid gasket and O-rings included with housing 356755?
Pentair lists them as separate parts: the strainer pot lid gasket is 350166z, the seal plate O-ring is 356780z and the diffuser O-ring is 350037z. Order the ones your pump needs alongside housing 356755.
How do I confirm this is the right housing?
Match part number 356755 against the Pentair EQ Series parts diagram for your pump.
