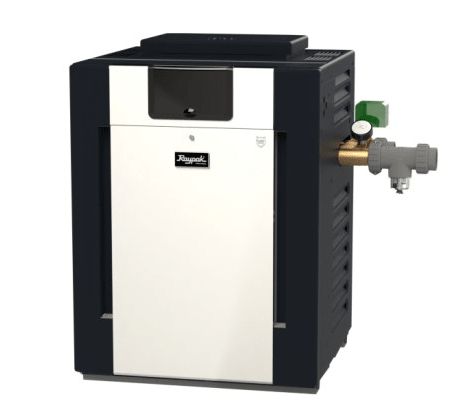

Raypak Professional Series ASME Propane Pool Heater, 399K BTU, Cupro-Nickel Heat Exchanger, Bronze Headers, B-R408-EP-X #57, 013732

The Raypak B-R408-EP-X #57, part number 013732, is the propane Professional Series gas heater: 399,000 BTU/hr input, an ASME cupronickel fin tube exchanger, 2 inch bronze headers with ProTek Shield, and a digital control, rated for 0 to 2,000 ft.

Who it is for

Raypak builds the Professional for commercial properties: apartment and condo complexes, gyms, hotels, schools, parks and community pools. It is also Raypak's pick for coastal sites where salt air is hard on equipment, with a stainless steel door, burner tray, base and flue collector.

Standard equipment

The heater comes assembled with a flow switch, a temperature and pressure gauge and a 125 psi relief valve, and Raypak says it is Texas Boiler Code compliant out of the box. Raypak says the flow switch eliminates pressure issues from elevated pools. Whether a pool needs an ASME heater is for the local code and the inspector to say.

Controls and connections

A microprocessor control with a digital LCD sets the temperature and gives a diagnostic readout, and ties into an existing remote system. The self adjusting burner compensates for gas pressure changes. Water connections are 2 inch slip and the gas connection 3/4 inch NPT, on 120 or 240 VAC. At Raypak's rated 82 percent it puts about 327,180 BTU/hr into the water.
