Pentair R201476 No. 192 snap-adapt vacuum head handle with Delrin spring clipPentair No. 192 Snap-Adapt Vacuum Head Handle with Delrin Spring Clip, R201476 In stock$1099

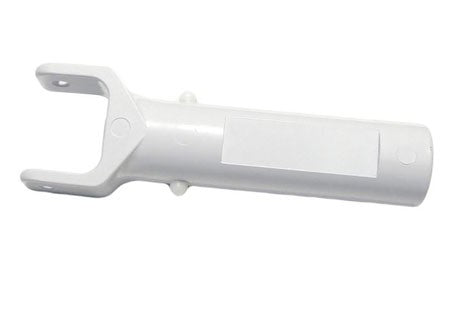

Pentair R201476 No. 192 snap-adapt vacuum head handle with Delrin spring clip
Shop all Pentair

Pentair No. 192 Snap-Adapt Vacuum Head Handle with Delrin Spring Clip, R201476

Ask a questionMPN R201476
$1099
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Pentair No. 192 handle R201476 is the snap-adapt handle Pentair lists in the parts breakdowns of several of its manual vacuum heads.
  • Fits five vacuum models Listed for the 250 and 252 swivel wheel flexible vacuums, the ProVac 214R and 222R, and the 196 Clear View vacuum.
  • Snaps into standard poles The Delrin spring clip locks the handle into a standard telescopic pole without tools.
  • Bolt on if you prefer Take the spring clip out and the handle can be bolted to the pole for a fixed connection.
  • ABS body The handle is ABS plastic and the clip is Delrin acetal resin.
  • Bulk part R201476 is the handle on its own. Pentair sells the same No. 192 handle on a bubble pack card as R201486.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Pentair No. 192 Snap-Adapt Vacuum Head Handle with Delrin Spring Clip, R201476, SKU RAI-401-4063. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Pentair No. 192 Snap-Adapt Vacuum Head Handle with Delrin Spring Clip, R201476
Pentair

No. 192 Snap-Adapt Vacuum Head Handle with Delrin Spring Clip, R201476

$1099
Aladdin Magic Lube 1 oz. O-Ring Lubricant
Aladdin

Magic Lube 1 oz. O-Ring Lubricant

$699
Boss Clear Silicone Sealant Tube, 3 oz., PLB103C
American Granby

Boss Clear Silicone Sealant Tube, 3 oz., PLB103C

$1499
Deck-O-Seal Deck-O-Shield Waterfall & Stone Sealer, 1 Gallon, 3460210
Deck-O-Seal

Deck-O-Shield Waterfall & Stone Sealer, 1 Gallon, 3460210

$11699
Aladdin Magic Lube 5 oz. O-Ring Lubricant
Aladdin

Magic Lube 5 oz. O-Ring Lubricant

$1499
Skimlite 6000 Snaplite Series Button Lock Pole, 8' to 16', 2-Piece, 6016
Skimlite

6000 Snaplite Series Button Lock Pole, 8' to 16', 2-Piece, 6016

$14599
Pentair Sand Vac, 542090
Pentair

Sand Vac, 542090

$18099
Subtotal

Similar products

Other products people compare with this one.

Hayward SP1419T white eyeball jet seat removal tool Hayward Eyeball Seat Removal Tool, White, SP1419T$999 CMP 25600-411-000 DE scoop measuring tool with graduated dosage lines CMP DE Scoop Measuring Tool, 25600-411-000$1499 US Pumice Co PB-80 Pool Blok small floating pumice stone US Pumice Co Pool Blok Pumice Stone, Small, PB-80$1599 Waterway 218-1770A poly wrench and test plug combo tool Waterway Poly Wrench and Test Plug Combo Tool, 218-1770A$1199 Blue Square 1130799 Q360 infloor actuator o-ring Blue Square Q360 Infloor Actuator O-Ring, 1130799$1599 Adjust A Brush - Boden A Brush Coarse Scrub Pad with Knob | PROD075 Adjust A Brush - Boden A Brush Coarse Scrub Pad with Knob | PROD075$1399 Pentair 176 AXLE ASSY PLASTIC 4PK | R201472 Pentair 176 AXLE ASSY PLASTIC 4PK | R201472$1099 Pool Pals Brass Screw and Wing Nut Set | RP720 Pool Pals Brass Screw and Wing Nut Set | RP720$1499 Pool Pals V-Clip Plastic Set 3-Pack | RP735CS Pool Pals V-Clip Plastic Set 3-Pack | RP735CS$1499 Pentair LATCH HANDLE LEAF TRAP #186 | R18648 Pentair LATCH HANDLE LEAF TRAP #186 | R18648$1199
US Pumice Co PB-24 large pumice stone for pool tile and concrete US Pumice Co Pumice Stone, Large, PB-24$1699 Pentair 236950 square o-ring for Style I floor cleaning head Pentair Square O-Ring for Style I Floor Cleaning Head, 236950$1699 Pentair Delrin Spring Clip 170 R22001Z | R22001 Pentair Delrin Spring Clip 170 R22001Z | R22001$499 CMP Hose Adapter Combo, 1-1/2 in. MPT to 1-1/4 in. Hose CMP Hose Adapter Combo, 1-1/2 in. MPT to 1-1/4 in. Hose, 21093-000-000$499 Pentair Rainbow Replacement Polyester Screen Bag | R211516 Pentair Rainbow Replacement Polyester Screen Bag | R211516$1799 US Pumice Co PB-86 pumice stone pool blok with pole clip US Pumice Co Pumice Stone Pool Blok with Pole Clip, PB-86$1899 Pool Tool PVC Wire Saw | 139 Pool Tool PVC Wire Saw | 139$1899 CMP V38-141 universal DE filter grid guide template CMP DE Filter Grid Guide Template, Universal, V38-141$2199 Pentair 229910 plastic installation tool for G4, G4V and G4VHP cleaning heads Pentair G4, G4V and G4VHP Plastic Installation Tool, 229910$2299 Hayward Paramount 004852000000 ParaJet install and removal tool Hayward Paramount ParaJet Install and Removal Tool, 004852000000$2399

From Pentair

Your trusted source for all things pool. Pentair

Pentair equipment

Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001 Pentair MasterTemp 400 Natural Gas Pool Heater, EC-462028 Pentair Clean & Clear Plus 420 sq ft Cartridge Pool Filter, EC-160301 Pentair IntelliConnect Control & Monitoring System with Wi-Fi, EC-523317
Shop Pentair equipment

Genuine Pentair parts

Pentair Genuine OEM Seal Kit for WhisperFlo and IntelliFlo Pool Pumps, 356198 Pentair Genuine OEM High Flow Manual Air Relief Valve, 98209800 Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400 Pentair Genuine OEM MasterTemp/Max-E-Therm 6-Button Control Board Kit, 461105Z
Shop Pentair parts
Pool lighting: a backyard pool and spa lit in blue and green at nightPool water treatment: three people floating on rings in clear blue water, seen from abovePool cleaners: a toddler in flower sunglasses laughing in a yellow ring, held by her mother
Pentair makes pumps, filters, heaters, salt chlorinators, cleaners, lighting and automation for pools and spas.Shop all Pentair

Product details

The Pentair R201476 is the No. 192 snap-adapt handle, an ABS vacuum head handle with a Delrin spring clip, listed for the Pentair 250 and 252 swivel wheel flexible vacuums, the ProVac 214R and 222R, and the 196 Clear View vacuum.

What it does

The handle is the joint between the vacuum head and the pole. Its spring clip, made of Delrin acetal resin, snaps into a standard telescopic pole so the head goes on and comes off without tools. Pentair notes the clip can also be taken out and the handle bolted to the pole for a fixed connection. A cracked handle or a clip that no longer locks is the usual reason to replace it, since the head can twist or pull off the pole while you vacuum.

Fit

Pentair shows R201476 in the parts breakdowns for the 250 and 252 swivel wheel vacuums, the ProVac 214R and 222R, and the 196 and 196LW Clear View vacuums, and its catalog describes the No. 192 as fitting all vacuums and telescopic poles. The ProVac 214, 222 and 229 without the R take the No. 152 metal swivel handle, R201408, instead.

Before you order

This listing is the handle on its own. On the 250, 252, 214R and 222R, Pentair lists the handle nut and bolt as R201496, and on the 196 the handle uses a 2-1/4 in. connecting pin, R03101. The spring clip is sold alone as R22001Z. Pentair also packs the No. 192 handle with a 2-1/4 in. pin as R201492 or with a 1-3/4 in. pin as R201490.

Specifications
Brand Pentair
Manufacturer part number R201476
UPC 788379006846
Model No. 192 snap-adapt handle
Material ABS, with Delrin acetal resin spring clip
Pole connection Snaps into standard poles with the spring clip, or bolts on with the clip removed
Fits Pentair 250 and 252 swivel wheel flexible vacuums; ProVac 214R and 222R; 196 and 196LW Clear View vacuums
Replacement spring clip R22001Z, No. 170 Delrin spring clip
Handle mounting hardware R201496 stainless steel nut and bolt (250, 252, 214R, 222R); R03101 2-1/4 in. connecting pin (196)
Other packs R201486 on bubble pack card; R201492 with 2-1/4 in. pin; R201490 with 1-3/4 in. pin
Shipping weight 0.1 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Pentair

Pentair SuperFlo VS EC-342001 1.5 HP variable speed pool pump, front view Pentair SuperFlo VS 1.5 HP Variable Speed Pool Pump, EC-342001$1,48900 Pentair SuperFlo EC-348190 single speed pool pump, 1 HP, 115/230V Pentair SuperFlo 1 HP Single Speed Pool Pump, 115/230V, EC-3481905.0 (1) $74800 Pentair WhisperFlo VS EC-011533 2.6 THP variable speed pool pump, top view Pentair WhisperFlo VS 2.6 THP Variable Speed Pool Pump, 115/208-230V, EC-011533$1,79900 Pentair 262506 HiFlow 1.5 in. six way clamp style multiport valve Pentair Genuine OEM HiFlow Valve 1.5 in. 6-Way Clamp Style, 262506$20399 Pentair EC-520556 IntelliChlor 110/220V power center Pentair 110/220V IntelliChlor Salt Chlorine Generator Power Center, EC-520556$79900 Web Price Pentair 523769 IntelliChlor Plus and LT replacement sensor board Pentair IntelliChlor Plus and LT Replacement Sensor Board, 523769$39299 Pentair 350305S 3.2 kW 10 pole variable speed motor for IntelliFloXF and IntelliFlo 2 VST pumps Pentair 3.2 kW IntelliFloXF VSF, VSF, VS+SVRS, i1, i2 Motor, 350305S$78199 Pentair 523735-EC IntelliChlor Plus40 salt chlorine generator cell Pentair IntelliChlor Plus40 Salt Chlorine Generator Replacement Cell, 40,000 Gallons, 523735-EC$1,81900 Web Price Pentair Rainbow 320 in-line chlorinator R171096, front view Pentair Rainbow 320 In-Line Chlorinator, R171096$14499 Pentair 190003 tank clamp kit with tension control for Clean and Clear Plus, FNS Plus and Quad DE filters Pentair Genuine OEM Clamp Kit with Tension Control, 190003$30199
Pentair IntelliChlor LT25 salt chlorine generator cell 523747-EC Pentair IntelliChlor LT25 Salt Chlorine Generator Cell, 25,000 Gallons, 523747-EC$1,14900 Pentair IntelliFlo VS+SVRS variable speed pool pump, EC-011057 Pentair IntelliFlo VS+SVRS Variable Speed Pool Pump, EC-011057$2,39900 Pentair 170145 cartridge pack for Sta-Rite System 3 S7M120, inner and outer cartridges Sta-Rite 170145 System 3 S7M120 Large and Small Cartridge Set, 25021-0200S and 25022-0201S$46499 Pentair 261055 SM-20-3 2 in. side mount multiport valve kit, front view Pentair 2 in. Multiport Valve Kit for Side Mount Sand Filters, SM-20-3, 261055$29999 Pentair 523770 IntelliChlor Plus replacement controller (HMI), black Pentair IntelliChlor Plus Controller Replacement (HMI), Black, 523770$38399 Pentair 261152 SM20-2 2 in. side mount multiport valve kit for DE filters Pentair 2" Valve Kit Multiport, Side Mount DE Filters SM20-2, 261152$29799 Pentair 357149 WhisperFlo and IntelliFlo volute housing replacement kit, front view Pentair WhisperFlo and IntelliFlo Volute Housing Replacement Kit, 357149$28799 Pentair MicroBrite Color LED pool light EC-620425, 12 volt, 14 watt, with 100 ft cord Pentair MicroBrite Color LED Pool Light 12 Volt, 14 Watt with 100' Cord, EC-620425$61900 Pentair 59023400 FNS Plus 48 sq ft complete DE grid assembly Pentair Genuine OEM FNS Plus Element Assembly Complete, 48 Sq Ft, 59023400$39399 Pentair Amerlite EC-602128 500W 120V inground pool light with stainless steel facering Pentair Amerlite Pool Light for Inground Pools with Stainless Steel Facering, 500W 120V 50' Cord, EC-602128$43900 Web Price

Questions and answers

What people ask about this product, answered by our pool techs.

Will the R201476 handle fit my Pentair vacuum head?
Pentair lists the No. 192 snap-adapt handle, R201476, for the 250 and 252 swivel wheel flexible vacuums, the ProVac 214R and 222R, and the 196 Clear View vacuum. The ProVac 214, 222 and 229 without the R use the No. 152 metal swivel handle, R201408, instead.
How does the snap-adapt handle attach to a pole?
The Delrin spring clip on the R201476 snaps into a standard telescopic pole. Pentair notes the clip can be removed if you would rather bolt the handle to the pole.
How does the handle mount to the vacuum head?
On the 250, 252, 214R and 222R, Pentair lists a stainless steel nut and bolt for the handle, R201496. On the 196 Clear View vacuum, the parts list pairs the R201476 handle with a 2-1/4 in. connecting pin, R03101.
Which version of the No. 192 handle do I need?
R201476 is the handle by itself. Pentair also packs it with a 2-1/4 in. pin as R201492 or a 1-3/4 in. pin as R201490, which suit a head that needs a new pin, and sells the spring clip alone as R22001Z.
