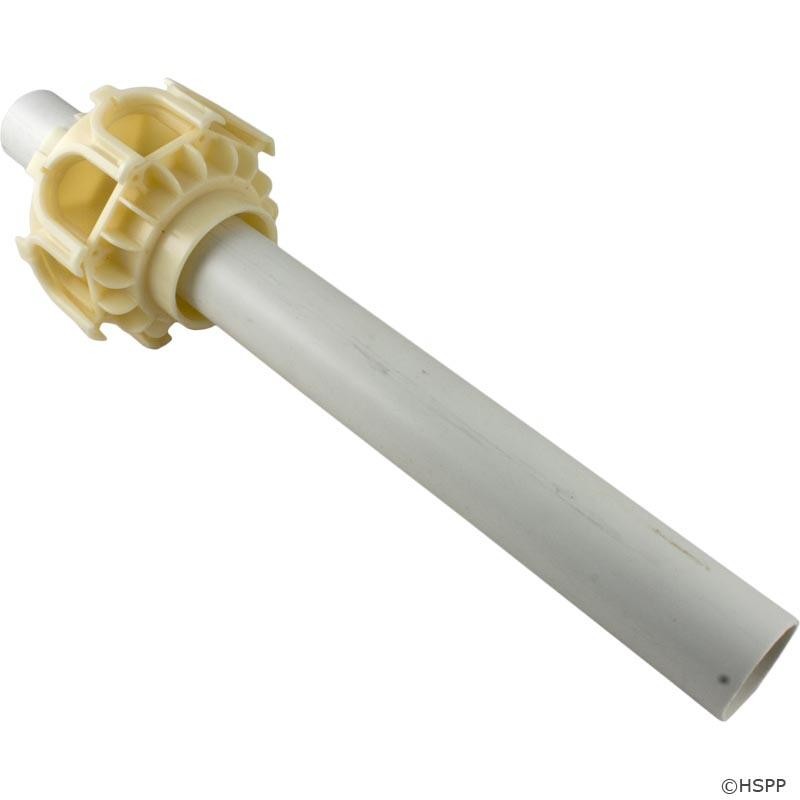

Jacuzzi 42376004R snap-fit stand pipe manifold assembly for Laser L190 sand filterJacuzzi Snap-Fit Stand Pipe, 190L (Laterals not Included), 42376004R In stock$4699
Jacuzzi 42376004R snap-fit stand pipe manifold assembly for Laser L190 sand filter
Shop all Jacuzzi Bros.

Jacuzzi Snap-Fit Stand Pipe, 190L (Laterals not Included), 42376004R

Ask a questionMPN 42376004R
$4699
In stock
Get volume pricing Request a quote

30 day returns · Easy, with prepaid labels provided

Quick overview

  • Laser L190 The stand pipe manifold assembly for the Jacuzzi Laser 190L sand filter.
  • Laterals not included This is the stand pipe and manifold only, so order laterals separately if yours are broken.
  • Snap-fit design The laterals snap onto the manifold rather than threading in one at a time.
  • Carries filtered water out The stand pipe is the column that runs down the center of the tank and returns clean water to the valve.
  • Sand in the pool A cracked stand pipe or manifold is the usual reason sand starts coming back through the returns.
  • Full sand change Getting the manifold out means emptying the tank, so plan on fresh media while it is open.
Full description and specifications ↓

Need a hand?

Bilingual support from pool professionals.
(888) 751-8084CallChat with a techChatEmail usEmail

Send us a message

A pool professional will get back to you, usually the same business day.

About Jacuzzi Snap-Fit Stand Pipe, 190L (Laterals not Included), 42376004R, SKU JAC-051-2427. We will include it with your message.

We use your details to answer this message and nothing else.

Frequently bought together

Current item Jacuzzi Snap-Fit Stand Pipe, 190L (Laterals not Included), 42376004R
Jacuzzi Bros.

Jacuzzi Snap-Fit Stand Pipe, 190L (Laterals not Included), 42376004R

$4699
Jacuzzi Sight Glass Deflector, 13038203R
Jacuzzi Bros.

Jacuzzi Sight Glass Deflector, 13038203R

$1099
Jacuzzi Air Bleeder Valve with O-Ring, 39254701R
Jacuzzi Bros.

Jacuzzi Air Bleeder Valve with O-Ring, 39254701R

$999
Jacuzzi Drain Cap with Gasket, 4626-16
Jacuzzi Bros.

Jacuzzi Drain Cap with Gasket, 4626-16

$1299
Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R
Jacuzzi Bros.

Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R

$1699
Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R
Jacuzzi Bros.

Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R

$3299
Jacuzzi Sight Glass for DVK-6 and DVK-7 Dial Valves, 4628-17
Jacuzzi Bros.

Jacuzzi Sight Glass for DVK-6 and DVK-7 Dial Valves, 4628-17

$1399
Subtotal

Similar products

Other products people compare with this one.

Jacuzzi 42375709R000 snap-fit stand pipe assembly for the Jacuzzi Laser 160L sand filter Jacuzzi Snap-Fit Stand Pipe for Laser 160L Sand Filter, 42375709R000$4299 Jacuzzi 42-3770-02 snap fit standpipe assembly with lateral for the Laser L160 sand filter Jacuzzi L160 Standpipe Assembly, Snap Fit, with Lateral, 42-3770-02$6699 Hayward SX200EB sand filter drain pipe assembly with cap and gasket Hayward Drain Pipe Assembly w/ Cap & Gasket, S160T/S220/S245T, SX200EB$3599 Jacuzzi 42377408K standpipe assembly for the Laser 250L sand filter Jacuzzi Standpipe Assembly, Laser 250L, 42377408K$4299 Jacuzzi Bros lock ring for CFR, Landslide and Sand Trap filters Jacuzzi Lock Ring, 42285007$5499 Hayward GMX600F genuine OEM o-ring, 6-3/4 in. inside diameter Hayward OEM O-Ring, 6-3/4" ID, GMX600F$2699 Pentair 155151 flexible hose kit, 1.5 in. x 6 ft, for Sand Dollar filter systems Pentair Sand Filter Hose Kit 1.5 in. x 6 ft, 155151$6099 Hayward GMX600NM two piece Vari-Flo valve clamp for Pro Series sand filters Hayward Valve Clamp for Pro-Series, GMX600NM$6099 Jandy R0745800 valve tank o-ring for SFTM sand filters Jandy Valve Tank O-Ring, R0745800$2899 Hayward SX244PX bulkhead fitting for Pro Series sand filters S210S, S244S, S310S and S311S Hayward Bulkhead Fitting for S210S/S244S/S310S/S311S, SX244PX$5899
Pentair 154712 sand filter drain cap Pentair Genuine OEM Sand Filter Drain Cap, 154712$3399 Jandy R0523000 filter drain cap with O-ring and union nut Jandy Drain Cap with O-Ring and Union Nut for DEV and CL Filters, R0523000$3599 Pentair 152220Z 2 inch NPT left-hand threaded spigot sand filter drain Pentair Genuine OEM 2" NPT Left-Hand Threaded Spigot Sand Filter Drain, 152220Z$4699 Pentair 154540 12 in. lateral assembly for Triton II TR140 sand filter Pentair Genuine OEM Lateral Assembly TR140, 154540$2799 Pentair 154687Z complete air bleeder package with tee and brass fitting Pentair Genuine OEM Air Bleeder Package, Complete, 154687Z$4999 Jandy R0555100 outlet tube and elbow assembly with o-rings Jandy Outlet Tube and Elbow Assembly with O-Rings, R0555100$6199 Pentair 154575Z 8-1/2 inch buttress thread top closure for Triton sand filters Pentair Genuine OEM 8-1/2" Buttress Thread Top Closure, 154575Z$6899 Pentair 190059Z OEM pressure gauge with indicator for pool filters Pentair OEM Pressure Gauge with Indicator, 190059Z$5899 Jandy R0487400 lid O-ring for JS100-SM filter Jandy Lid O-Ring for JS100-SM Filter, R0487400$2499 Pentair 155711 pump connection assembly for the Sand Dollar SD60 filter Pentair Pump Connection Assembly SD60, 155711$6999

Product details

The Jacuzzi 42376004R is the snap-fit stand pipe manifold assembly for the Laser L190 sand filter with the bolt-on valve. Laterals are not included.

What it does

The stand pipe runs down the center of the tank to the manifold sitting in the sand bed. Water is pushed down through the media, passes through the laterals, and returns up the stand pipe to the valve. That column is the only route filtered water has out of the tank.

When it needs replacing

Sand appearing in the pool is the classic symptom. A crack anywhere in the stand pipe, the manifold or one of the laterals lets media bypass the screens and travel straight out to the returns. Since the manifold sits at the bottom of the tank, reaching it means emptying the sand out, which is the natural moment to put in fresh media and check every lateral rather than replacing one piece at a time.

Specifications
Brand Jacuzzi
Manufacturer part number 42376004R
Type Snap-fit stand pipe manifold assembly
Fits Jacuzzi Laser L190 sand filter, bolt-on valve style
Included Stand pipe and manifold, laterals not included
Shipping weight 5 lb
Ships Parcel

Request a quote

Need a volume price, a freight quote, or pricing in writing before you order? We reply the same business day.

Request a quote

Customer reviews

More from Jacuzzi Bros.

Jacuzzi 13038203R sight glass deflector for DVK series dial valves Jacuzzi Sight Glass Deflector, 13038203R$1099 Jacuzzi 42212316R DE filter grid, 8-1/2 in by 18 in Jacuzzi DE Filter Grid 8-1/2" x 18" (4 Required), 42212316R$5199 Jacuzzi 39254701R plastic air bleeder valve with o-ring for pool filters Jacuzzi Air Bleeder Valve with O-Ring, 39254701R$999 Jacuzzi 47056999R 20 inch tank o-ring for Tri-Clops cartridge filters Jacuzzi Tank O-Ring for Tri-Clops Filters, 47056999R$1699 Jacuzzi 42356907R DE filter grid, 8-1/2 by 12 inch Jacuzzi DE Filter Grid 8-1/2" x 12" (4 Required), 42356907R$4499 Jacuzzi 4626-16 drain cap with gasket Jacuzzi Drain Cap with Gasket, 4626-16$1299 Jacuzzi 1/4 inch PVC air bleed assembly for Earthworks and Tri-Clops filters Jacuzzi Air Bleed Assembly, 1/4" PVC, 4669-08$3899 Jacuzzi 47038047R OEM filter tank o-ring for Sherlock filters Jacuzzi OEM Filter Tank O-Ring for Sherlock Filter, 47038047R$3299 Jacuzzi dirt catcher for CFR 100 cartridge filter, part 4666-15B Jacuzzi Dirt Catcher, CFR 100, 4666-15B$12999 Jacuzzi 4638-03B DE filter grid, 7 inches by 18 inches Jacuzzi DE Filter Grid 7" x 18" (2 Required), 4638-03B$4999
Jacuzzi 4628-17 plastic sight glass for DVK-6 and DVK-7 dial valves Jacuzzi Sight Glass for DVK-6 and DVK-7 Dial Valves, 4628-17$1399 Jacuzzi replacement tank lid for CFR cartridge filters Jacuzzi Tank Lid for CFR 50, 75, 100 and 150 Cartridge Filters, 4666-13A$8499 Jacuzzi Bros lock ring for CFR, Landslide and Sand Trap filters Jacuzzi Lock Ring, 42285007$5499 Jacuzzi 43114404R W Series skimmer face flange Jacuzzi W Series Skimmer Face Flange, 43114404R$6699 Jacuzzi 10-1462-07 eye seal ring for 1/2 HP to 3 HP pumps Jacuzzi Eye Seal Ring 1/2HP-3HP, 10-1462-07$2599 Jacuzzi 42-2995-03-R dirt catcher for the CFR 75 cartridge filter Jacuzzi Dirt Catcher, CFR 75, 42-2995-03-R$10599 Jacuzzi 1/4 inch black plastic drain plugs with o-rings, set of two Jacuzzi Drain Plug 1/4" with O-Ring (Set of 2), 30060906R2$1199 Jacuzzi 42357004R DE filter grid, 7 in by 12 in Jacuzzi DE Filter Grid 7" x 12" (2 Required), 42357004R$4299 Jacuzzi dirt catcher for the CFR 50 cartridge filter Jacuzzi Dirt Catcher, CFR 50, 4666-15$9099 Jacuzzi 42367102R filter lock ring for SherLok and Avalanche filters Jacuzzi Filter Lock Ring, 42367102R$7299

Questions and answers

What people ask about this product, answered by our pool techs.

Do the laterals come with it?
No. This is the stand pipe and manifold assembly only. Laterals are ordered separately.
Which filter is it for?
The Jacuzzi Laser 190L sand filter with the bolt-on top mount valve.
Why is sand blowing into my pool?
Nearly always a crack in a lateral, the manifold or the stand pipe. Once the sand has a path past the manifold it goes straight out to the returns.
What is involved in fitting it?
The tank has to be opened and the sand removed to reach the manifold at the bottom. Since the sand is out anyway, most people put fresh media in at the same time.
